Radial JPC

Stereo Direct Box for Laptops and A/V applications

Order Code: JPC
Enquire
Our Price: $237.50

What could be more rock solid? All of the important bits are held inside, protected by a 14-gauge steel force-field. The inputs are: stereo mini jack, stereo 1/4" jack, and 2 x RCA (with throughput). Internal transformer isolation removes ground loops, making this perfect for laptop, minidisk, i-Pod or unbalanced DJ mixer connection to a professional PA or recording system. 2 x XLR outputs, powered via Phantom only.

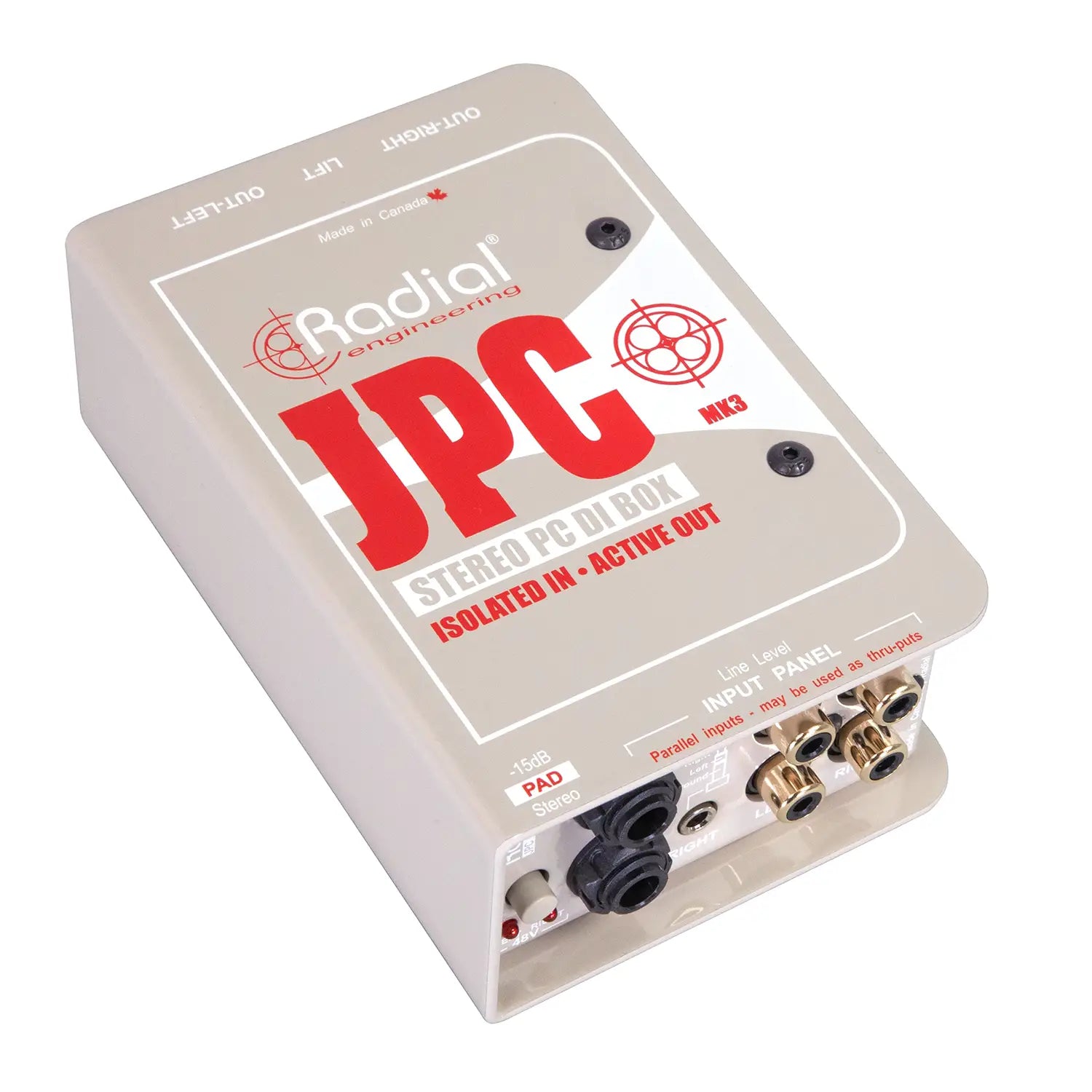

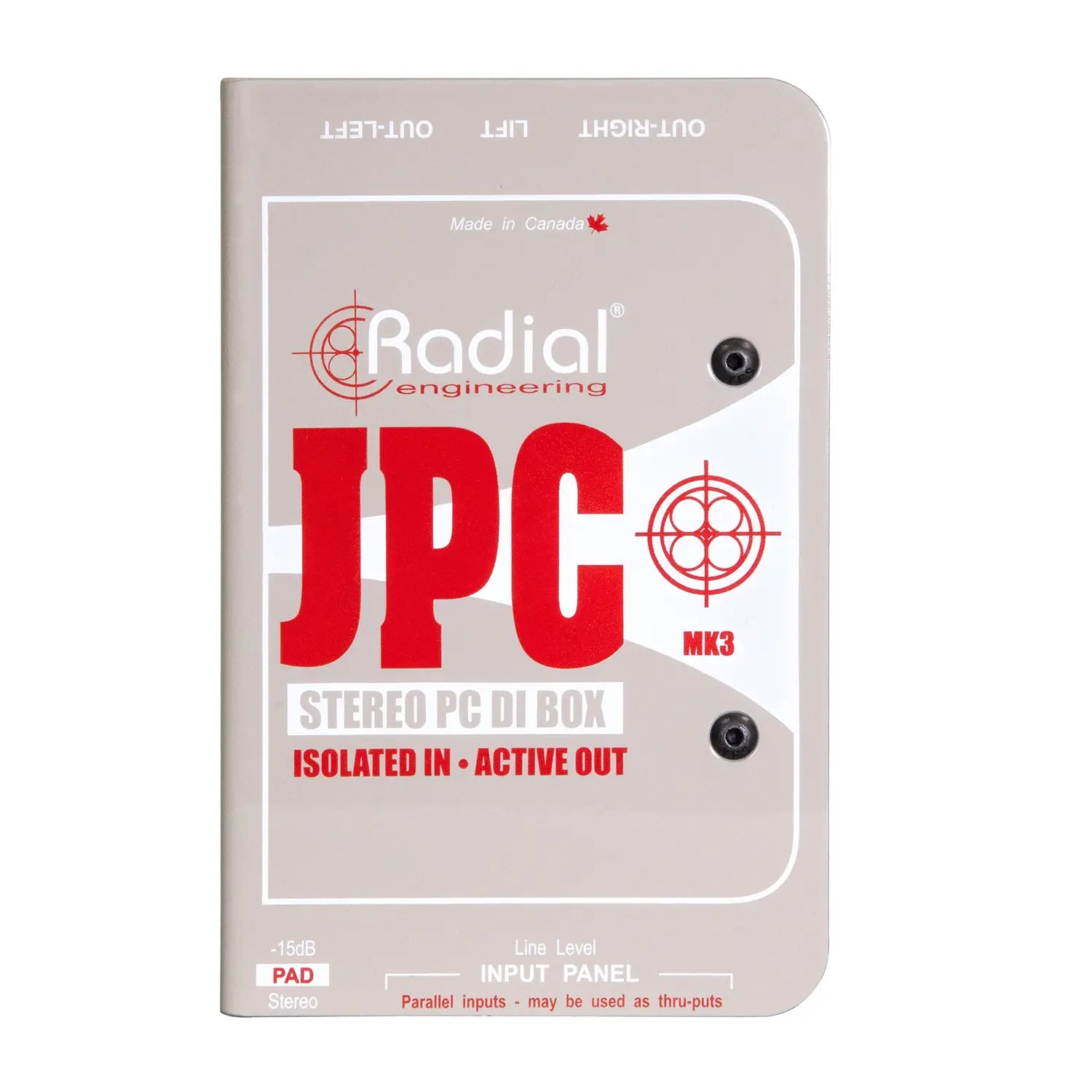

Photo of Radial JPC available from Factory Sound
  • Jpc
  • Jpc_open

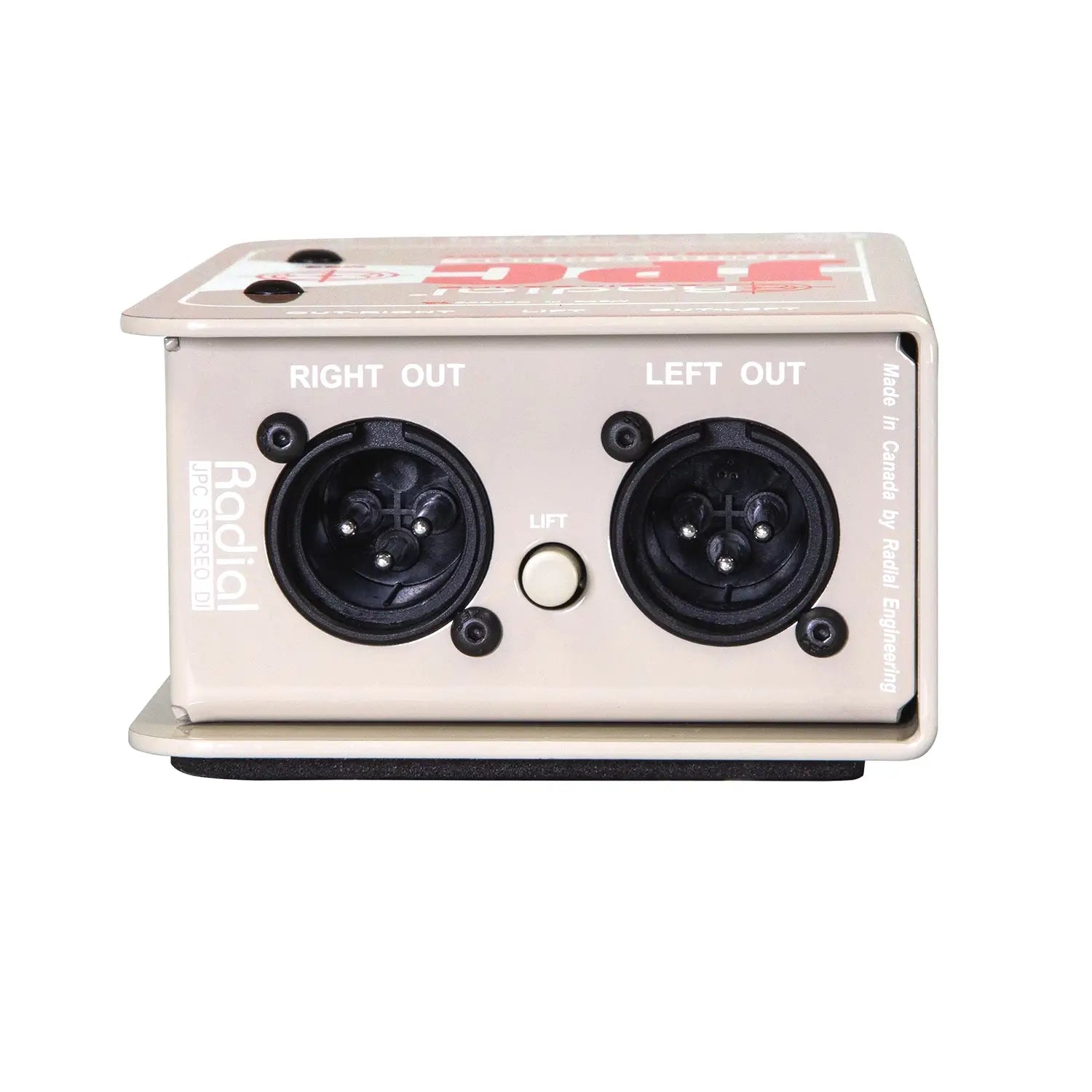

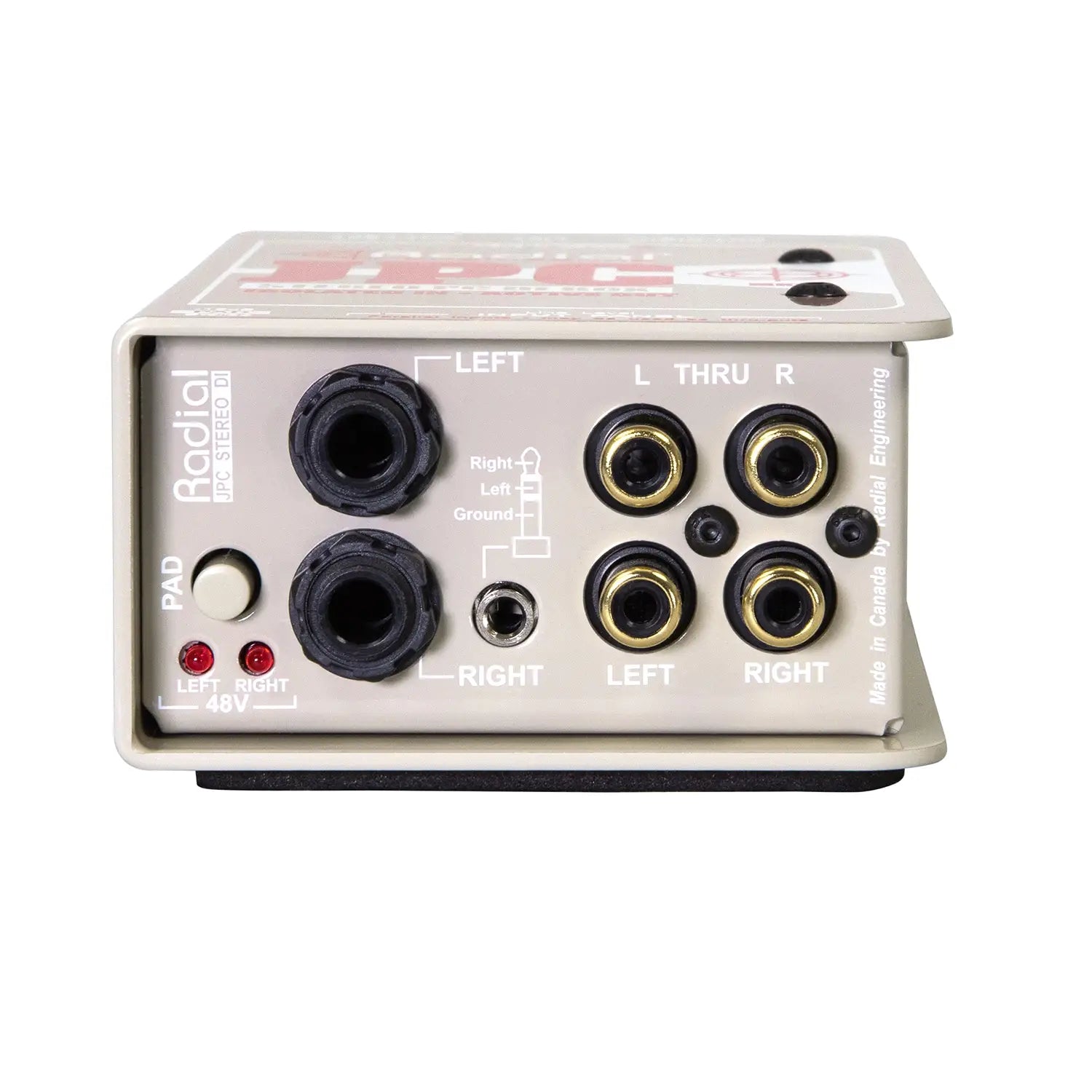

  • Jpc_connections
  • Jpc_inside
  • Easy to use stereo interface for laptop computers
  • Active signal path with transformer isolation
  • Eliminates hum and buzz common to PCs
  • Full connector options set for easy interface

Intended for professional field use, the JPC comes fully loaded with choice of ¼", RCA and 3.5mm input connectors that make it easy to interface with all types of unbalanced audio sources such as computers, iPods, and CD players. It is equipped with isolation transformers to eliminate hum and buzz caused by ground loops and to further reduce system noise; while AC blocking capacitors in the active circuit prevent pollution from the audio system from bleeding back into the computer. Outputs are XLR balanced mic level for easy interface to snake systems and PAs. Powering the JPC is accomplished via 48V phantom from a mixing console. This enables the JPC to be used in concert environments without requiring an external power supply.

 SpecificationsJPC
Audio circuit type: Unity Gain buffers and inverters using low noise high end audio grade operational amplifiers
Frequency response: 20Hz ~ 20kHz +/- 2dB
Signal to noise ratio:
Dynamic range: 111dB
Noise floor: -97dB below 0dB Out
Equivalent input noise: -94dBu
Maximum input: +17dBu
Phase deviation: +29º at 20Hz | -5º at 1kHz | -80º at 20kHz
Total harmonic distortion: 0.01% @ -15dBu Output
Inter-modulation distortion: Less than 0.15% at any level below clipping
Input impedance: 10kΩ
Output impedance: 600Ω
Features
Input pad: -15dB
48V power LED Two 48V phantom indicators, one for each channel
Ground lift: Disconnects pin-1 at the XLR outputs
XLR configuration: AES standard (pin-2 hot)
General
Power: 48V Phantom Power (each channel requirers 48V phantom)
Construction: 14 gauge steel chassis and outer shell, baked enamel finish
Size: 84 x 127 x 48mm
Weight: 720 g
Warranty: 3-year
