Neutrik

Neutrik NAC3MP-HC

PowerCON 32 A chassis connector, power-in

Order Code: NAC3MP-HC
Enquire
Our Price: $14.00

For high powered applications, Neutrik's 'HC' range of PowerCON connectors can handle more than your average power connector. Rated to 32 A, it can be found already built in to a range of high-powered amplifiers (including Camco), plus some lighting fixures.

Powercon 32 Amp chassis connector

The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardised 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.

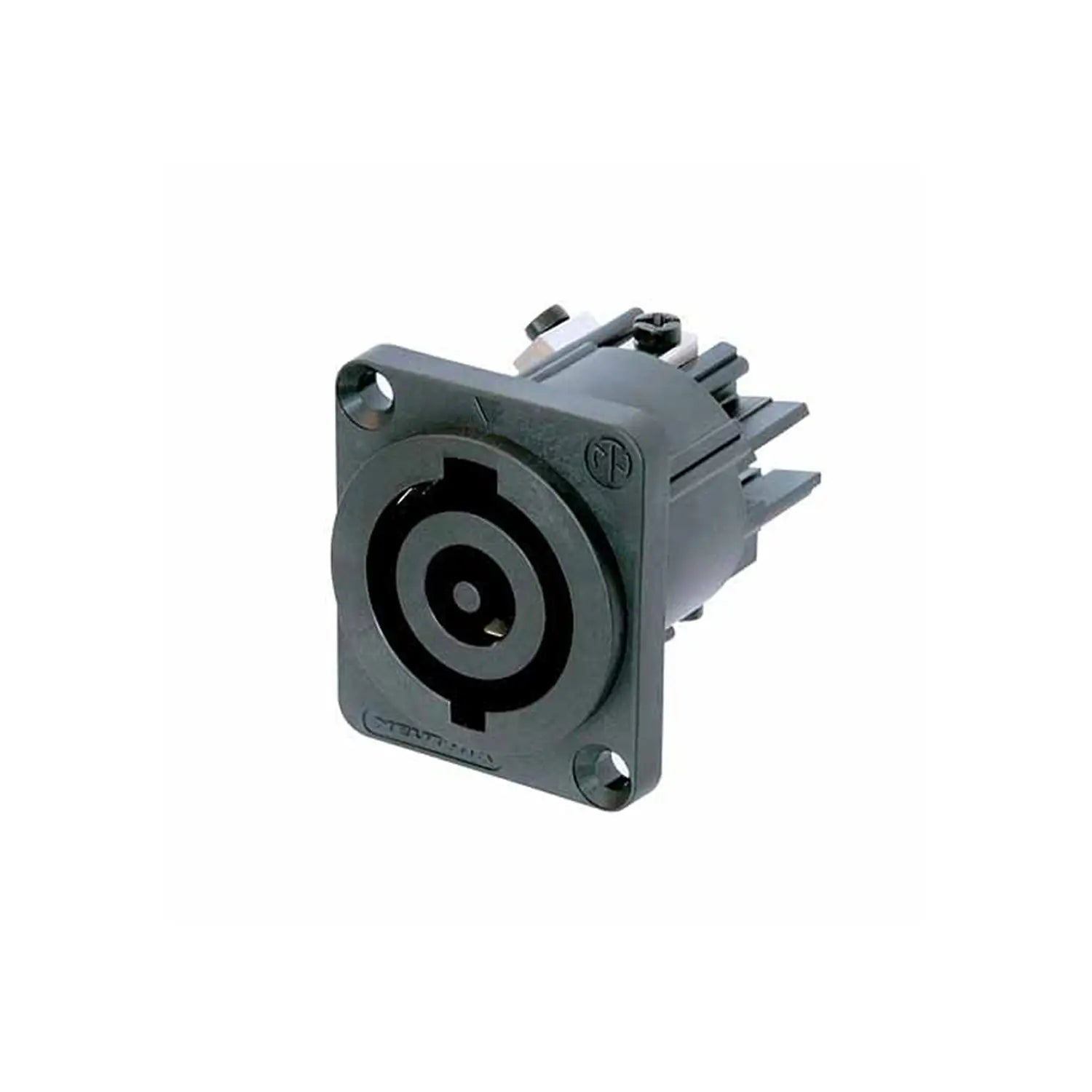

Photo of Neutrik NAC3MP-HC available from Factory Sound

Features:

  • 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved
