151 in stock

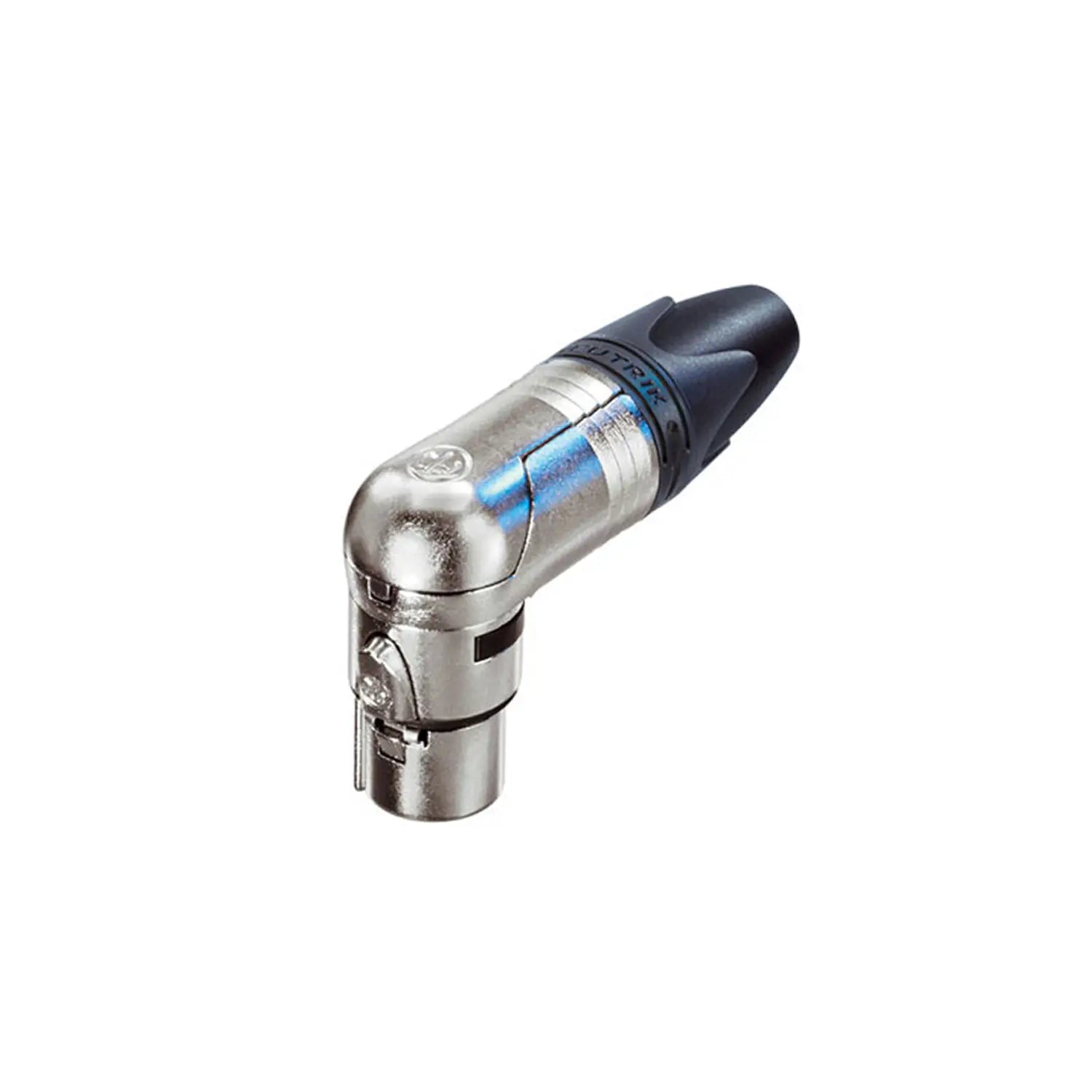

3 Pin compact low profile right-angle female XLR with Neutrik ‘chuck-principle’ cable clamp. This ‘RX’ Series is the right angle version of the XX cable connector series.
An upgrade to the old ‘RC’ series, it offers several new features which make it more reliable, easier to assemble and also improves contact integrity and cable strain relief.
5 selectable cable outlet positions
Cable O.D. range: 3.5 mm – 8.0 mm
electrical |
dielectric strength : 1500 |
insulation resistance : >2 GΩ |
rated current per contact : 16 |
rated voltage : <50 V |
dimensions |
width : 19 |
height : 41 |
depth : 72.9 |
weight : 0.055 |
connection type : solder contacts |
housing material : die-cast zinc |
contact material : silver-plated bronze |
country of origin : Liechtenstein |
