Neutrik NC3FXX

3 Pin Female XLR connector (inline)

Order Code: NC3FXX
Enquire
Our Price: $5.50

3 Pin XLR female (inline) connector. The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector).

Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief.

Cable O.D. range: 3.5 mm - 8.0 mm

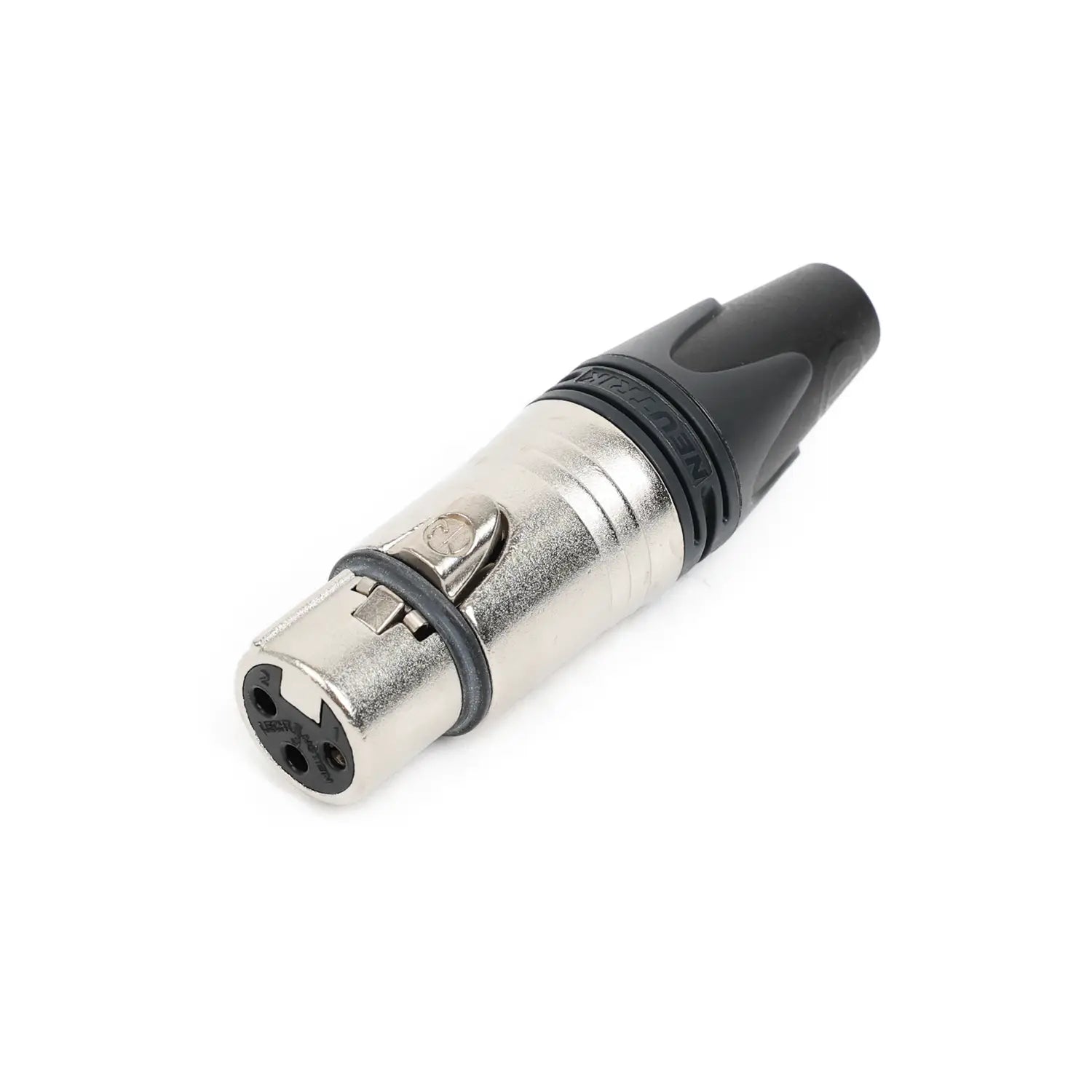

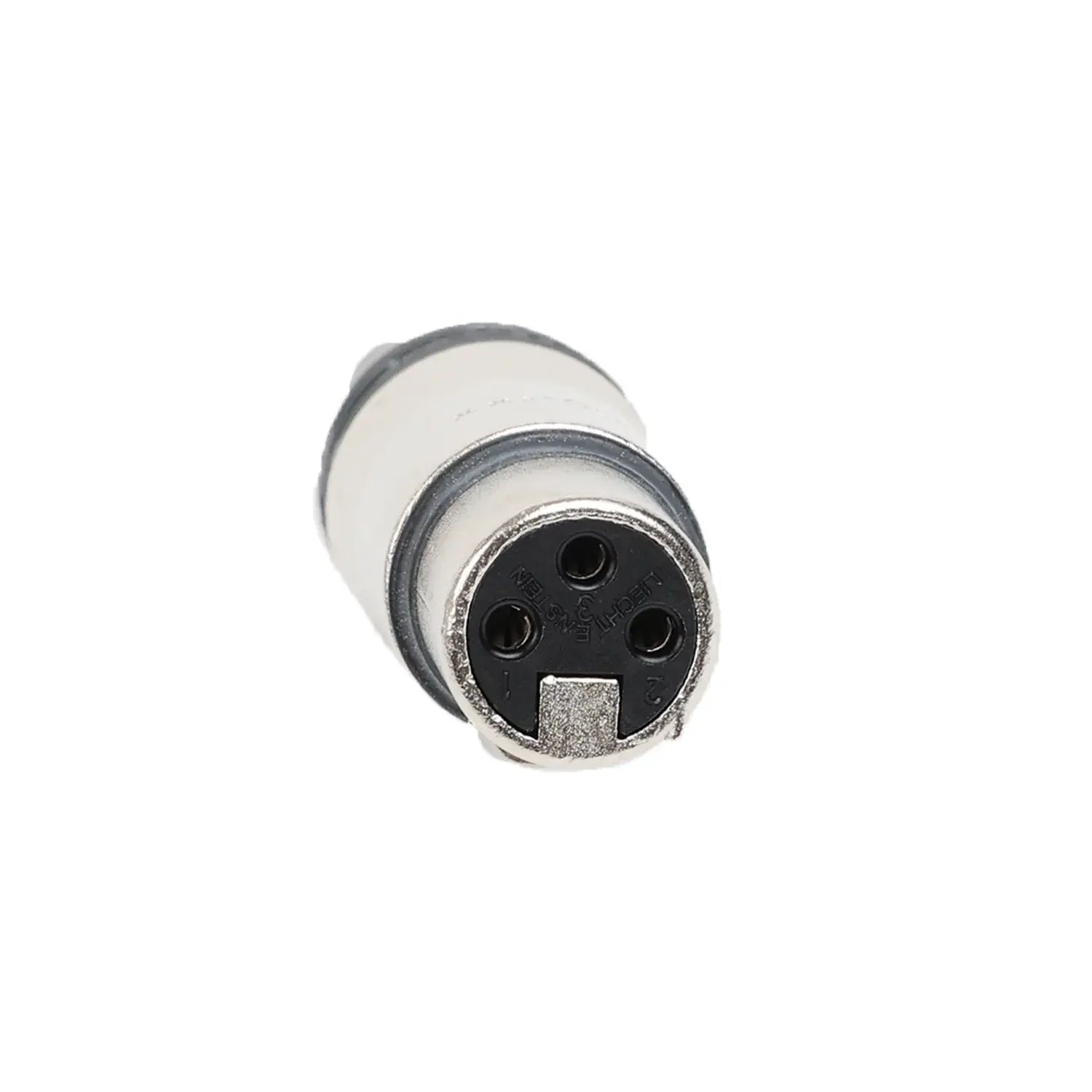

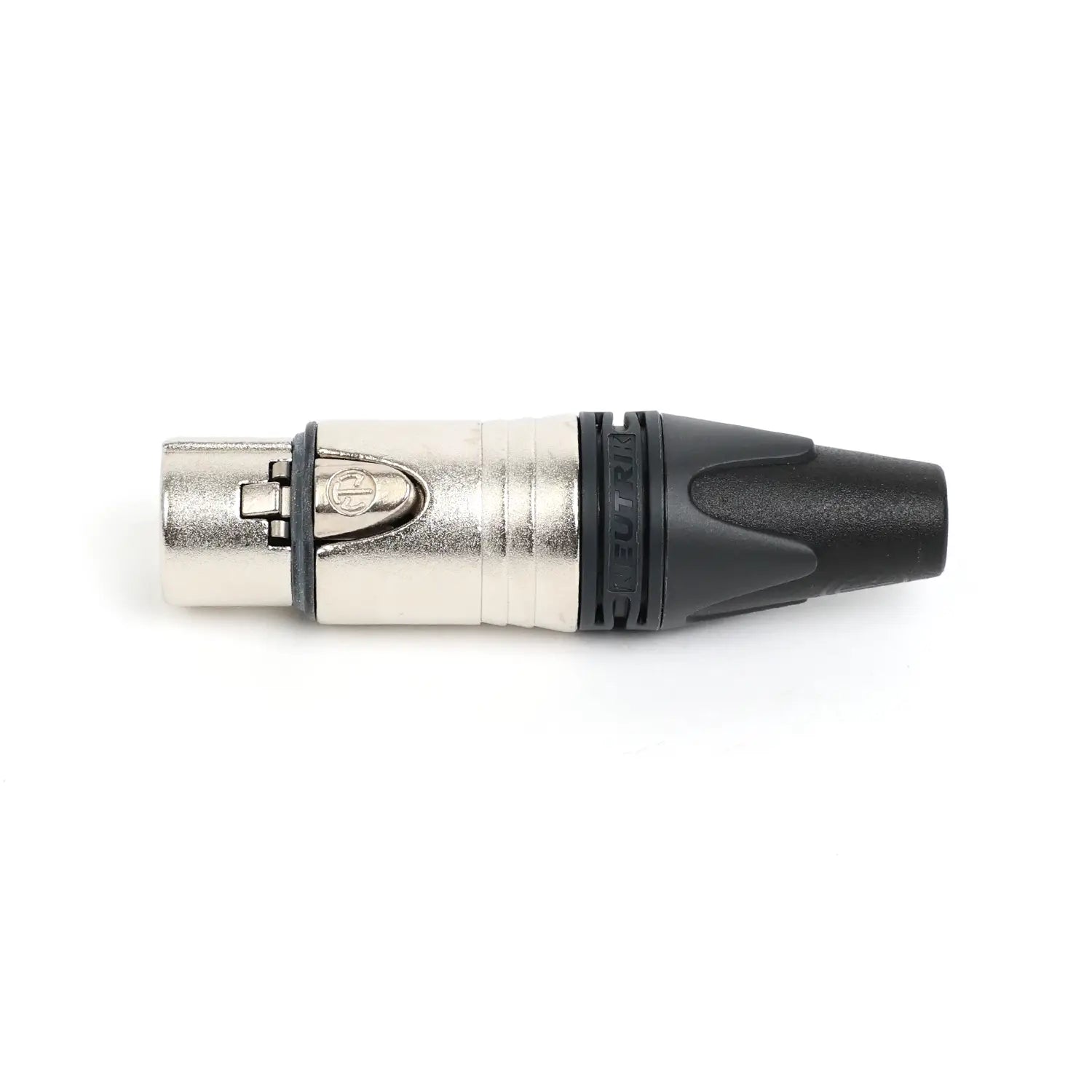

Photo of Neutrik NC3FXX available from Factory Sound
  • Nc3fxx
  • Nc3fxx_dim
  • Nc3fxx_packet

Features & Benefits

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product



Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ (inner)
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact 16 A
Rated voltage 50 V

Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Locking device Latch lock

Material
Boot Polyurethan
Contact plating 2 µm Ag
Contacts Nickel
Insert Polyamide (PA 6.6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)

Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
