Neutrik

Neutrik NC5MXX

5 Pin Male XLR connector (inline)

Order Code: NC5MXX
Enquire
Our Price: $10.00

5 Pin XLR male (inline) connector. The worldwide accepted standard. Rugged diecast shell, rear insert, robust and compact design (shortest available XLR cable connector).

Time saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief.

Cable O.D. range: 3.5 mm - 8.0 mm
Nickel housing and silver contacts

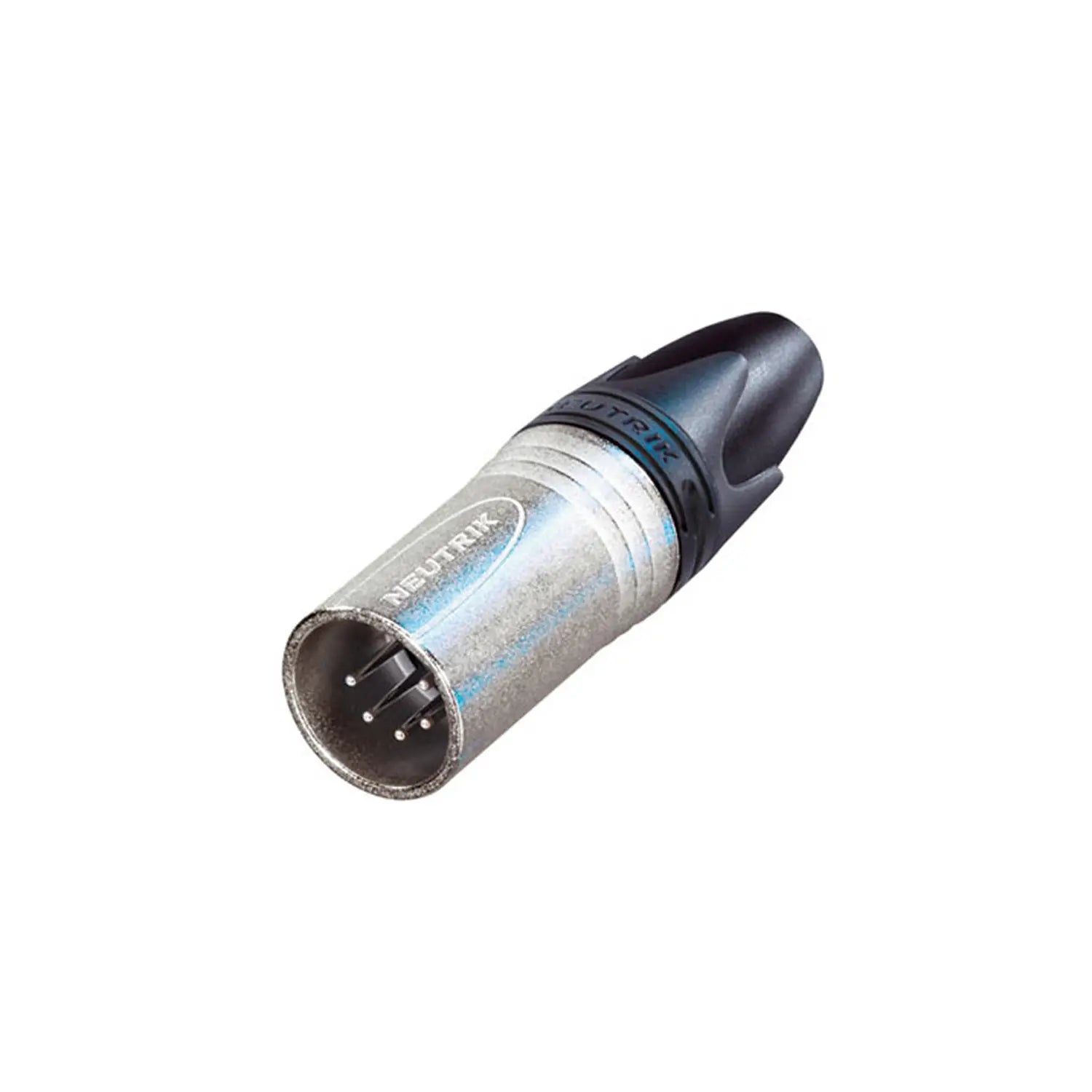

Photo of Neutrik NC5MXX available from Factory Sound

Features & Benefits

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
