Neutrik NE8FDP

Ethercon RJ45 feedthrough receptacle (D-shape)

Order Code: NE8FDP
Enquire
Our Price: $15.00

D-Type Receptacle - Rear RJ45 Feed-Thru Socket; Nickel Shell

RJ45 feedthrough receptacle, D-shape metal flange with the latch lock. Mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimised for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardised panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Search for more etherCON products via our webstore here

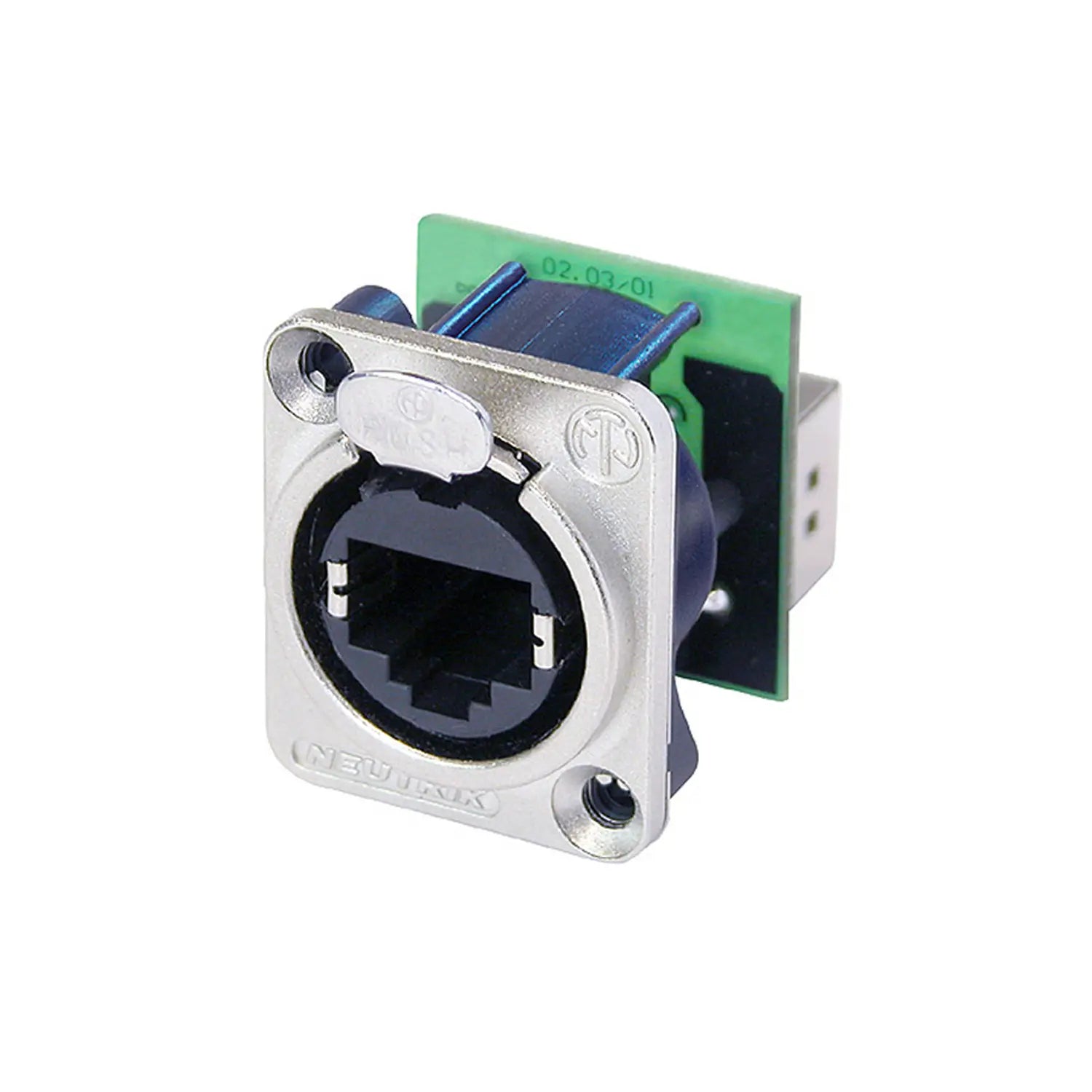

Photo of Neutrik NE8FDP available from Factory Sound

Features:

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
