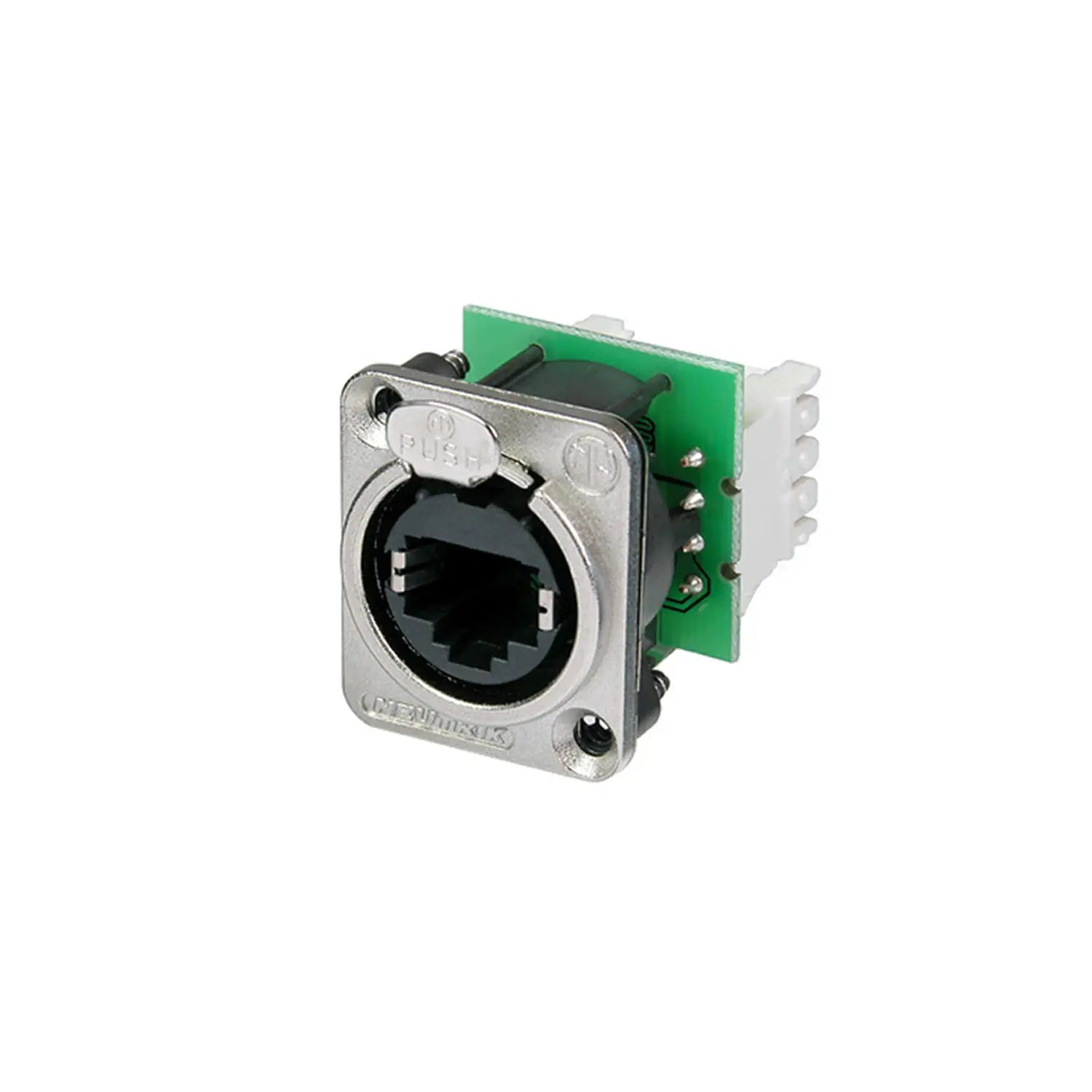

D-Type Panel Receptacle - IDC 110 Punch-Down Type
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm. Mounting screws included.
The etherCON Series is a ruggedised and lockable RJ45 connector system, optimised for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardised panels out of the entertainment industry.
D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Search for more etherCON products via our webstore here
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
- Selectable ground - panel connection
- Easy and quick mounting using 110 type punch down terminals
