Neutrik

Neutrik NE8FDX-Y6

Ethercon CAT6A panel mount (D-size) IDC termination

Order Code: NE8FDX-Y6
Enquire
Our Price: $21.00

D-Size Panel Receptacle; Shielded; IDC Termination; Nickel housing

D-shape CAT6A panel connector, shielded, IDC termination, nickel housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Search for more etherCON products via our webstore here

Please note: unlike most Neutrik D-series panel mount connectors, NE8FDX-Y6 is not rear-mountable

NE8FDX-Y6 will interconnect with existing Cat5 etherCON connectors - backwards compatability assures only Cat5 performance

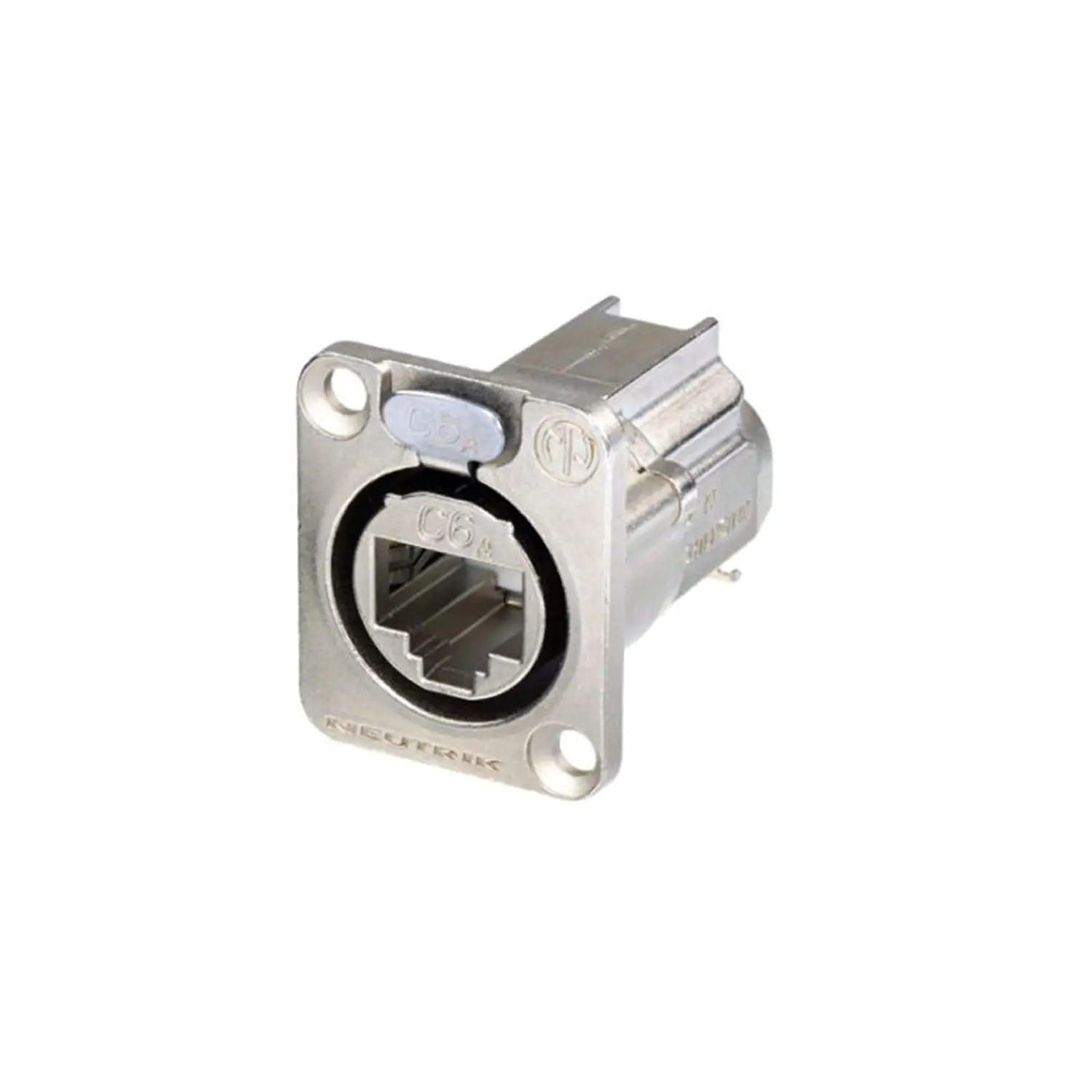

Photo of Neutrik NE8FDX-Y6 available from Factory Sound
  • Ne8fdx-y6
  • Ne8fdx-y6-rear

Features:

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection
