Radial

Radial ProAV2

2 discrete Multimedia DI channels

Order Code: ProAV2
Enquire
Our Price: $245.00

Something to throw into your AV toolbox, for when you need to escape the quicksand of a sticky situation. ProAV2 is a passive direct box specifically developed with the audio-video integrator in mind, delivering two discrete channels where full stereo functionality is required.

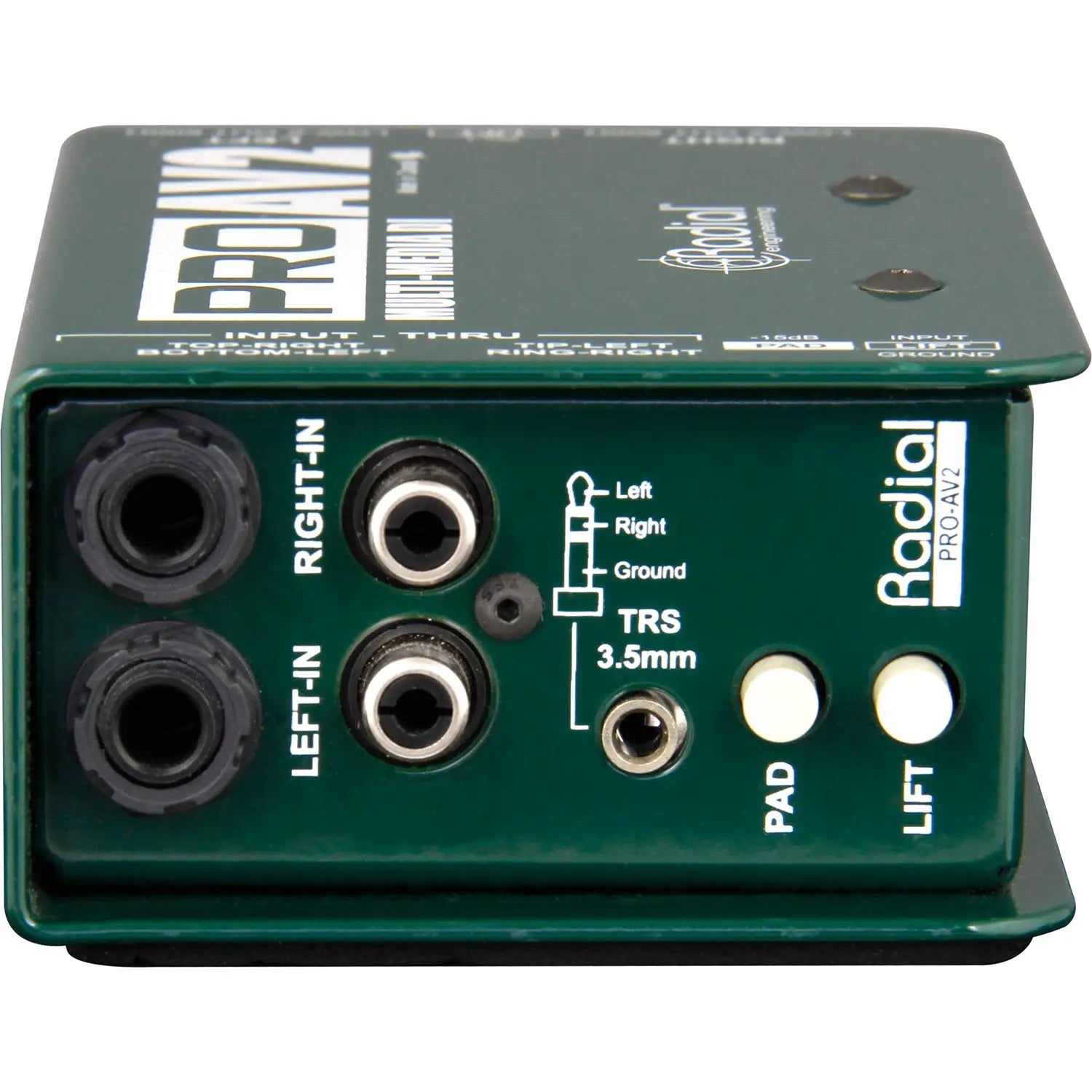

To eliminate the need for various adaptors, both units are equipped with a 'Swiss Army' array of connectivity options including 1/4" inputs for instruments, RCA and 3.5mm (1/8") connectors for CD players, iPods, video decks and computers. The front panel connectors can also be used as thru-puts to allow multiple patch points.

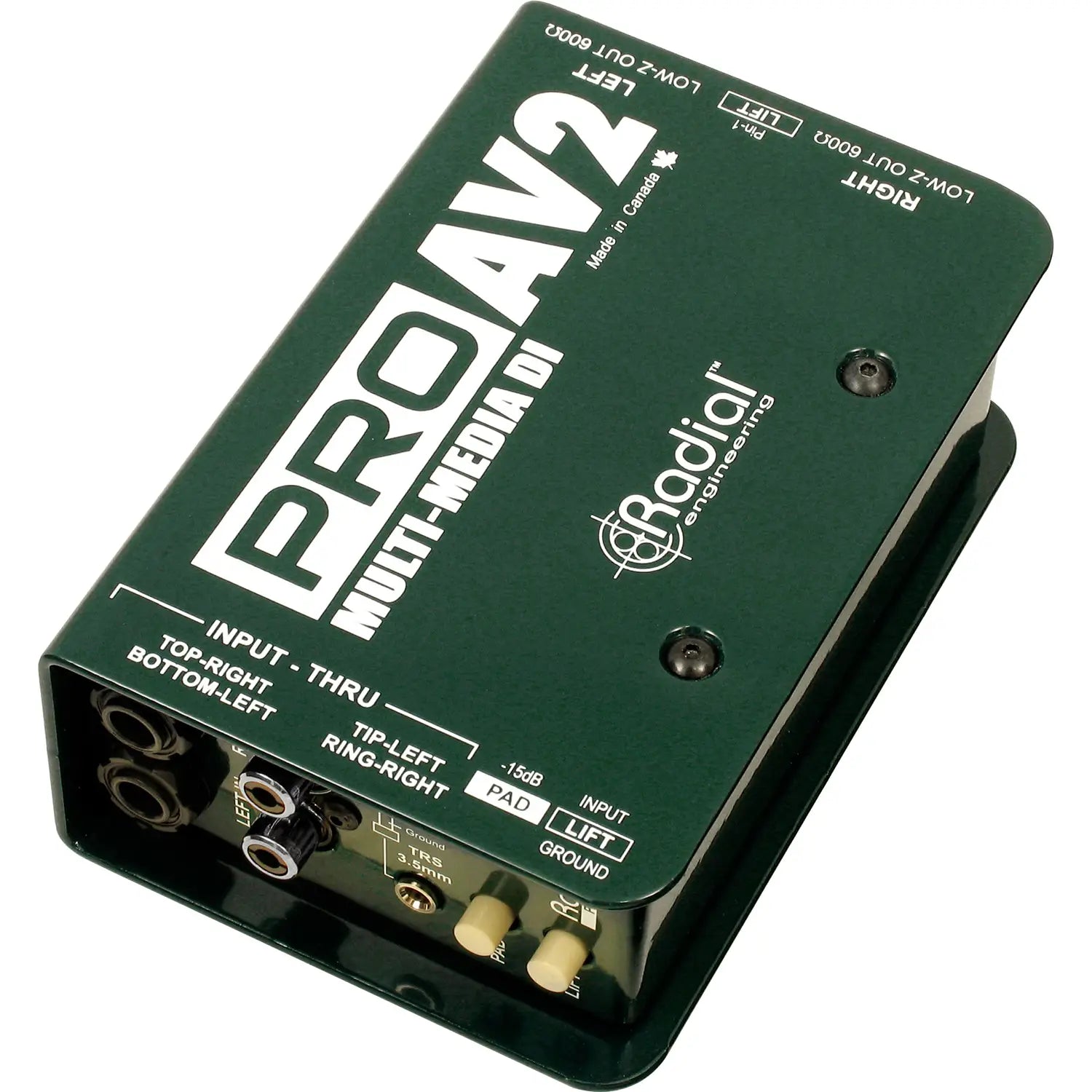

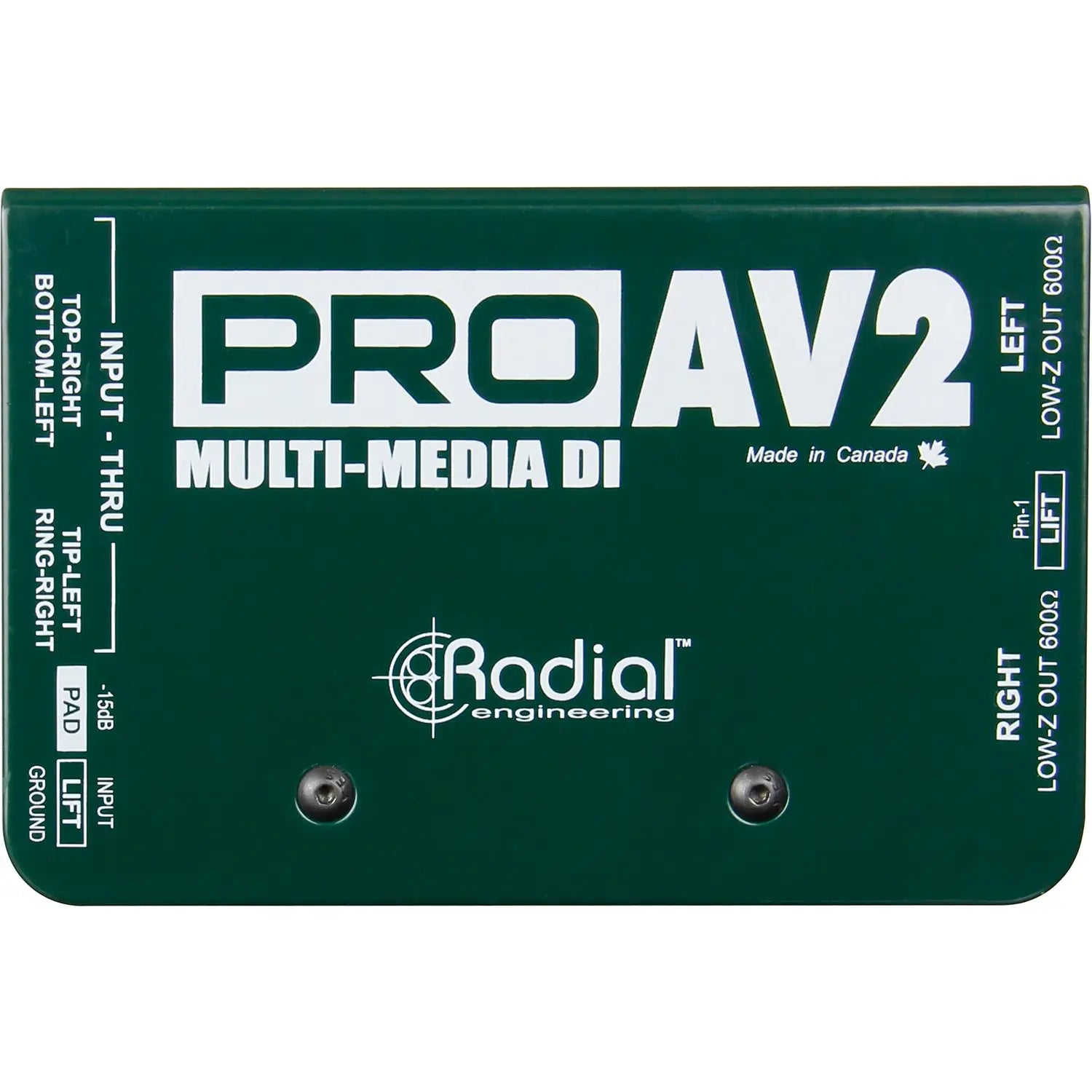

Photo of Radial ProAV2 available from Factory Sound
  • Proav2

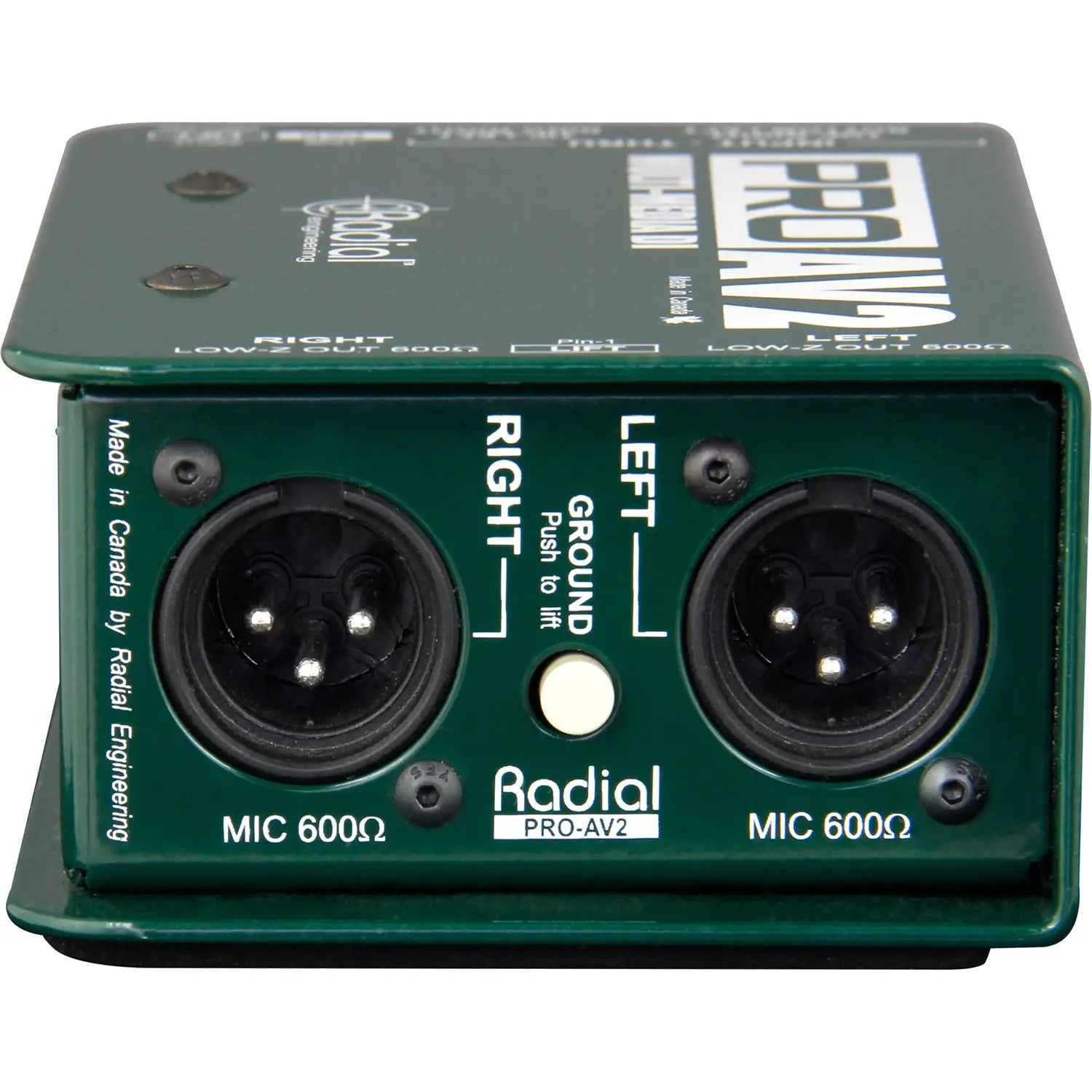

  • Proav2_connections
  • 'Swiss Army knife' direct box for multi-media
  • Easy to use, ultra-quiet passive design
  • Eliminates ground loops that cause hum and buzz
  • Handles huge transients without distortion

Custom wound Radial transformers are able to withstand exceptionally hot signal levels while maintaining linearity from 20Hz to 20kHz. The resulting smooth Bessel curve is warm and natural, making them particularly adept at handling digital sources that can sound harsh. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops or DC offset problems.

Specifications   RADIAL ProAV2
Audio circuit type:  Passive, transformer based
Number of channels: Dual channel (stereo)
Frequency response:  20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range:  128dB
Maximum input:  +18dB @ 20Hz
Total harmonic distortion:  0.01% from 20Hz~20kHz @-10dB
Phase deviation:  1° @ 100Hz; 8° @ 20Hz
CMR ratio:  n/a
Input impedance:  140k Ohms, unbalanced
Output impedance:  150 Ohms, balanced

Features
Transformer: Radial RT-DBI, 12:1 ratio
Shield: Faraday, mu-metal can
Input pad:  -15dB
Merge:  n/a
180° polarity reverse:  Inverts absolute phase
Ground lift:  Disconnects pin-1 at XLR output
XLR configuration:  AES standard (pin-2 hot)
Connectors: 1/4", RCA,  3.5mm, in & thru, XLR-M out

General
Construction:  14 gauge steel chassis & shell
Finish: Baked enamel
Size:  (W x H x D) 3.25” x 5” x 1.875”
Weight:  0.82kg / (1.8lbs)
Shipping Size: W x H x D: 102 x 76 x 165mm (4.00" x 3.00" x  6.50")
Shipping Weight: 1.2 kg (2.60 lbs)
Power:  Passive, no power required
Warranty:  3-year
