Allen & Heath

Allen & Heath QU-24C

30 in / 24 out digital mixer with moving faders

Order Code: QU-24C
Enquire
Our Price: $3,749.00

With 24 microphone (or line) inputs on the rear, it's simple to plug-and-play, however if you'd prefer to go remote for your preamps, simply plug your Cat5 cable in the dSNAKE port, and connect to AR2412 or AR84.

Moving faders at this price? Of course they're included.

USB Audio Streaming: Qu-24’s built-in interface streams up to 32 selectable tracks to your Mac or PC. (Scroll down to see more on USB Audio streaming and Qu-Drive)

The SuperStrip - All key processing tools are presented in a clean layout on the SuperStrip, with 1 function per physical control. It is complemented by an onscreen Touch Channel for intuitive access to full processing parameters without clutter or complex menu structures. Processing for Mono and Stereo inputs includes trim, polarity, HPF, gate, insert, 4 band PEQ, compressor and delay.

This new CHROME version includes:
Automatic Mic Mixing, and a Spectrogram for feedback-hunting.
Qu Chrome Edition models also feature upgraded, high contrast metallic finish controls.

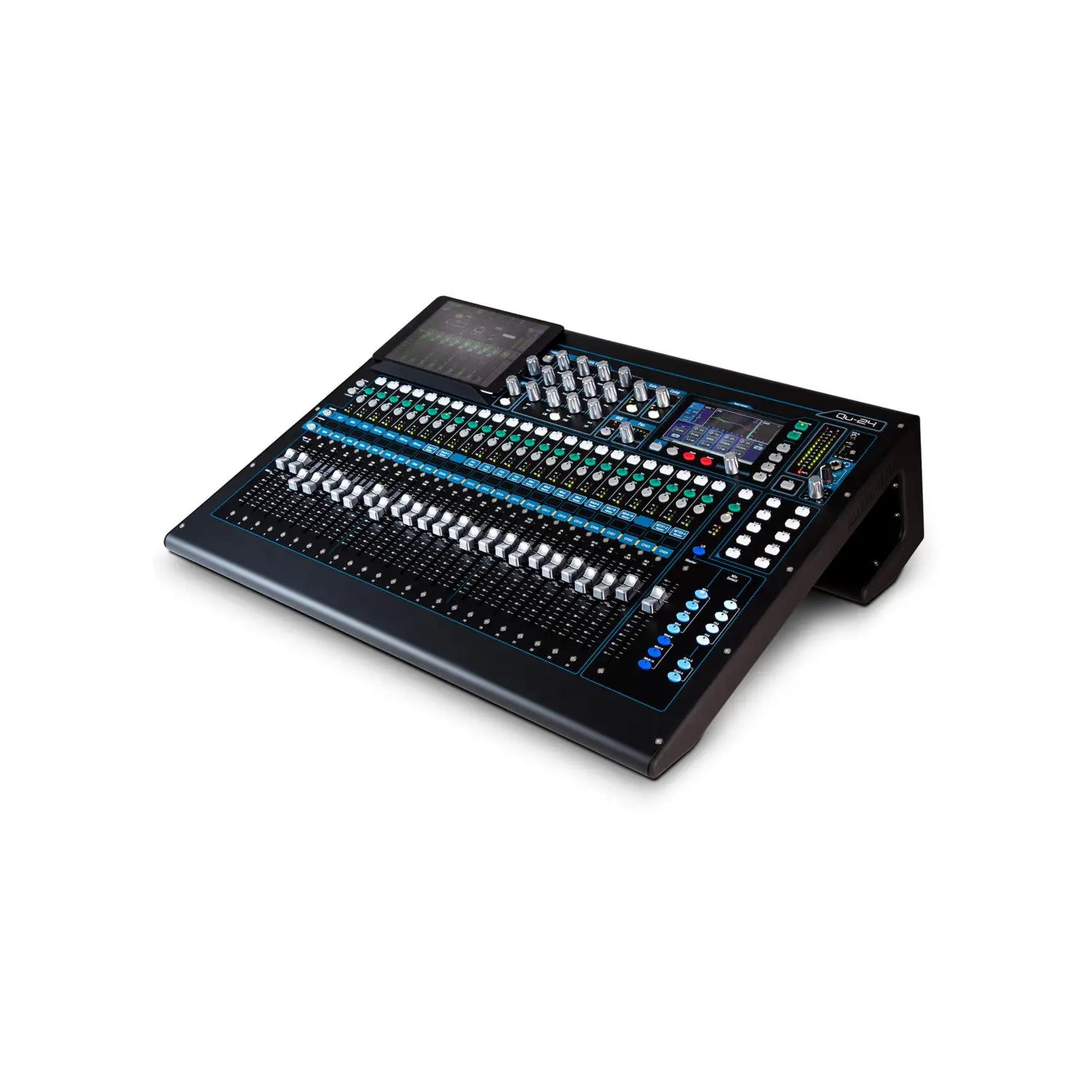

Photo of Allen & Heath QU-24C available from Factory Sound

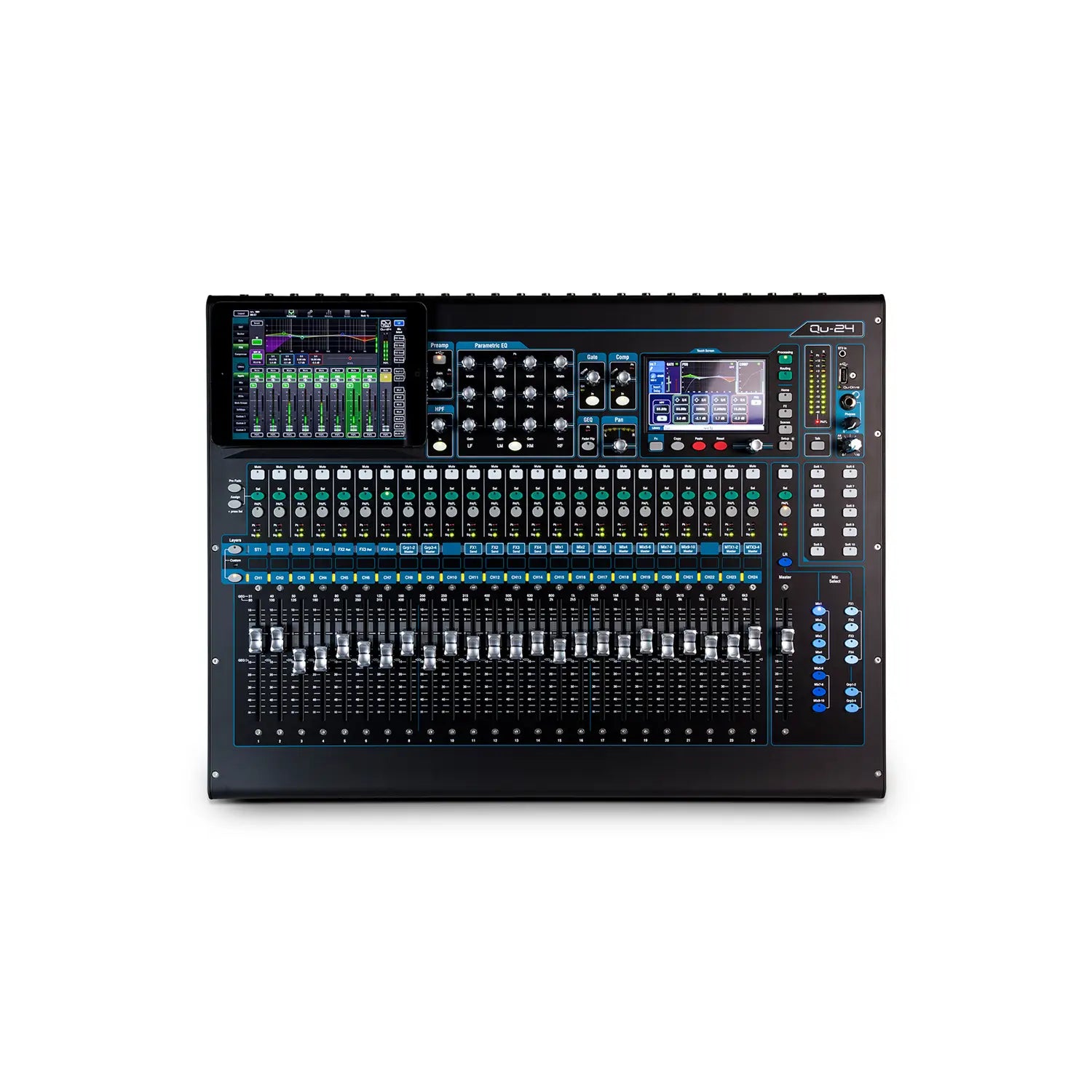

  • Qu24c-top

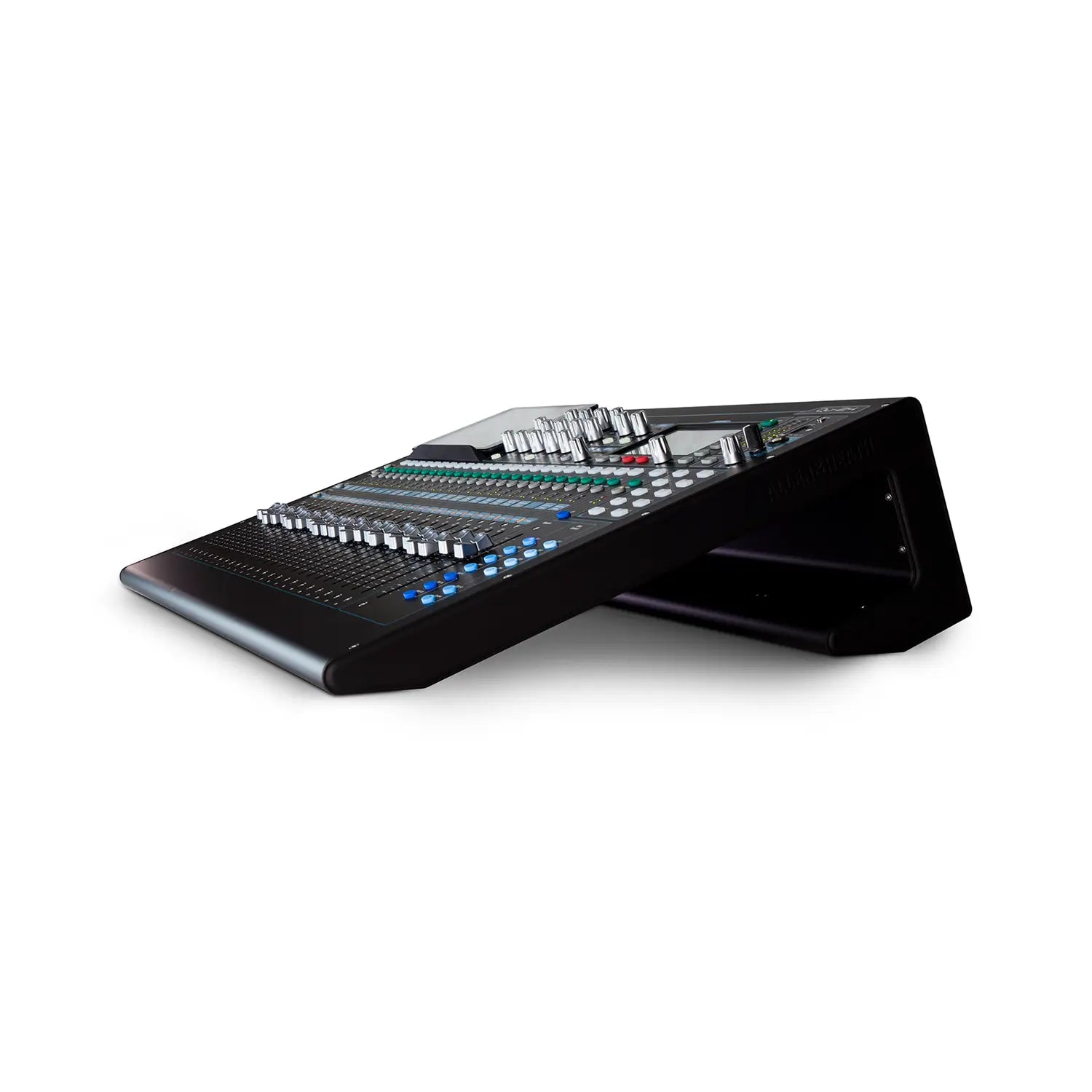

  • Q24c-side

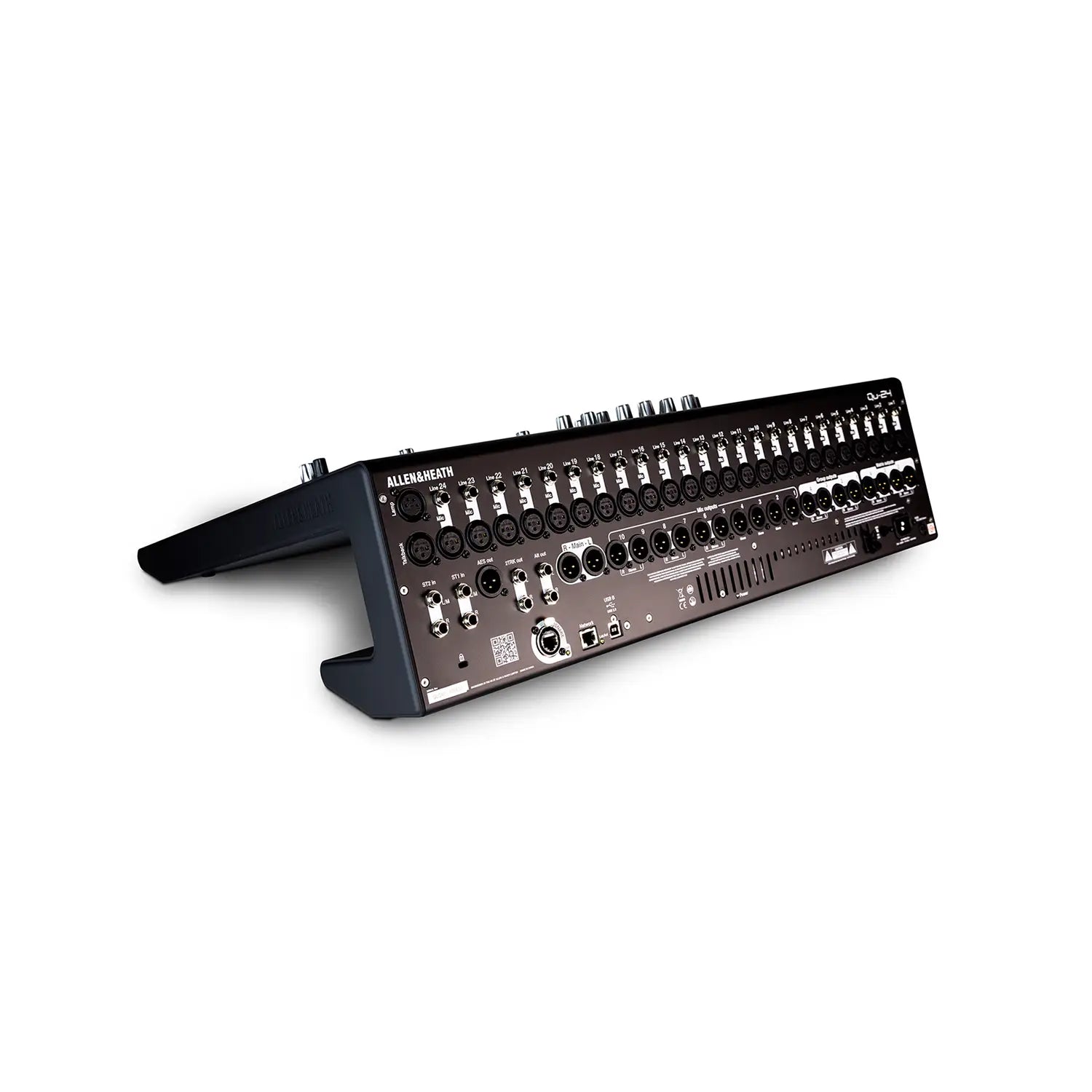

  • Q24c-rear

Features:

  • 24 Mono Inputs (TRS + XLR)
  • 3 Stereo Inputs
  • 4 Stereo FX Returns
  • 20 Mix Outputs
  • 4 FX Engines
  • AES Digital Out
  • Moving Faders
  • Recallable AnaLOGIQ Preamps
  • Qu-Drive direct Multitrack Recording / Playback on USB drives
  • 800x480 Touchscreen
  • iLive FX Library
  • dSNAKE Remote Audio Port
  • Compatible with ME Personal Mixing System
  • Qu-Pad iPad App
  • USB Audio Streaming
  • DAW MIDI Control
  • 4 Mute Groups
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
  • Insert, 1/3 octave GEQ, compressor and delay on Main LR and Mono Mix outputs
  • Insert, 4-band PEQ, compressor and delay on Stereo Mix outputs
  • Built-in Signal Generator
  • RTA with Peak Band indication


USB Audio Streaming

Qu-24’s built-in interface streams up to 32 selectable tracks to your Mac or PC.
The returns from the Mac or PC can be easily assigned to the Input channels.
The interface is class-compliant on Mac OS X – truly plug 'n play. It will be recognised straightaway by any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools.
An ASIO and WDM compatible driver is available for Windows computers.
Standard MIDI control is tunnelled over the USB connection so you can easily map the faders to the tracks of your favourite DAW. A DAW Control driver is available for easy setup and emulation of HUI or Mackie Control protocols on Mac OS X systems.


Qu-Drive

Forget soundcard drivers and software setup, Qu-24 has an integrated multitrack USB recorder, providing 18 channels of 48kHz 24bit recording and playback straight to / from your USB hard drive. Capturing stereo or multitrack recordings of your shows has never been so easy. Multitrack audio can be played back to Mono channels 1-18. Stereo files from your hard disk can be played back to ST3
