Allen & Heath ZED10FX

Amazing little multipurpose console with effects + USB I/O

Order Code: ZED10FX
Enquire
Our Price: $449.00

Proving that good things come in small packages, Allen & Heath's Zed10FX crams a bunch of awesomeness into a little (34 x 28 x 10cm) space, that weighs in at just 3.3kg. It's ideal for small band as a live performance mixer, or in your video editing suite, or for a home studio.

Aside from the 4 x XLR microphone inputs...here are a few choice features:
"XLR main stereo outputs with inserts, comprehensive monitoring with headphones and separate monitor speaker outputs, 48V microphone phantom power, DI level switching for sub mixing, and not least of all, the same digital effects algorithms as those used on A&H flagship digital consoles costing 150 times as much!"

Photo of Allen & Heath ZED10FX available from Factory Sound

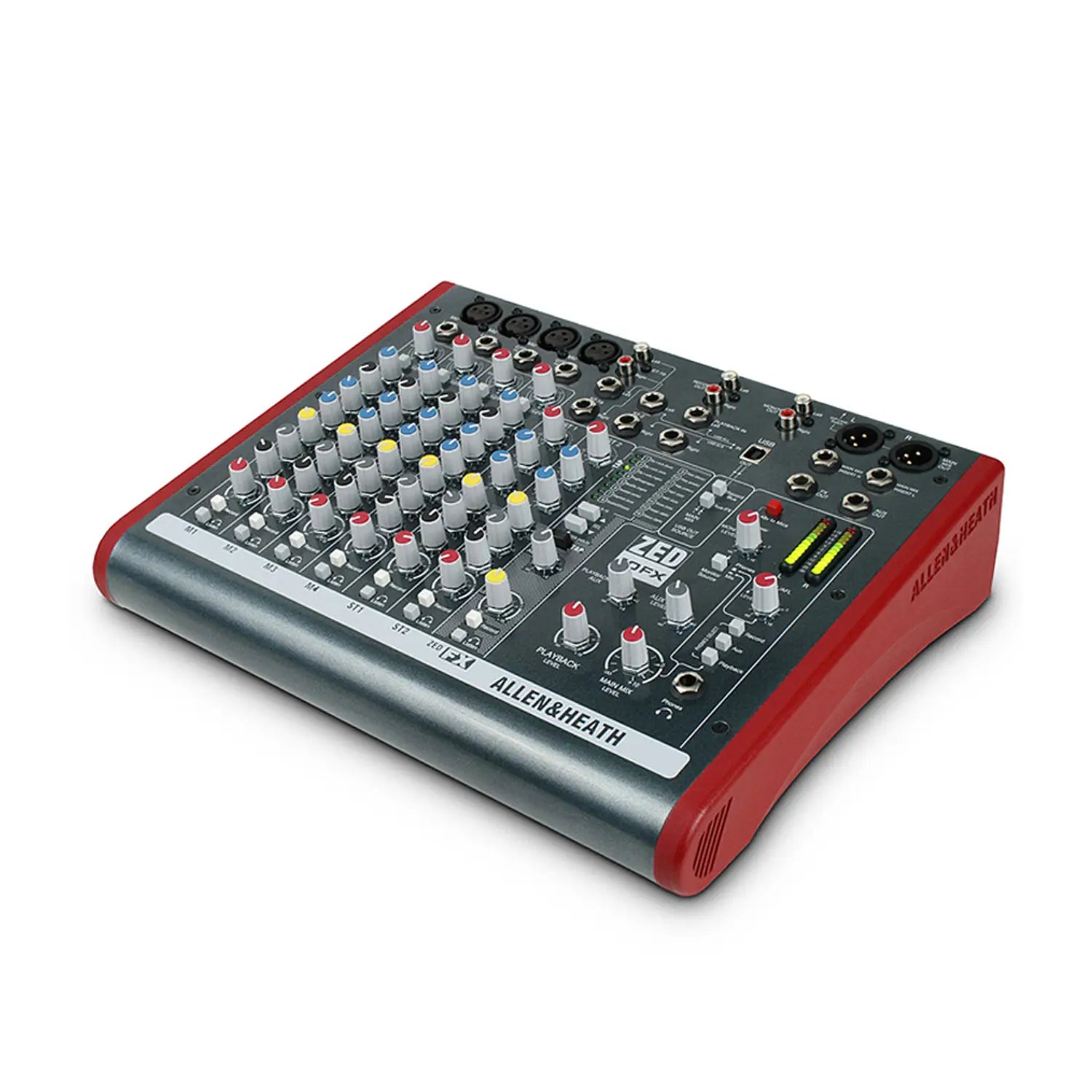

  • Zed10fx

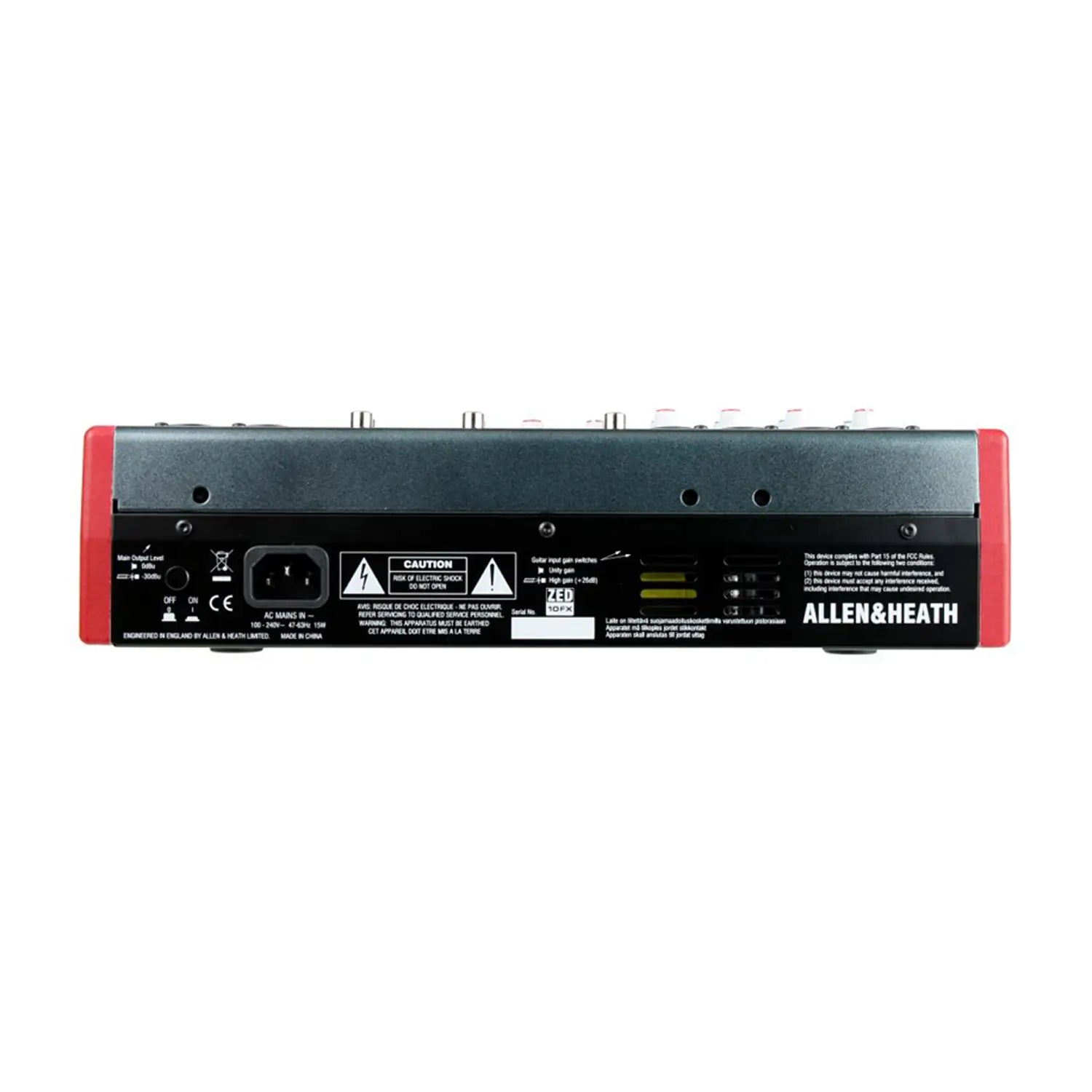

  • Zed10fx_rear

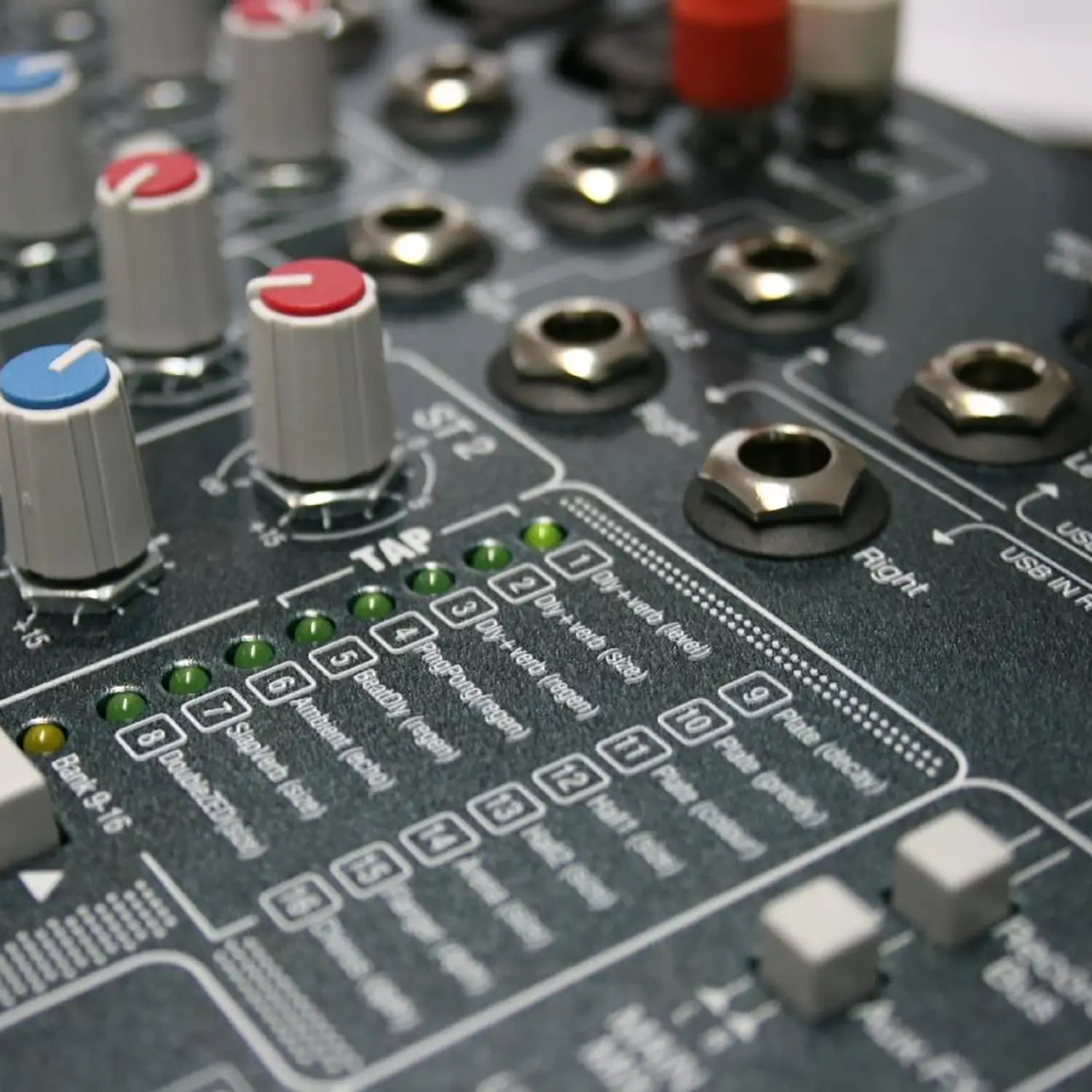

  • Zed10fx_effects

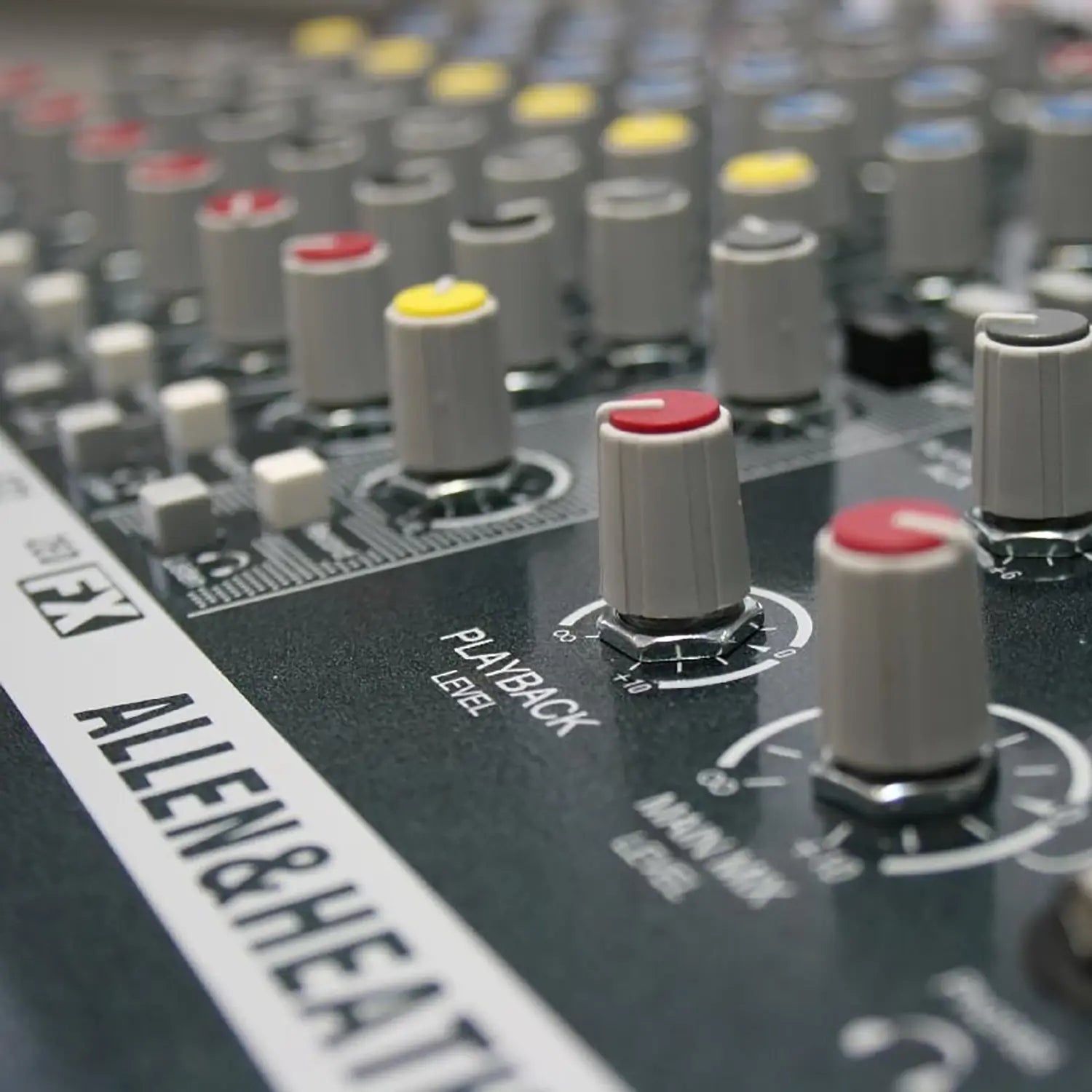

  • Zed10fx_playback
  • 4 mic/line inputs, 2 with Class A FET high impedance inputs
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • 3 band EQ with MusiQ
  • 1 pre-fade Aux send
  • 1 FX send
  • Sound image pan
  • Illuminated PFL indicator
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Responsive 3-band, swept mid EQ with MusiQ
  • 2 stereo sources with MP3 player compatibility
  • Separate 2-track record outputs
  • Stereo playback input for 2-track replay
  • XLR main stereo outputs with inserts
  • Comprehensive monitoring
  • Configurable USB stereo audio in/out
  • Stereo monitor outs
  • 48V microphone phantom power
  • DI level switching for sub mixing

USB audio flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:

Send options:
1) Main Mix Left + Right (Post master Level)
2) Aux + FX bus (Aux is a pre-fade send, FX is a post-fade send)
3) Record Bus Left + Right (Separate stereo bus to Main Mix)

Return Options:
1) To Playback input (through jack socket break contacts)
2) To Stereo 2 channel (through jack socket break contacts)

ZED-FX
ZED-10FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in.
