Allen & Heath ZED12FX

12 Ch mixer with FX (and USB)

Order Code: ZED12FX
Enquire
Our Price: $825.00

It looks just like a ZED14, but one of the blue faders has turned yellow. This is pretty close to what has happened - nearly every feature is like ZED14 - great mic preamps, clean signal path, 100mm faders, USB for recording or other I/O applications. So there's 6 mic channels, 3 stereo channels, plus a dedicated effect channel (the yellow fader), with all-new DSP chip onboard. ZED Series mixers have already been extrememly popular for many applications. Having an internal effects processor makes the ZED12FX very versatile for even more users.

Photo of Allen & Heath ZED12FX available from Factory Sound

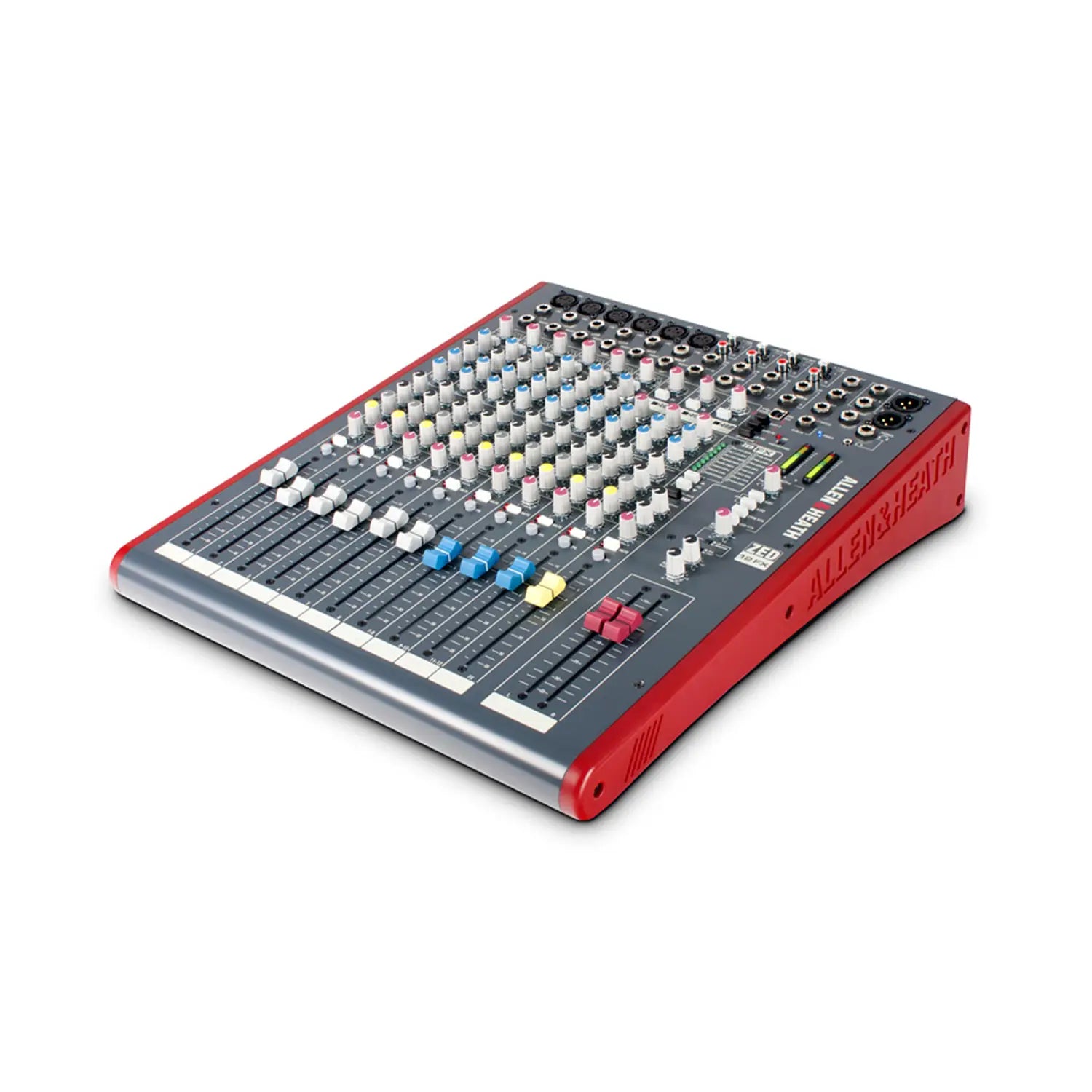

  • Zed12fx

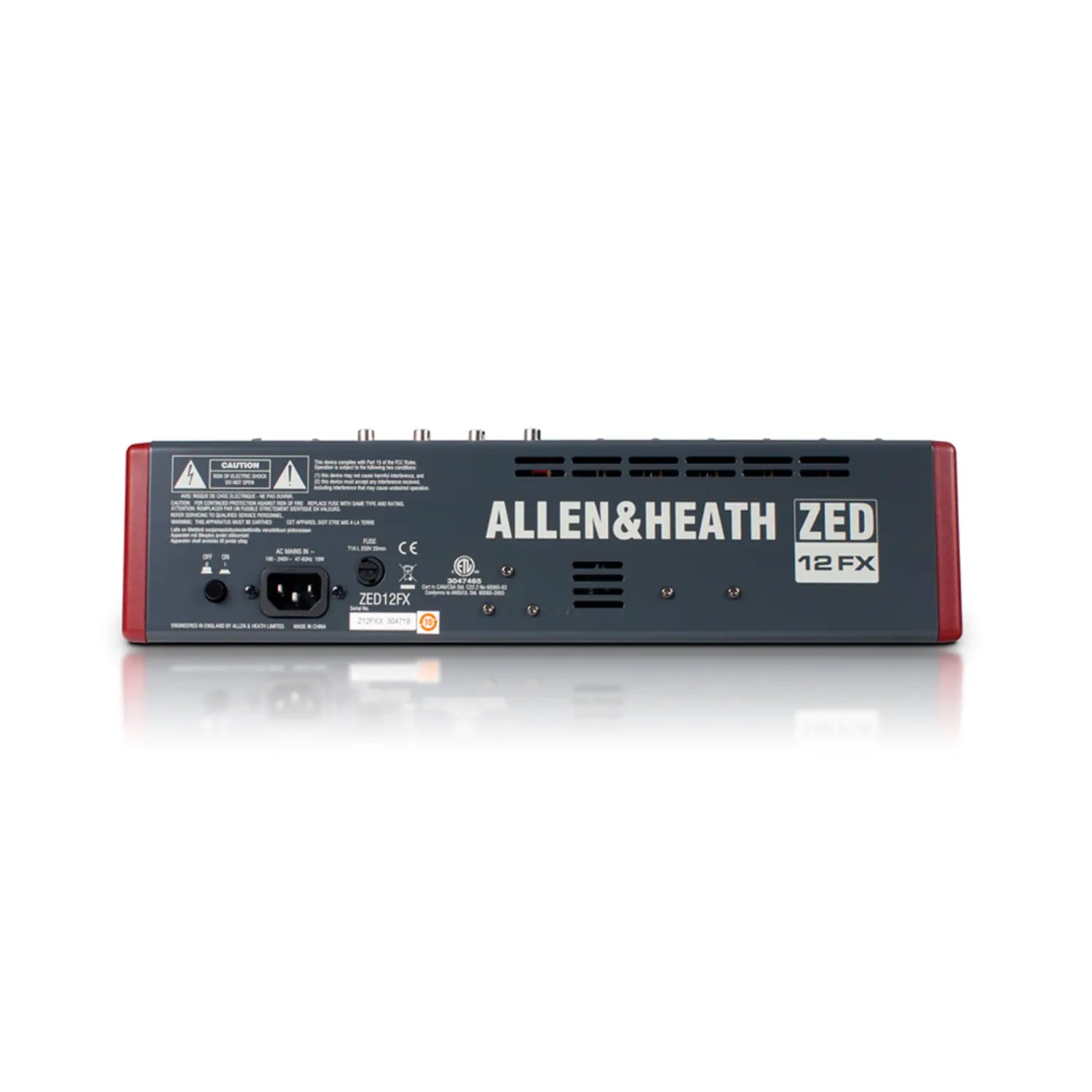

  • Zed12fx_rear

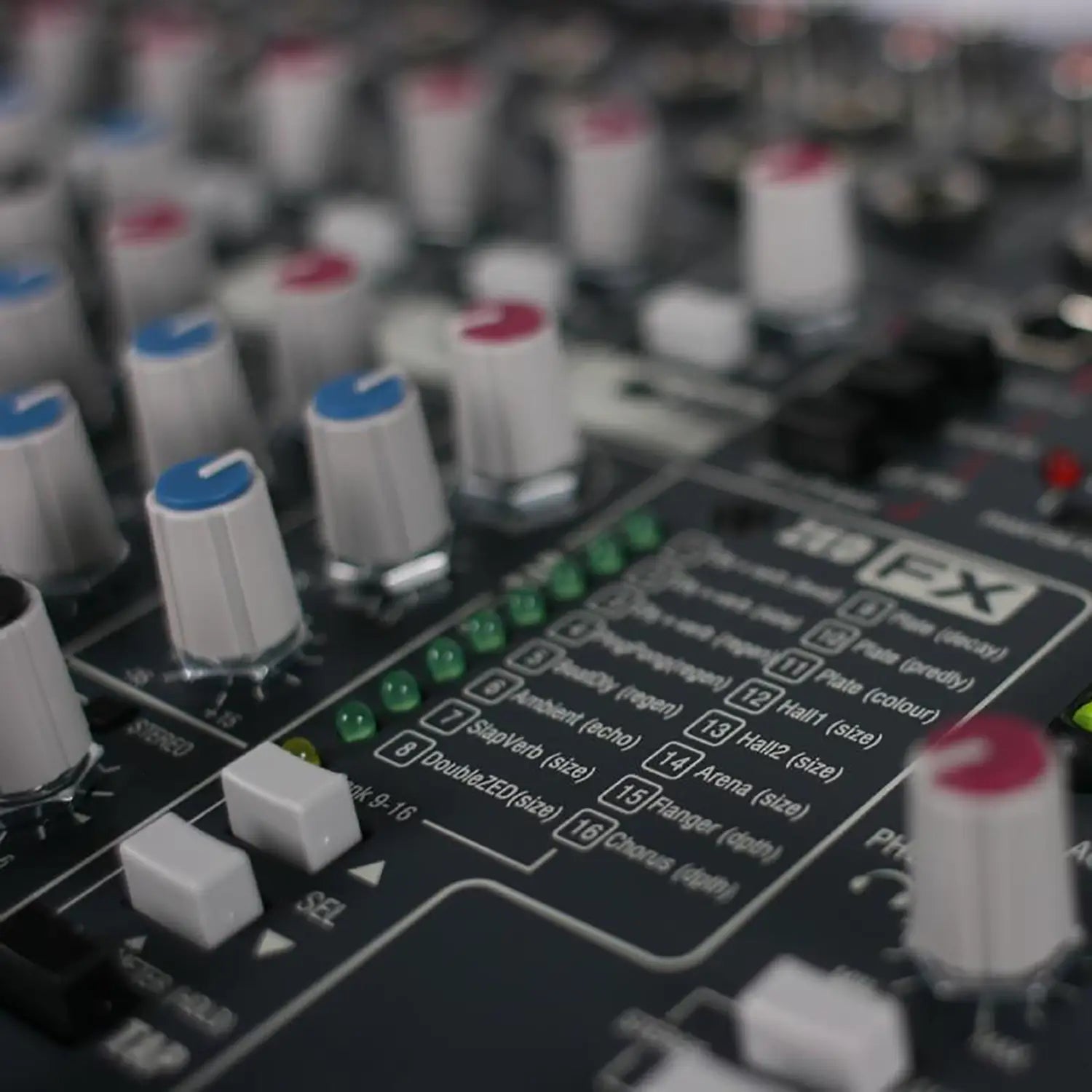

  • Zed12fx_effects

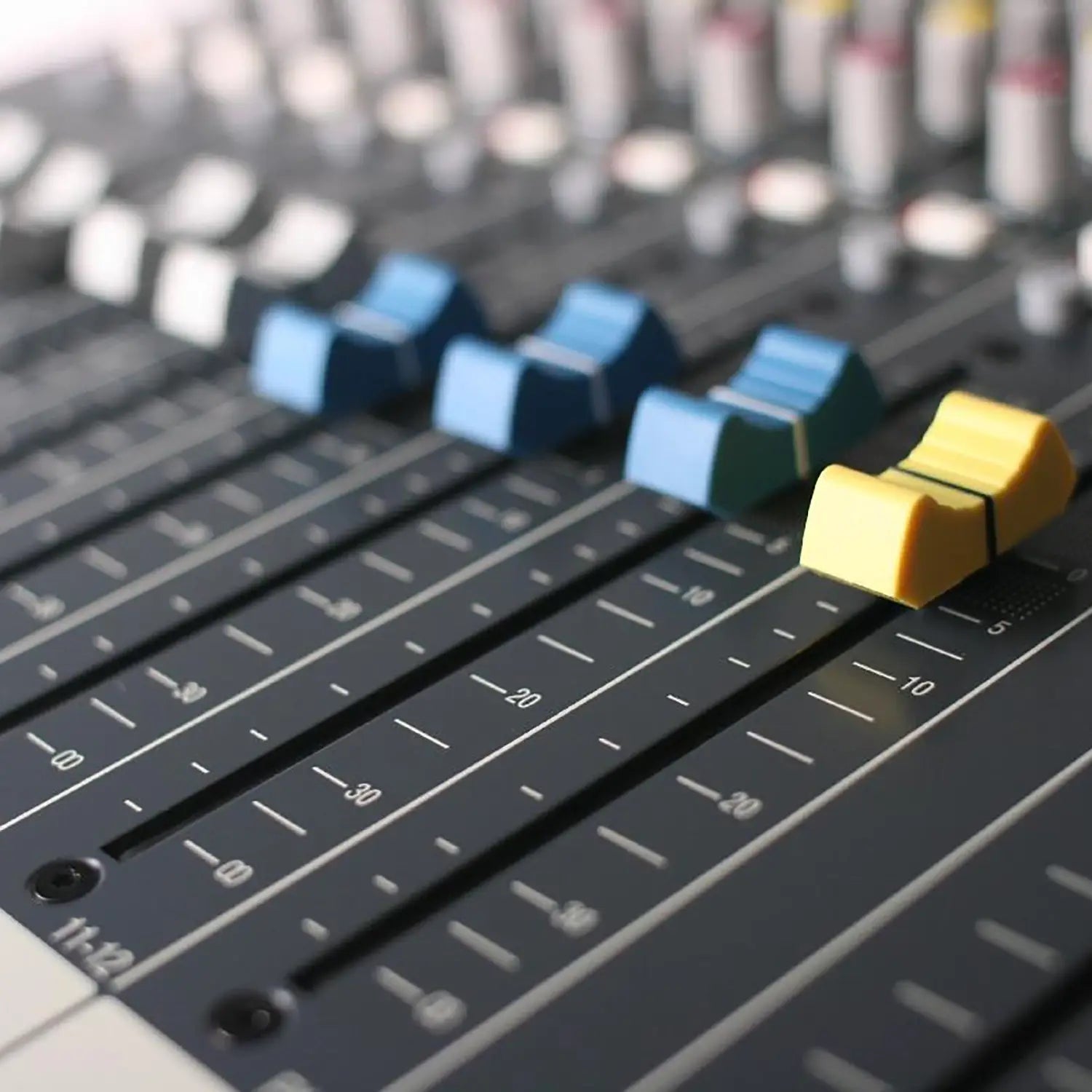

  • Zed12fx_faders
  • 6 mono channels
  • 3 stereo channels with 2-band EQ and inputs for extra sources
  • 16 internal time-delay effects
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 3 band EQ with MusiQ
  • 2 pre-fade Aux sends
  •  1 post-fade Aux send
  •  1 internal FX send
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Mono/stereo function on auxes 1&2
  • Monitor output section
  • Alt stereo output source
  • Configurable USB stereo audio in/out
  • Cakewalk SONAR X1 LE bundled with mixer
  • Rack ears available

USB audio flexibility
Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac.

Switches and connection through jack socket terminals provide different send/return configurations:

Send options:
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-FX

Return options:
1) To Stereo 3 channel

ZED-FX
ZED-12FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.
