Allen & Heath ZED14

Little Mixer, Big Features + USB

Order Code: ZED14
Enquire
Our Price: $749.00

It's near impossible to condense these features into a couple of sentences, but here goes: 6 mic channels with DuoPre™, inserts and 3-band (swept mid) EQ, plus 4 extra-featured stereo channels all feed to the main bus and 4 aux sends. Use the USB how you wish - (i) as extra stereo input, (ii) for recording to your computer, or (iii) as send/return for plug-in powered effects. This mixer is great for a range of applications, including live, audiovisual, studio and even small installation.

Photo of Allen & Heath ZED14 available from Factory Sound
  • Zed14

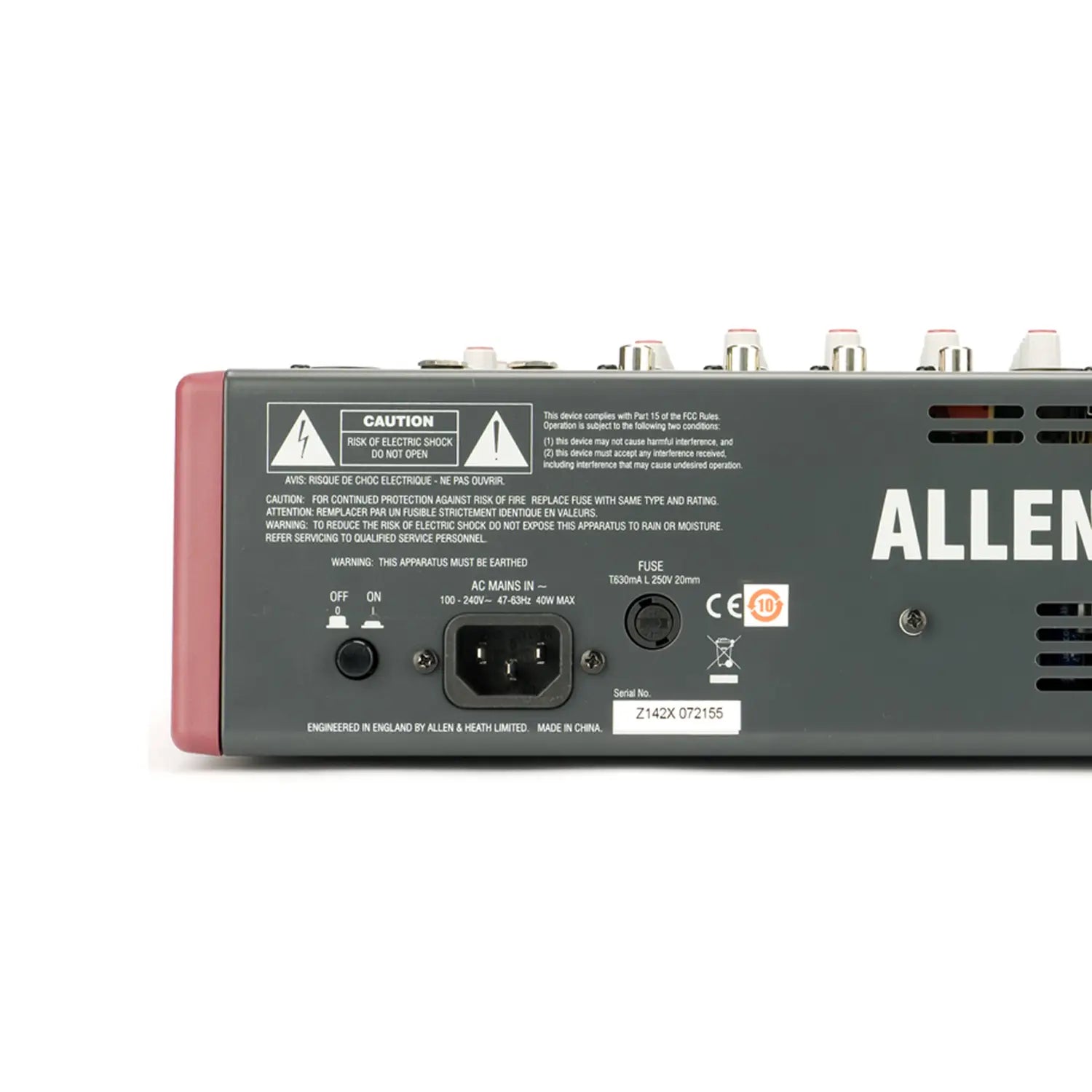

  • Zed14_rear

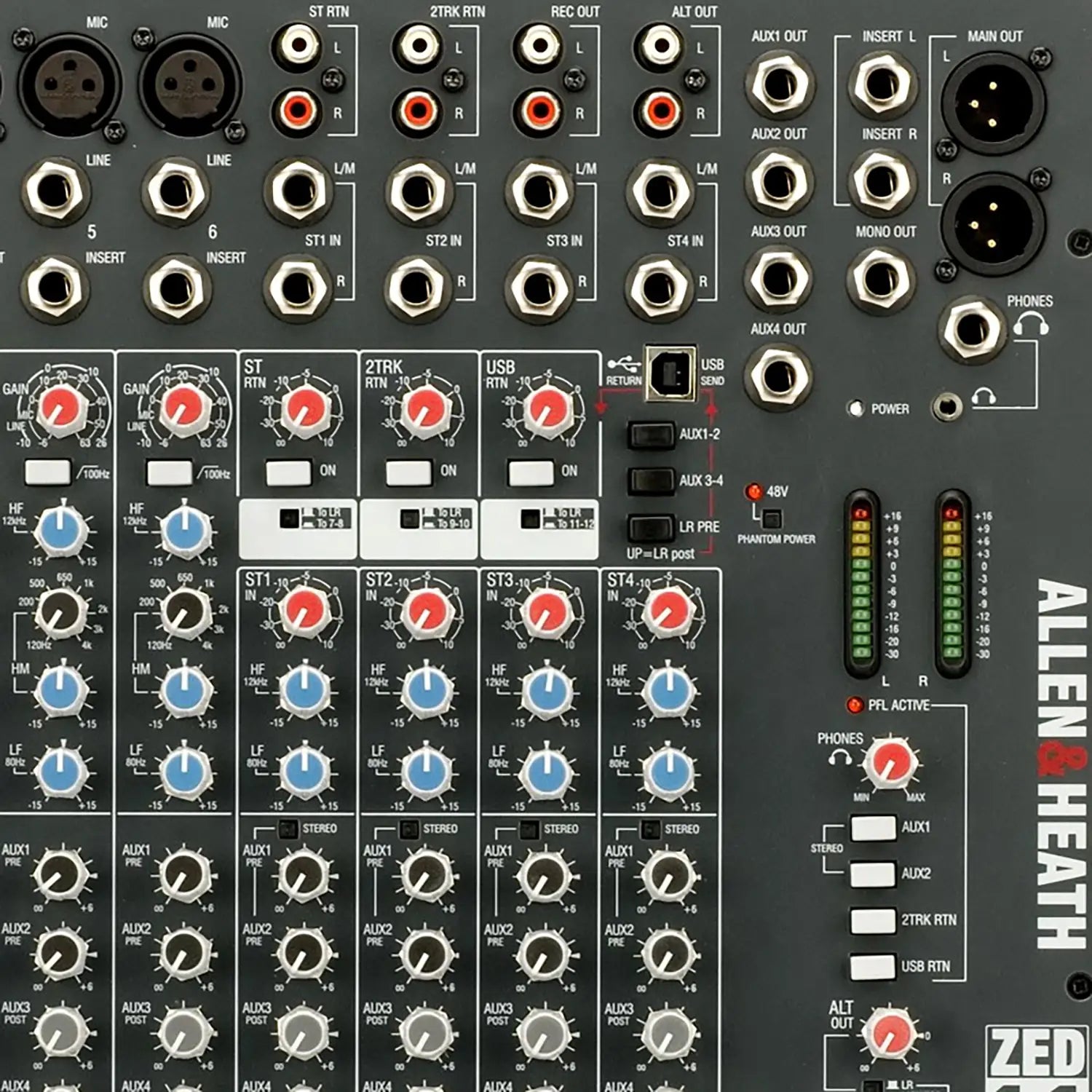

  • Zed14_top

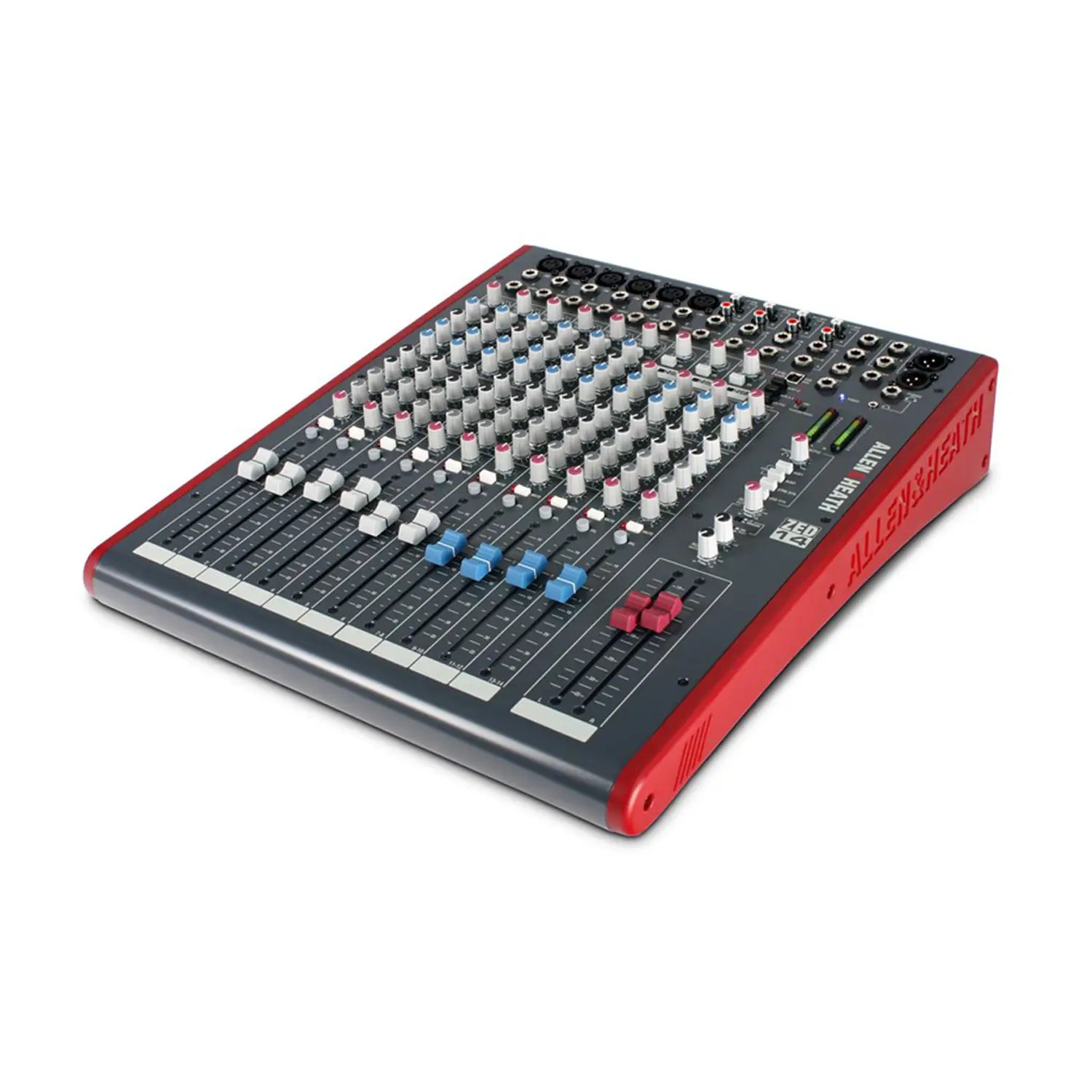

  • Zed14_angle
  • 6 mono channels
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 3 band EQ with MusiQ
  • 4 auxes
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 4 stereo channels with 2-band EQ and inputs for extra sources
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Mono/stereo function on auxes 1&2
  • Monitor output section
  • Alt stereo output source
  • Configurable USB stereo audio in/out
  • Cakewalk SONAR X1 LE bundled with mixer
  • Rack ears available

USB audio flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac.

Switches and connection through jack socket terminals provide different send/return configurations:

Send options:
1) Main Mix Left + Right (Post-fade)
2) Main Mix Left + Right (Pre-Fade)
3) Auxes 1-2
4) Auxes 3-4

Return options:
1) To Stereo 3 channel
