dbx 234XS

Stereo 2/3 Way, Mono 4-Way Crossover (XLR I/O)
Sale!
Close

Our price:$399.00 GST
Order Code: 234XS

Available on backorder

If you want a little more flexibility than what you’ll find built in to each powered sub as a ‘filter’, check out the power of an active crossover. Like the recently updated, and slightly smaller (I/O) sibling (223XS), the 234XS takes all the good bits from the highly popular 234XL, and gives them a spraypaint with the new model, and a new colour, 234XS.

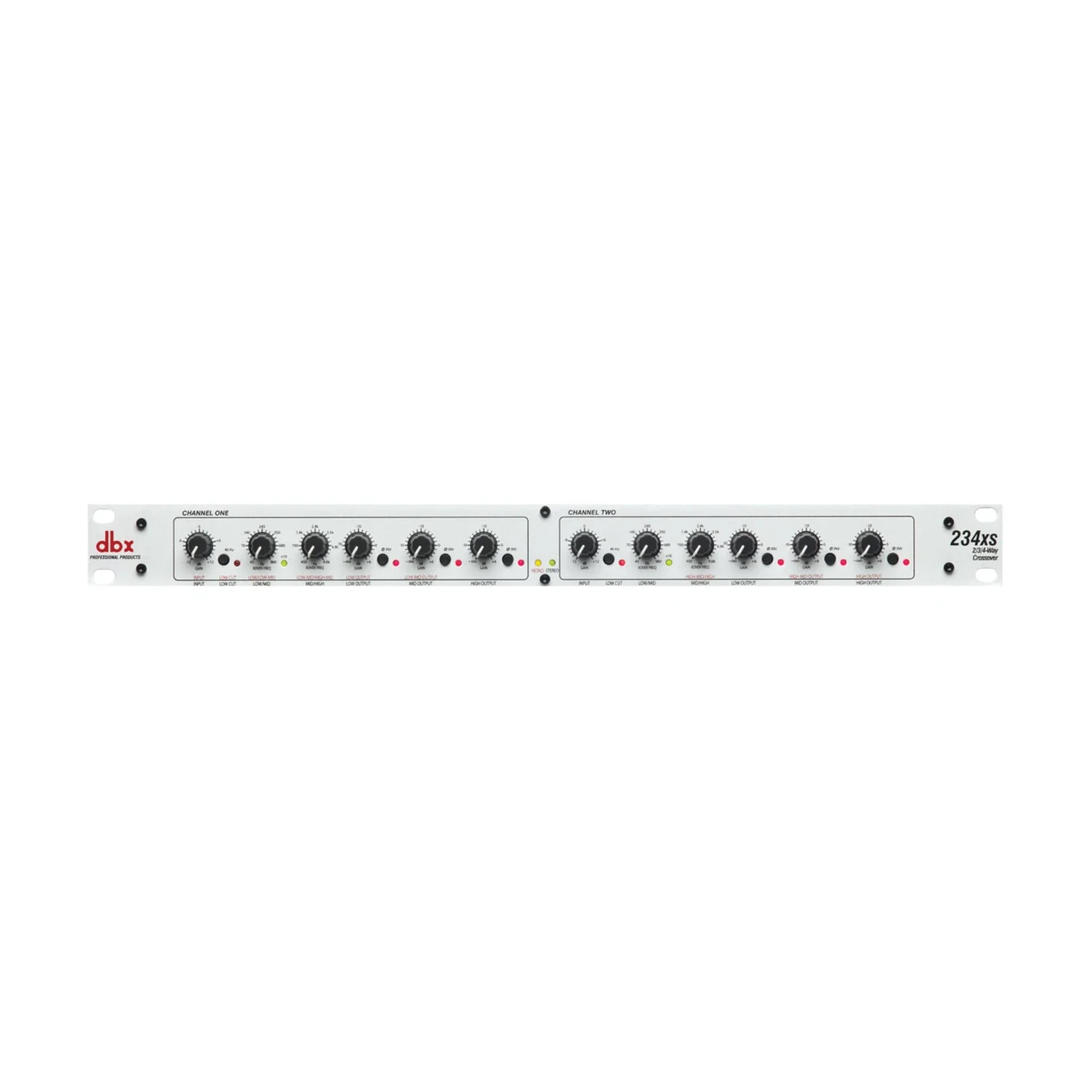

A dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid “click” controls to the high quality XLR inputs and outputs.

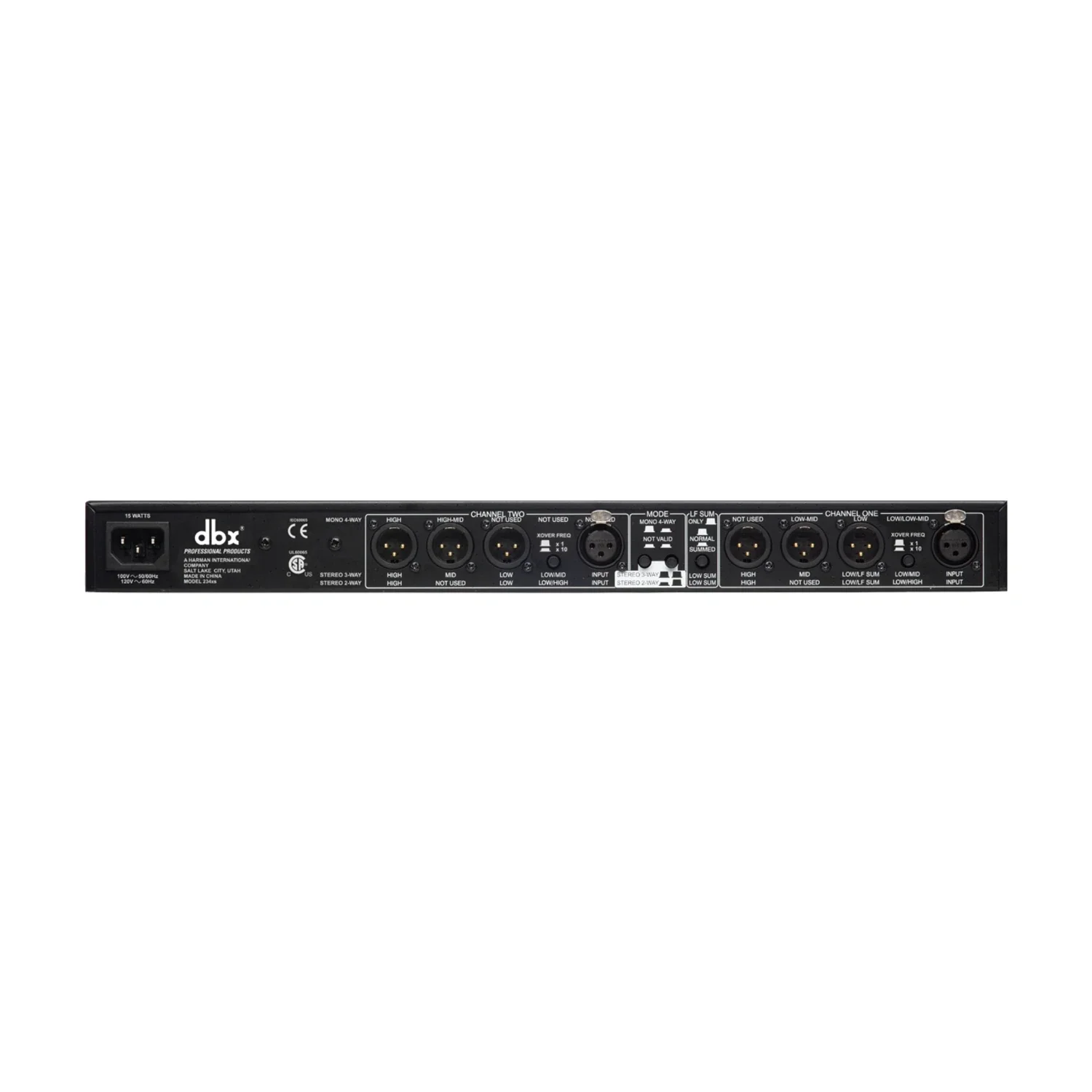

  • XLR balanced ins and outs
  • Mode switches for mono 4-way or stereo 2-way/3-way operation
  • Low frequency summed (subwoofer) output
  • x10 range switch on both channels
  • 40Hz high pass (low cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • 24dB per octave Linkwitz-Riley filters (the professional standard)
  • Stereo/Mono status LEDs indicate the selected mode
  • dbx® 2 year parts and labor as standard
  • CSA NRTL/C approved
  • CE compliant
Input ConnectorsXLR
Input TypeElectronically balanced/unbalanced, RF filtered
Input ImpedanceBalanced >50k ohm, unbalanced >25k ohm
Max Input>+22dBu balanced or unbalanced
CMRR>40dB, typically >55dB at 1kHz
Output ConnectorsXLR
Output TypeImpedance-balanced/unbalanced, RF filtered
Output ImpedanceBalanced 200 ohm, unbalanced 100 ohm
Max Output>+21dBu balanced/unbalanced into 2k ohms or greater
Bandwidth20Hz to 20kHz, +/-0.5dB
Frequency Response< 3 Hz to > 90 kHz, +0/-3 dB
Signal to Noise RatioRef: +4 dBu, 22 kHz measurement bandwidth
Signal-to-Noise (Stereo Mode)>94dB (Low Output), >93dB (Mid Output), >90dB (High Output)
Signal-to-Noise (Mono Mode)>94dB (Low Output, Low/Mid Output); >92dB (High/Mid Output); >88dB (High Output)
Dynamic Range> 106 dB, unweighted, any output
THD+Noise< 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk< -80 dB, 20 Hz to 20 kHz
Crossover Frequencies (Stereo Mode)Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Mid/High 450Hz to 9.6kHz (x10 setting)
Crossover Frequencies (Mono Mode)Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting); Low-Mid/High-Mid: 450 Hz to 9.6 kHz; High-Mid/High: 450 Hz to 9.6 kHz
Crossover Filter TypeLinkwitz-Riley, 24 dB/octave, state-variable
Low cut SwitchActivates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
Phase Invert SwitchInverts the phase at the output, one switch per output.
x1 / x10 SwitchMultiplies the low-high (mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel.
Mode SwitchSelects stereo/mono and 2/3/4-way operation
LF Sum SwitchSelects normal (stereo) or mono-summed low frequency operation and disables Ch 2’s low output phase invert LED to indicate that this output is not operational in the LF sum mode.
IndicatorsStereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert (Red-per output)
Operating Voltage100-120 VAC 50/60Hz; 120 VAC 60Hz 230 VAC 50/60Hz
Operating Temperature32°F to 113°F (0°C to 45°C)
Power Consumption15W
Power ConnectorIEC receptacle
Dimensions4.4cm H x 48.3cm W x 17.5cm D
Unit Weight1.8 kg
Shipping Weight2.6 kg
