IGS Audio 572 Red Stripe

Pure tube preamp in a 500-series module
Close

Our price:$1,530.00 GST
Order Code: 572REDSTRIPE

IN STOCK 1 (more can be backordered)

IGS Audio 572 Red Stripe mic/instrument preamp is designed in the 500-standard. The module is transformer balanced on input and output using Sowter and Edcor transformers.

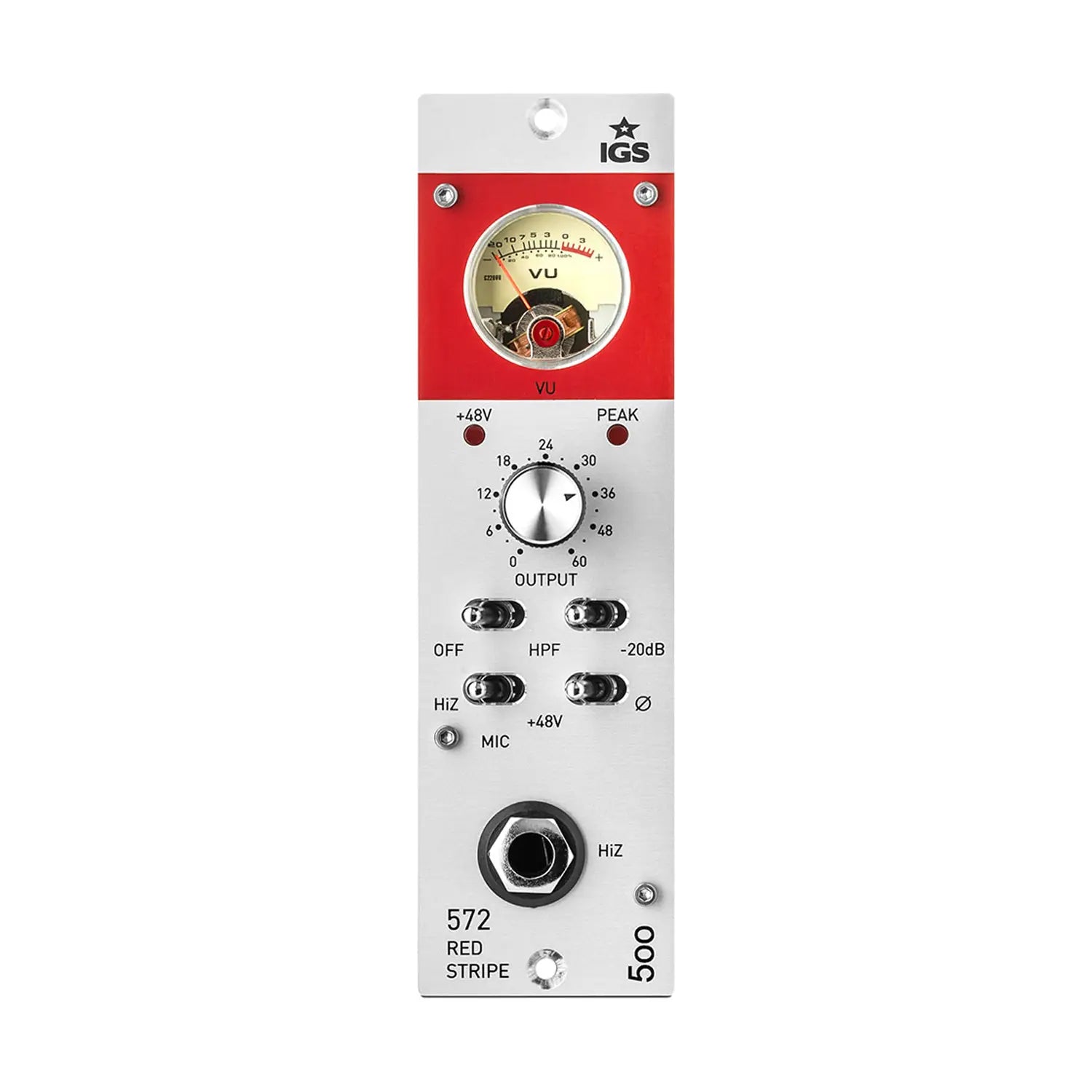

All controls on the front panel are stepped switches.

572 Red Stripe is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones, providing outstanding results.

With one knob gain control (41-stepped) you can push it nicely, but still make sure that you don’t overload the next stage of your signal chain. The second stage overloading gives some sweet harmonics vibe. Adds a lot of unique flavour. HiZ input is accessible from the front of unit. Handy!



Getting specific:

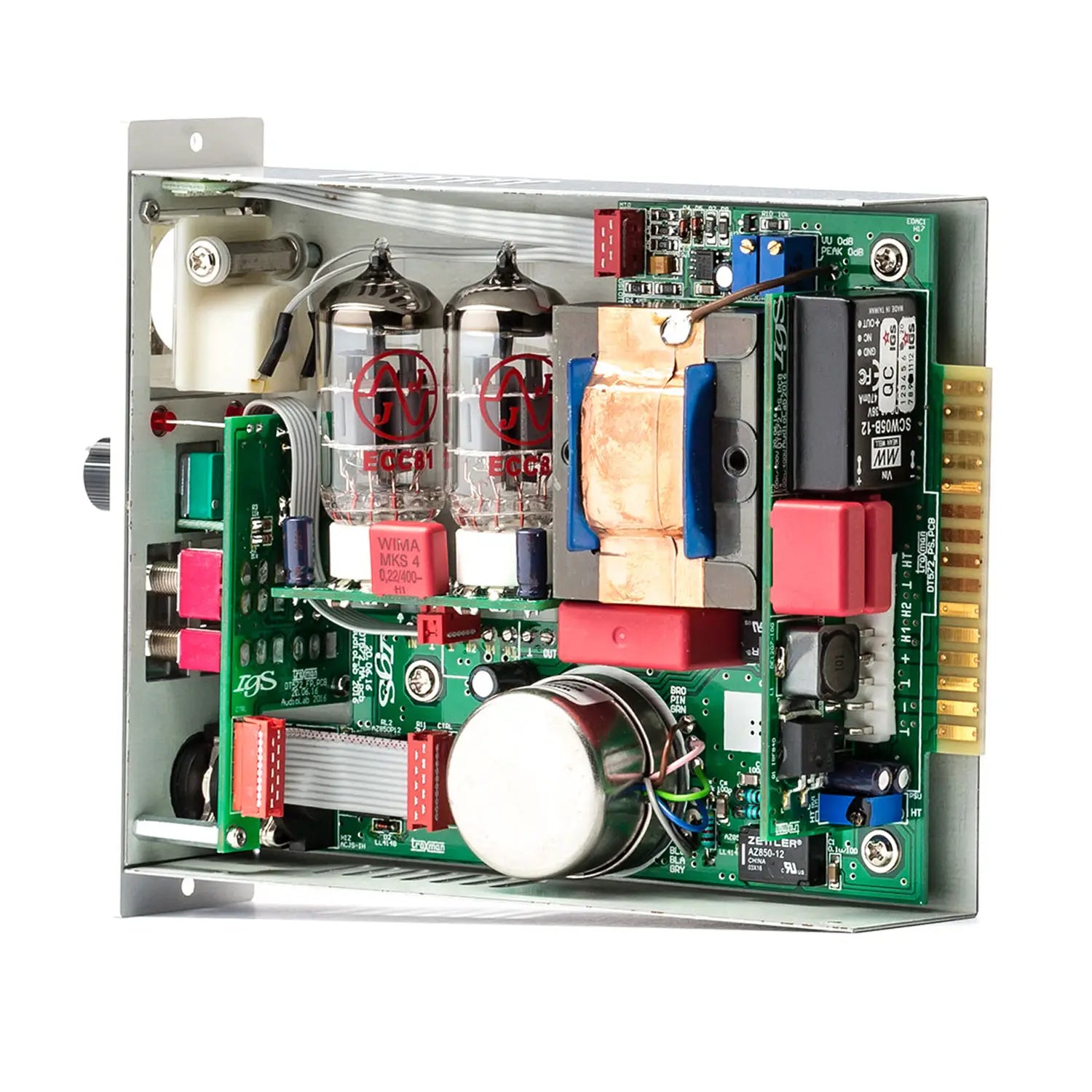

IGS 572 Red Stripe, single channel, pure tube mic preamp in a 500 module, two double-triodes (JJ ECC803S and JJ ECC81), UK made input and American output transformers, -20 dB interstage Pad, polarity control, +48V phantom power, low-cut filter, DI-Input 1/4″ TS Jack 1MOhm, max. Input Level: +16 dBu, max. Output Level: +28 dBu, back-lighted analog VU-Meter, +48 and clip LED, Made in Europe.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Basic features
Number of slots 1
HPF OFF, 50 Hz (6dB/oct)
Input & Output
Input Pad -20dB
Input Impedance (balanced) >600 Ohm, Sowter transformer
Input Pad -20dB, interstage
Phantom Power Yes
Output Impedance (balanced) 600 Ohm, Edcor USA transformer
Audio transformers Sowter / Edcor
Levels
Operating Level +4dBu
Max input level +16dBu
Max output level +28dBu
Dynamic Range 117dB
Noise Level -100 dBA
Max. gain 64dB
Bandwidth
Frequency response 20Hz – 20kHz, – 1 dB
Distortion (@ 20 Hz – 20 kHz)
THD+N max 0.5%
Power
Voltage Anode: 250VDC
Voltage +/- 16V DC
Power consumption 6.5W
Others
Used for Any kind of one channel studio recordings
Tube set ECC81, ECC81
