Genelec 8331AP

The Ones: Smart Active 3-way Active Nearfield Monitor, Dual 130 x 65mm + 3.5″ + 3/4″ (Each)

Our price:$3,899.00 GST
Order Code: 8331AP

IN STOCK 2 (more can be backordered)

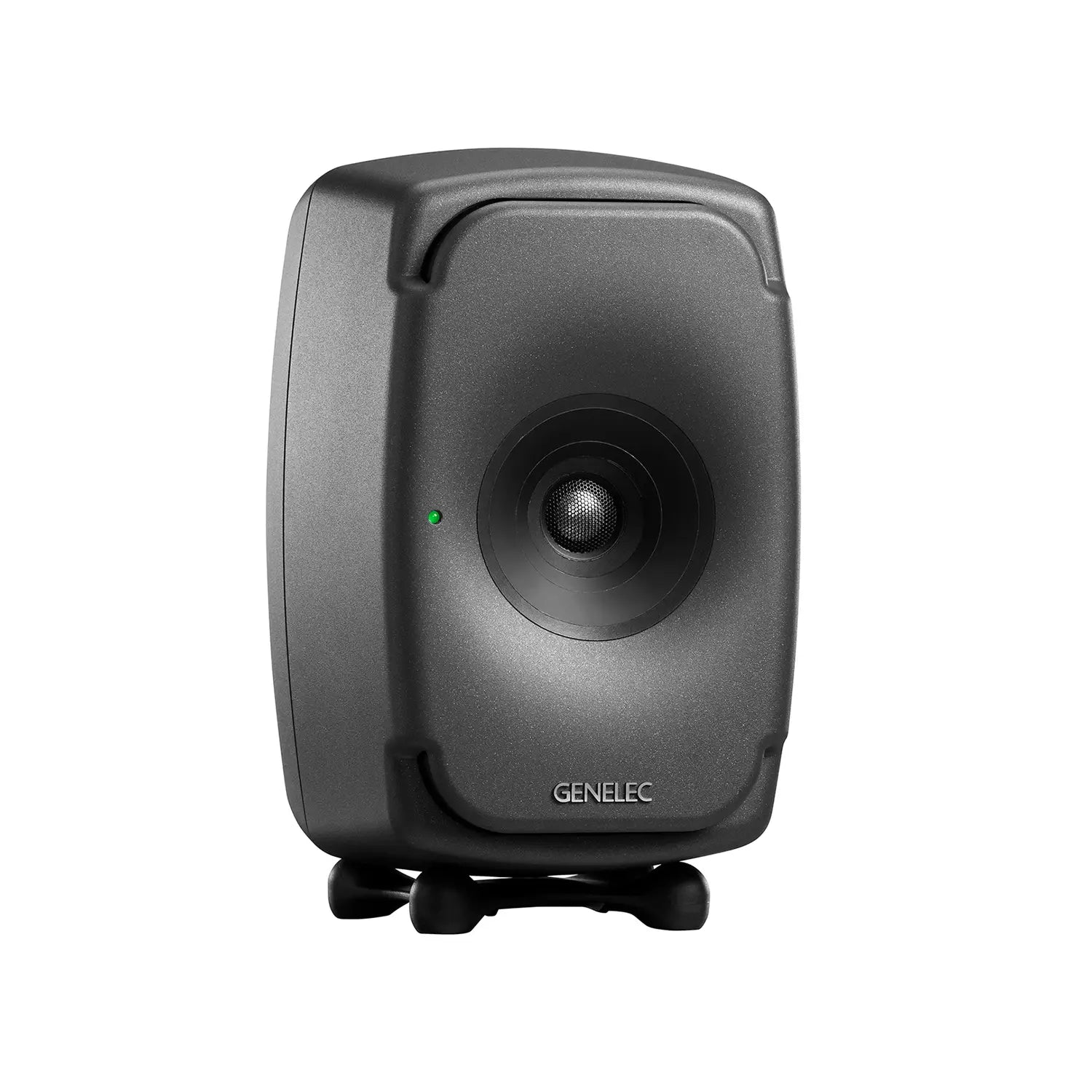

Genelec 8331AP is a the most compact member of the SAM™ smart active 3-way monitor series (The Ones).

“Incredible three-way point source monitor with the footprint of a compact two-way. When space and precision is of the essence, nothing even comes close”

We’ll get to the SAM™ (Smart Active Monitoring) features in a moment. Let’s first look at the extraordinary amount of air-moving components jammed into an 8331A monitor.

Coaxial Tri-Amplified

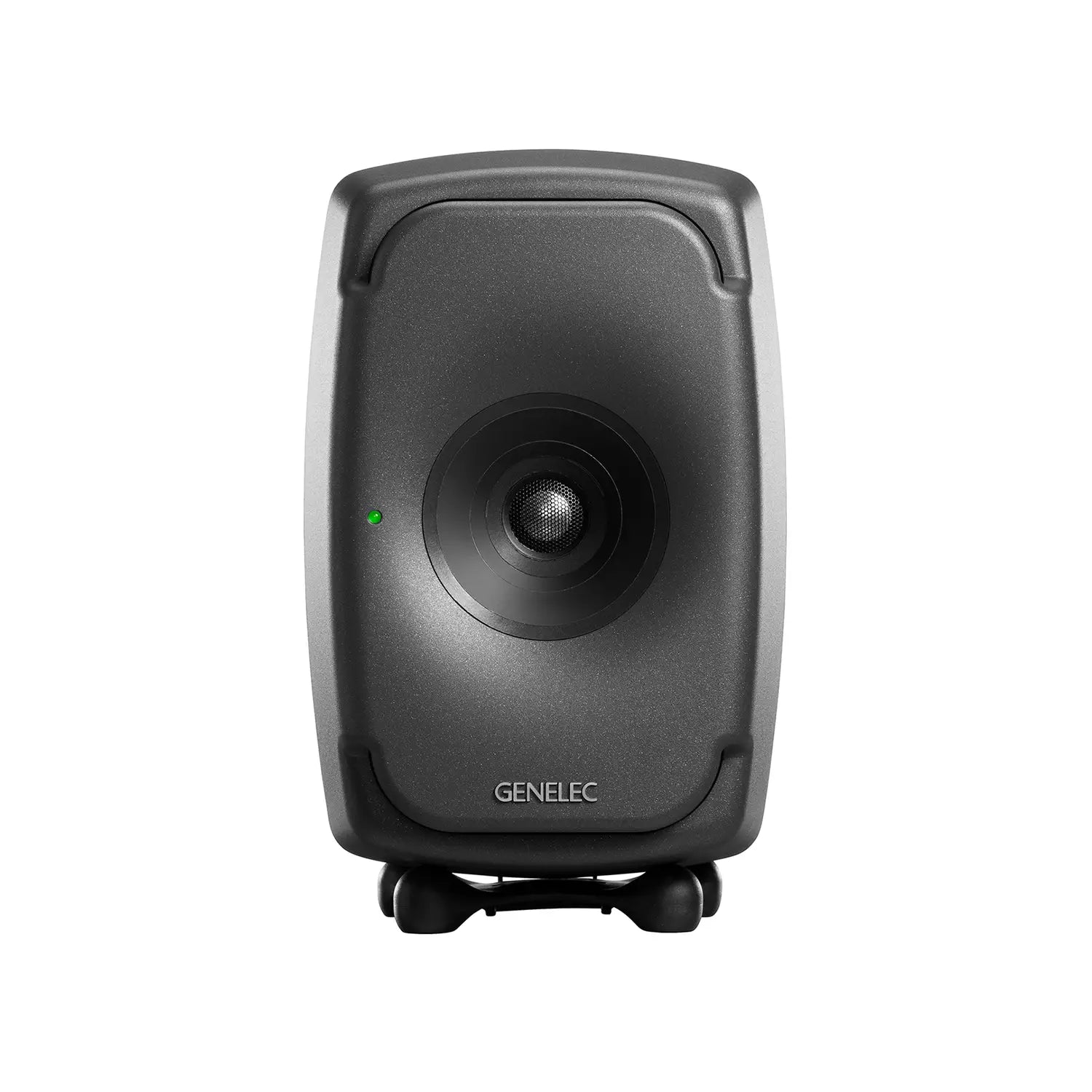

The bits you can immediately see in the front of this monitor are all to do with the High Frequency and Midrange. The 3½” midrange cone and 3/4″ metal dome HF are in a coaxial format. Class-D amplifiers take care of the horsepower, with 36w going each to the midrange and treble.

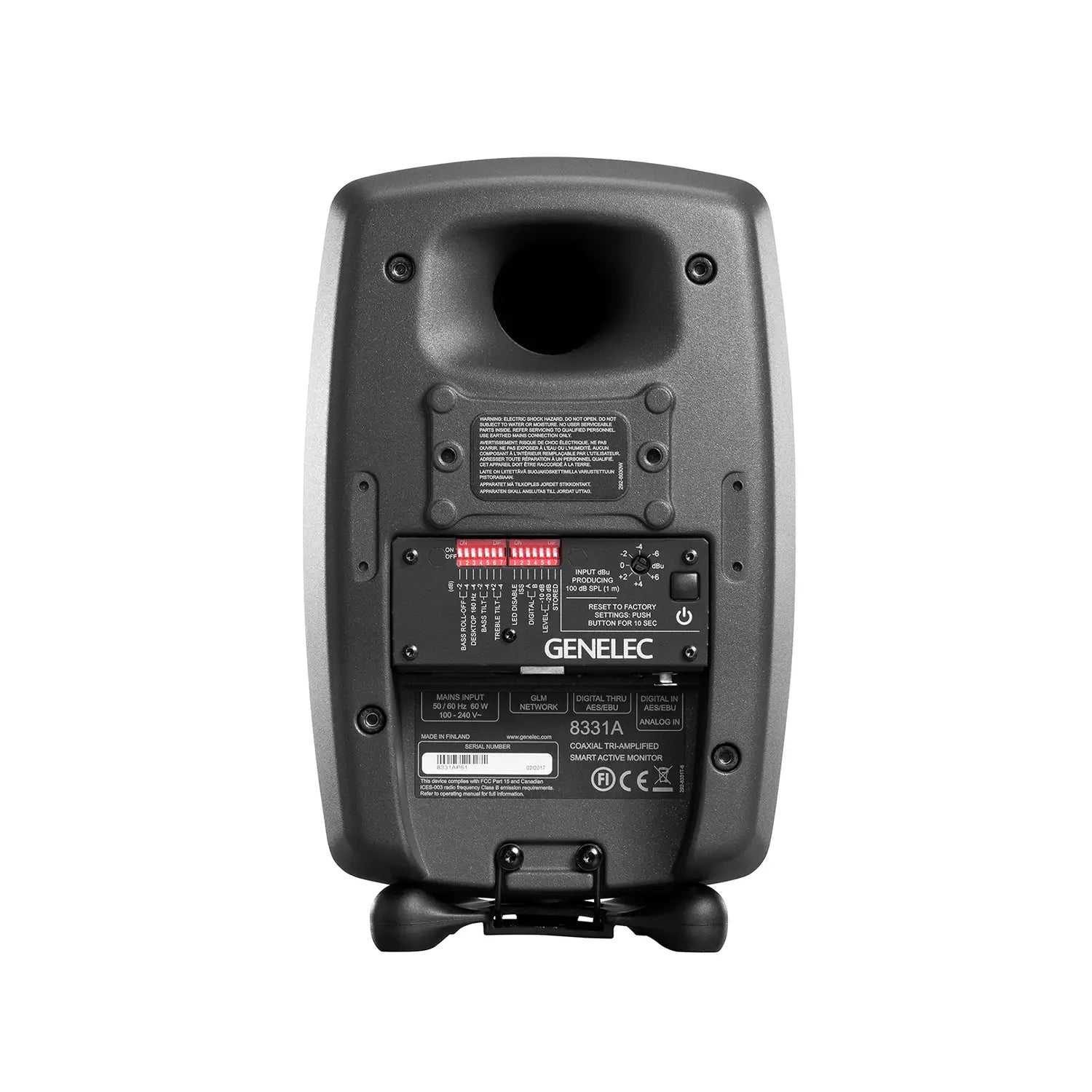

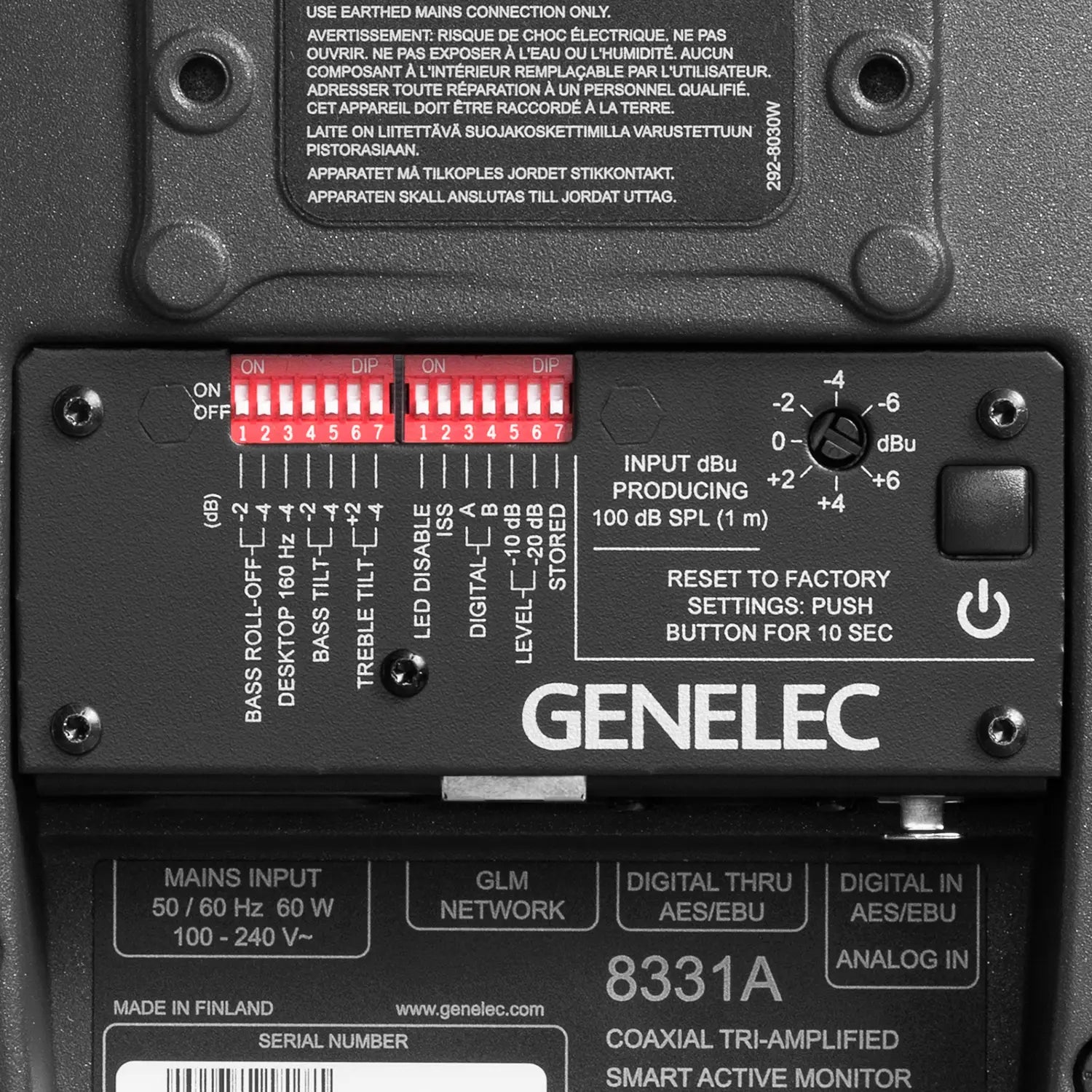

But what about the bass? There are two bass drivers, in the form of oval cones – 130 x 65mm – powered with 72w of Class-D. On the back you’ll find comprehensive manual control of the speaker via dip switches. There is also analogue and AES/EBU inputs via XLR, along with RJ45 for the GLM network.

GLMGenelec Loudspeaker Management software is an intuitive and powerful monitor control networking system that manages connectivity to all SAM™ studio monitors and subwoofers on your network. The software allows adjustment of levels, distance delays and flexible room response compensation equalisation with the state-of-the-art and robust AutoCal™ automated calibration system. All parameters and settings are stored in system setup files or saved in each individual monitor or sub if the GLM network needs to be disconnected.

8331A package includes:

  • 1 x 8331A monitor – with Iso-Pod to allow for a variety of vertical positioning options, de-coupled from the resting surface
  • 1 x mains cable 1.8m
  • 1 x RJ45 cable 5m
  • 1 x user manual

Mixes that translate

The smallest in The Ones series, 8331A is perfect for small rooms or ultra-nearfield applications, offering an outstanding solution where none existed before. In conjunction with GLM calibration software, 8331A will compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. Now you can deliver mixes that translate beautifully – every time.

SPL: 104 dB
Frequency Response: 45 Hz – 37 kHz (-6 dB)
± 1.5 dB (58 Hz – 20 kHz)
Driver Dimensions: Dual Woofers 130 x 65mm
Mid 3½” (coaxial)
Tweeter 3/4″ (coaxial)
Amplifier Power: Bass 72 W
Mid 36 W
Treble 36 W
Dimensions (HWD): 305 x 189 x 212 mm
Weight: 6.7 Kg
Connections: 1 x XLR analogue input
1 x XLR AES/EBU input
1 x XLR AES/EBU output
2 x RJ45 Control
