Blackmagic Design ATEM Mini Pro

Multi-camera vision switcher for streaming and recording
Close

Our price:$789.00 GST
Order Code: SWATEMMINIBPR

5 in stock (can be backordered)

Blackmagic Design ATEM Mini PRO features 4 HDMI inputs and is easy to use for live stream multi-camera productions, including online via YouTube, Facebook Live and more.

ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There’s also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

Perfect both education and worship
Use ATEM Mini to help record (or stream) lessons, lectures and seminars. It is also an easy solutioin to help broadcast worship services via the internet

Direct Streaming

ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Control your audio

With a built in Fairlight audio mixer, ATEM Mini Pro makes it possible to do complex live sound mixing. The internal mixer features a total of 12 channels so you can mix audio from all sources. That’s audio from all HDMI sources and the 2 stereo mic inputs. Each input channel features the highest quality 6 band parametric EQ and compressor, limiter, expander and noise gate as well as full panning. You can even set up the software to auto mix between inputs as you switch “AFV” or to live mix multiple sources together all at once. All this audio power can be controlled via ATEM Software Control, or you can add a Mackie compatible panel or even a massive Fairlight Audio Console!

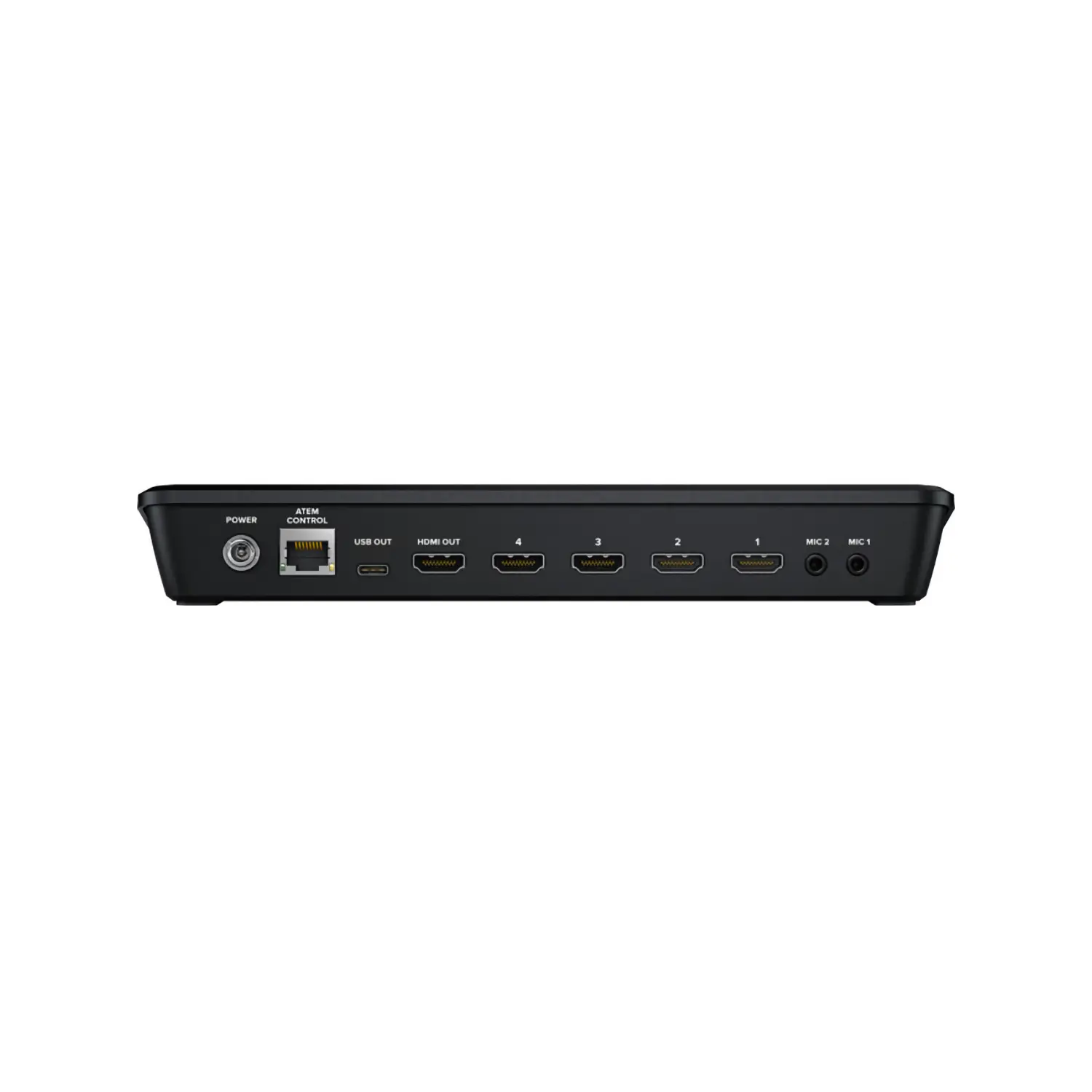

ATEM Mini Pro connections:

  • Total Video Inputs: 4
  • Total Outputs: 2
  • Total Aux Outputs: 1
  • Total Audio Inputs: 2 x 3.5mm stereo mini jack.
  • Total Audio Outputs: None, embedded audio only.
  • Timecode Connection: None
  • HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
  • Video Input Re-Sync: On all 4 HDMI inputs.
  • Frame Rate and Format Converters: On all 4 HDMI inputs.
  • HDMI Program Outputs: 1
  • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
  • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
