IGS Audio BISON 500

One switch, one knob. All the stereo and punch you need

Our price:$1,290.00 GST
Order Code: BISON500

Contact us for expected arrival, queue backorder

One switch, one knob. All the stereo and punch you need.

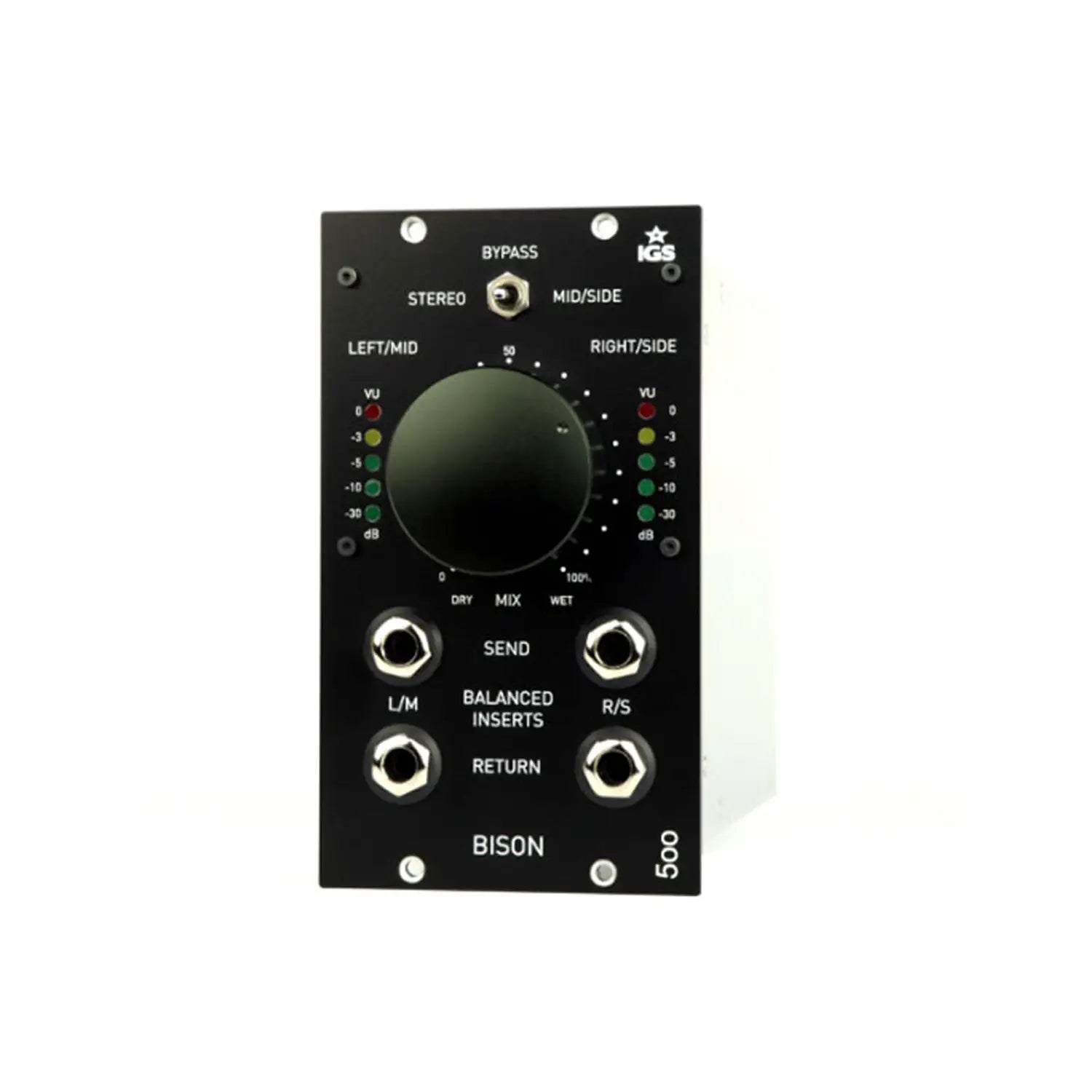

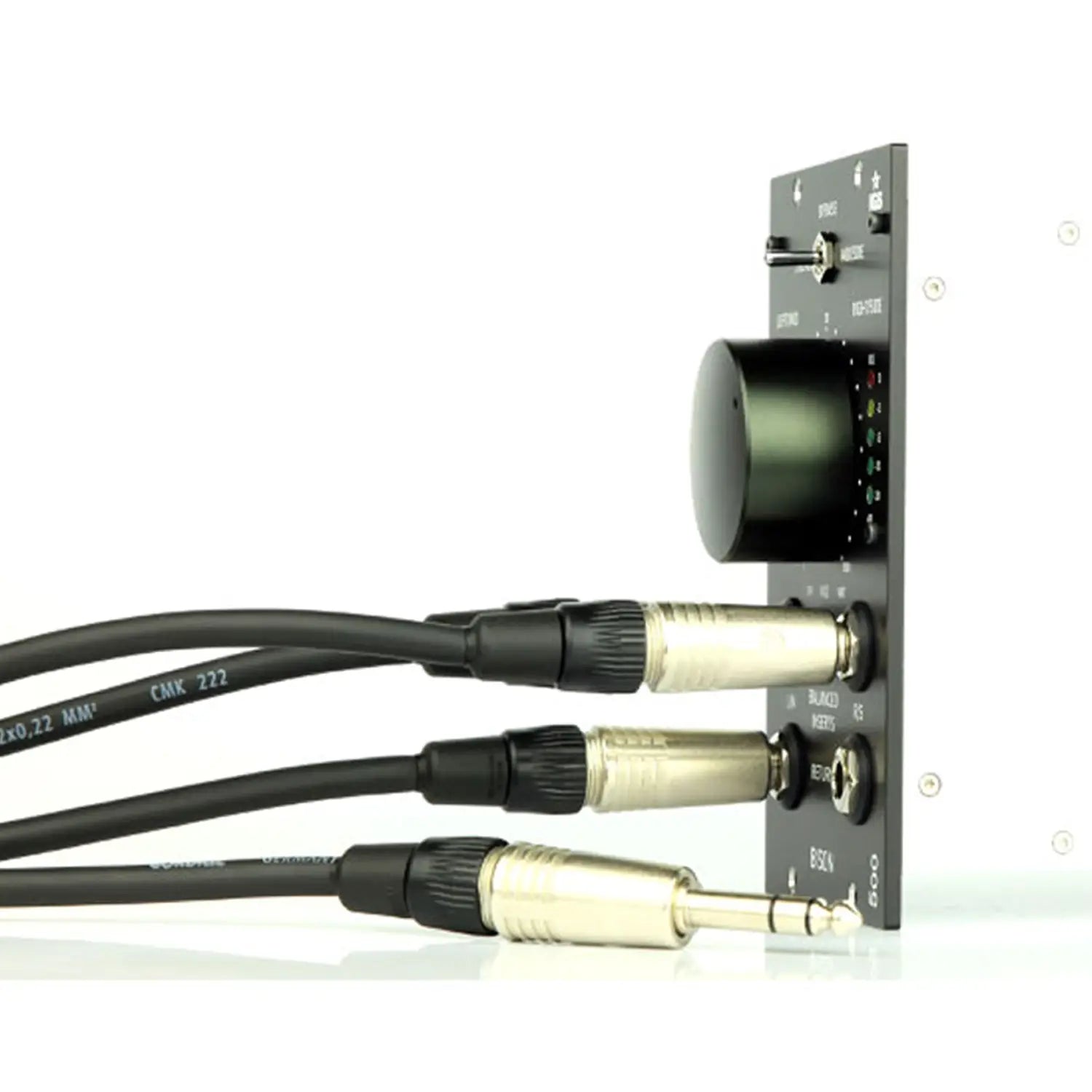

IGS Audio Bison 500 is a simple mid/side processor with a dry/wet mixer. It can be plugged into any 500 series rack equipped with a standard power supply. It has two stereo jack connectors (2 sends and 2 returns) on the front panel of the device used for plugging in your favorite dual mono or two mono compressors.


With a flick of the switch your compressor(s) start working in Mid/Side mode, where the left channel controls the common/Mid section of the two channels and the right channel controls the difference between the channels referred to as Side. Adding more sides or compressing them differently can increase your stereo image significantly.


The dry/wet knob can be very useful for parallel mixing. It is great for situations, where you want to pump up the sound without losing the natural dynamics of the dry mix.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Input & Output
Input Impedance (balanced) 10k Ohm
Output Impedance (balanced) 50 Ohm
Operating Level +4 dBu
Max input level +18 dBu
Max output level +29 dBu
Dynamic Range 98 dBA (@ 1 kHz, +18 dBu)
Frequency response 10 Hz to 30 kHz (+0.1 dB / -0.2 dB)
Distortion (@ 20 Hz – 20 kHz)
Signal to Noise Ratio 81 dBA (@ 20 Hz – 20 kHz)
THD+N 0.003% @ (@ 20 Hz – 20 kHz)
IMD (SMPTE) 0.005 % (@ 20 Hz – 20 kHz)
Crosstalk 78 dB (@ 20 Hz – 20 kHz)
Front Panel
VU Meters Yes, 5 LED Bar Display
Power consumption 8W
