Cordial CCFD3DFT

Balanced Analogue Snake: 8 x female XLR – 25pin D-Sub (tascam) – 3m
Close

Our price:$210.00 GST
Order Code: CCFD3DFT

IN STOCK 1 (more can be backordered)

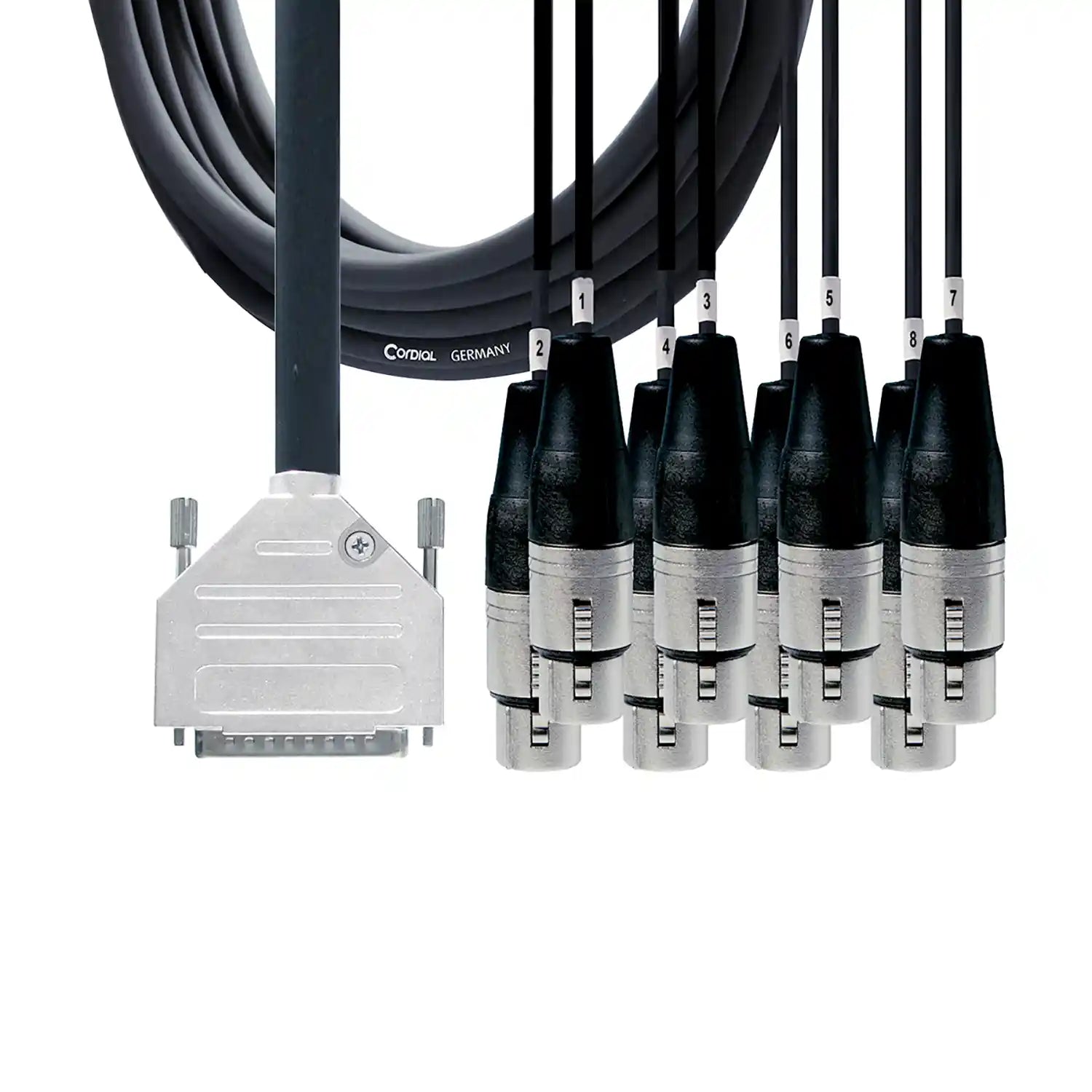

Cordial CCFD3DFT (3m D-SUB breakout cable) provides the excellent transmission of analogue signals on stage and in the studio.

It is equipped with 8 x Female XLR connectors (with number coded, 40cm cable fan), and a 25-pin D-Sub metal connector.

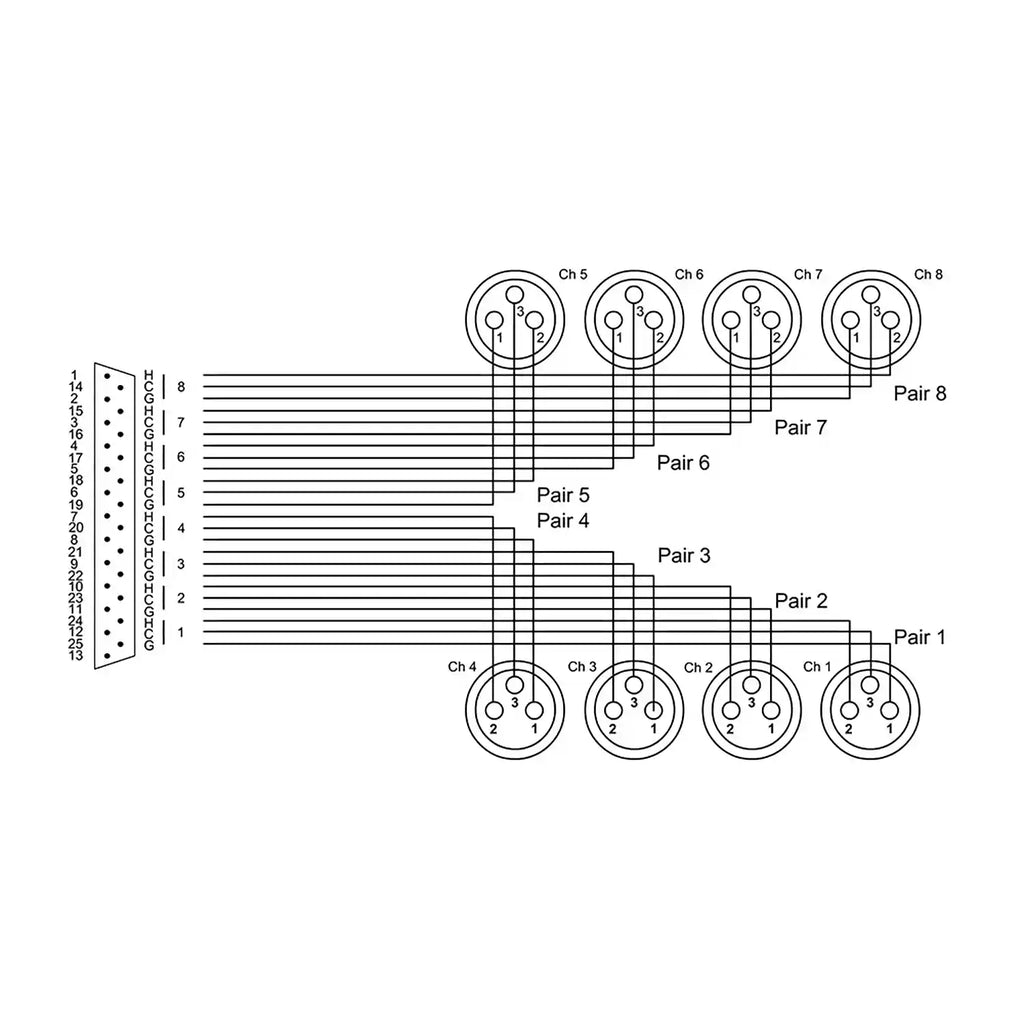

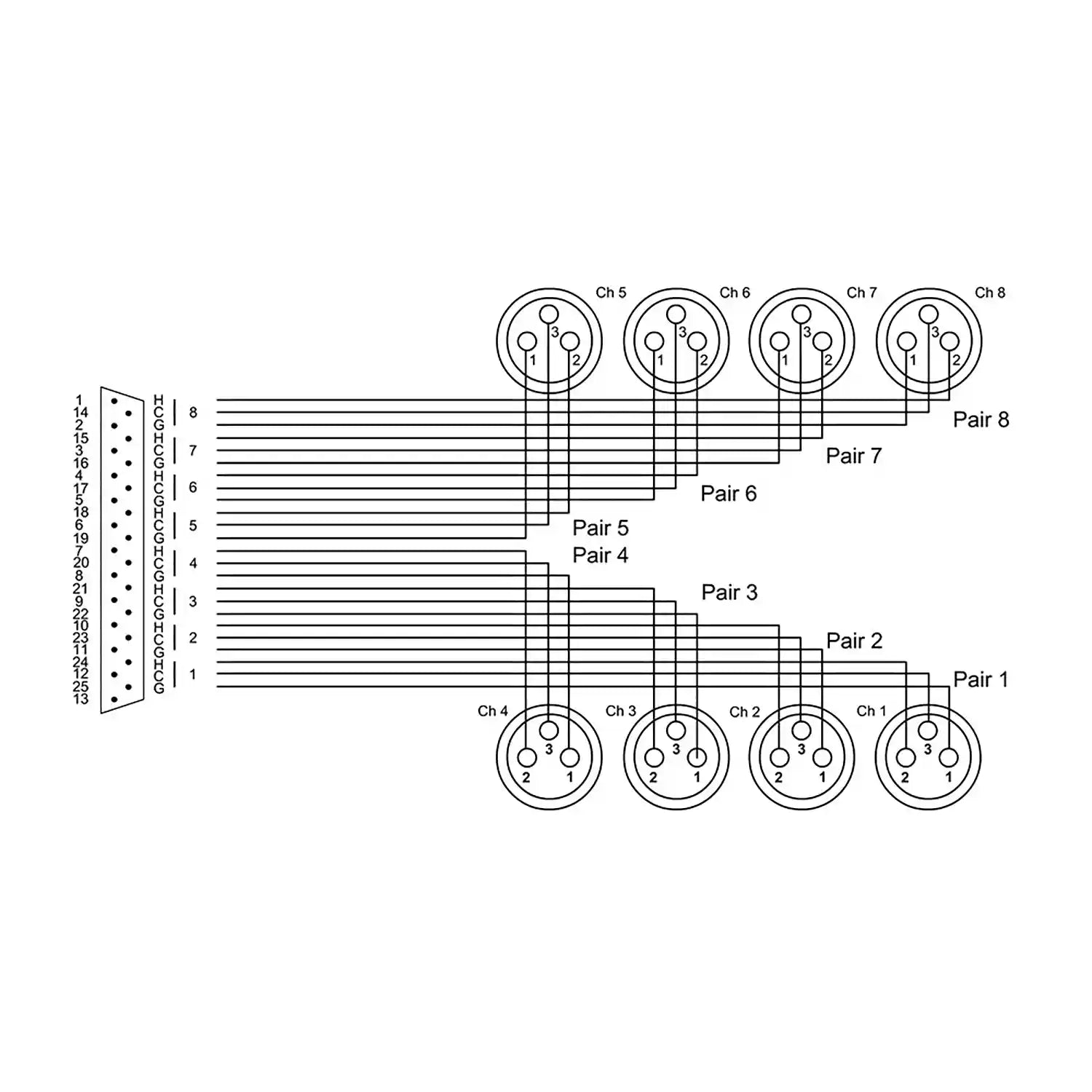

Tascam’ standard pin configuration, this loom is usually used for jamming an analogue signal into a tascam-wired D-Sub input.

Length: 3m
Connectors: REAN brand

Not the cable you’re looking for?

Check our range of Cordial Cables here

Need a different D-Sub cable?

Check our D-sub category page here

Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 7 x 0.20 mm
Conductor resistance 79 Ohm/km
Capacity cond.-cond. (pF/m) 72 pF/m
additional description Stage/Studio split length (cable) = 0.4m
Sample Application: Patch Connection Siderack
category Multicore
cable o/d 15 mm (± 0.2 mm)
