IN STOCK 11 (more can be backordered)

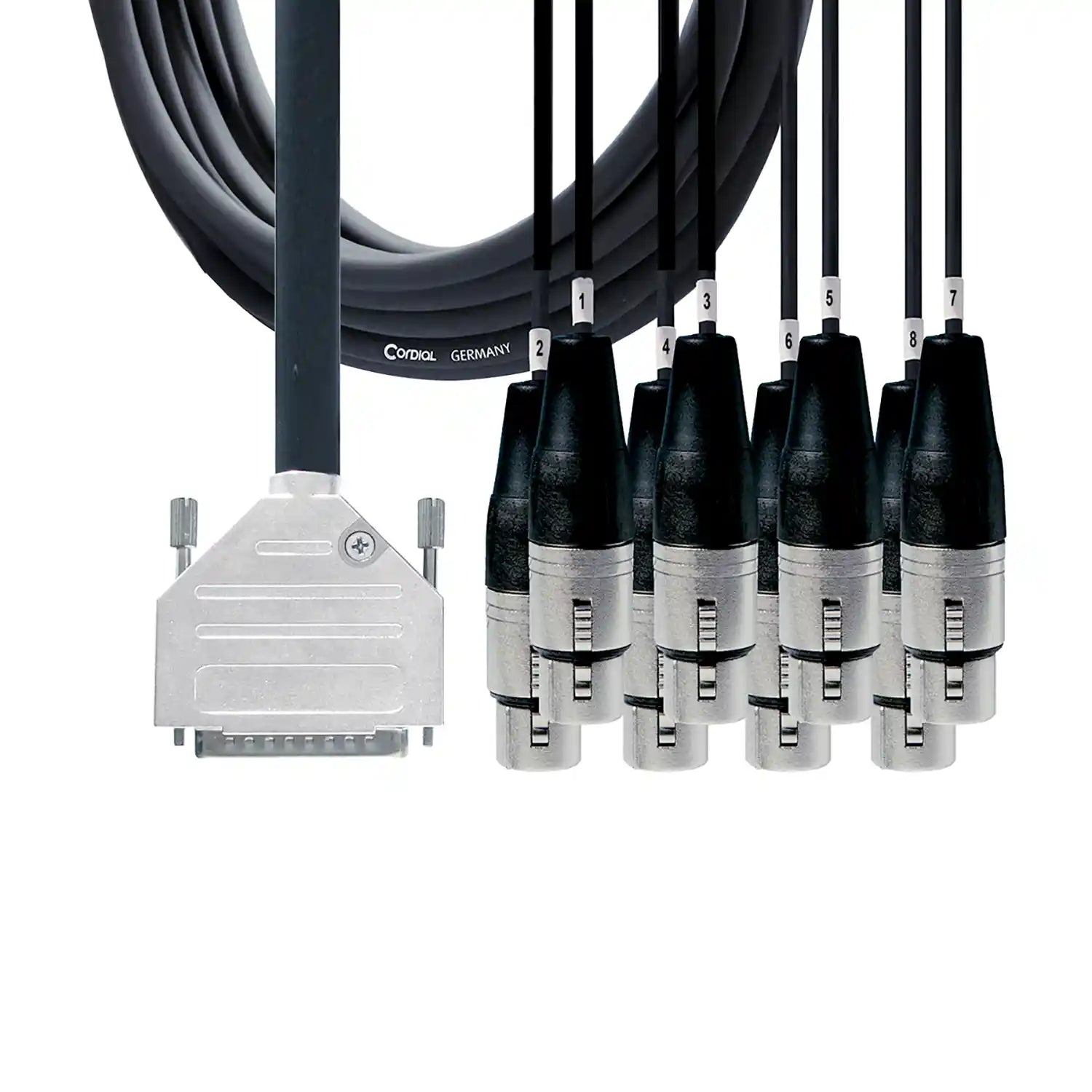

Cordial CCFD5DFT (5m D-SUB breakout cable) provides the excellent transmission of analogue signals on stage and in the studio.
It is equipped with 8 x Female XLR connectors (with number coded, 40cm cable fan), and a 25-pin D-Sub metal connector.

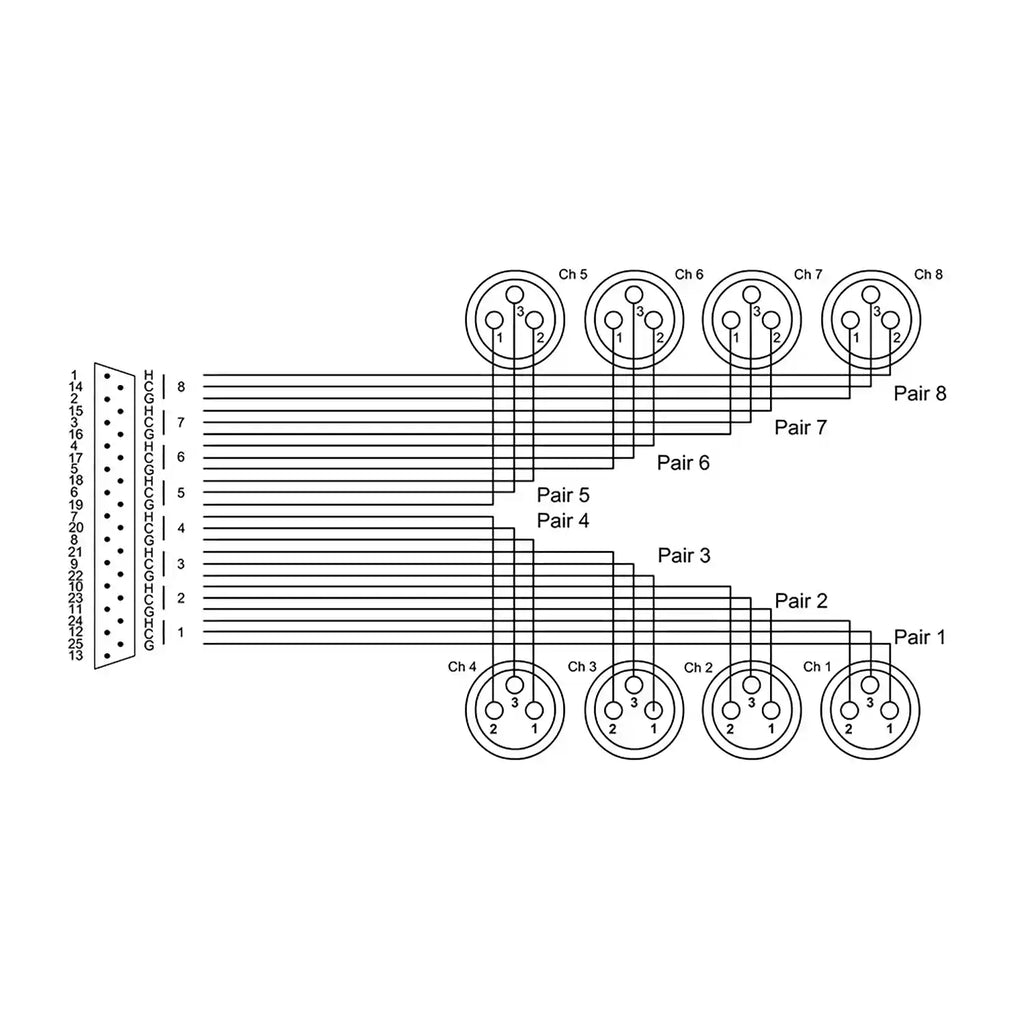

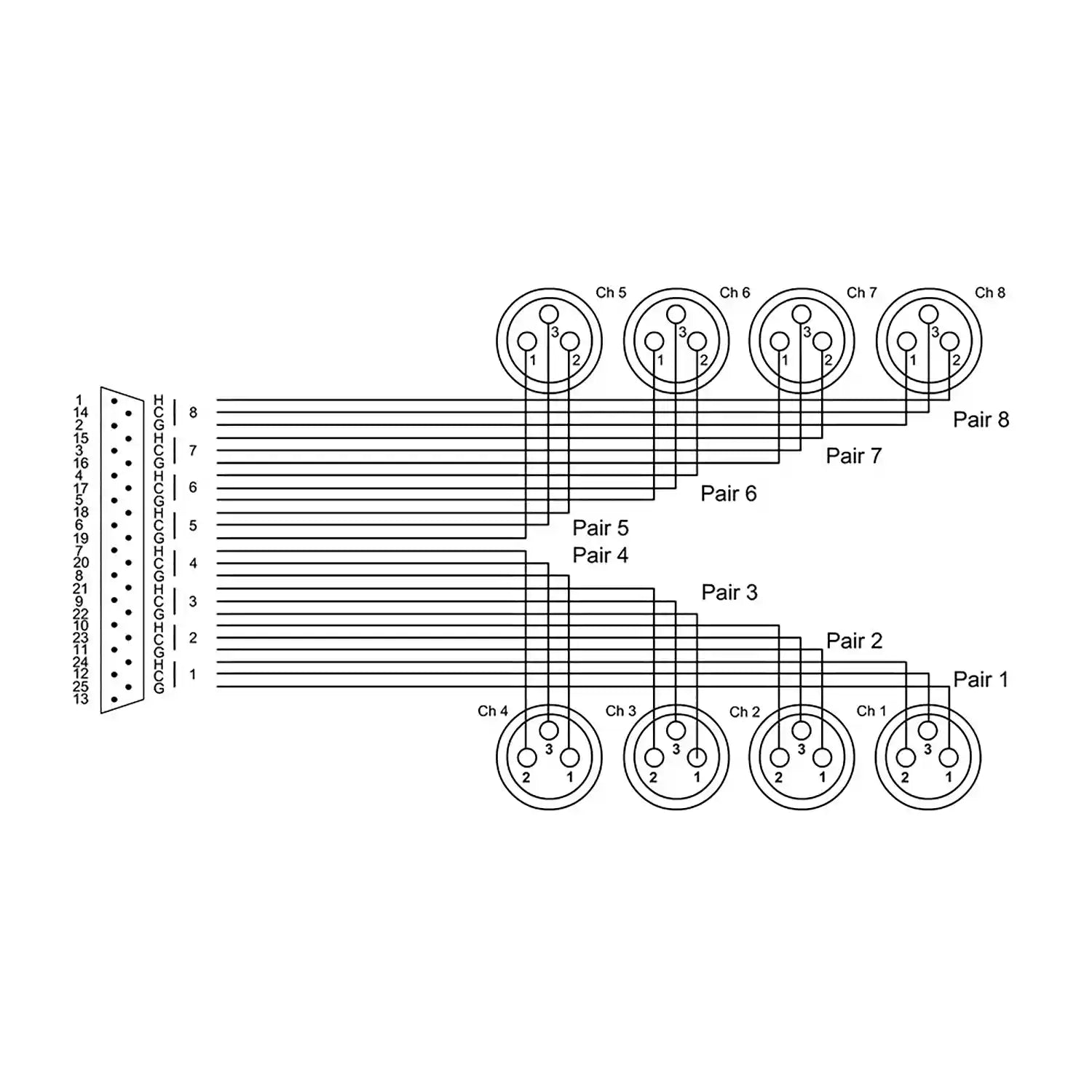

‘Tascam’ standard pin configuration, this loom is usually used for jamming an analogue signal into a tascam-wired D-Sub input.
Length: 5m
Connectors: REAN brand
Not the cable you’re looking for?
Check our range of Cordial Cables here
Need a different D-Sub cable?
Check our D-sub category page here
| Conductor area | 0.22 mm² |
| AWG | AWG 24 |
| Composition of conductor | 7 x 0.20 mm |
| Conductor resistance | 79 Ohm/km |
| Capacity cond.-cond. (pF/m) | 72 pF/m |
| additional description | Stage/Studio split length (cable) = 0.4m Sample Application: Patch Connection Siderack |
| category | Multicore |
| cable o/d | 15 mm (± 0.2 mm) |
