Cordial CFD0.9AA

MIDI patch cable with REAN connectors – 0.9m
Close

Our price:$15.00 GST
Order Code: CFD09AA

IN STOCK 21 (more can be backordered)

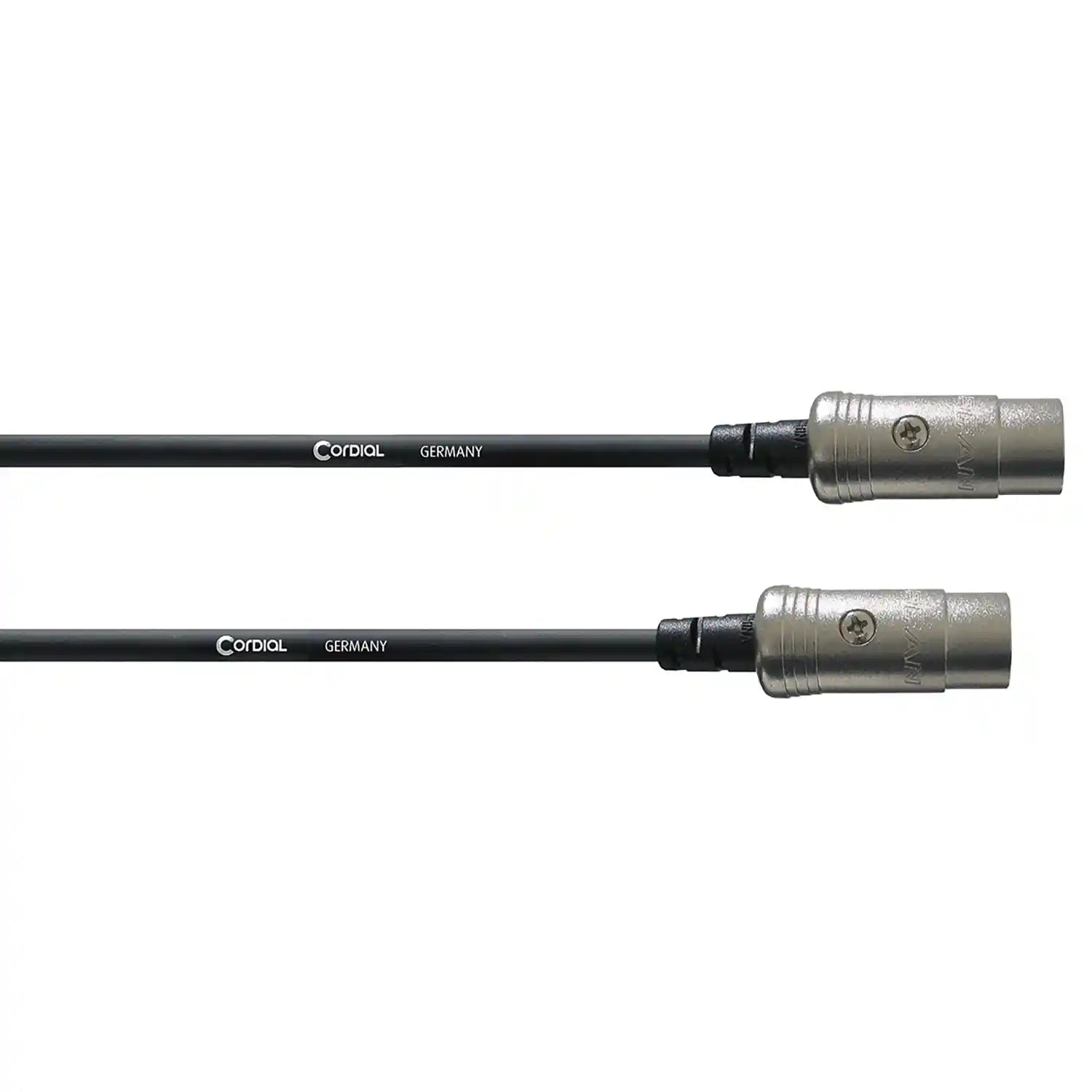

Cordial CFD09AA midi cable has a REAN 5-pin MIDI connector at each end – 0.9m length.

The CFD09AA MIDI cable with 5-pin plug  is used for studio as well as mobile stage operations. The 5-pin REAN® by NEUTRIK® metal plugs are hand soldered and their metal sleeves provide enhanced stability.

The conductor area of 2x 0.22 mm² ensures an excellent signal transmission, for instance between a sound module and a MIDI controller or a keyboard and a USB interface.

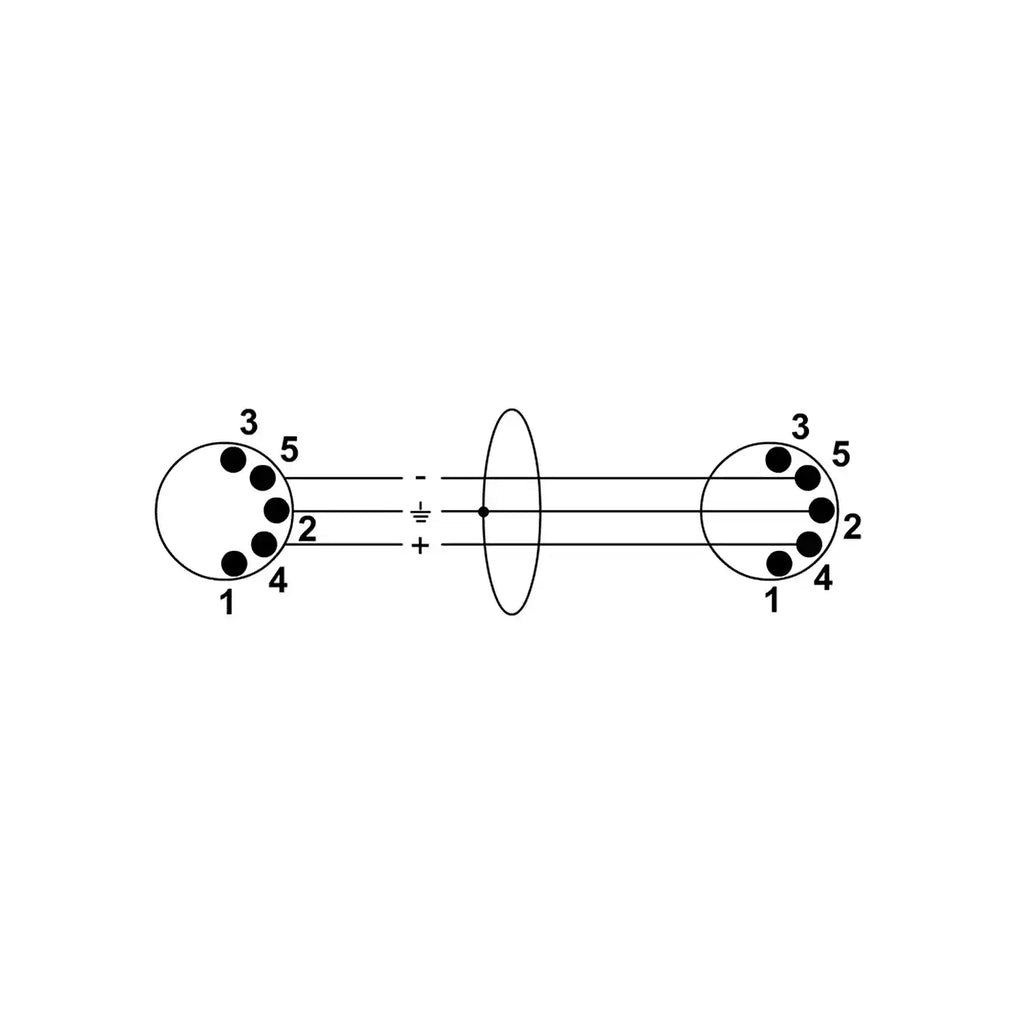

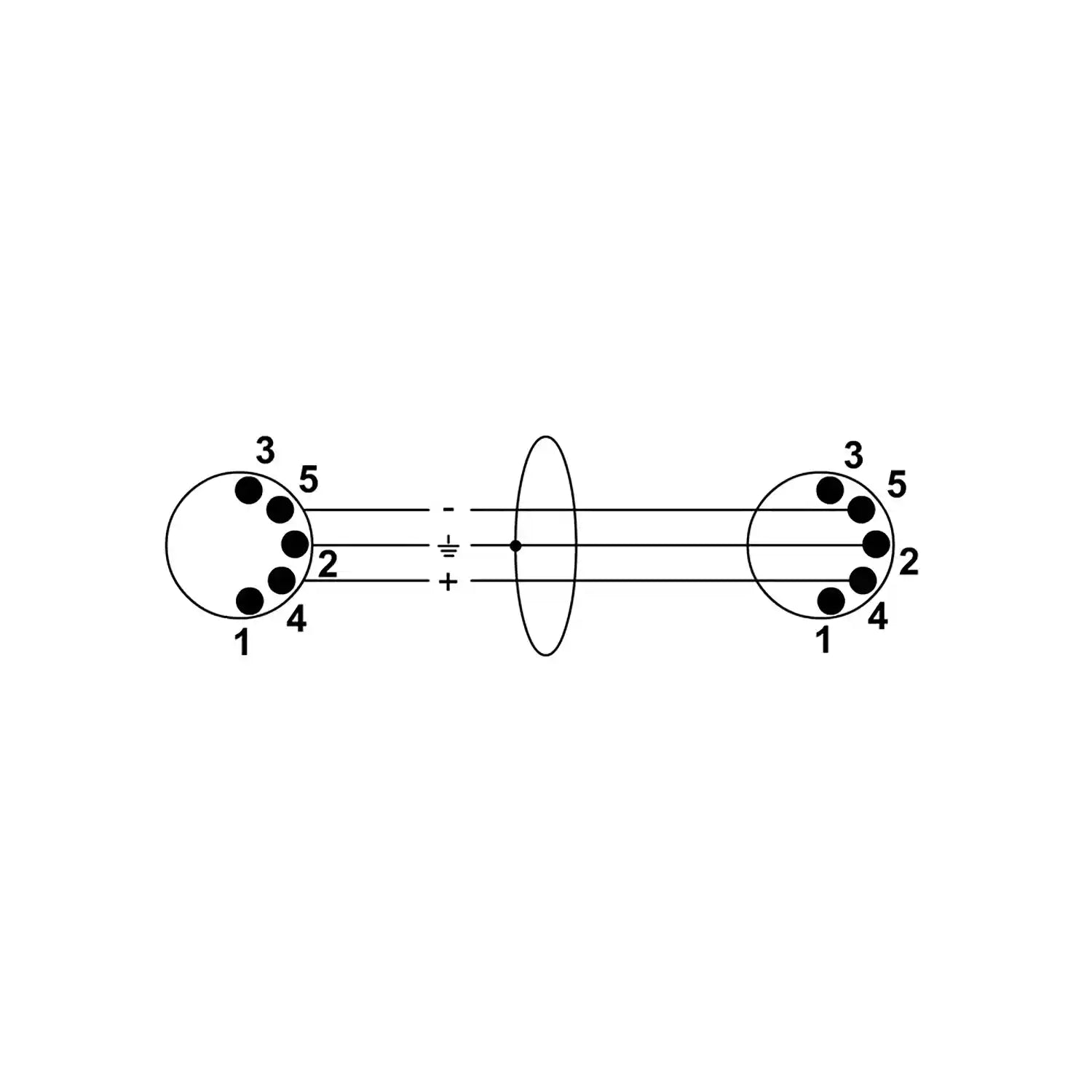

Note – like most MIDI cable, this uses standard3-pin MIDI assignment (pins 1 & 3 are not connected). If you need a “fully connected” 5-pin DIN controller cable, hit us up for custom options.

Length: 0.9m
Connectors: REAN brand

Not the cable you’re looking for?

Check our range of Cordial Cables here

connector brand REAN
plugs DIN 5-Pole/MIDI
DIN 5-Pole/MIDI
cable:
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 80 Ohm/km
Shielding spiral shield (90% coverage)
Capacity cond.-cond. (pF/m) < 80 pF/m
diameter 5.9 mm
Conductor isolation LDPE
