Allen & Heath dLive-C1500

12 faders. Single 12? touchscreen
Close

    Contact us today

    Our price:$19,999.00 GST
    Order Code: dLive-C1500

    Contact us for expected arrival, queue backorder

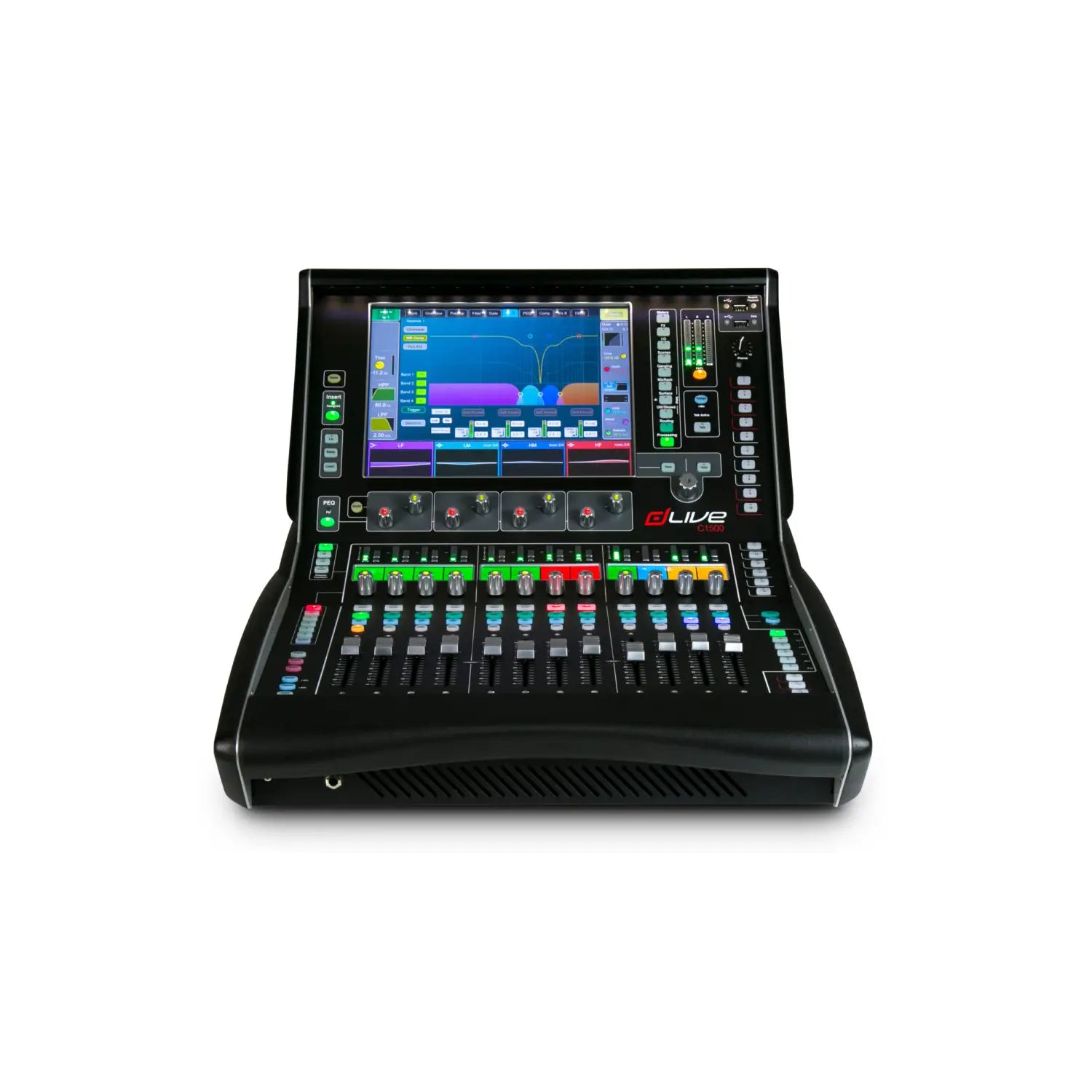

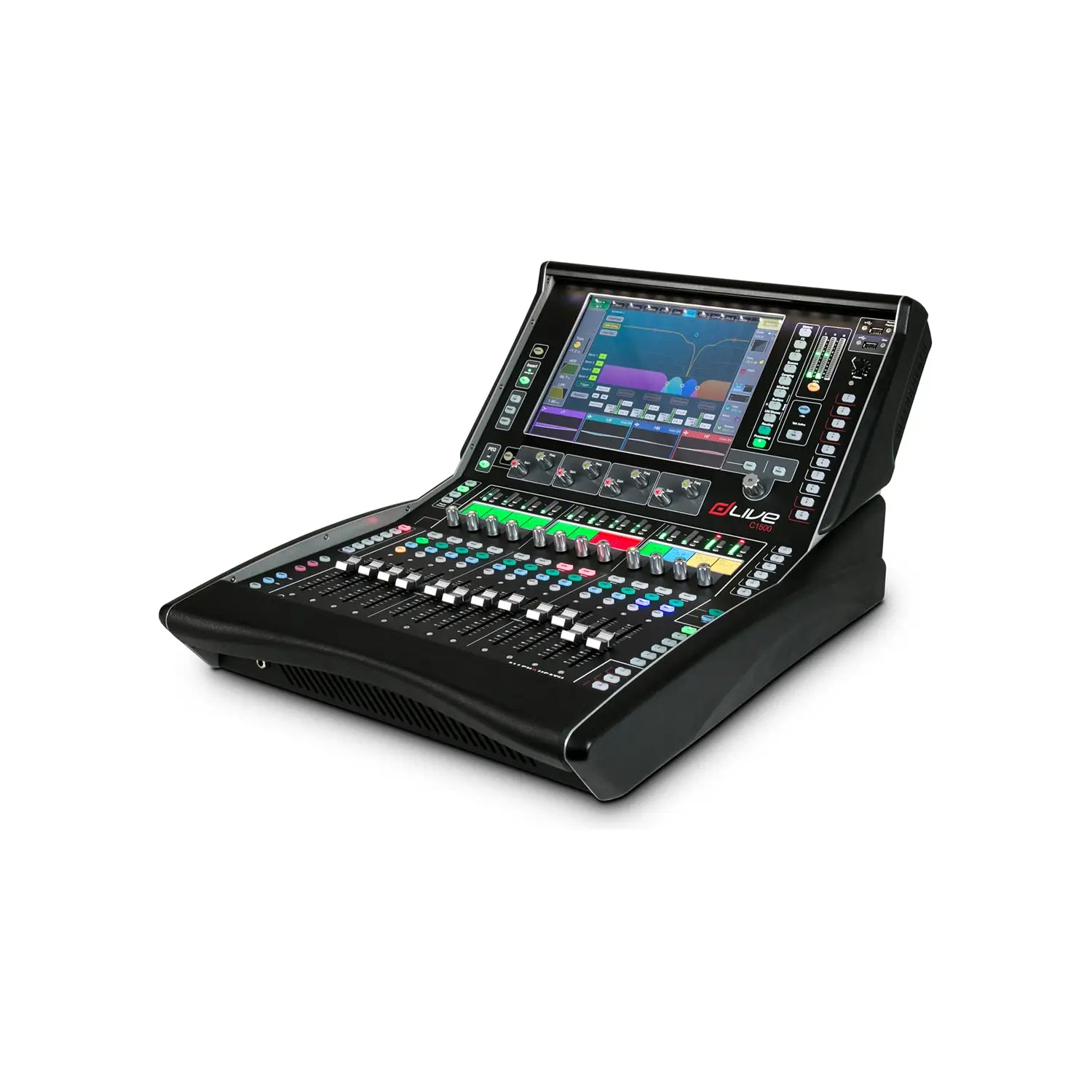

    The C1500 is the first rack-mountable control Surface for the dLive MixRack. Packed in a tiny footprint are 12 faders over 6 layers, built-in audio I/O, an audio networking port, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

    • 12 faders
    • Fully assignable layout – 72 fader strips
    • Harmony UI integrates screen and wrap-around controls
      • 12” capacitive touchscreen
      • Gesture control – pinch, swipe, drag ‘n drop
      • Dedicated multi-mode EQ view
      • Configurable widget areas for Scenes, meters, FX and more
    • 19 assignable SoftKeys
    • Engineer’s Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback

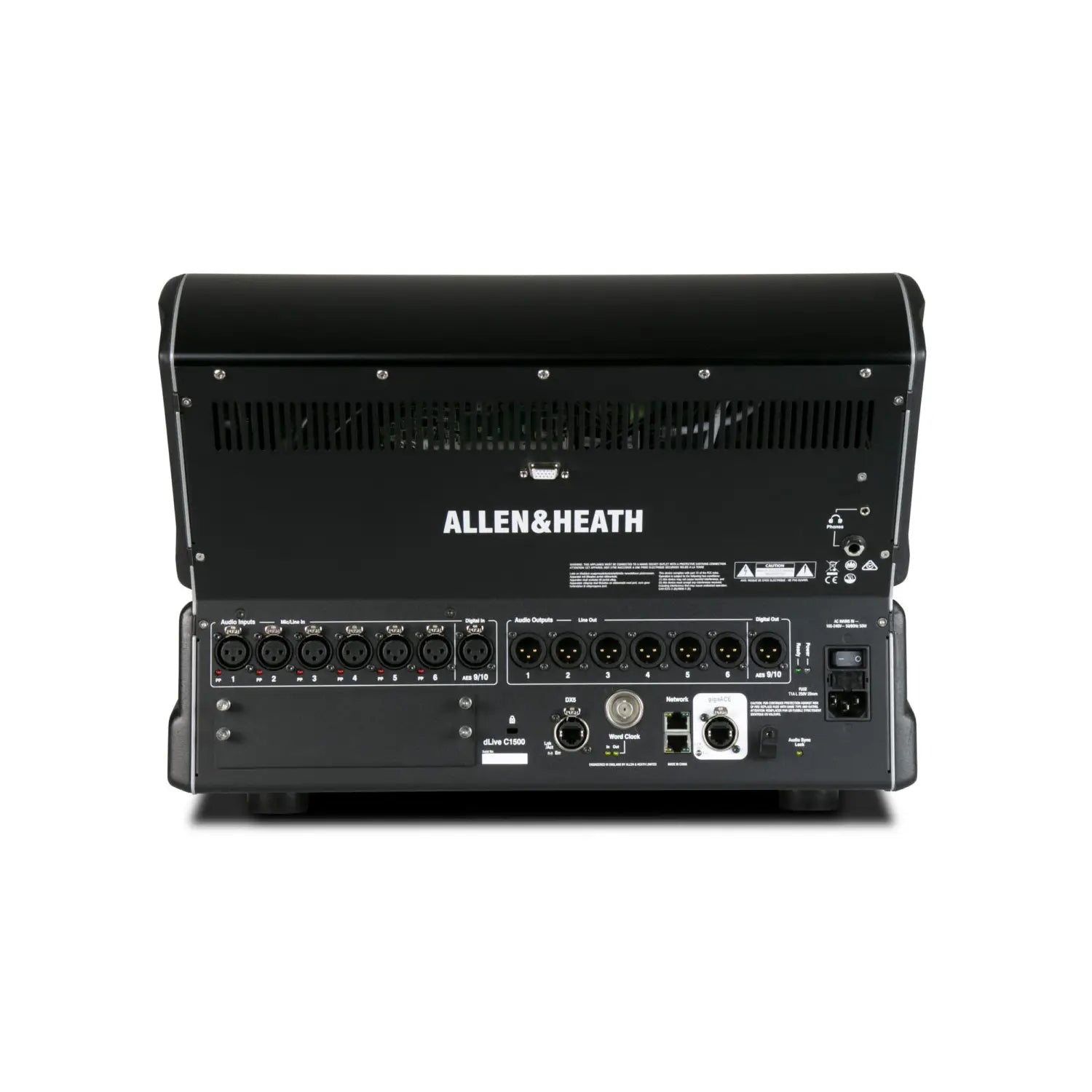

    • 6 XLR mic/line in, 6 XLR line out
    • 1 digital st AES3 in, 1 digital st AES3 out
    • Connection hub
      • GigaACE gigabit link to MixRack
      • DX link for I/O expansion
      • I/O Port – 128 ch 96 kHz
      • 2x Network ports
      • Wordclock BNC I/O
      • Video output
    Inputs System
    Mic/Line XLR InputsBalanced XLR, +48V phantom powerMeasured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out
    Mic/Line PreampFully recallableDynamic Range110dB
    Input Sensitivity-60 to +15dBuSystem Signal to Noise-92dB
    Analogue Gain+5 to +60dB, 1dB stepsFrequency Response20Hz – 30kHz  +0/-0.8dB
    Pad-20dB Active PADTHD+N (analogue in to out)0.0015% @ +16dBu output, 1kHz 0dB gain
    Maximum Input Level+30dBu (PAD in)Headroom+18dB
    Input Impedance>4kΩ (Pad out), >10kΩ (Pad in)Internal operating Level0dBu
    Mic EIN-127dB with 150? sourcedBFS Alignment+18dBu = 0dBFS (+22dBu at XLR output)
    Phantom Power indicationPer socket, internal or external phantom power sensing, triggered at 24VMeter Calibration0dB meter = -18dBFS (+4dBu at XLR out)
    Digital InputsAES3 2 Ch XLR, 2.5Vpp
    balanced terminated 110 ?    		Meter Peak indication-3dBFS (+19dBu at XLR out)
     SRC range 32k – 192kHz, with bypass option
      Sampling Rate96kHz +/- 20 PPM
    Outputs ADC24-bit Delta-Sigma
      DAC24-bit Delta-Sigma
    Analogue XLR OutputsBalanced, Relay protectedLatency0.7 ms (MixRack XLR in to XLR out, Input to Mix)
    Output Impedance<75Ω + 5 samples, Surface to Mixrack (GigaACE hop)
    Nominal Output+4dBu = 0dB meter reading + 8 samples, DX32 to Mixrack (DX hop)
    Maximum Output Level+22dBu
    Residual Output Noise-92dBu (muted, 20-20kHz)Operating Temperature Range0 deg C to 35 deg C  (32 deg F to 95 deg F)
     -90dBu (muted, 20-40kHz)Mains Power100-240V AC, 50-60Hz, 110W
    max
    Digital OutputsAES3 2 Ch XLR, 2.5Vpp
    balanced terminated 110 ?
     96kHz sampling rate, switchable to 48kHz, 44.1kHzUSB Audio playbackMono/stereo .WAV files, 16/24bit, 44.1/48/96kHz
      USB Audio recordingStereo .WAV files, 24bit 96kHz
    Dimensions and Weights
     Width x Depth x Height x Weight Width x Depth x Height x Weight
    C1500485 x 665 x 325mm (19″x
    26.2″x 12.8″) x 18kg
    (39.7lbs)    		C1500 – boxed870 x 700 x 480mm (34.3 x
    27.6 x 18.9″) x 24.8kg
    (54.7lbs)
