| Inputs | | System | |
| Mic/Line XLR Inputs | Balanced XLR, +48V phantom power | Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out |
| Mic/Line Preamp | Fully recallable | Dynamic Range | 110dB |
| Input Sensitivity | -60 to +15dBu | System Signal to Noise | -92dB |
| Analogue Gain | +5 to +60dB, 1dB steps | Frequency Response | 20Hz – 30kHz +0/-0.8dB |
| Pad | -20dB Active PAD | THD+N (analogue in to out) | 0.0015% @ +16dBu output, 1kHz 0dB gain |
| Maximum Input Level | +30dBu (PAD in) | Headroom | +18dB |
| Input Impedance | >4kΩ (Pad out), >10kΩ (Pad in) | Internal operating Level | 0dBu |
| Mic EIN | -127dB with 150? source | dBFS Alignment | +18dBu = 0dBFS (+22dBu at XLR output) |
| Phantom Power indication | Per socket, internal or external phantom power sensing, triggered at 24V | Meter Calibration | 0dB meter = -18dBFS (+4dBu at XLR out) |
| Digital Inputs | AES3 2 Ch XLR, 2.5Vpp
balanced terminated 110 ? | Meter Peak indication | -3dBFS (+19dBu at XLR out) |
| | SRC range 32k – 192kHz, with bypass option | | |
| | | Sampling Rate | 96kHz +/- 20 PPM |
| Outputs | | ADC | 24-bit Delta-Sigma |
| | | DAC | 24-bit Delta-Sigma |
| Analogue XLR Outputs | Balanced, Relay protected | Latency | 0.7 ms (MixRack XLR in to XLR out, Input to Mix) |
| Output Impedance | <75Ω | | + 5 samples, Surface to Mixrack (GigaACE hop) |
| Nominal Output | +4dBu = 0dB meter reading | | + 8 samples, DX32 to Mixrack (DX hop) |
| Maximum Output Level | +22dBu | | |
| Residual Output Noise | -92dBu (muted, 20-20kHz) | Operating Temperature Range | 0 deg C to 35 deg C (32 deg F to 95 deg F) |
| | -90dBu (muted, 20-40kHz) | Mains Power | 100-240V AC, 50-60Hz, 110W
max |
| Digital Outputs | AES3 2 Ch XLR, 2.5Vpp
balanced terminated 110 ? | | |
| | 96kHz sampling rate, switchable to 48kHz, 44.1kHz | USB Audio playback | Mono/stereo .WAV files, 16/24bit, 44.1/48/96kHz |
| | | USB Audio recording | Stereo .WAV files, 24bit 96kHz |
| Dimensions and Weights | | | |
| | Width x Depth x Height x Weight | | Width x Depth x Height x Weight |

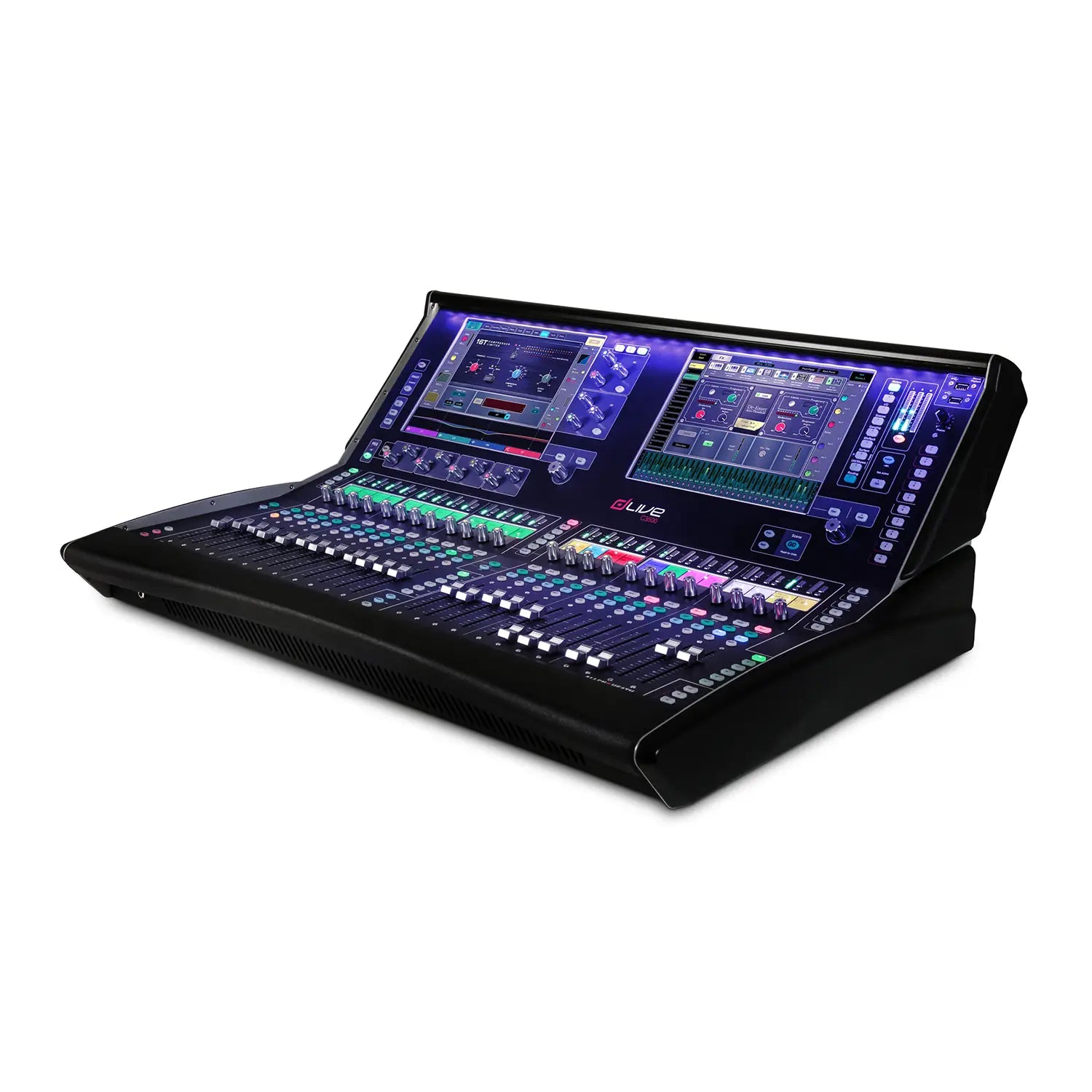

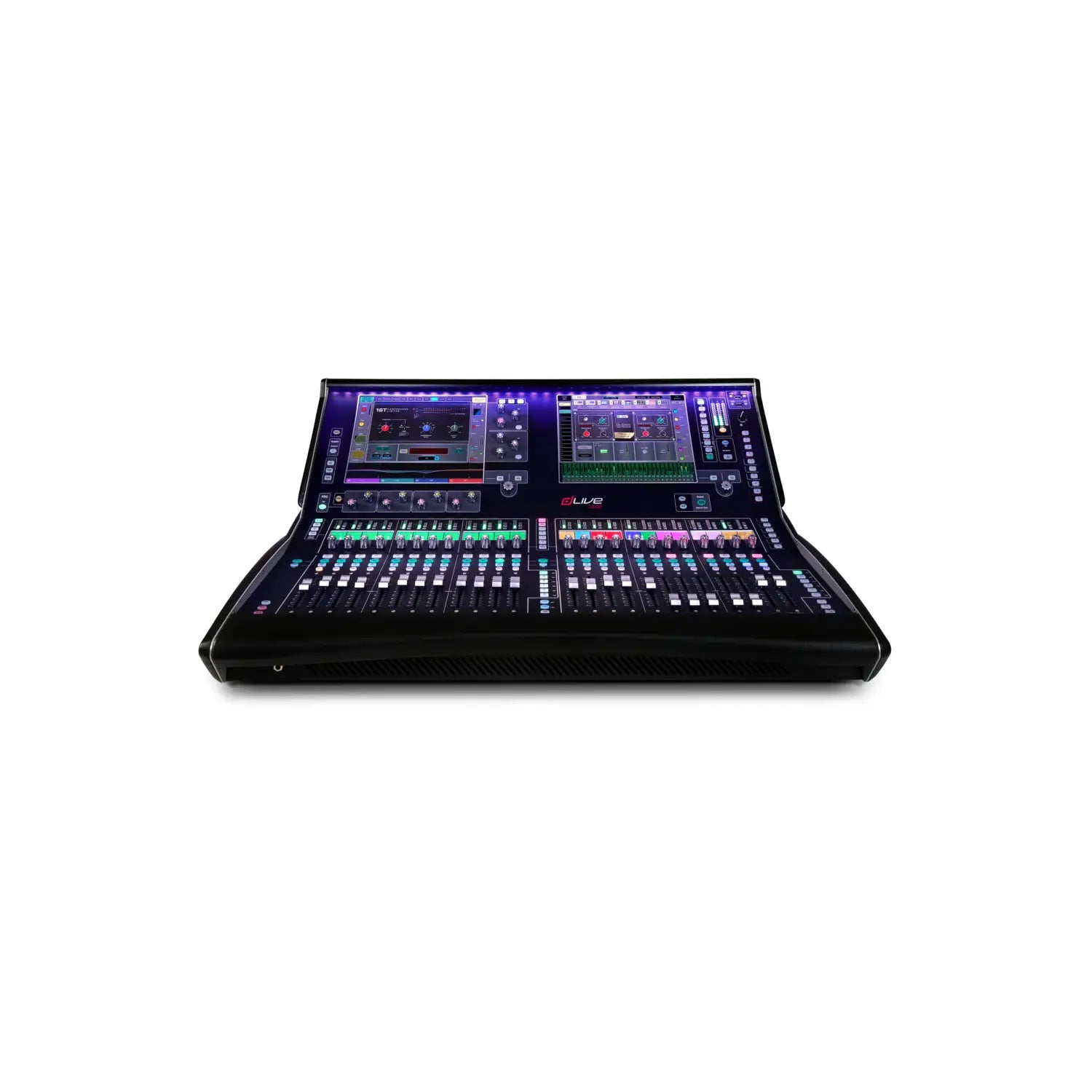

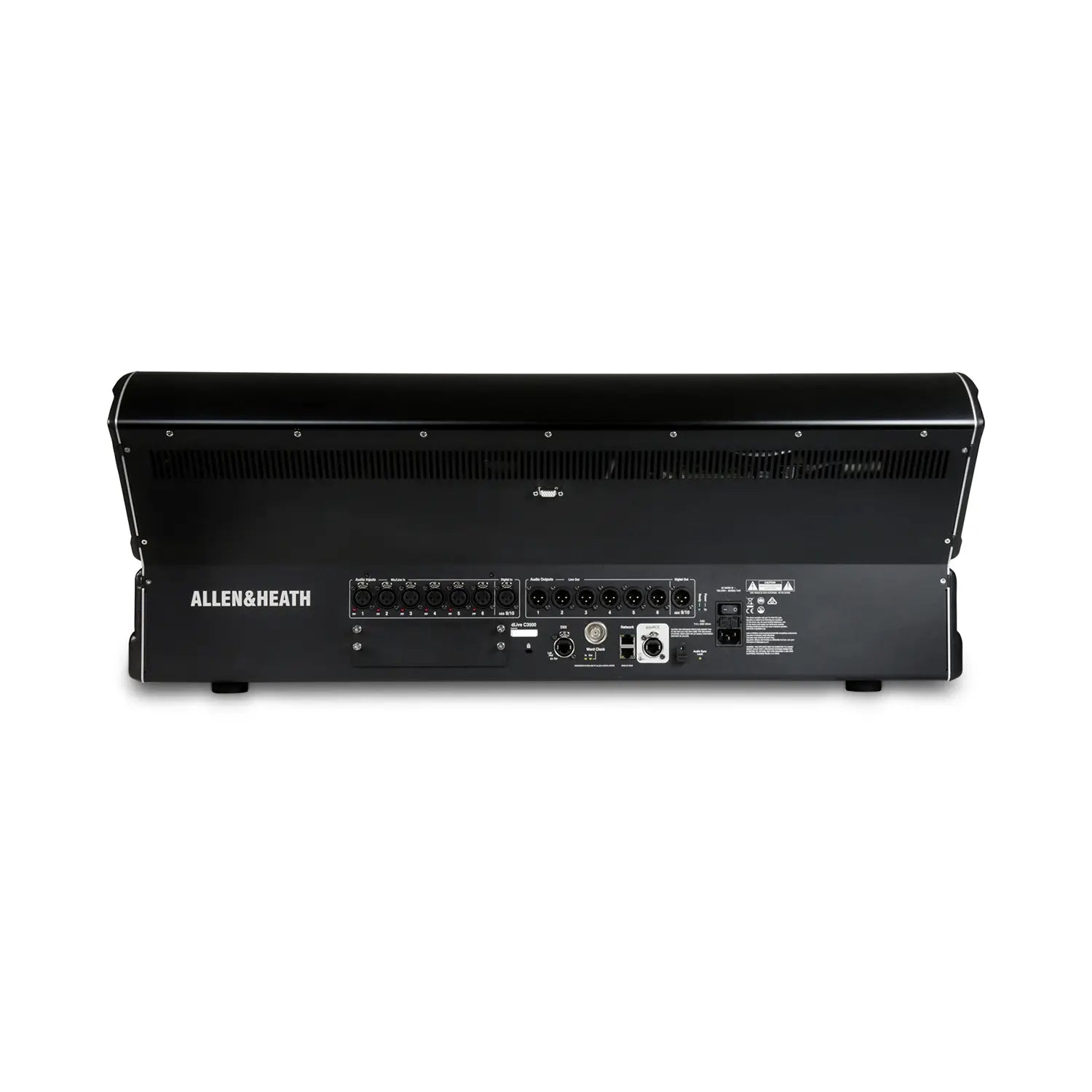

| C3500 | 665 x 885 x 325mm (26.2 x
34.8 x 12.8″) x 28kg
(61.7lbs) | C3500 – boxed | 870 x 1060 x 480mm (34.3 x
41.7 x 18.9″) x 37.5kg
(82.7lbs) |
