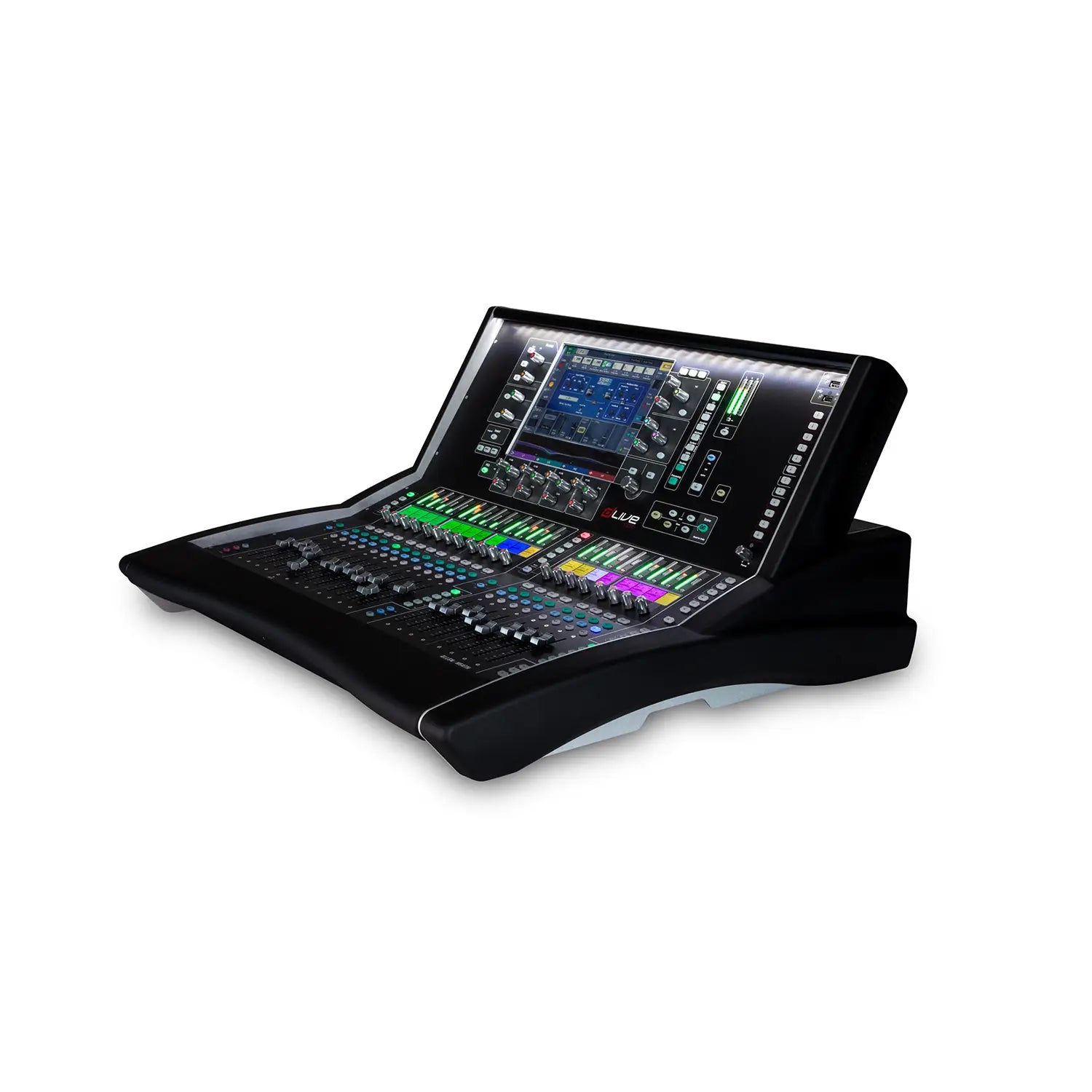

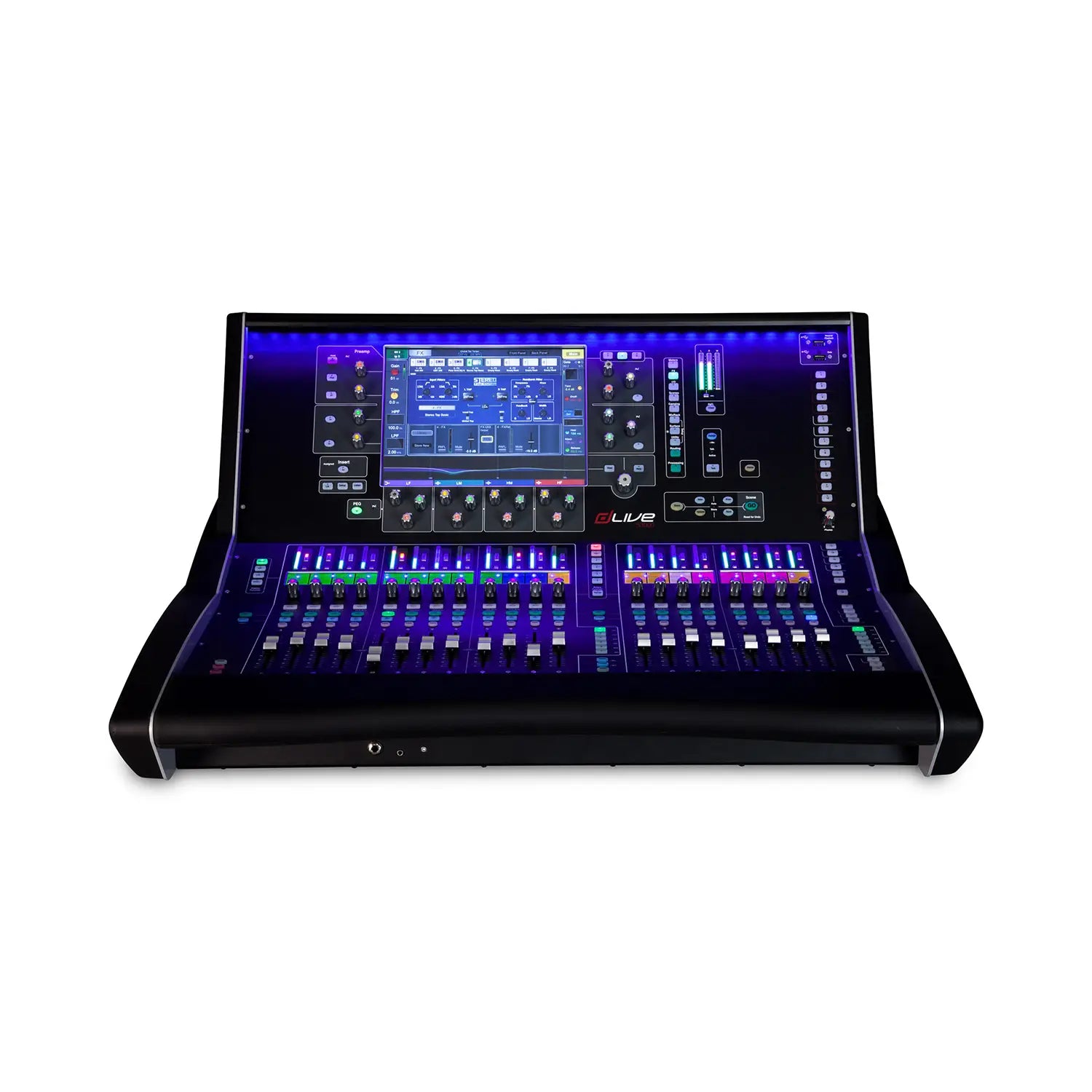

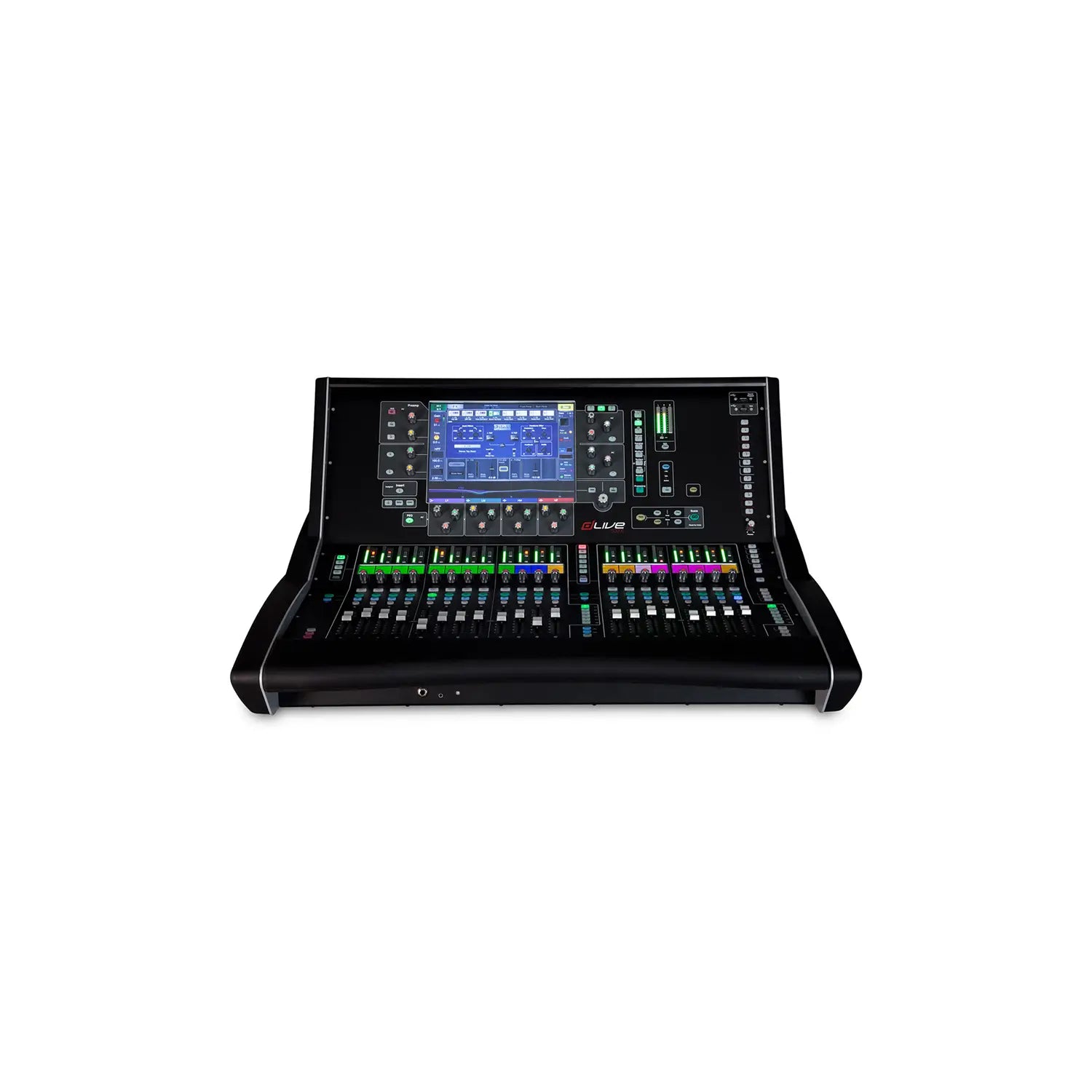

Allen & Heath dLive-S3000

20 faders. Single 12? touchscreen
Close

Our price:$32,999.00 GST
Order Code: dLive-S3000

Available on backorder

  • 20 faders
  • Fully assignable layout – 120 fader strips
  • Harmony UI integrates screen and wrap-around controls
    • Single 12” capacitive touchscreen
    • Gesture control – pinch, swipe, drag ‘n drop
    • Dedicated multi-mode EQ view
    • Configurable widget areas for Scenes, meters, FX and more
    • 3 pages of 6 assignable rotaries
  • 26 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 8 XLR mic/line in, 8 XLR line out
  • 2 digital st AES3 in, 3 digital st AES3 out

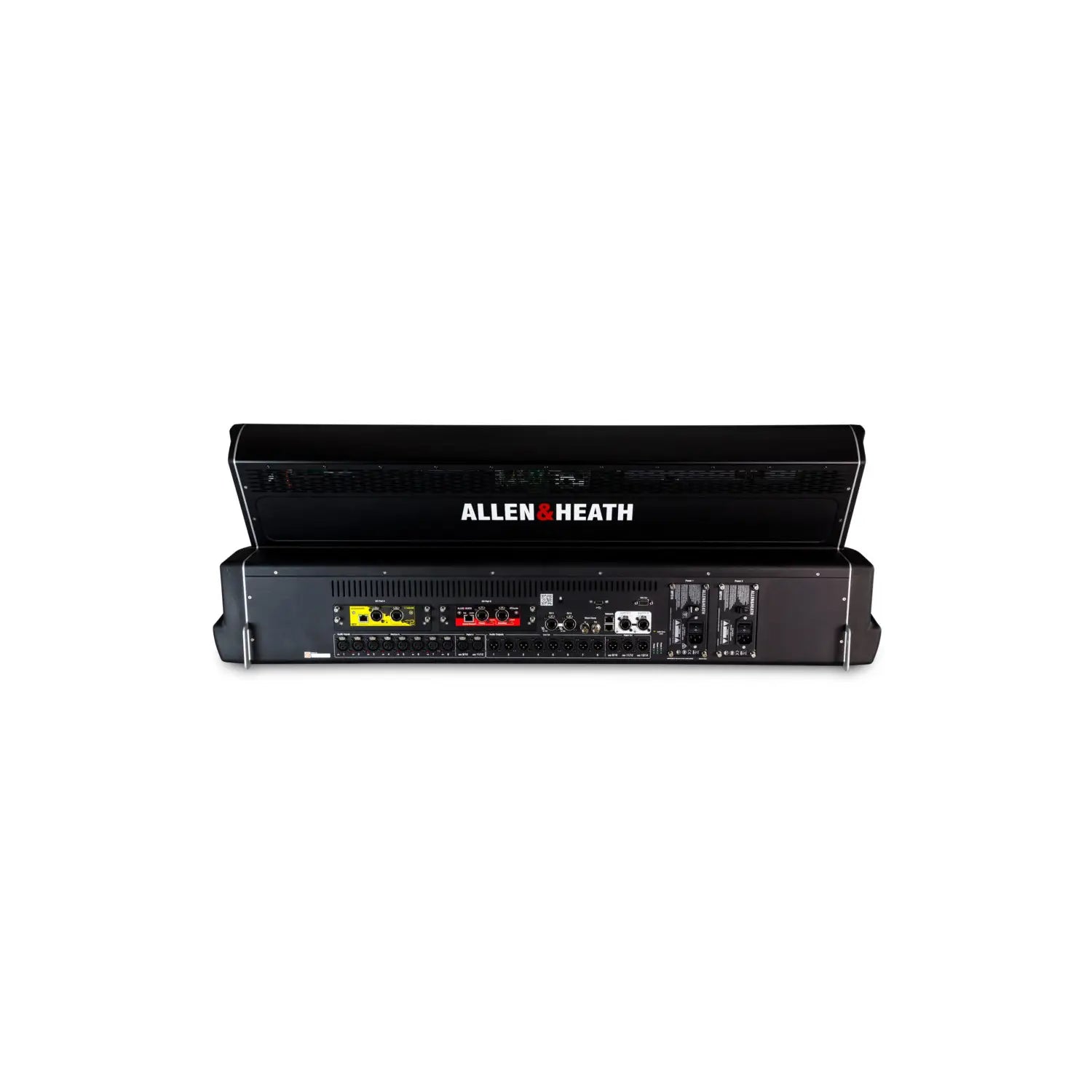

  • Connection hub
    • Dual redundant GigaACE gigabit link to MixRack
    • 1x redundant DX link for I/O expansion
    • 2x I/O Ports – 128 ch 96 kHz each
    • 2x Network ports
    • Wordclock BNC I/O
    • Video output
  • Dual redundant, hot swappable power supply
  • 3 Year Warranty
Inputs System
Mic/Line XLR InputsBalanced XLR, +48V phantom powerMeasured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out
Mic/Line PreampFully recallableDynamic Range110dB
Input Sensitivity-60 to +15dBuSystem Signal to Noise-92dB
Analogue Gain+5 to +60dB, 1dB stepsFrequency Response20Hz – 30kHz  +0/-0.8dB
Pad-20dB Active PADTHD+N (analogue in to out)0.0015% @ +16dBu output, 1kHz 0dB gain
Maximum Input Level+30dBu (PAD in)Headroom+18dB
Input Impedance>4kΩ (Pad out), >10kΩ (Pad in)Internal operating Level0dBu
Mic EIN-127dB with 150sourcedBFS Alignment+18dBu = 0dBFS (+22dBu at XLR
output)
Phantom Power indicationPer socket, internal or external phantom power sensing, triggered at 24VMeter Calibration0dB meter = -18dBFS (+4dBu at XLR out)
Digital InputsAES3 2 Ch XLR, 2.5Vpp balanced terminated 110 ?Meter Peak indication-3dBFS (+19dBu at XLR out)
 SRC on each pair, range 32k – 192kHz, with bypass option
  Sampling Rate96kHz +/- 20 PPM
Outputs ADC24-bit Delta-Sigma
  DAC24-bit Delta-Sigma
Analogue XLR OutputsBalanced, Relay protected
Output Impedance<75ΩLatency0.7ms (MixRack XLR in to XLR out, Input to Mix)
Nominal Output+4dBu = 0dB meter reading + 5 samples, Surface to Mixrack (GigaACE hop)
Maximum Output Level+22dBu + 8 samples, DX32 to Mixrack (DX hop)
Residual Output Noise-92dBu (muted, 20-20kHz)Operating Temperature Range
 -90dBu (muted, 20-40kHz)Fitted with:
Digital OutputsAES3 2 Ch XLR, 2.5Vpp balanced terminated 110 ?MPS16 V1 300w0°C to 35°C  (32°F to 95°F)
 96kHz sampling rate, switchable to 48kHz, 44.1kHzMPS16 V2 250w0°C to 40°C  (32°F to 104°F)
  Mains Voltage Operating Range100-240V AC, 50/60Hz
  Mains Power Consumption300W max (MPS16 V1 300W)*
250W max (MPS16 V2 250W)*
Dimensions and WeightsiMPS16 power consumption is printed under AC inlet
 Width x Depth x Height x Weight Width x Depth x Height x Weight
S3000870 x 728 x 413 mm (34.3″x 28.7″x
16.3″) x 28kg (62lbs)
S3000 – boxed1045 x 920 x 560 mm (41.1″x 36.2″x
22″) x 41kg (90.4lbs)
