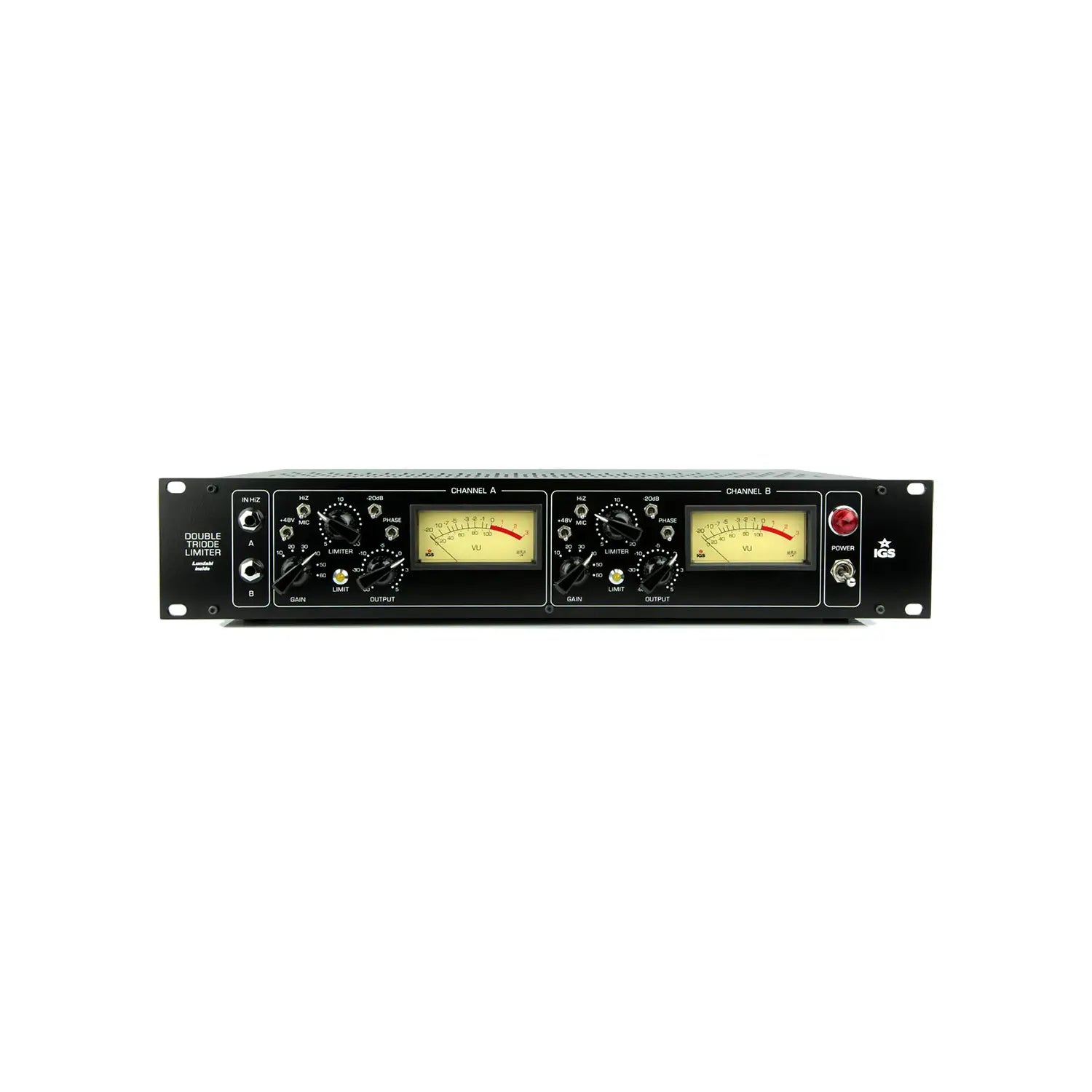

IGS Audio Double Triode Limiter

2-channel, Double Triode Microphone Preaamp & Limiter

Our price:$3,650.00 GST
Order Code: DTL

IN STOCK 1 (more can be backordered)

IGS Audio Double Triode Limiter (DTL) is more than ‘just’ a classic tube triode microphone preamp. The old-fashioned design was upgraded with a musical opto-limiter, based on a circuit used in 60’s and 70’s.

The Preamp.

DTL is a tube microphone preamp adapted to work with any type of microphone. A wide range of amplification makes it possible to record drums as well as the quietest ribbon microphone. DTL does a great job of recording tracks from external devices such as synthesizers or drums machines (like Akai MPC). Great results are achieved with reamping tracks from DAWs. DTL adds a nice tube saturation to the sound. The high impendance inputs (HiZ) allow for connecting an electric or bass guitar directly into the grid of the first step of tube amplification (Typical HiZ solution).

The Limiter

Additional device capabilities are activated by the Limiter section. This can be used to limit peak levels of the input signal. The component in charge of compression is an IGS Audio custom designed photocell. It can improve the overall dynamics of the mix and give it a brighter sound. This is a very versatile device for audio processing.

Full of features.

The audio path of the preamp is a two-stage tube amplifier with an individual drive on both steps.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Full of features.

The audio path of the preamp is a two-stage tube amplifier with an individual drive on both steps. The saturation at the first step depends on the input signal level (with possibility to use Pad -20dB). The saturation of the second step is dependent on the Output regulator. Inputs and outputs are balanced with Carnhill (UK) and Edcor (USA) transformers. The anode voltage is set close to 300V DC. For each of the channels Output and Limiter threshold can be regulated smoothly. The featured switches are: GAIN, +48V, Mic/HiZ, Phase, Pad -20dB. Hi-Z inputs are located on the front panel. The meters show the output signal level.

Device type
Optical Compressor Yes
Input & Output
Phantom Power Yes
Input Impedance (balanced) 300 Ohm, Carnhill transformer or 1M Ohm for Hi-Z instrument input
Input Pad Yes, -20 dB
Output Impedance (balanced) 600 ohm, Edcor transformer
Audio transformers Yes
Operating Level +4 dBu
Max output level +22 dBu
Max. gain 60 dB
Max Gain Reduction 18 dB
Frequency response 20Hz to 20kHz; +/- 0.3dB
Distortion (@ 20 Hz – 20 kHz)
THD+N <0.1%
Front Panel
VU Meters Yes, output level
Voltage 115/230V AC, 50 – 60Hz
Power consumption 40W
Power supply internal
Tube set 6N1P, 6N2P
