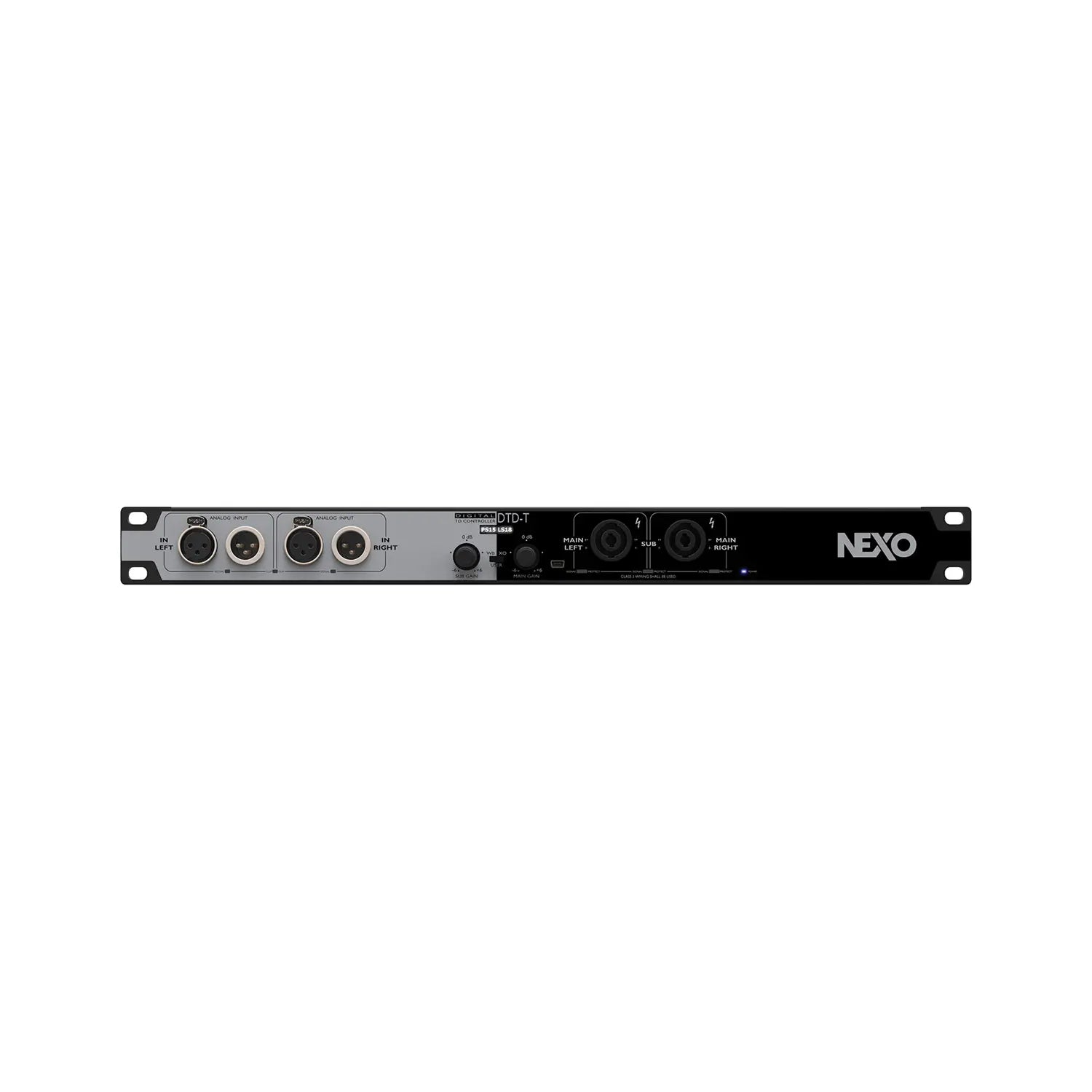

Nexo DTDTN

Digital TD controller for ID / P / PS Series – Touring version with DANTE card fitted
Close

Our price:$2,595.00 GST
Order Code: DTDTN

Available on backorder

Nexo DTD-TN gives advanced speaker control for ID, P, PS and LS series, with NXAMP technology built in.

There are four (4) different DTD controllers available by Nexo. Touring or Installation – each available with or without DANTE.

DTD-TN is the ‘touring’ touring version with the optional DANTE card fitted.

It provides sophisticated control over crossover, EQ and time-alignment – along with speaker protection. DTD-TN is very easy to use, with automatic amplifier sensing and simple Sub Gain, Main Gain and Crossover Mode control available directly from the front panel. It combines efficient speaker processing with a flexible range of inputs including stereo balanced analog inputs, an AES input and a USB port enabling direct driverless audio playback from laptops, etc.

DTD uses state-of-the-art audio processing to deliver high- precision EQ and Linear Acoustic Phase algorithms, phase-compatible with all ID, P, PS and LS series cabinets, along with other speakers in the NEXO range. High-end AD and DA converters and 64-bit/96kHz processing ensure an analog in-to-analog-out dynamic range greater than 112dB, with distortion kept to under 0.001%.

DTD-TN features:

  • Speaker controller for ID, P, PS and LS series, providing digital processing from the NXAMP technology (Crossover, EQ, time alignment and speaker protection)
  • High-end Balanced stereo analogue inputs, AES input, USB input and optionally Dante™
  • High-end balanced analogue outputs for PS (Stereo) and LS (mono sum)
  • Automatic Amplifier Sensing with no setting required from user
  • Simple control from the front panel (Sub Gain, Main Gain, Crossover mode) or advanced control using USB port

Specifications

Sampling frequency and resolution 48/96 KHz, 64 bits internal processing precision
Signal delay Less than 1 ms (analog in to out) on flat setup, compatible with NXAMP latency
Frequency response 20 Hz to 20 KHz, +/-0.5 dB (mains out), 20 Hz to 2 KHz +/-0.5 dB (sub out)
Total harmonic distortion Less than 0.001% (mains out), less than 0.02% (sub out)
Dynamic range 112 dB (unweighted, mains out), 107 dB (unweighted, sub out)
Crosstalk / Channel separation -100 dB (1KHz)
Indicators Input signal/peak (green/red), amp in signal (green), speaker protect (yellow)
Display White backlit graphical OLED display 96 x 16 pixels
Switch and rotary knobs 3 position switch + 2 x rotary knobs

Features

ANALOG INPUTS CHARACTERISTICS
Number of channels 2 electronically balanced analog inputs
Connectors 2 x XLR-F with link on XLR-M
Sampling frequency and resolution 96 KHz / 24 bits
Max. input level / Input impedance +22 dBU / 20 KOhms
ANALOG OUTPUTS CHARACTERISTICS
Number of channels 3 electronically balanced analog outputs
Connectors 3 x XLR-M
Sampling frequency and resolution 48/96 KHz, 24 bits
Max. output level / Output impedance + 22 dBU / 200 Ohms
AMPLIFIER SENSING INPUTS
Number of channels 4 floating electronically balanced high voltage analog inputs
Connectors 2 x 4 pole SP connectors
Sampling frequency and resolution 48/96 KHz, 24 bits
Max. input level / Input impedance +50 dBU (8000 Watts / 8 Ohms) / 364 KOhms
AES INPUTS CHARACTERISTICS
Number of channels 1 AES/EBU stereo digital input
Connectors 1 x XLR-F
Sampling frequency and resolution 44.1 to 96 KHz / 16, 20 or 24 bits
DANTETM INPUT CHARACTERISTICS (DTD-T-N)
Number of channels 2 x Dantetm channels
Connector 1 x ruggedised RJ45
Sampling frequency and resolution 48-96 KHz / 24 bits
USB INPUT CHARACTERISTICS
Type 2 channels of USB audio
Connector Female mini USB connector type B
Sampling frequency and resolution 48 KHz / 16 bits
Remote Control (DTD-T) Mini USB
Remote Control (DTD-T-N) Mini USB + RJ45
Dimensions (W x H x D) 480 (W) x 44 (H) x 65 (D) mm, 1U
Weight 1.3 Kg
Power supply voltage 90 V – 240 V 50/60 Hz
Power consumption 20 W max
Heat dissipation (per hour) 20 Kcal max
Operating temperature range 0°C – 40 °C
Storage temperature range -20 °C – 60 °C
