As DXS15XLF plus Dante connectivity.

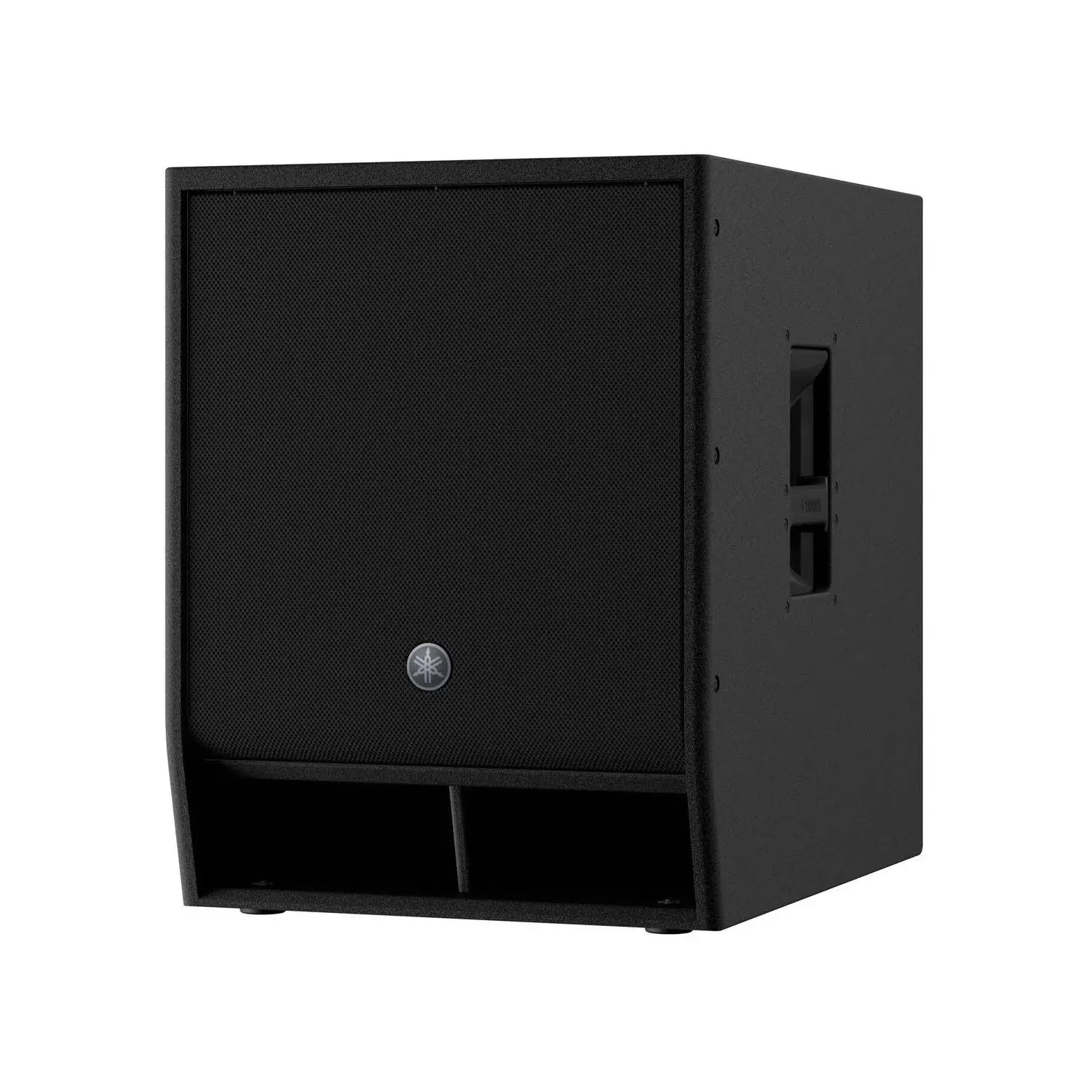

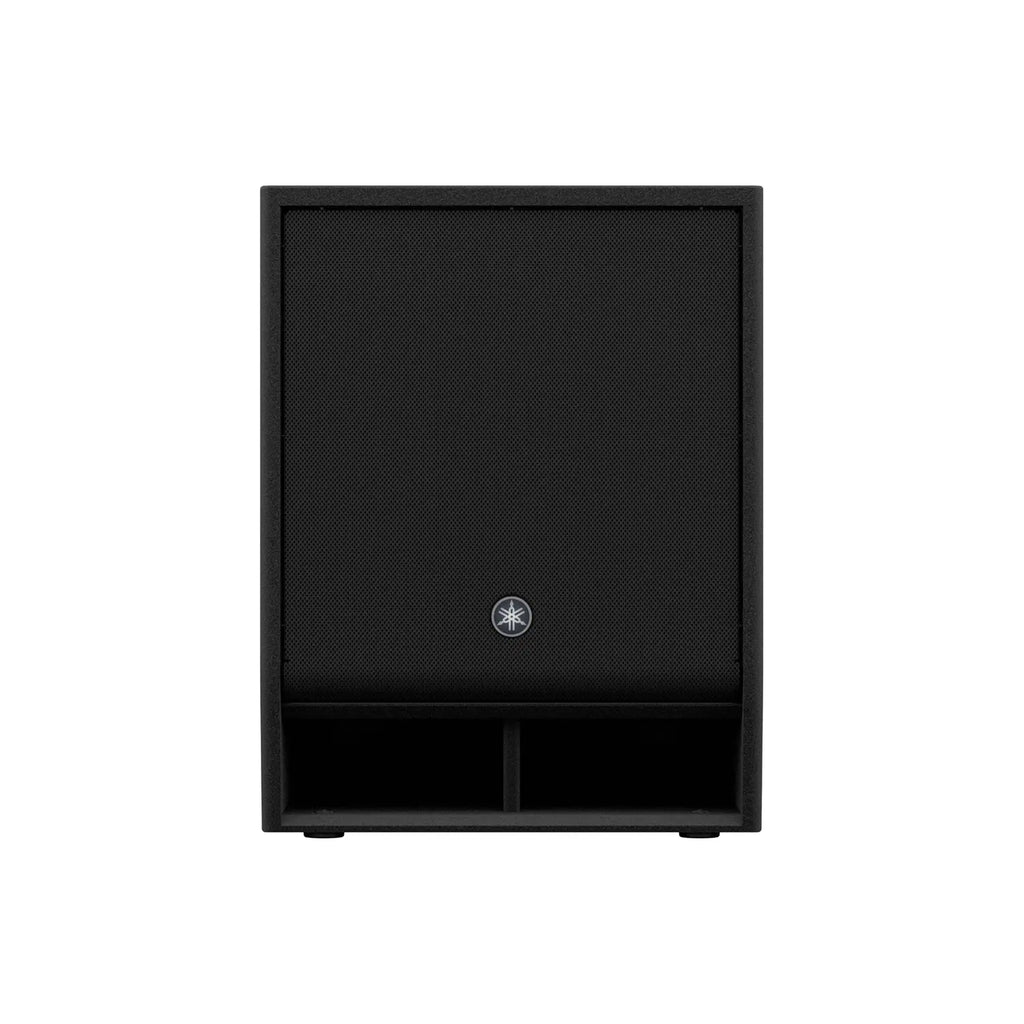

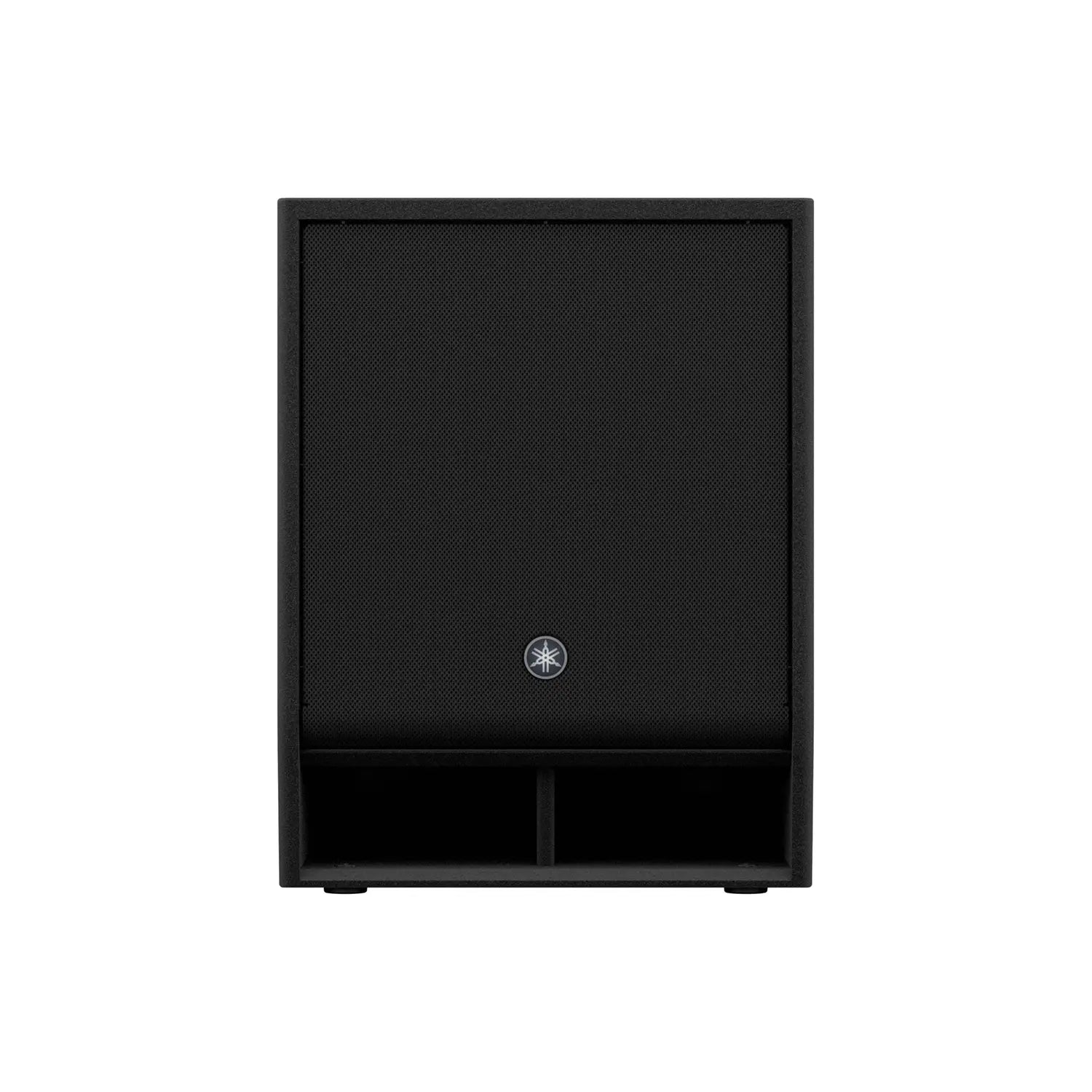

Yamaha DXS15XLF-D
IN STOCK 1 (more can be backordered)
- Powered 15” subwoofer with 4” Voice Coil
- Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today’s sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP for true high-definition sound with super low latency
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
Speaker type | Powered Subwoofer, bass-reflex | |
Frequency range (-10dB) | 33Hz – 150Hz | |
Coverage area | – | |

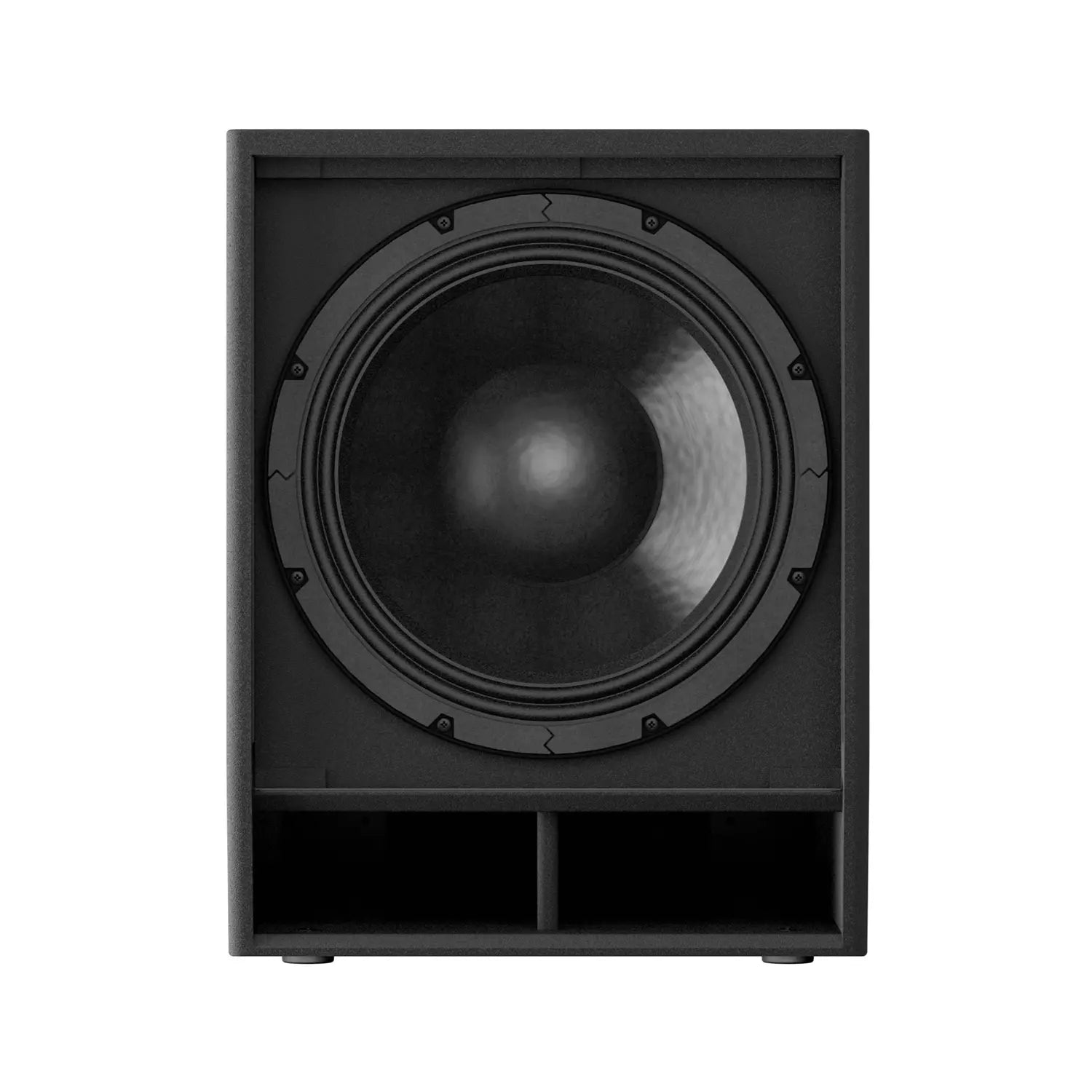

Components | LF | 15″ Cone, 4″ Voice Coil, Ferrite magnet |
MF | – | |
HF | – | |
Crossover | – | |
Sampling frequency rate | Internal | 96kHz and FIR Filter |
A/D D/A Converters | 96kHz AD/DA | |
Maximum output level (1m; on axis) | 136dB SPL *1 | |
SRC | Yes | |
Power rating | Dynamic | 1600W *2 |
Burst (20ms) | 1300W | |
Continuous | 1200W | |

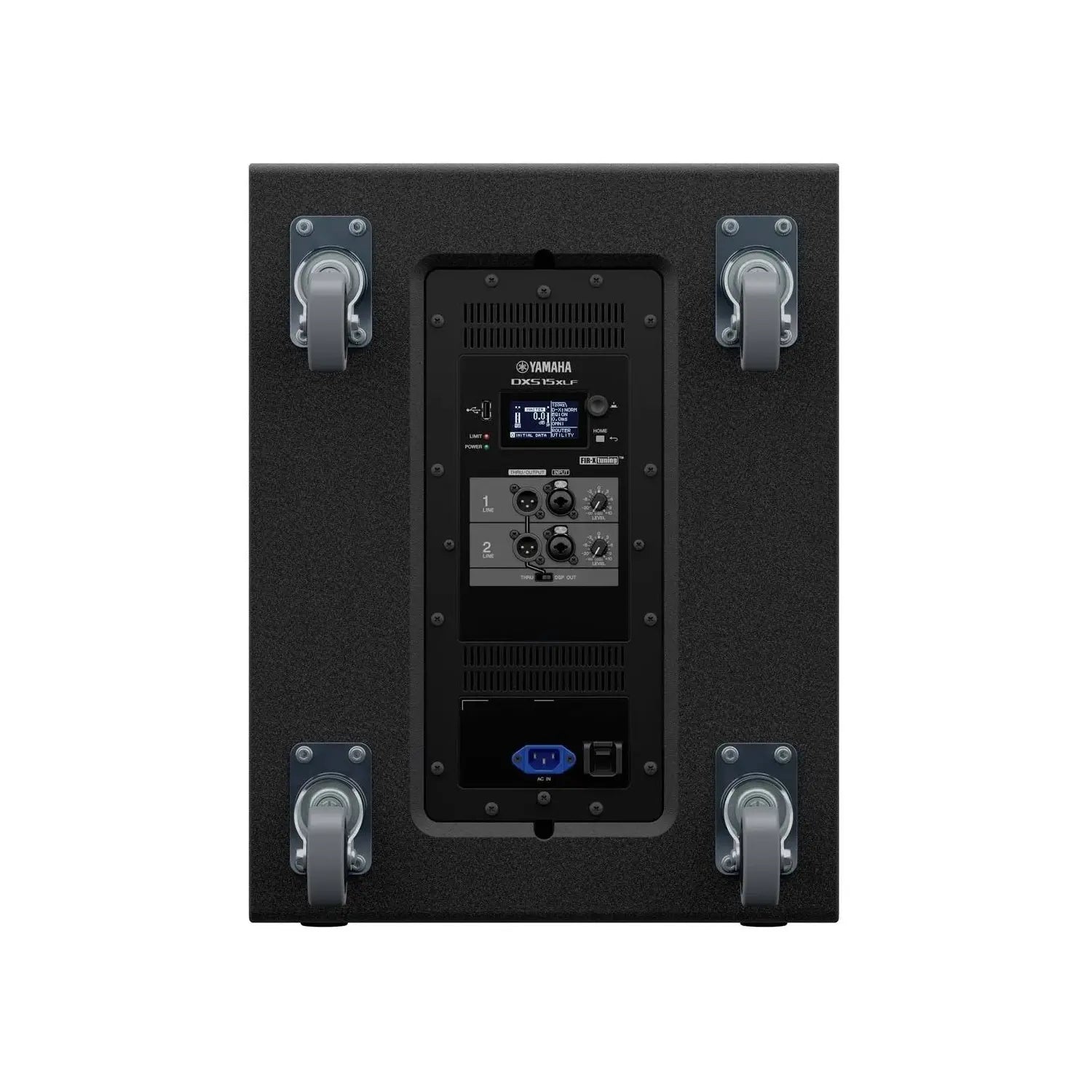

I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
Digital I/O | Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
AC | IEC AC inlet x1 (V-Lock) | |
Amplifier class | Class-D | |
Cooling | Fan cooling, Variable speeds | |
Power consumption | 40W (Idle), 180W (1/8) | |
Handle | Aluminium die-cast, Side x2 | |
Rigging | – | |
Dimensions | W | 450 mm (17.7″) |
H | 587 mm (23.1″) (with rubber feet) | |
D | 600 mm (23.6″) | |
Net weight | 40.0kg (88.2lbs) | |
Options | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | |
Floor Monitor Angle | – | |
Pole socket | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) |
