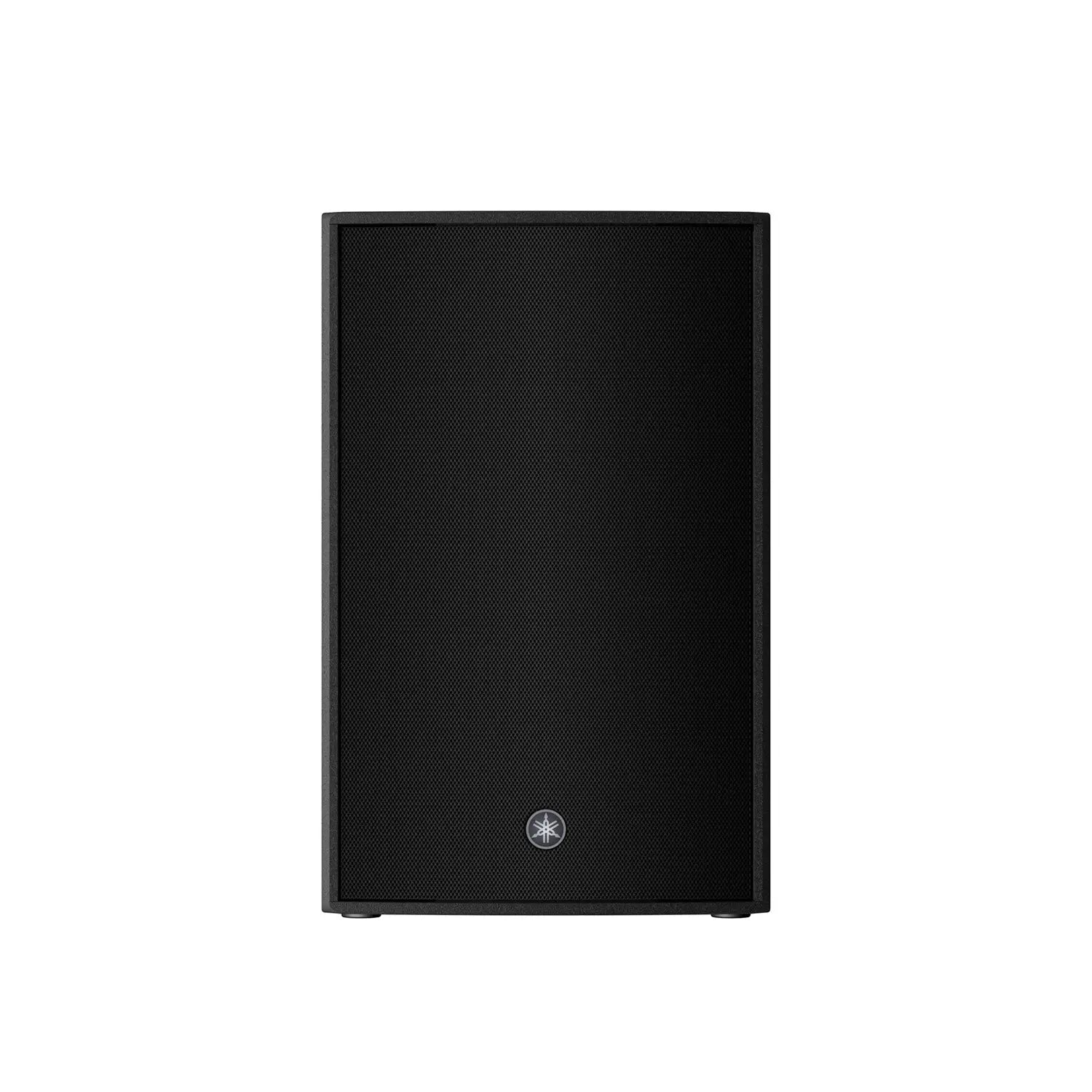

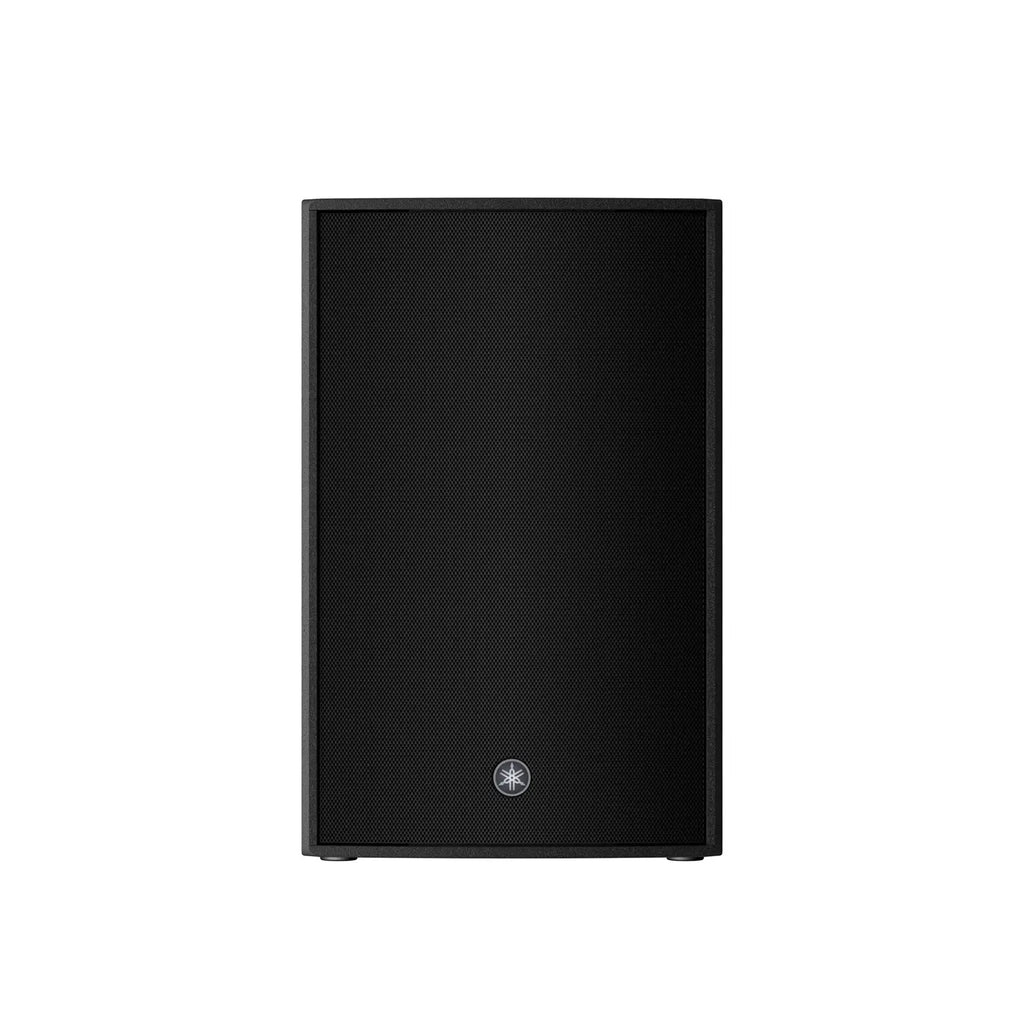

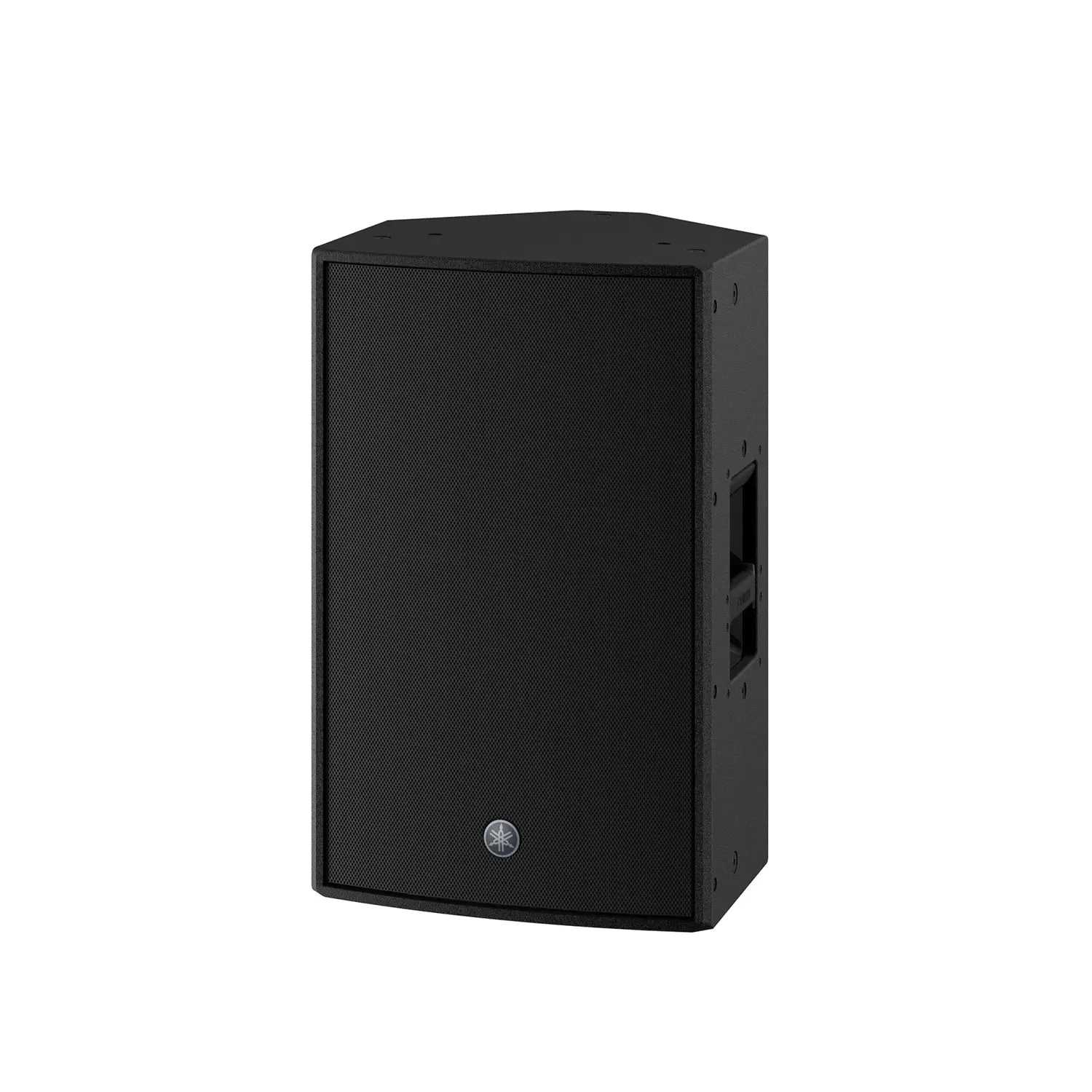

Yamaha DZR12

Order Code: DZR12
High powered 12″ speaker
Close

Our price:$1,881.38 GST

Available on backorder

12″ LF driver; 2″ rotatable HF compression driver. 2000W. Max 139dB SPL. 96kHz AD/DA.

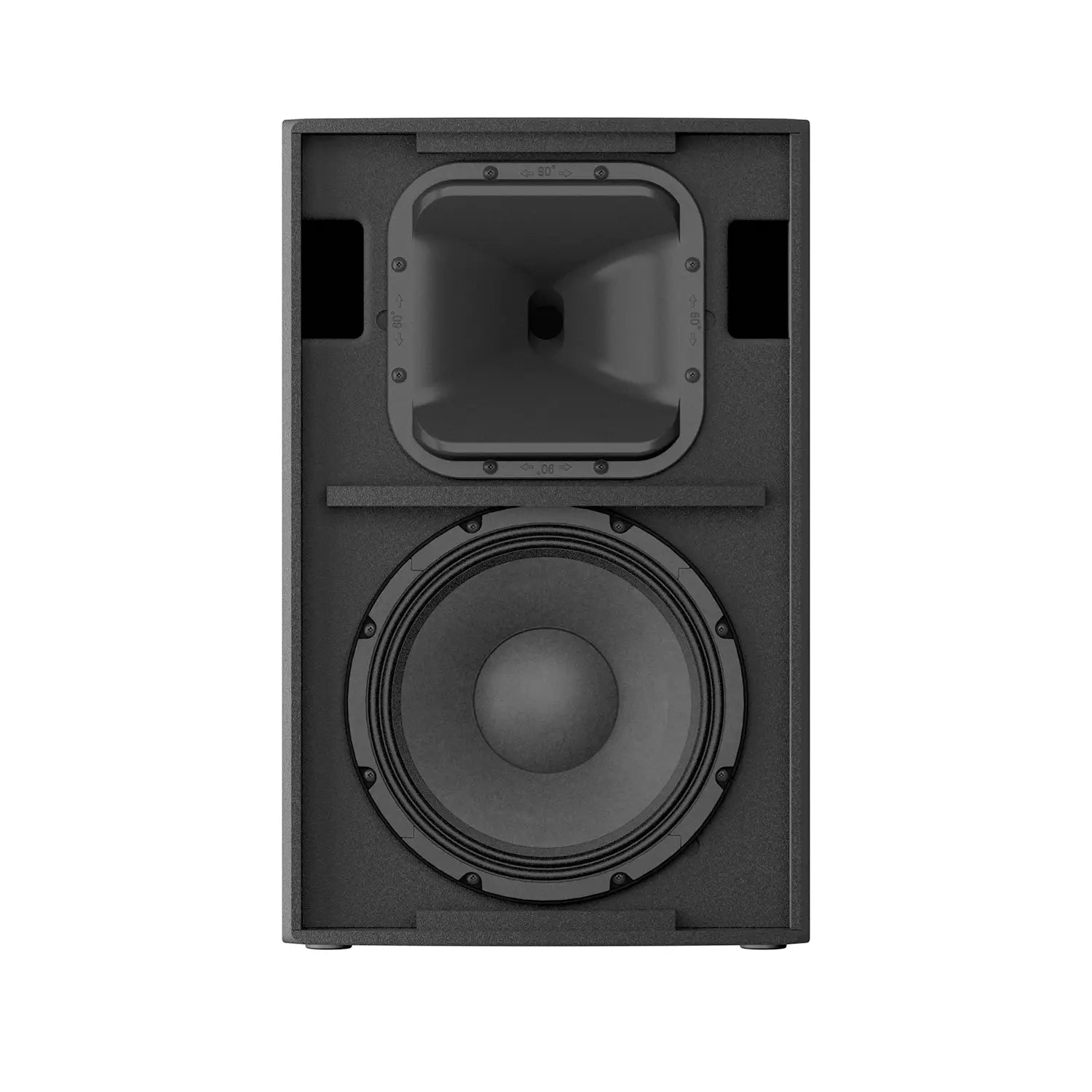

  • 2-way powered loudspeaker with a 2” HF and a 12″ LF
  • Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR12)
  • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
General specifications
Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 39Hz – 20kHz
Coverage area H90? x V60? (Rotatable)
Components LF 12″ Cone, 3″ Voice Coil, Neodymium magnet
MF
HF 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 1.8kHz (FIR-X)
Sampling frequency rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 139dB SPL *1
Power rating Dynamic 2000W (LF: 1000W, MF/HF: 1000W) *2
Burst (20ms) 1100W (LF: 1000W, MF/HF: 100W)
Continuous 950W (LF: 850W, MF/HF: 100W)

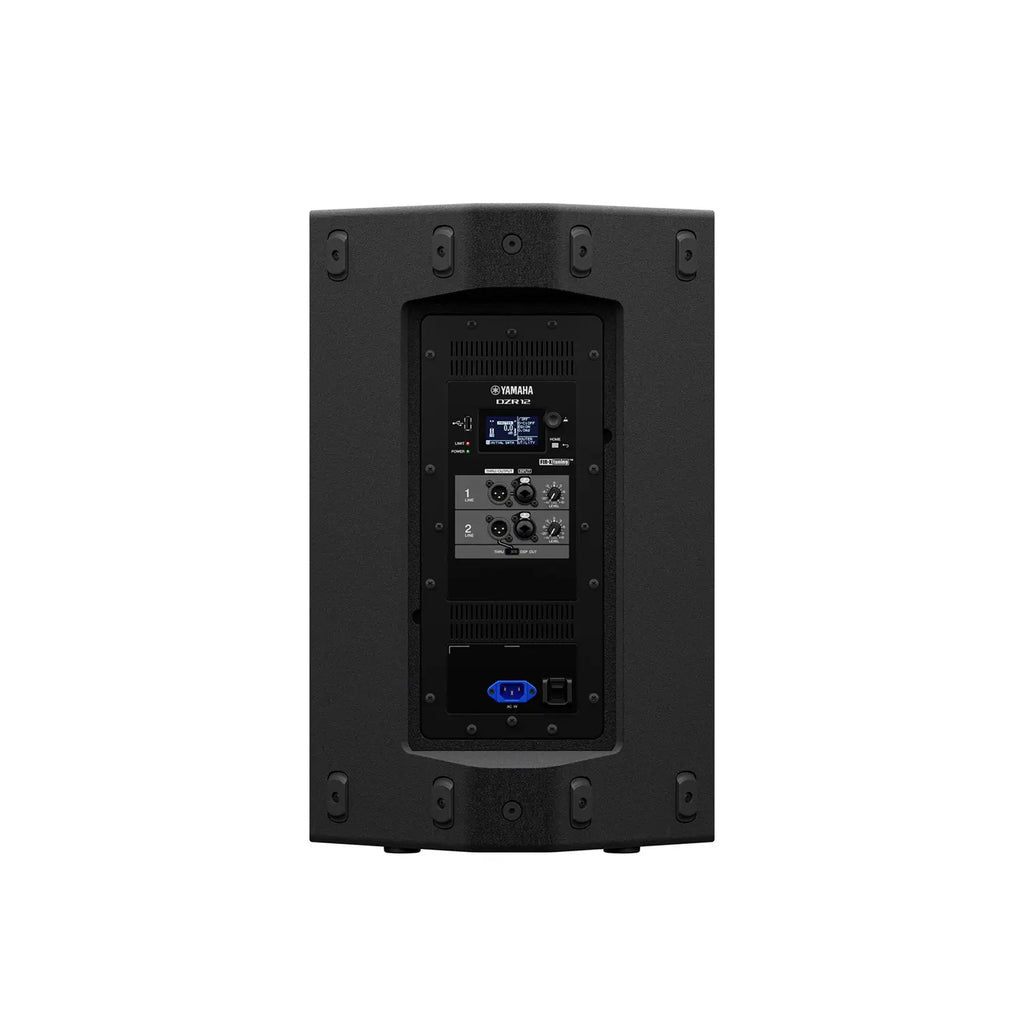

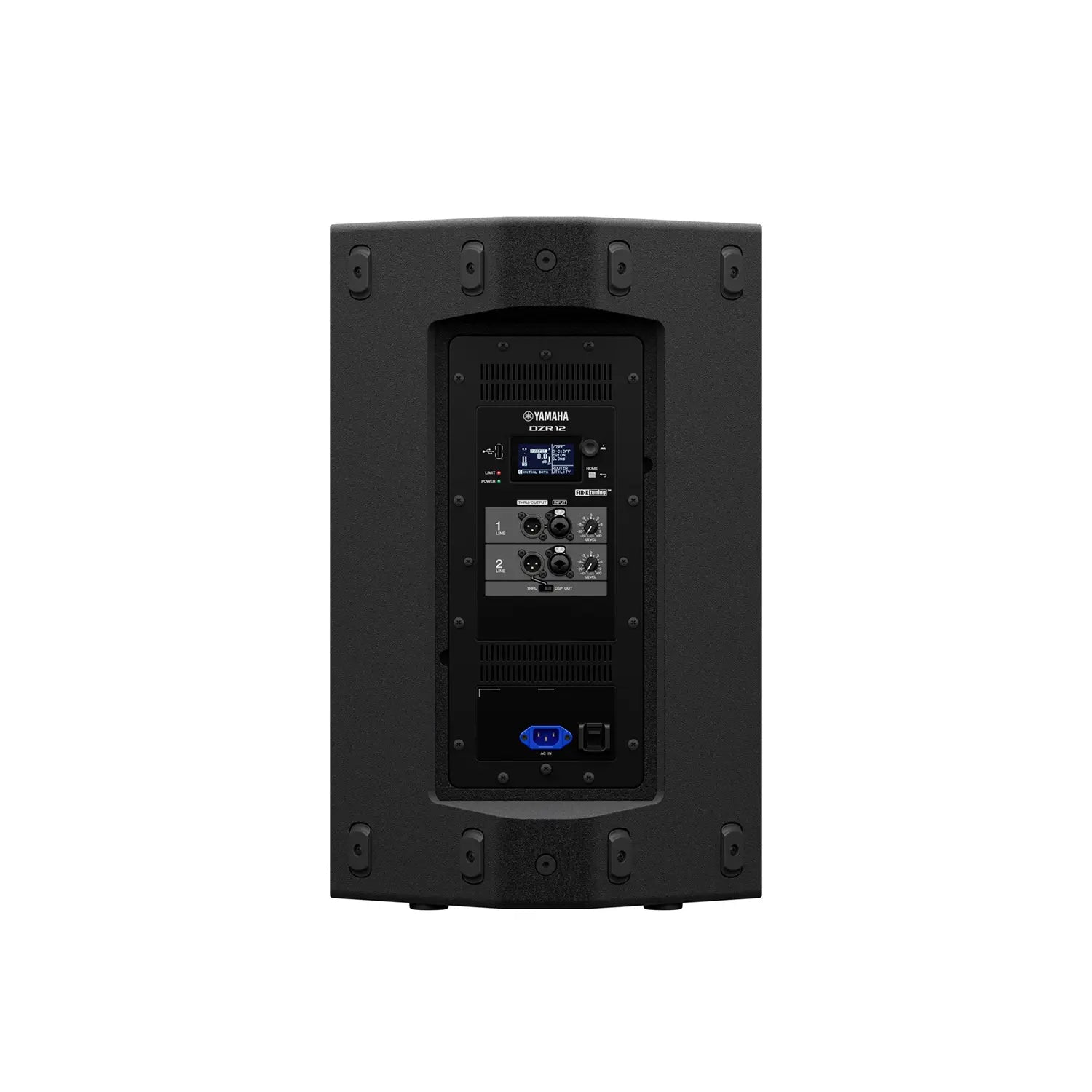

I/O Connectors Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling, Variable speeds
Power consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Side x2
Rigging M10 x12
Dimensions W 410 mm (16.1″)
H 646 mm (25.4″) (with rubber feet)
D 394 mm (15.5″)
Net weight 21.4kg (47.2lbs)
Options U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White

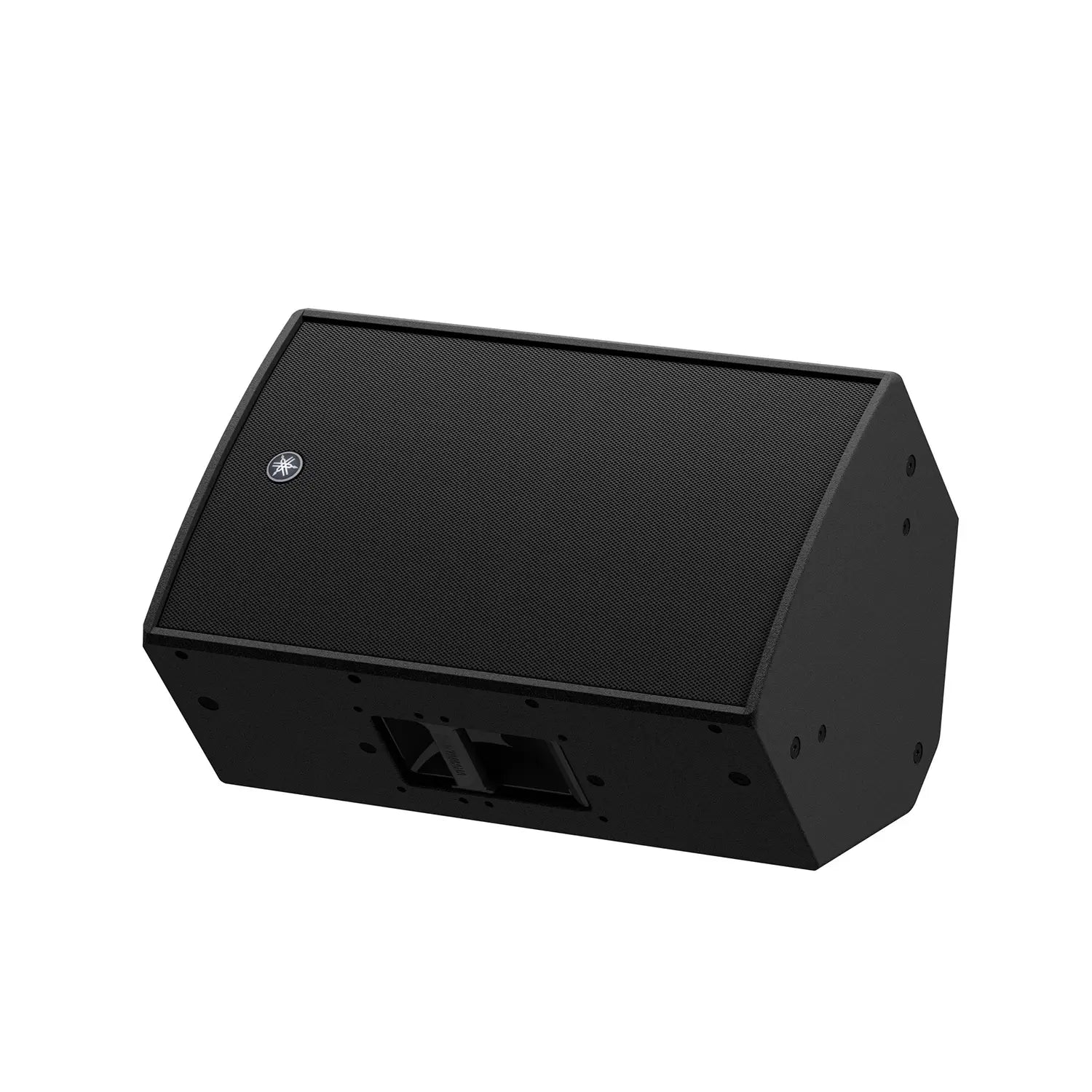

Floor Monitor Angle 50° Symmetrical
Pole socket Φ35 mm x2 (0° or -7°)
