15″ LF driver; 2″ rotatable HF compression driver. 2000W. Max 139dB SPL. 96kHz AD/DA.

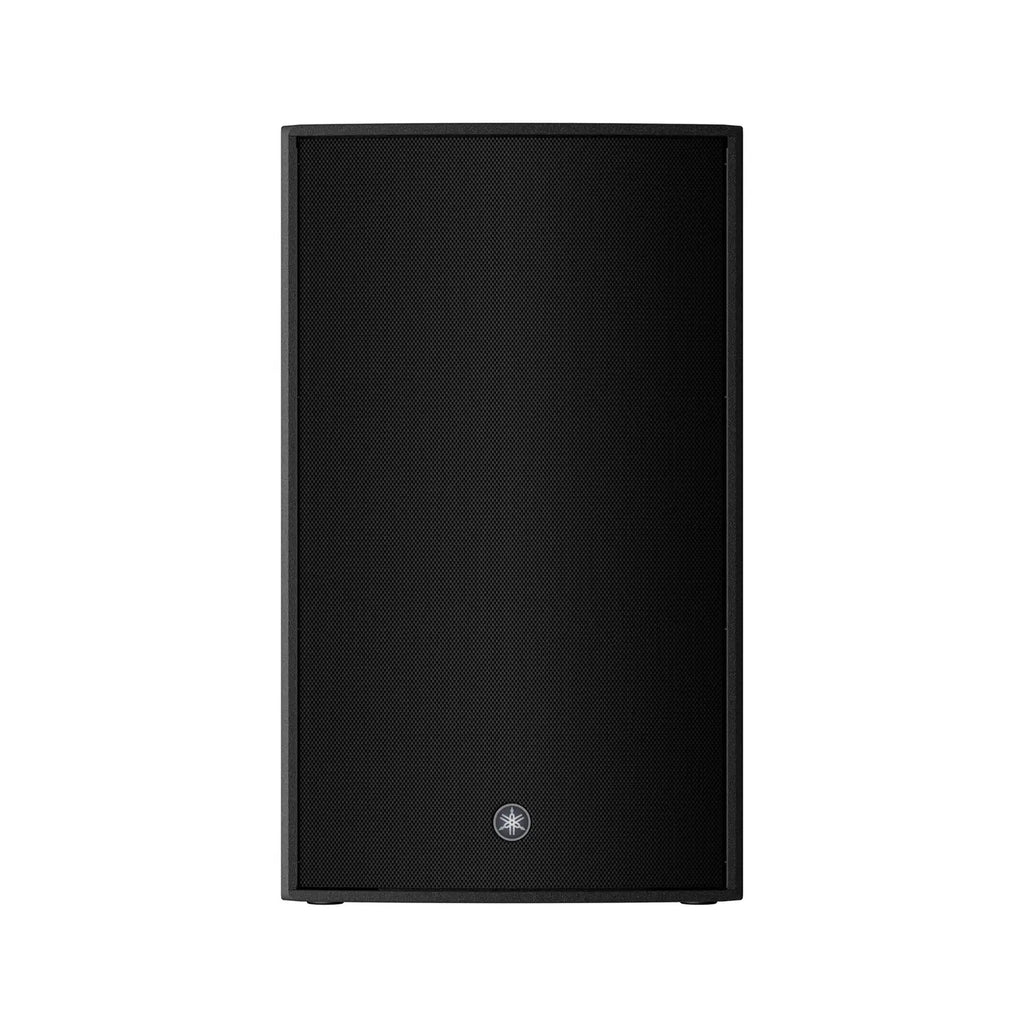

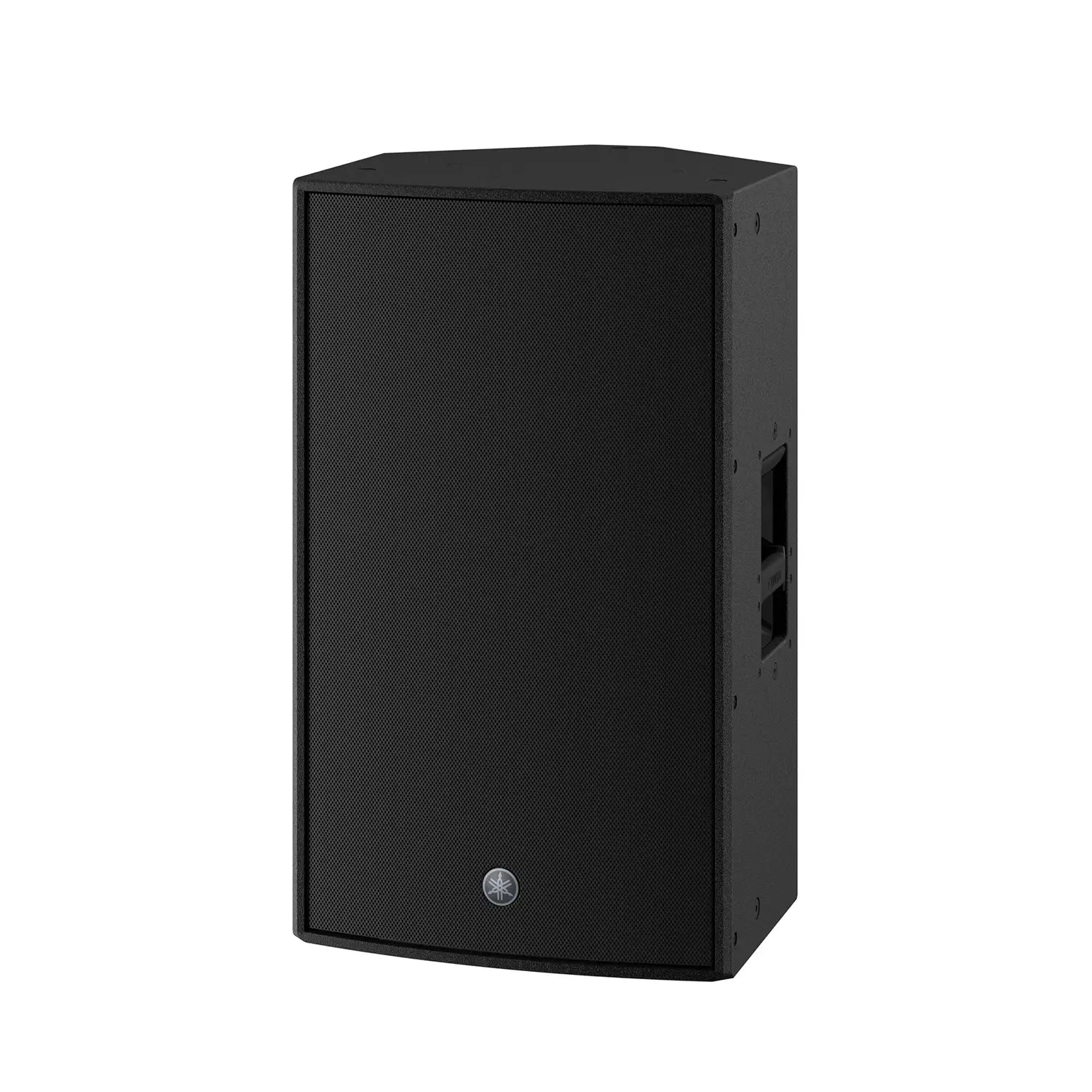

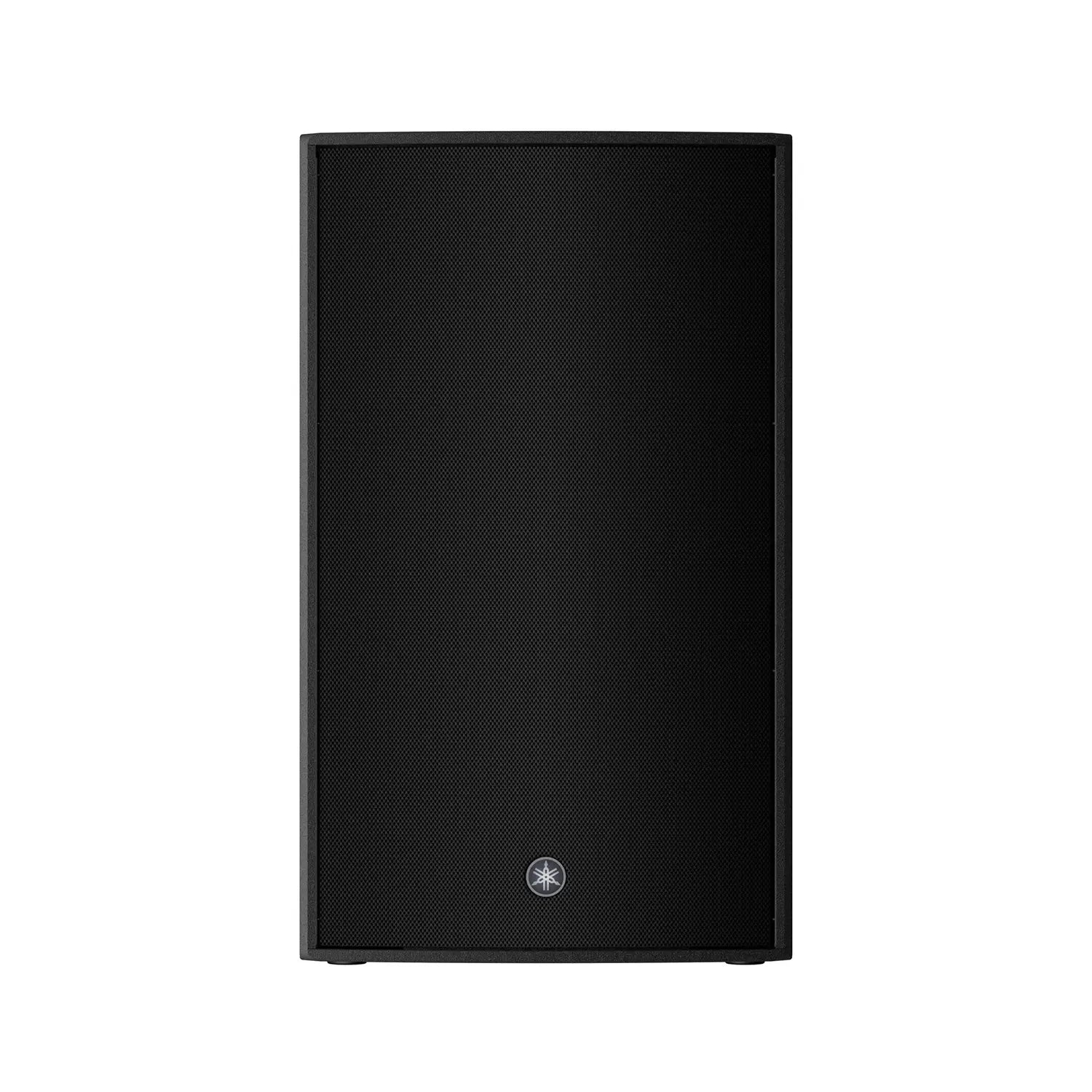

Yamaha DZR15
Our price:$2,499.00 GST
Order Code: DZR15
Contact us for expected arrival, queue backorder
- 2-way powered loudspeaker with a 2” HF and a 15″ LF
- Maximum 139dB SPL and 34Hz-20kHz frequency range is ideal for today’s professional audio demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits

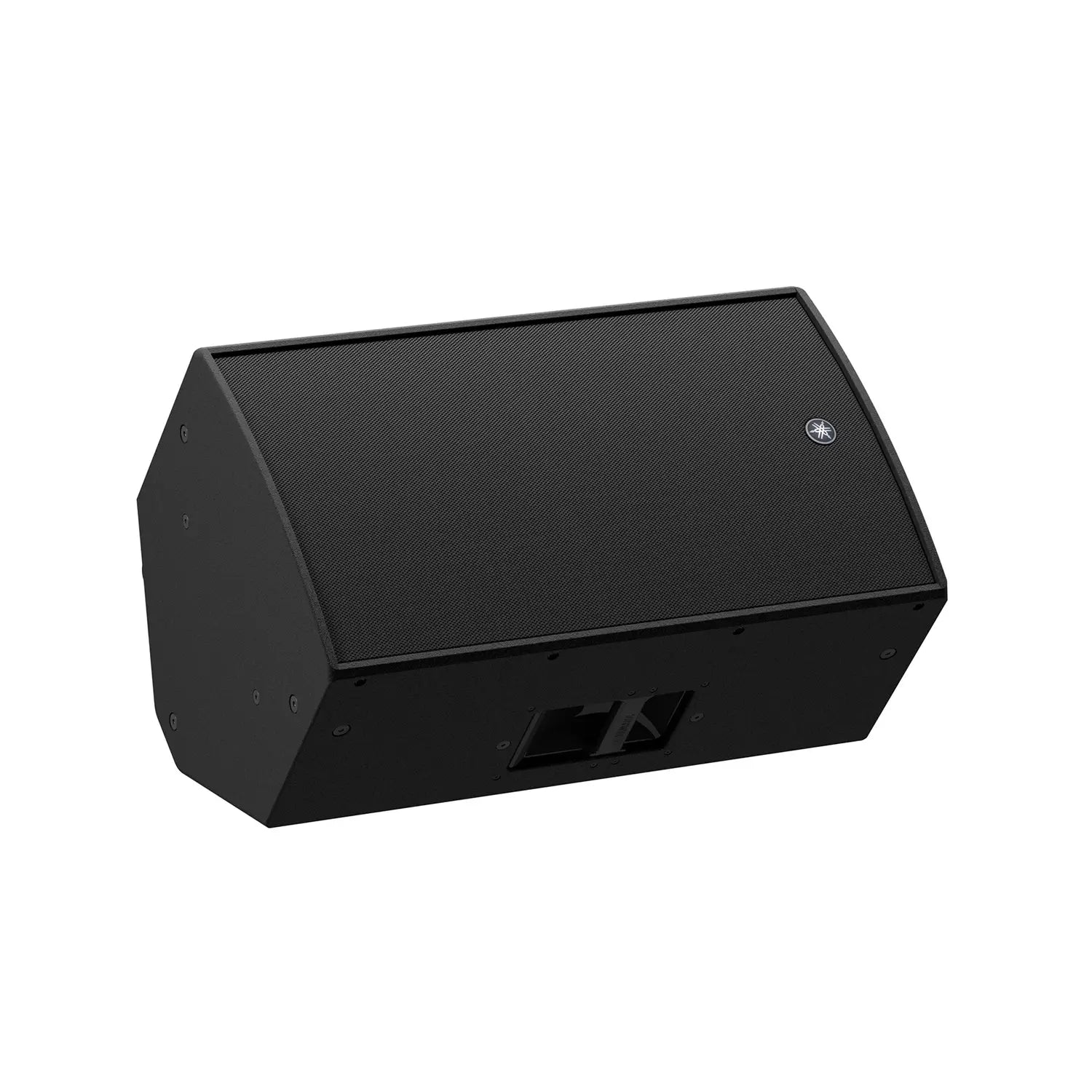

- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
| General specifications | ||
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 34Hz – 20kHz | |
| Coverage area | H90? x V50? (Rotatable) | |

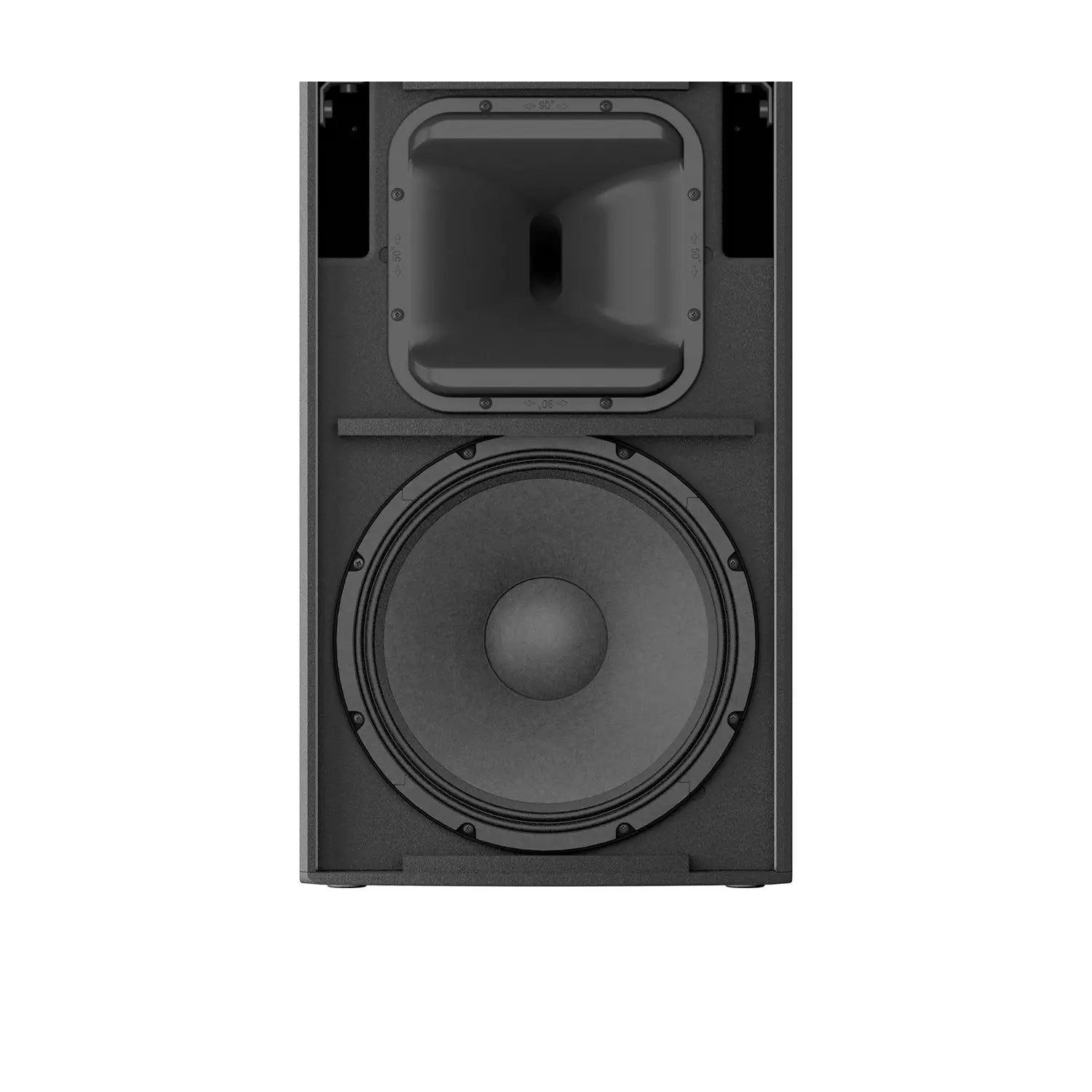

| Components | LF | 15″ Cone, 3″ Voice Coil, Neodymium magnet |
| MF | – | |
| HF | 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 1.7kHz (FIR-X) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 139dB SPL *1 | |
| Power rating | Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) *2 |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) | |
| Continuous | 950W (LF: 850W, MF/HF: 100W) | |

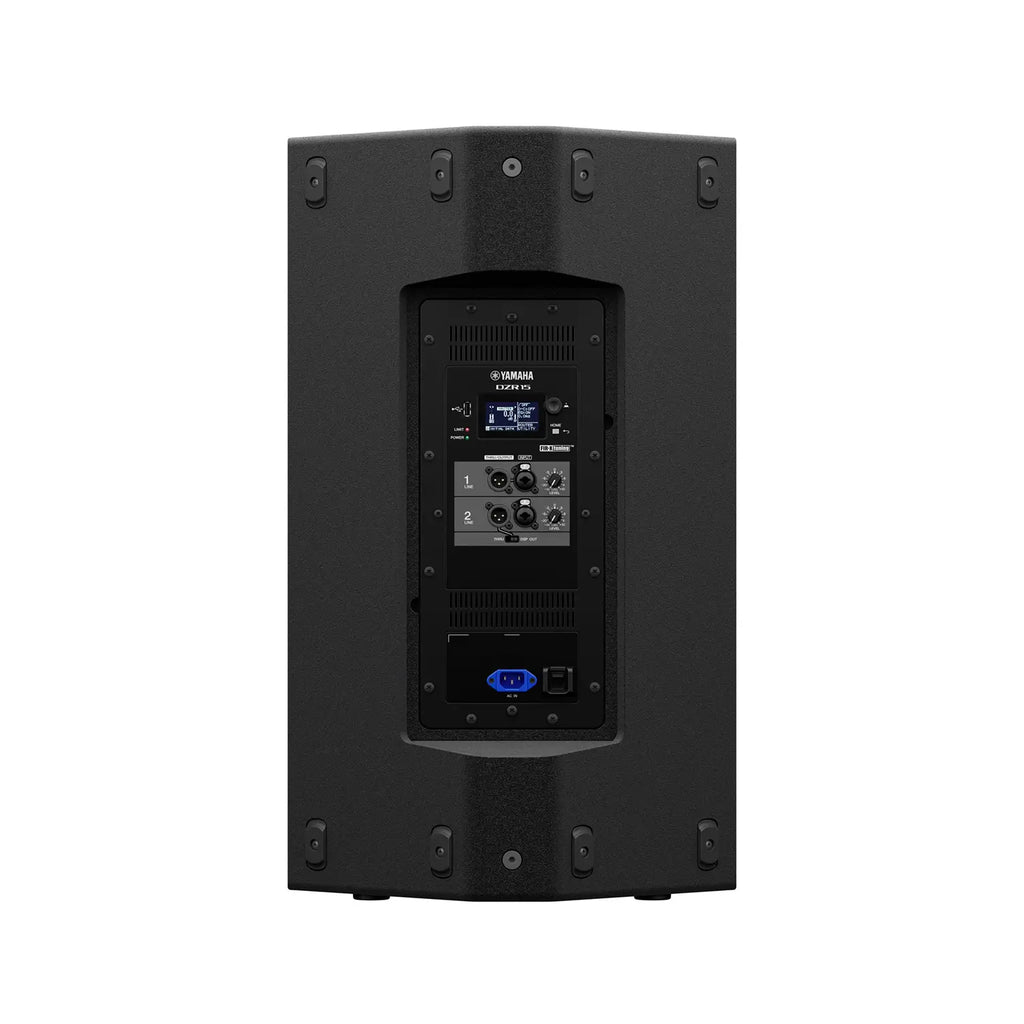

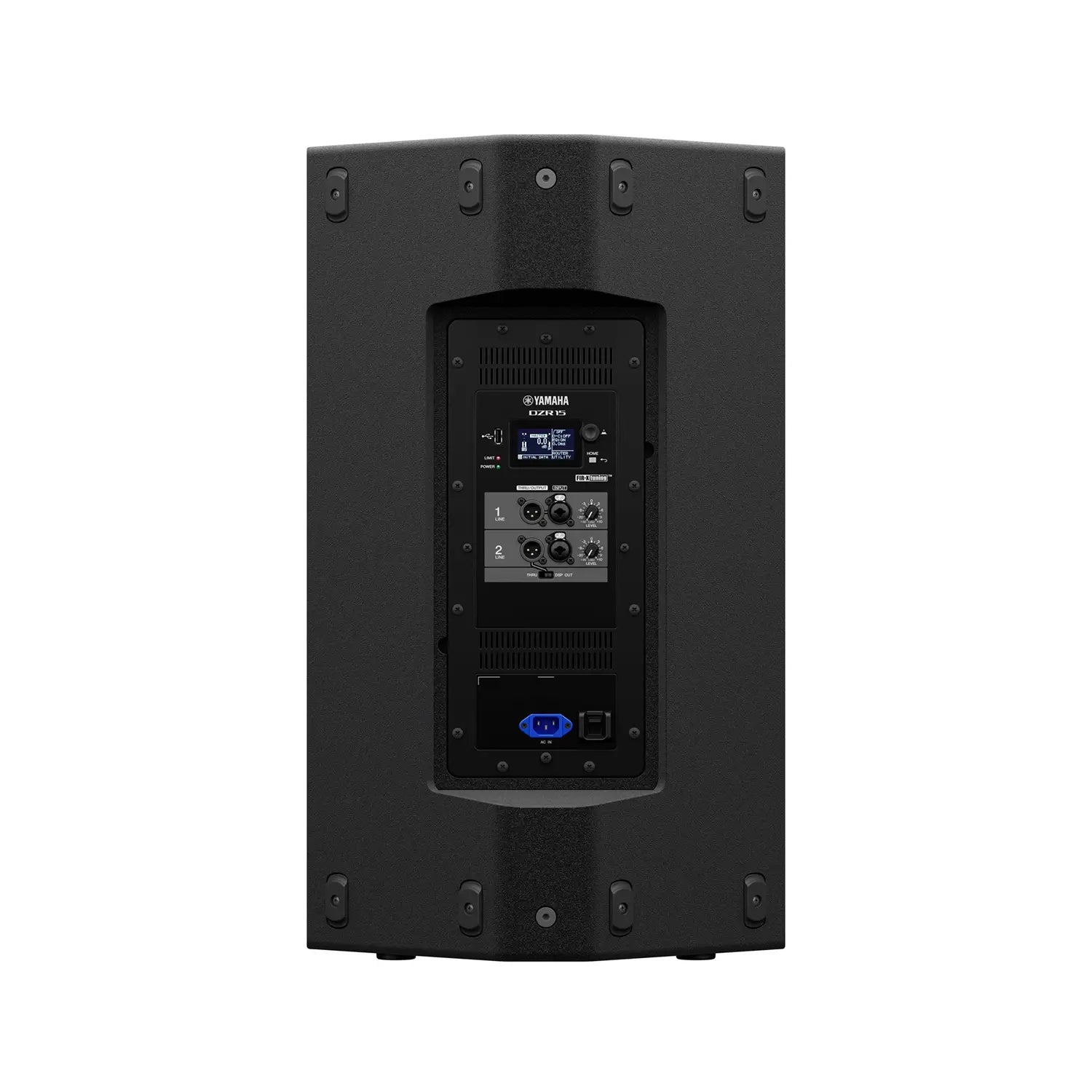

| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | |
| Rigging | M10 x12 | |
| Dimensions | W | 450 mm (17.7″) |
| H | 761 mm (30.0″) (with rubber feet) | |
| D | 460 mm (18.1″) | |
| Net weight | 25.2kg (55.6lbs) | |
| Options | U-bracket: UB-DZR15H/V, Cover: SPCVR-DZR15 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | |
| Floor Monitor Angle | 50° Symmetrical | |
| Pole socket | Φ35 mm x2 (0° or -7°) | |
