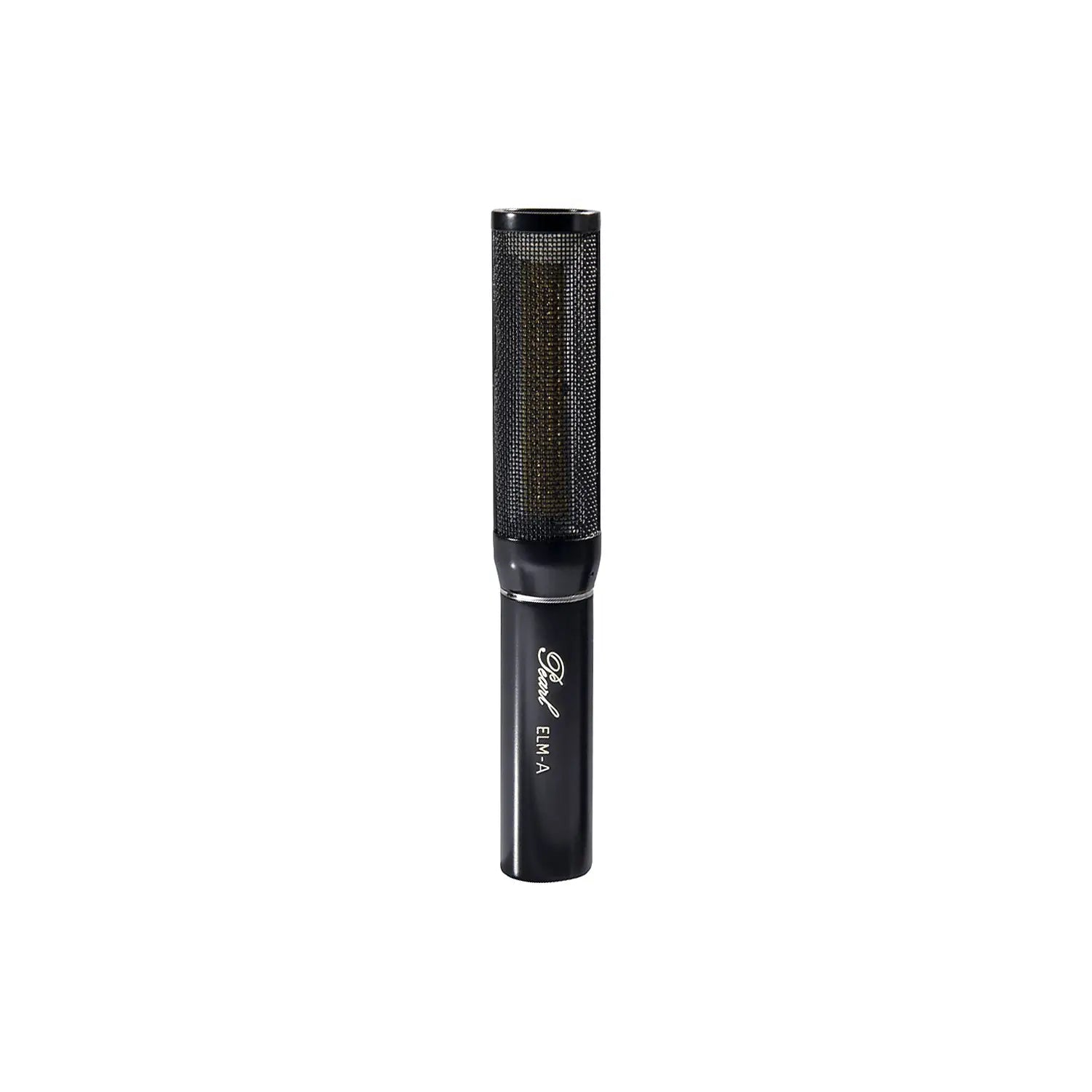

Pearl ELM-A

Large Diaphragm Condenser Microphone – Dual Output
Close

Our price:$3,399.00 GST
Order Code: ELM-A

IN STOCK 1 (more can be backordered)

Pearl ELM-A releases the full power of the ELM capsule with dual outputs allow for seamless polar pattern changes in post-production.

Powerful and refined, ELM-A is the ultimate Pearl. The special properties of the ELM capsule in combination with separate outputs for each side of the capsule makes for a completely unique microphone, providing engineers with a whole new level of control over the recording environment.

The 7:1 length/width ratio of the capsule means that the polar pattern for each side of the capsule looks like a standard cardioid in the horizontal plane, while it vastly reduces high frequencies in the vertical plane, a property that can be extremely useful for reducing unwanted reflections from the floor and ceiling, providing the audio engineer with a valuable tool to handle poor room acoustics and challenging acoustical environments.

The distinctive feature of the ELM-A is the separate output for each side of the capsule. If the channels are recorded separately, the polar pattern can be adjusted – seamlessly – in post-production and different patterns can be tested on the same recording. This also means that the ELM-A can act as a 180-degree stereo microphone and that it can be used for several stereo configurations, such as M-S or Blumlein, when combined with an additional microphone.

Just like the Pearl 2800 rectangular capsule (seen in CC 22), the longer ELM capsule combines the best characteristics from large and small diaphragms, i.e. low noise, detailed transient reproduction and an extremely smooth off-axis response.

The unique characteristics of the ELM series microphones make them outstanding for orchestral and choral recordings and, as a result, they can be found with symphonies and opera houses all over the world.

ELM-A is finished in piano black ED lacquer with a white logo, ring and engraved model number.

ELM-A features:

  • Pearl ELM capsule
  • Dual outputs (front/back)
  • Continuously variable pattern
  • Rubber fitted capsule
  • Transformerless
  • Gold plated 5-pin XLR connector

In the box:

  • ELM-A dual output microphone
  • Wooden box

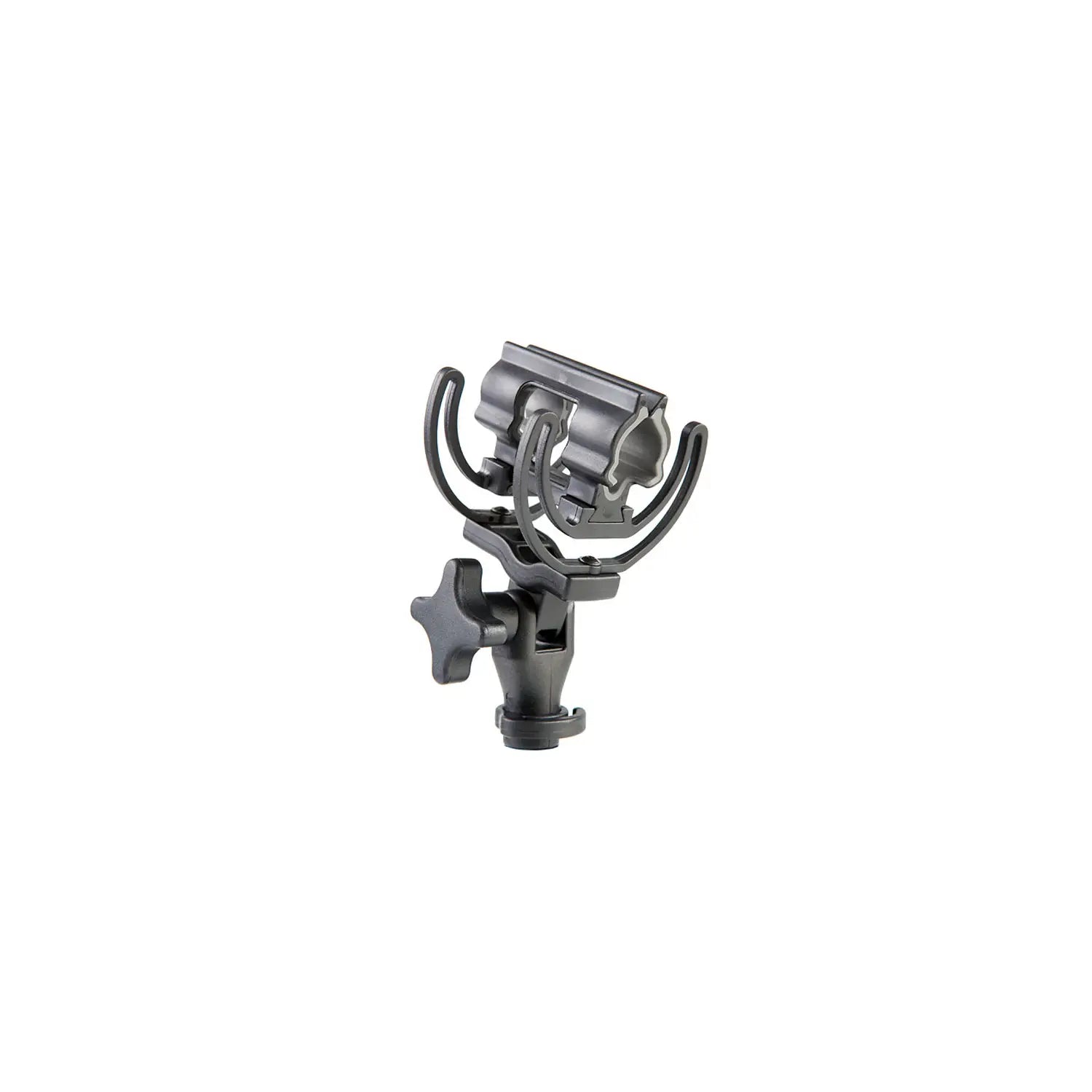

  • Pearl 1930 shockmount
  • Individual frequency graph
 Product name:  Pearl ELM-A
 Type:  Condenser
 Frequency response:  20 Hz to 25,000 Hz
 Polar pattern: Seamlessly variable or two back-to-back cardioids
 Max SPL (1 % THD at 1 kHz):  126 dB
 Sensitivity at 1 kHz:  22 mV/Pa (± 1 dB)
 A-weighted noise level (IEC 179-A):  11 dBA
 Power supply:  48 V Phantom (DIN/IEC)
 Current consumption: 3.5 mA
 Output impedance:  100 Ω
 Recommended load impedance:  1 kΩ
 Connection: 5-pin XLR
 Length:  192 mm
 Diameter:  28/32 mm
 Net weight:  305 g
