Pearl ELM-C

Large Diaphragm Cardioid Condenser Microphone
Close

Our price:$2,199.00 GST
Order Code: ELM-C

IN STOCK 2 (more can be backordered)

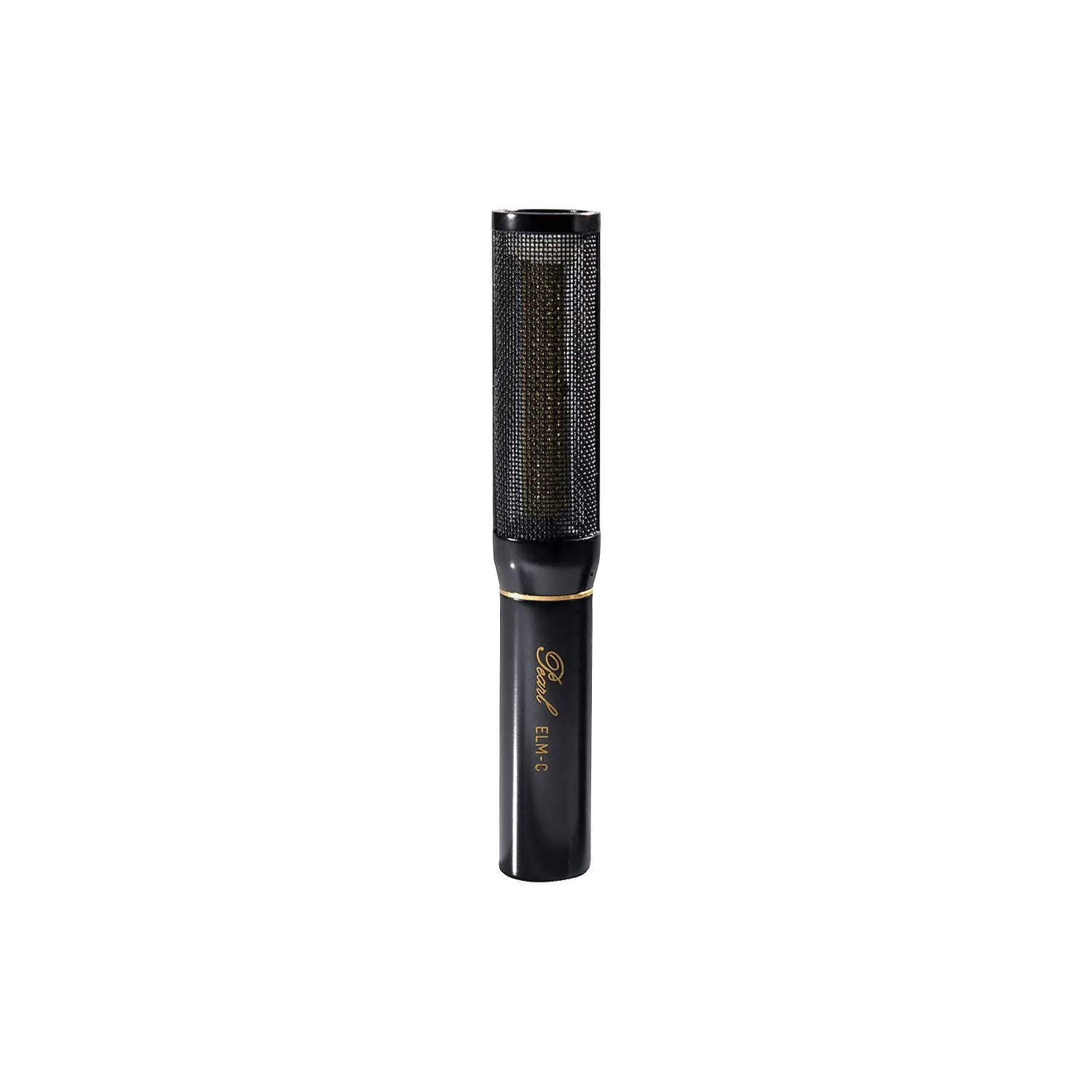

Pearl ELM-C is the cardioid version of the ELM-series, built around Pearl’s spectacular extended rectangular capsule.

This cardioid version of the ELM-series provides a rich and detailed sound even in less-than-ideal acoustical environments. Excellent for orchestral recordings.

The 7:1 length/width ratio of the capsule means that the polar pattern is that of a cardioid in the horizontal plane while it vastly reduces high frequencies in the vertical axis, a property that can be extremely useful for reducing unwanted reflections from the floor and ceiling, providing the audio engineer with a valuable tool with which to handle poor room acoustics and other challenging recording situations.

Just like the Pearl 2800 rectangular capsule (seen in CC 22) , the longer ELM capsule combines the best characteristics from large and small diaphragms, i.e. low noise, detailed transient reproduction and an extremely smooth off-axis response, making the ELM-C excellent as part of a stereo pair.

In combination, the unique characteristics of the ELM series microphones make them outstanding for orchestral and choral recordings and, as a result, they can be found with symphonies and opera houses all over the world.

ELM-C is finished in piano black ED lacquer with a yellow logo, ring and engraved model number.

ELM-C features:

  • Pearl ELM capsule
  • Cardioid polar pattern
  • Transformerless
  • Rubber fitted capsule
  • Gold plated XLR connector

In the box:

  • ELM-C cardioid microphone
  • Wooden box

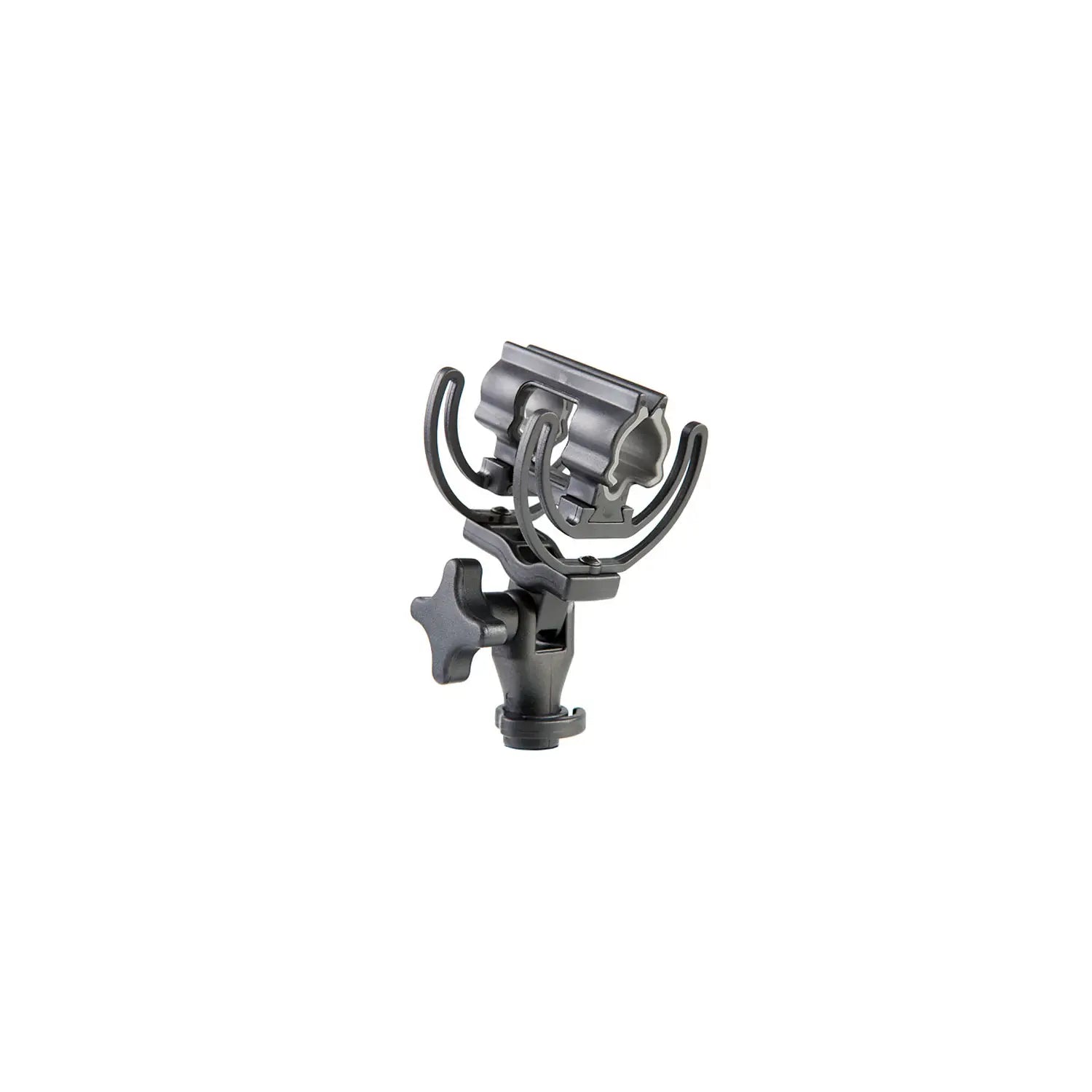

  • Microphone shockmount 1930
  • Individual frequency graph
 Product name:  Pearl ELM-C
 Type:  Condenser
 Frequency response:  20 Hz to 25,000 Hz
 Polar pattern:  Cardioid
 Max SPL (1 % THD at 1 kHz):  126 dB
 Sensitivity at 1 kHz:  22 mV/Pa (± 1 dB)
 A-weighted noise level (IEC 179-A):  10 dBA
 Power supply:  48 V Phantom (DIN/IEC)
 Current consumption:  2.7 mA
 Output impedance:  100 Ω
 Recommended load impedance:  1 kΩ
 Connection:  3-pin XLR
 Length:  192 mm
 Diameter:  28/32 mm
 Net weight:  305 g
