Far-and-away our most popular 75 ohm RG59 coaxial cable. Whether used for audio applications (word clock or SPDIF), or video applications, performance is outstanding. A smooth non-glare finish PVC jackets are available in distinctive colors (including Chroma-Key Blue) and will stay flexible even in sub-zero weather.
Per-metre pricing, ORANGE
Maximum distances for video applications (point-to-point) as follows:
Composite NTSC: 288m
Composite PAL: 258m
Component 4:2:2: 206m
Component 4:2:2 16×9: 177m
HD 1080p: 36m

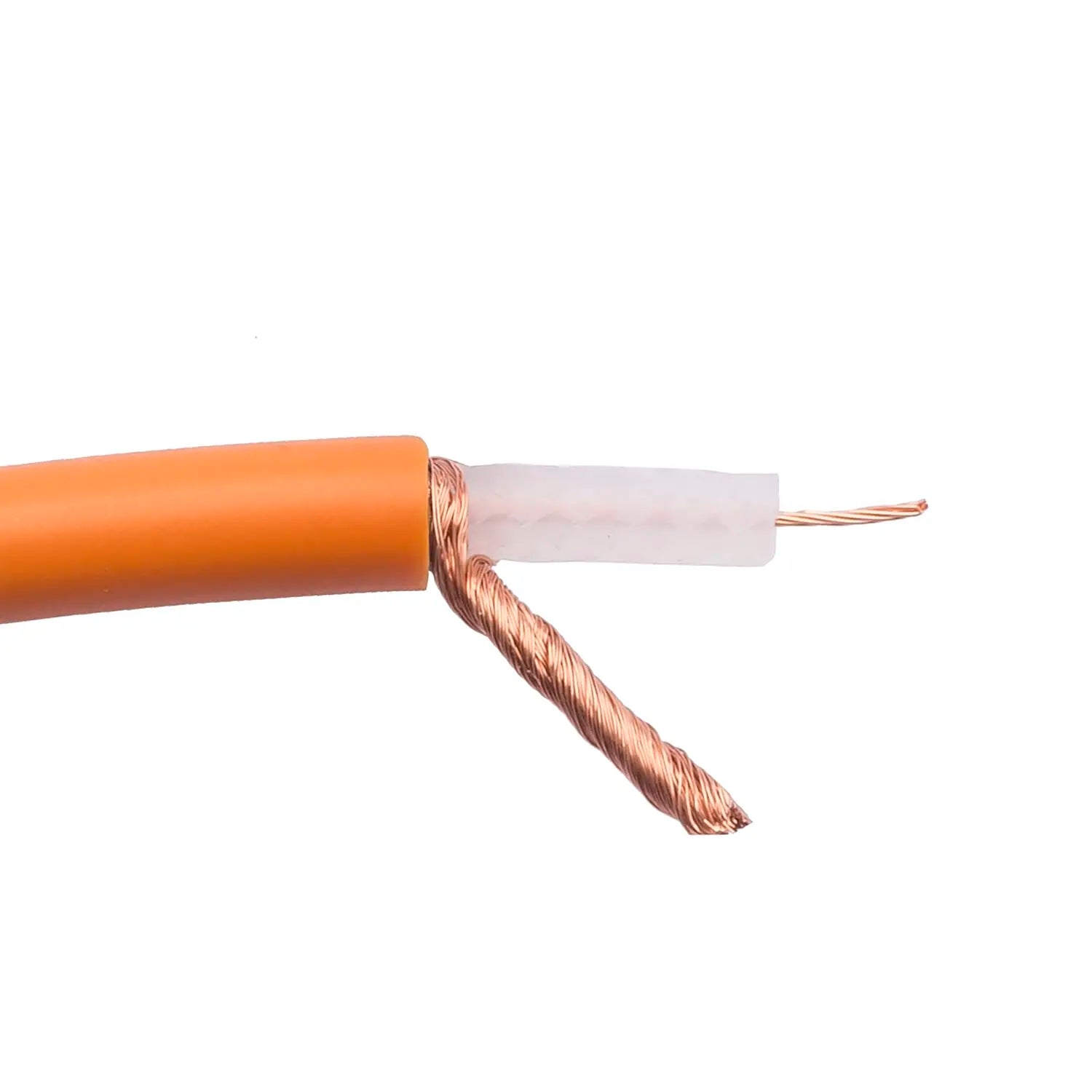

- Flexible Center Conductor: Stranded Bare Copper
- Dielectric strips away clean from Conductor

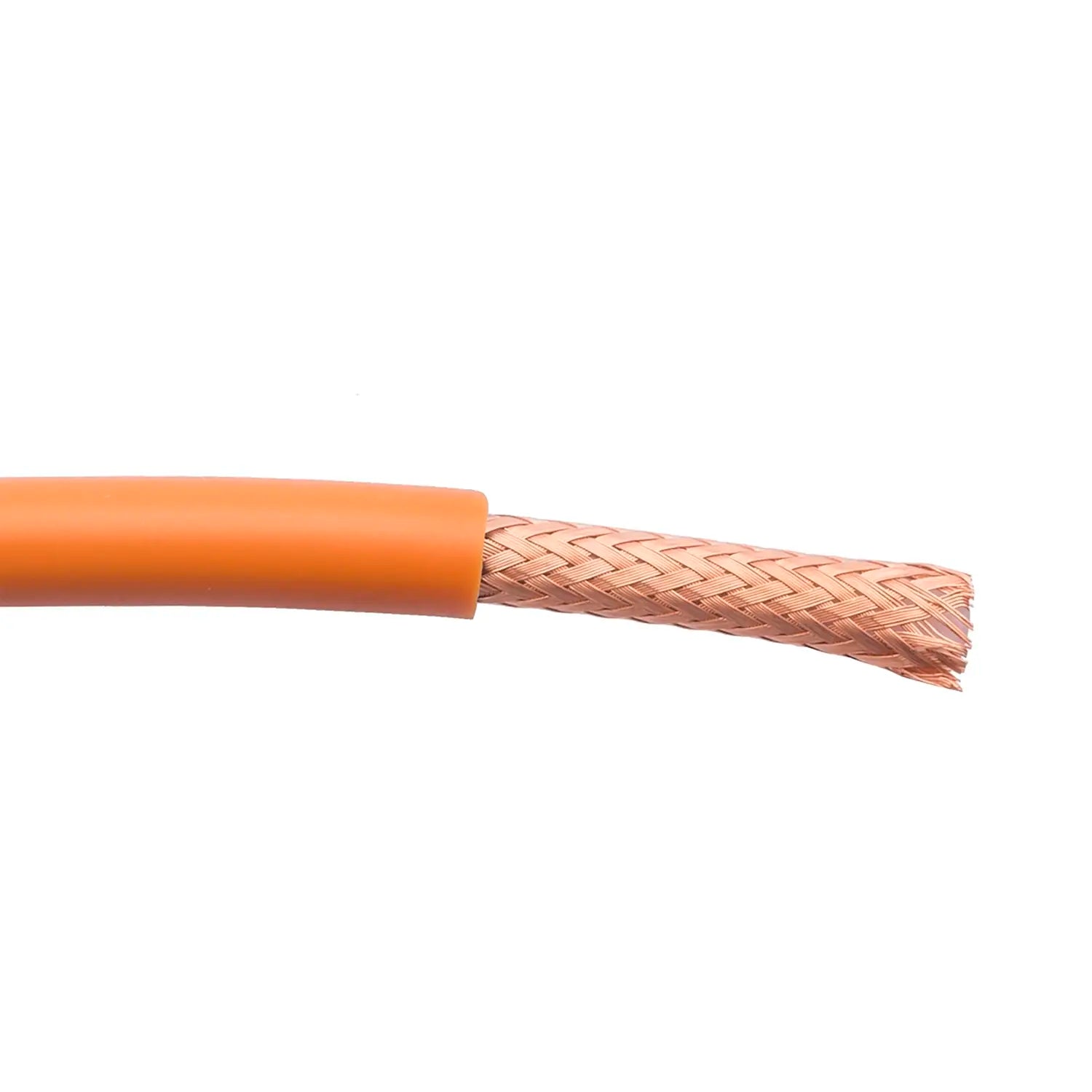

- Tightly Woven Braid Shield
- Stays Flexible even in Sub-Zero Weather
- Available in multiple colours
The above values for maximum distances are based on SMPTE standards 259M (Component 4:2:2 and Component 4:2:2 16×9), 292M (HD-SDI), 344M (SDI), and 424M (HD 1080p).
Criteria are as follows:
259M & 344M: The listed coaxial cable’s attenuation value does not exceed 30dB loss at one-half the clock frequency (bit rate).
292M & 424M: The listed coaxial cable’s attenuation value does not exceed 20dB loss at one-half the clock frequency (bit rate).
See the other colour options in LV-61S series
