powerCON TRUE1 – male panel connector, flat tabs

Our price:$9.35 GST
Order Code: NAC3MPX-TOP

IN STOCK 168 (more can be backordered)

When Neutrik took things up a notch with their powerCON range and first introduced TRUE1, a number of boxes were ticked, in a big way:

TRUE1 powerCON is IP65 rated (when in the mated state), can be mated or broken under load, and includes a full range of male and female line and panel mount connectors – making connectivity and extensions simple to achieve. Of course, you lose your IP65 rating if this panel mount is not ‘mated’, but you can still offer IP65 protection by adding SCNAC-MPX to the rack-build.

The latest incarnation is NAC3MPX-TOP, with ‘TOP’ signifying True Outdoor Protection. In other words, “these ruggedised sealed connectors feature not only IP protection but also UV resistance approved according to UL50E”

ALL BLACK – we thought the original TRUE1 version, with its nice bright yellow trim, looked quite the part. This new ‘TOP’ version is all black. It’s probably neater for the back of your devices, and who are we to judge anyway!

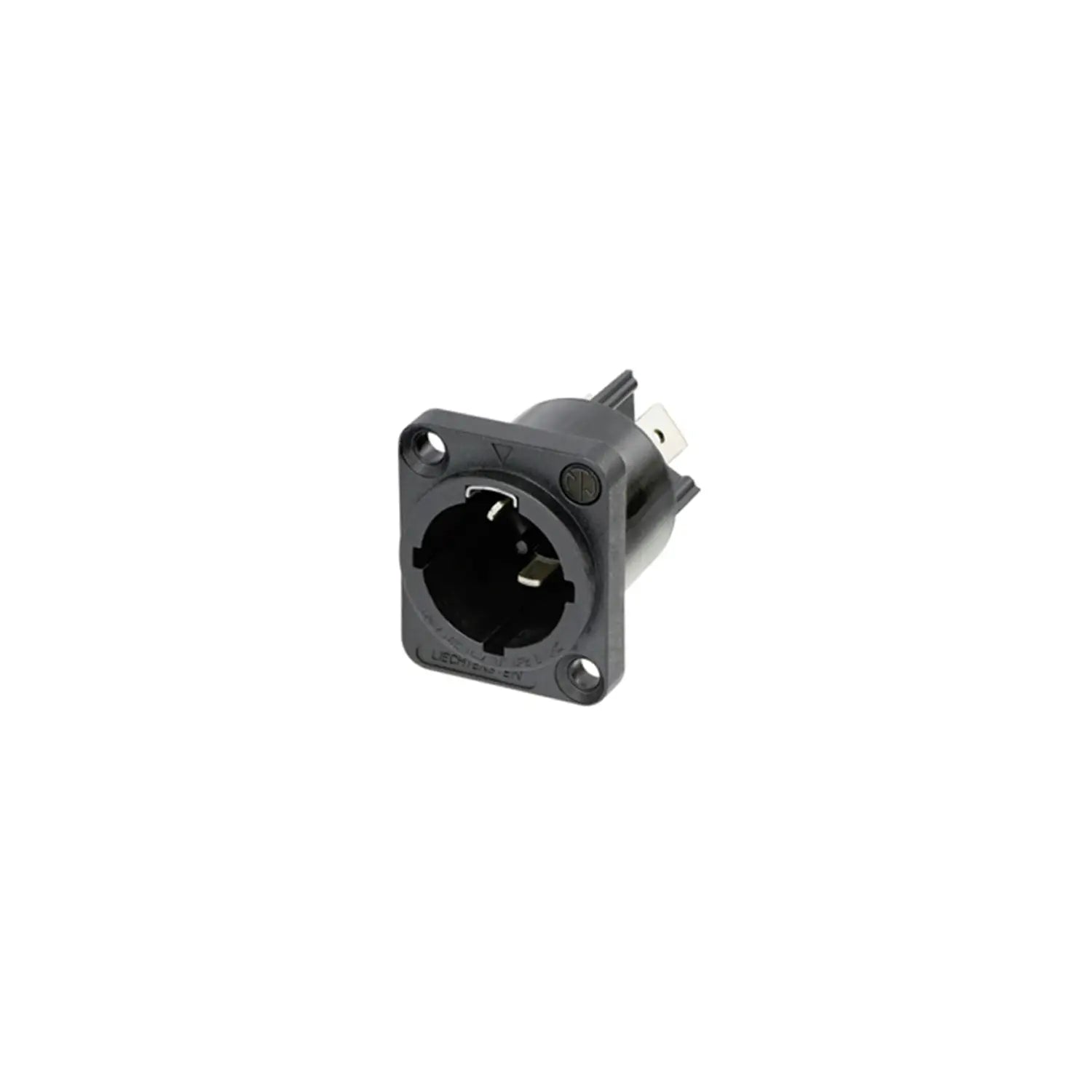

NAC3MPX-TOP is an appliance inlet connector, 1/4” flat tab terminals

Need some pointers for assembly?
Click on the ‘data’ tab below to open (or download) the Neutrik assembly pdf for NAC3MPX-TOP

NAC3MPX-TOP features:

  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • Uses high impact UV-resistant materials
  • UL498 certified
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)

Assembly Instructions

Download the Neutrik assembly instructions: NAC3MPX-TOP.pdf
