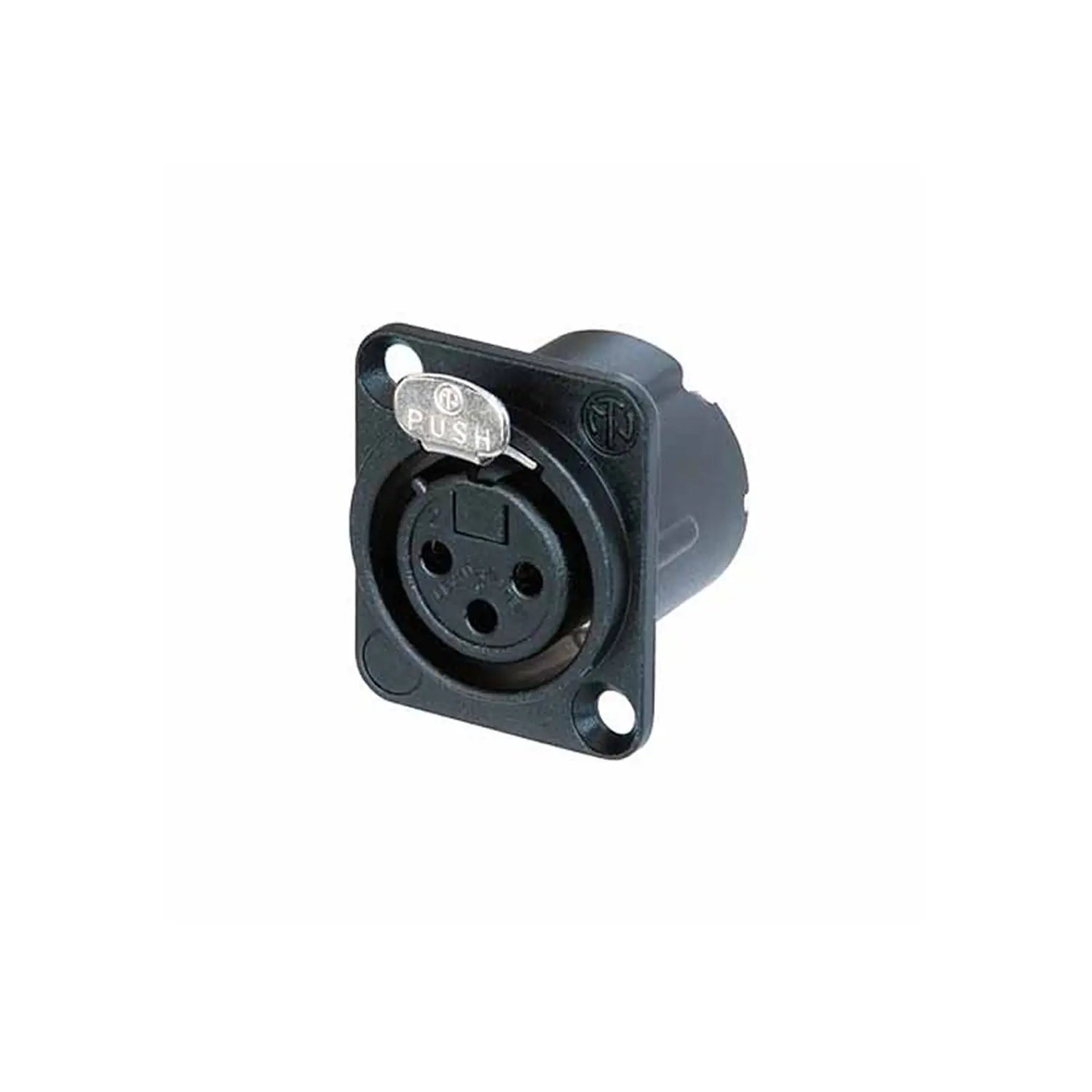

Neutrik NC3FD-LX-B

3 Pin Female XLR Connector (panel mount, black w/ gold)

Our price:$10.00 GST
Order Code: NC3FD-LX-B

IN STOCK 118 (more can be backordered)

3 Pin female XLR panel mount. Cups for wire soldering. Black housing and gold contacts. Unified ‘D’ Size – now accepted worldwide as a standard. Nice big solder cups can accept up to 14 AWG (2.5mm²). Includes latch.

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Black, with gold contacts:
This version of NC3FD-LX (3 pole female receptacle) has a sleek black housing, with gold contacts for superior performance.


  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
