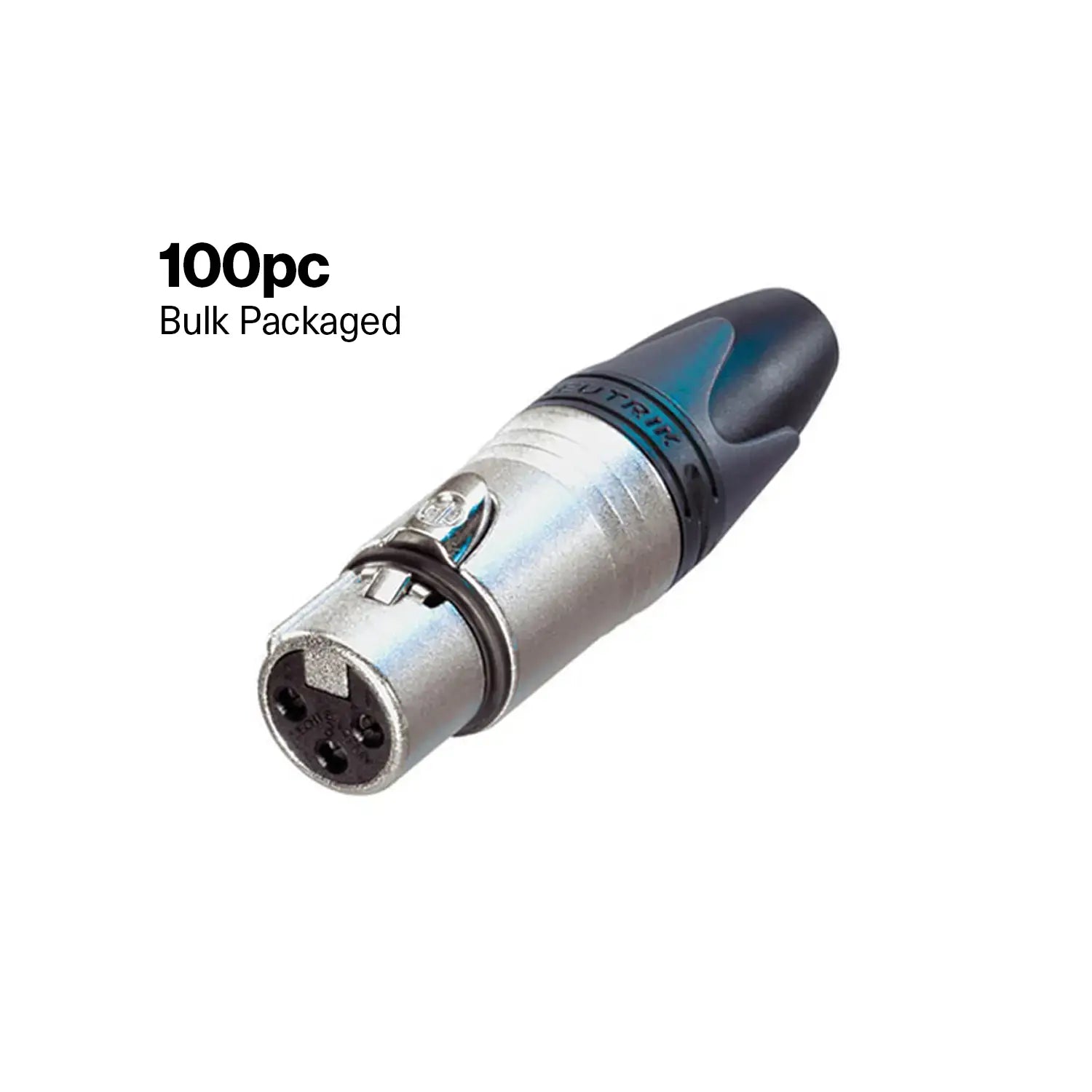

Neutrik NC3FXX-D

100 pack of NC3FXX (no individual wrappers)
Sale!
Close

    Contact us today

    Our price:$655.00 GST
    Order Code: NC3FXX-D

    IN STOCK 4 (more can be backordered)

    For frequent users of NC3FXX connectors, this ‘D-pack’ is perfect. Each of the four components (Boot, Shell, Insert and Chuck) is housed in a compartment for easy reach, with no individual wrappers to unpack and discard.

    Not only is it cheaper than purchasing 100 individual NC3FXX, it also saves you time and mess.

    Features & Benefits

    • Unique cage design of female contact for low contact resistance and high integrity
    • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
    • Female connector with improved solid metal latch which is larger and easier to handle
    • Additional ground spring contacts for better shell ground continuity
    • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
    • Boot with polyurethane gland gives high protection to cable bending stresses
    • Colored rings and boots available for coding or identification
    • Sleek and ergonomic design – valuable and handy
    • Rugged zinc diecast shell, longlasting and dependable
    • Internal thread on shell is well protected against any damage
    • Branded with unique hologram – guarantees genuine and authentic Neutrik product

    Neutrik Assembly Xlr XX.pdf

    Electrical
    Capacitance between contacts ≤ 4 pF
    Contact resistance ≤ 3 mΩ (inner)
    Dielectric strength 1,5 kVdc
    Insulation resistance > 2 GΩ (initial)
    Rated current per contact 16 A
    Rated voltage 50 V

    Mechanical
    Insertion force ≤ 20 N
    Withdrawal force ≤ 20 N
    Lifetime > 1000 mating cycles
    Wiresize max. 2.5 mm²
    Wiresize max. 14 AWG
    Locking device Latch lock

    Material
    Boot Polyurethan
    Contact plating 2 µm Ag
    Contacts Nickel
    Insert Polyamide (PA 6.6 30 % GR)
    Locking element Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    Shell Zinc diecast (ZnAl4Cu1)
    Shell plating Nickel
    Strain relief Polyacetal (POM)

    Environmental
    Flammability UL 94 HB
    Standard compliance IEC 61076-2-103
    Protection class IP 40
    Solderability Complies with IEC 68-2-20
