Nexo NXAMP4x2MK2

Power and DSP control for NEXO speakers – 4 x 2500w
Close

Our price:$15,450.00 GST
Order Code: NXAMP4x2MK2

Available on backorder

Nexo NXAMP4X2MK2 combines advanced signal processing with four state-of-the-art Class D amplifiers (4 x 2500w) to create a flexible, lightweight powering and control solution for NEXO loudspeaker systems.

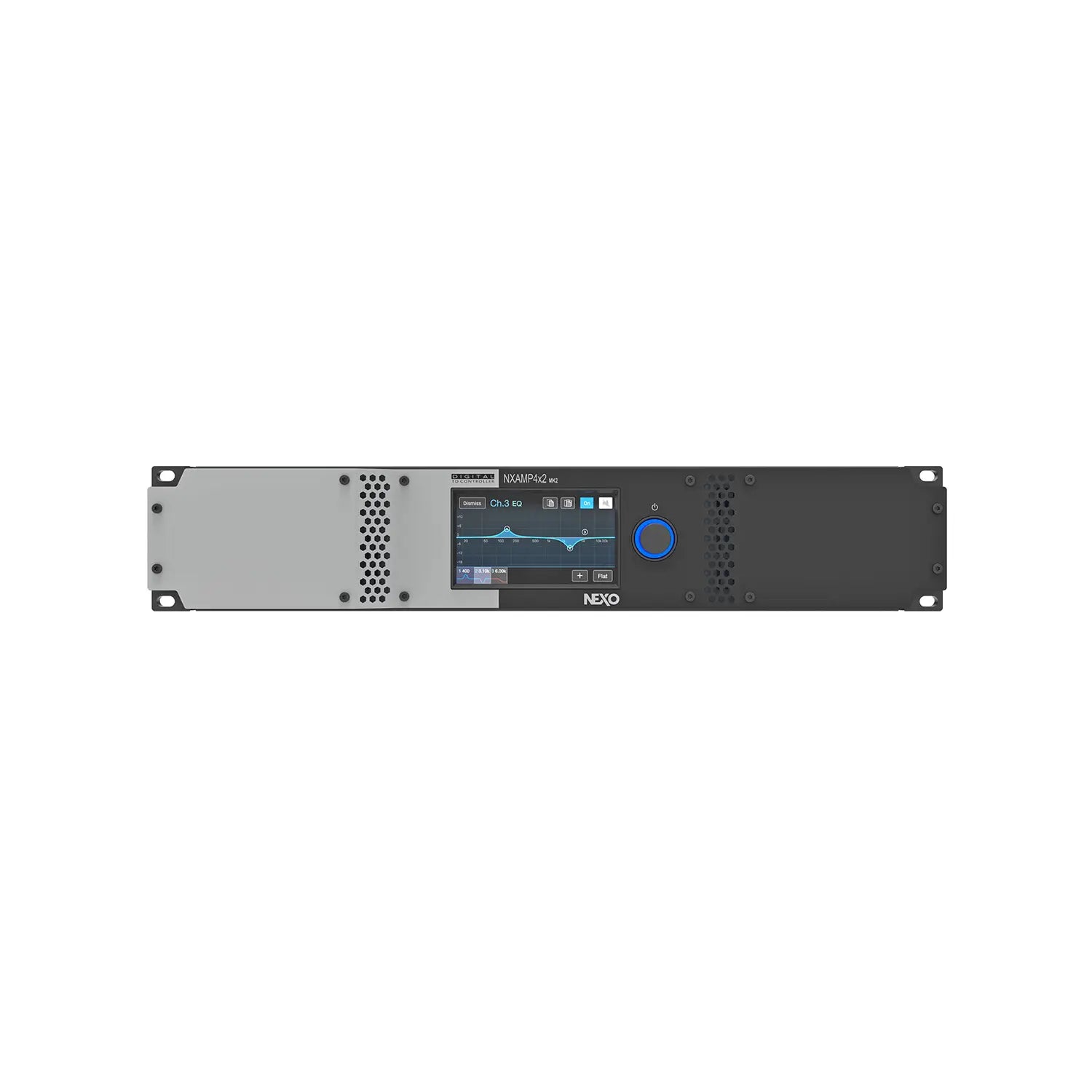

Ideal for use in fixed installations and touring, these powered controllers are easy to set up and quick to deploy, with all essential parameters readily accessible via a large (4.3″) colour touch-screen on the front panel and a comprehensive range of control and networking facilities on the rear panel. Most importantly, NXAMPMK2 achieves a whole new level of sound quality, partnering with NEXO speakers to deliver a whole new level of audience experience.

4 x ultra-low distortion Class D amplifiers combine 32-bit/96KHz converters and 64-bit signal processing to deliver pristine sound quality. Bass is solid and high-end definition is particularly impressive in a sonic performance that is both articulate and rich with detail. Even at low volumes, the sound is noticeably transparent and pure.

A flexible audio input system encompasses four, high end analogue inputs using cascaded converters for low output noise. Four digital inputs are also available through the rear panel expansion card slot offering optional AES/EBU, EtherSound™, Dante™ or AES67 inputs, all with automatic analogue fall-back. A native dual Ethernet card facilitates remote control and daisy-chaining of amplifiers, and seamless integration with Nexo’s NeMo amplifier management software.

Rack-mounting vitals:
2U height, 502mm depth
Weight: 16.1kg

NXAMP4x2MK2 features:

  • NEXO and Yamaha collaborate to create the perfect, light weight power and control solution for NEXO loudspeaker systems
  • Achieves significant advances in sound quality over previous generation NXAMPs
  • 4 x ultra-low distortion Class D amplifiers
  • 4 x 2500 Watts
  • All essential parameters accessible via a large colour touchscreen on the front panel
  • Universal 100 – 240 mains voltage range
  • Uses PFC (Power Factor Correction) technology
  • Remote control card fitted as standard
  • Optional Dante, EtherSound and AES network cards available

Power Specifications

Number of channels 4 amplifier channels, 2 by 2 bridgeable
Max output voltage (no load) 4 x 140 V
Max output power (4 channels mode / 8 Ohms load per channel) 4 x 1200 W
Max output power (4 channels mode / 4 Ohms load per channel) 4 x 1900 W
Max output power (4 channels mode / 2 Ohms load per channel) 4 x 2500 W
Max output power (2 channels mode / 8 Ohms load per channel) 2 x 3800 W
Max output power (2 channels mode / 4 Ohms load per channel) 2 x 5000 W
Power consumption (Standby) 10 W
Power consumption (idle) 200 W
Input to Power Out Specifications
Frequency response 10 Hz - 20 KHz ±1 dB
Input Impedance / Input Sensitivity 20 K Ω / 16 dBu
Dynamic range / TDH + N 110 dB unweighted / Typical 0.01% (Flat setup)
Lantency 550 us on a flat setup
Audio AD and DA converters 32-bits @ 96 KHz
Processing 3x multicore 64-bits processing DSPs

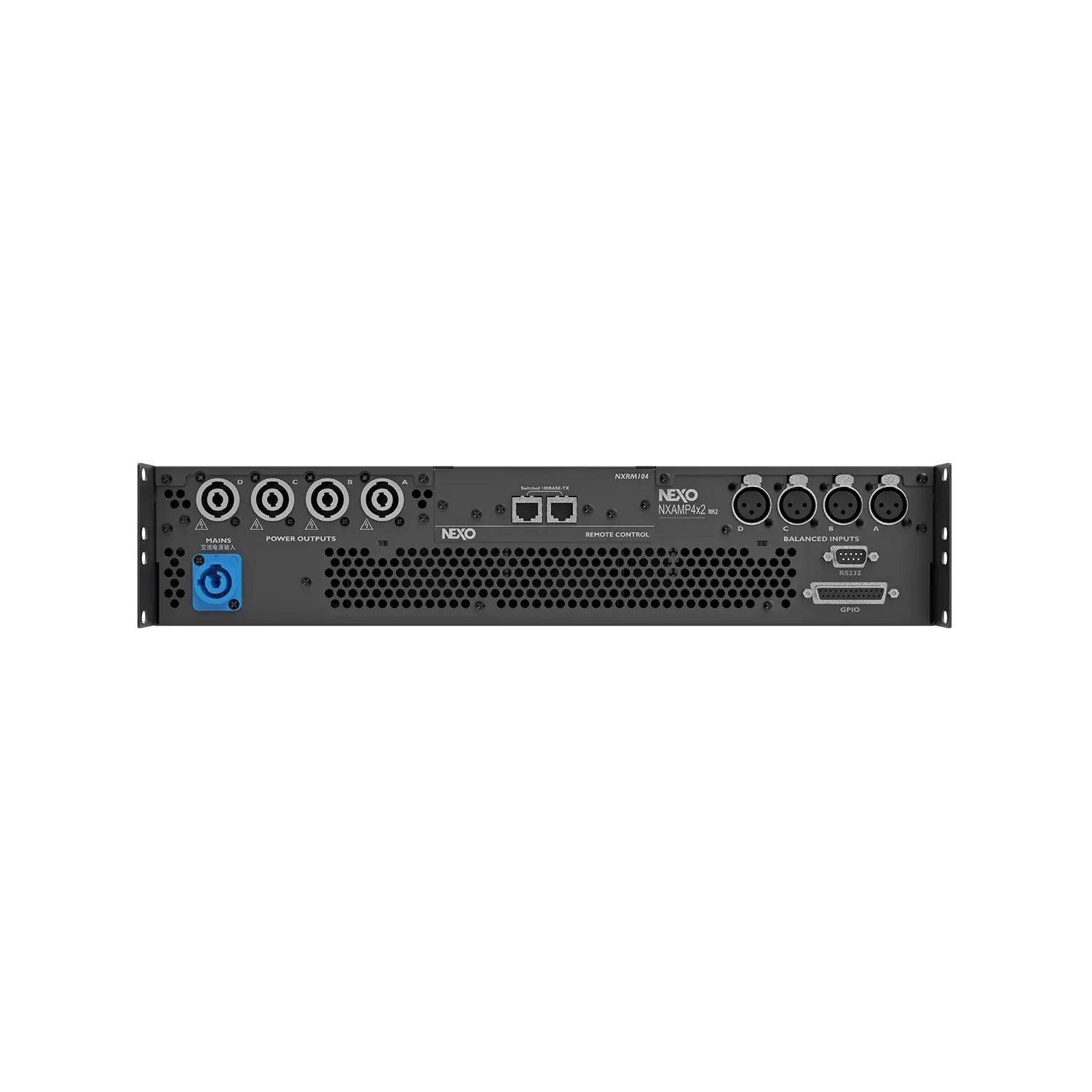

Back Panel features
Analogue audio inputs 4x balanced analogue inputs on XLR3
Power outputs 4×Neutrik Speakon NL-4 outputs
RS232 port 1×DB-9 connector dedicated for DPU connection
GPIO port 1xDB-25 connector with 5x Inputs and 8x Outputs for DMU connection
Expansion slot For networking and digital audio cards, 4x digital audio inputs and remote control
Main sockets 1x Neutrik Powercon NAC3 (1x 20 A)
User interface and controls
Front panel buttons and knobs Rotary encoder with push and backlight, tactile screen
Display 4.3 inches diagonal colour display, WQVGZ, 480 x 272
Main requirements
Mains voltage Universal power supply with active PFC 100-240 Volts (50/60 Hz)
Mains voltage
Power consumption(1/4 max 2 Ω) 3500 W
Dimensions and Certifications
Dimensions 2U 19″ rack, 502mm / 20″ depth, 16.1 kg / 35.3 lbs weight
Electrical safety certification cULus, CB (CE), CCC, PSE, KC
EMC certification CE, FCC
Green status Compliant with ROHS directive
