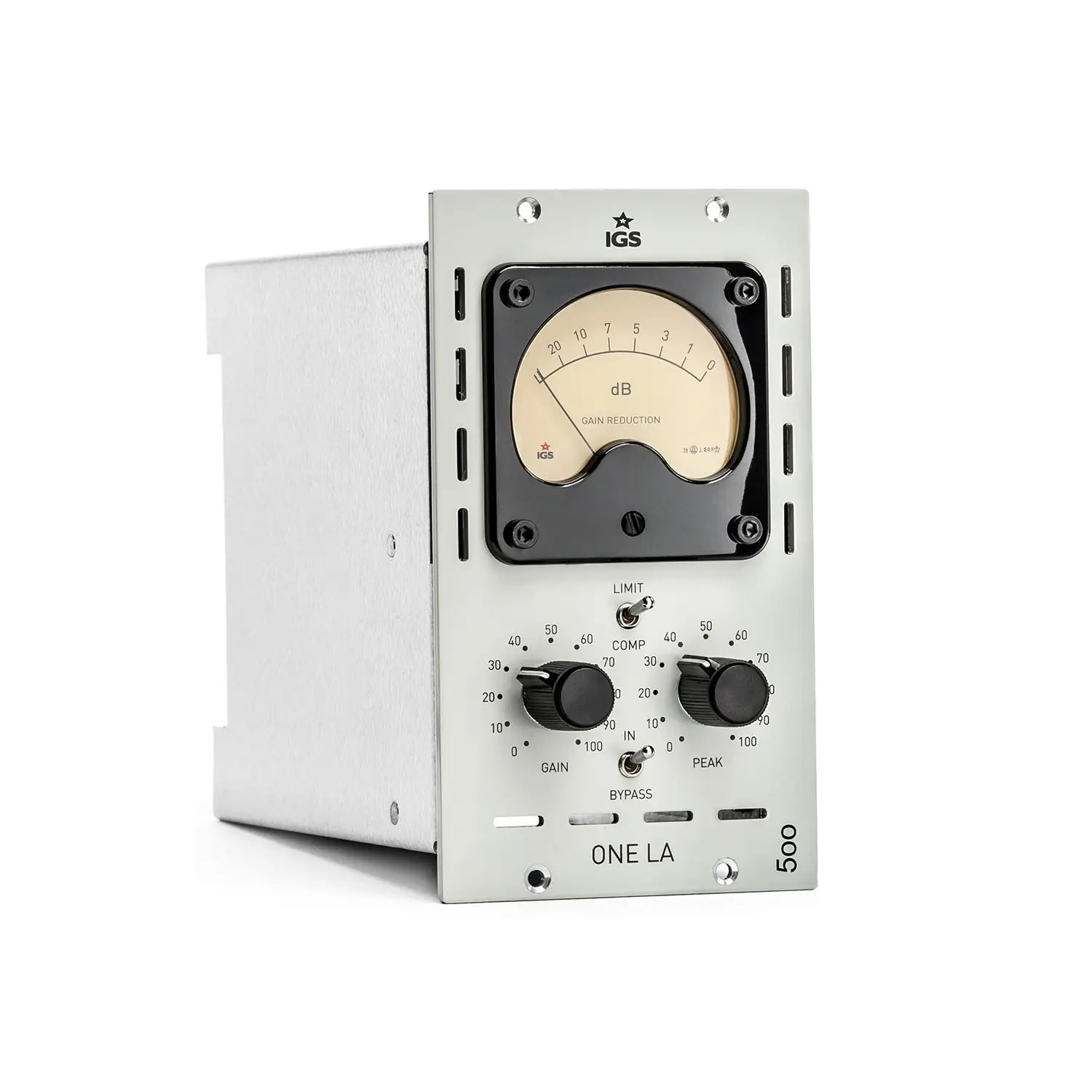

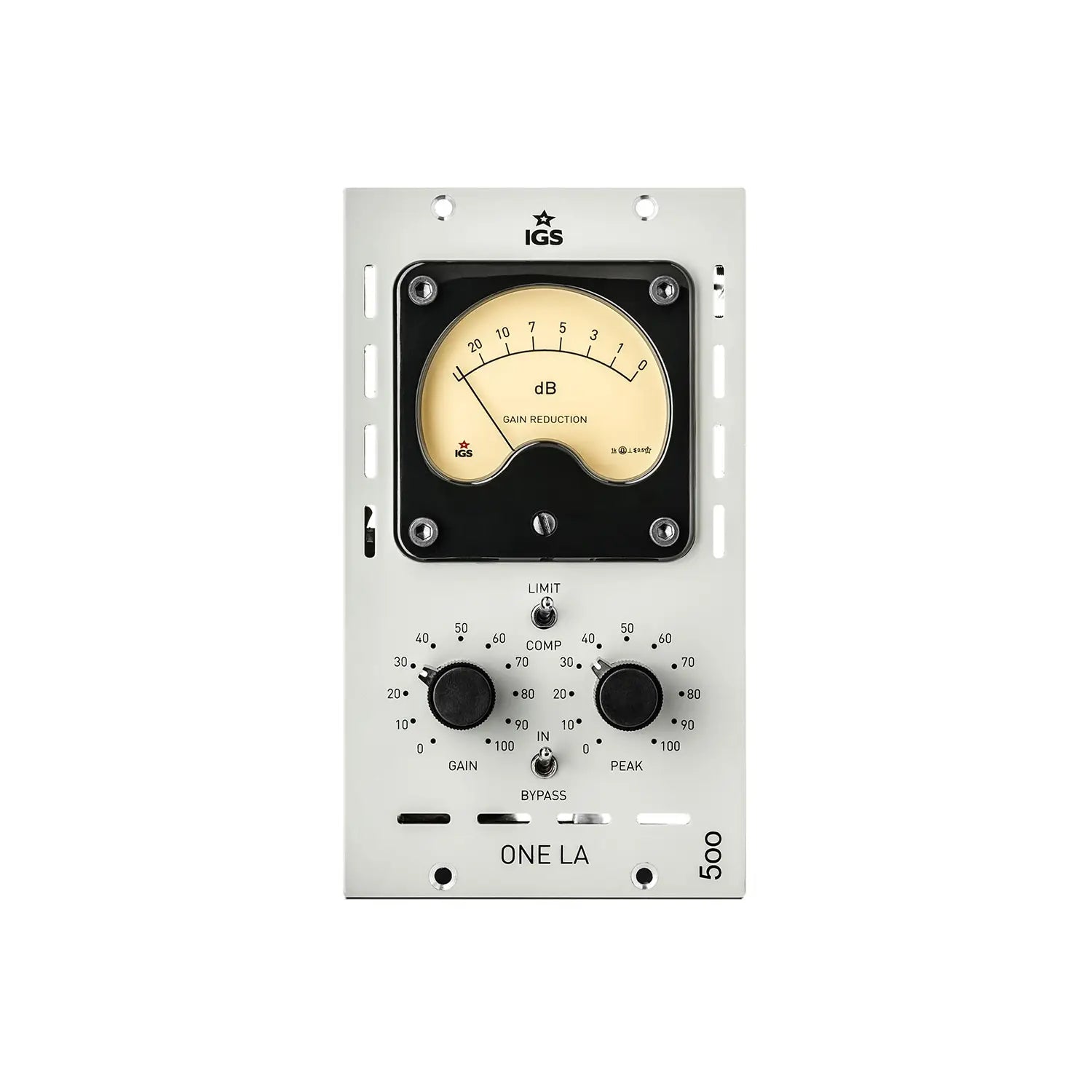

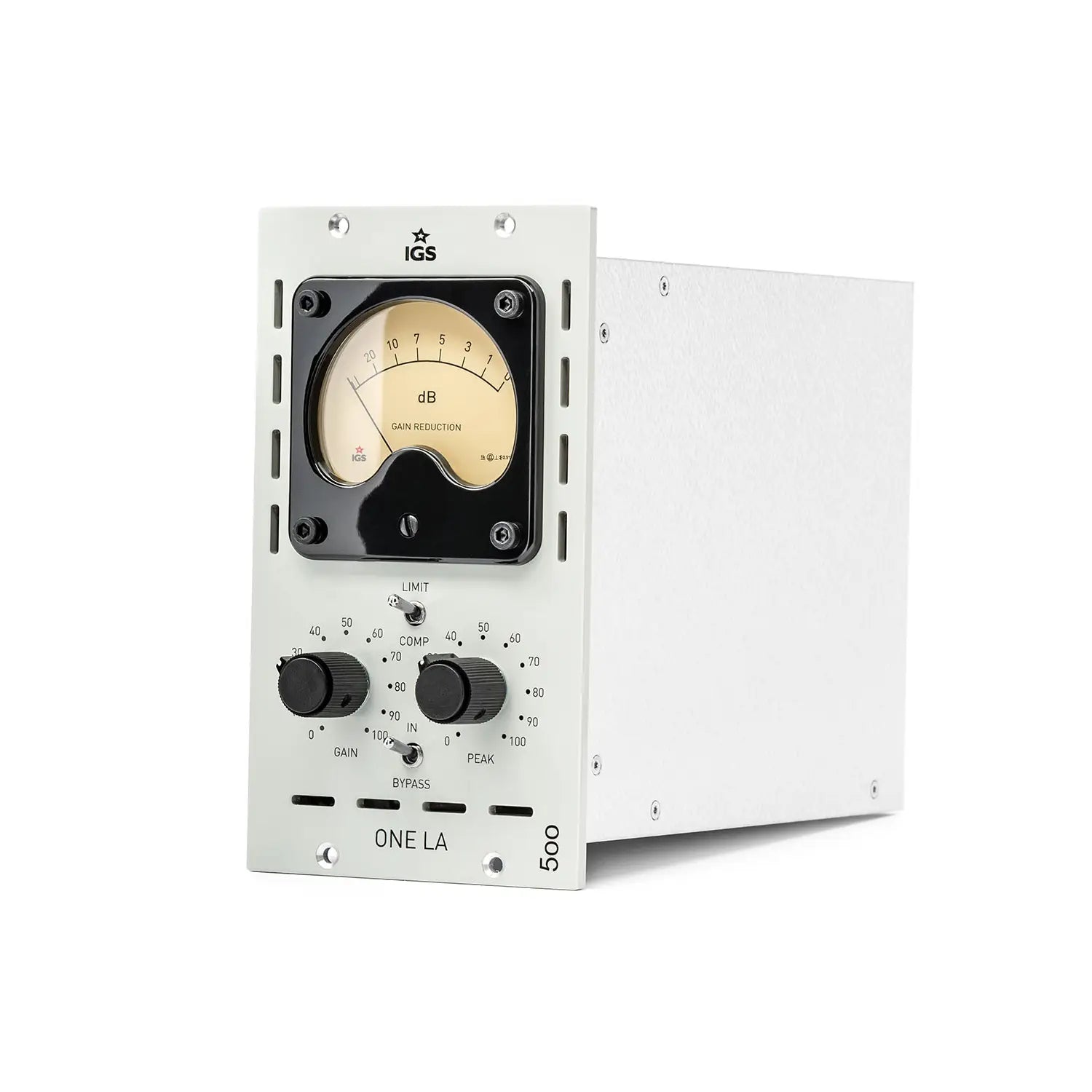

IGS Audio ONE LA 500

Classic tube opto-compressor (500 series)
Close

Our price:$1,649.00 GST
Order Code: ONE-LA-500

Contact us for expected arrival, queue backorder

IGS Audio ONE LA 500 is an opto-compressor, built for the 500 series format. It is powered with 250V DC from an on-board voltage converter, so it can be plugged into any 500 series rack equipped with a standard power supply.

Every single ONE LA is hand made with high quality, matched components (1% metal film resistors, Wima caps).

ONE LA 500 is equipped with JJ tubes and individually calibrated to give you the unique and unspoiled experience of one of the best opto-compressors in the history – the Teletronix ’68 LA-2A. It is not only for harmonically rich vocals and strings, but also for huge and beefy drums and bass instruments.

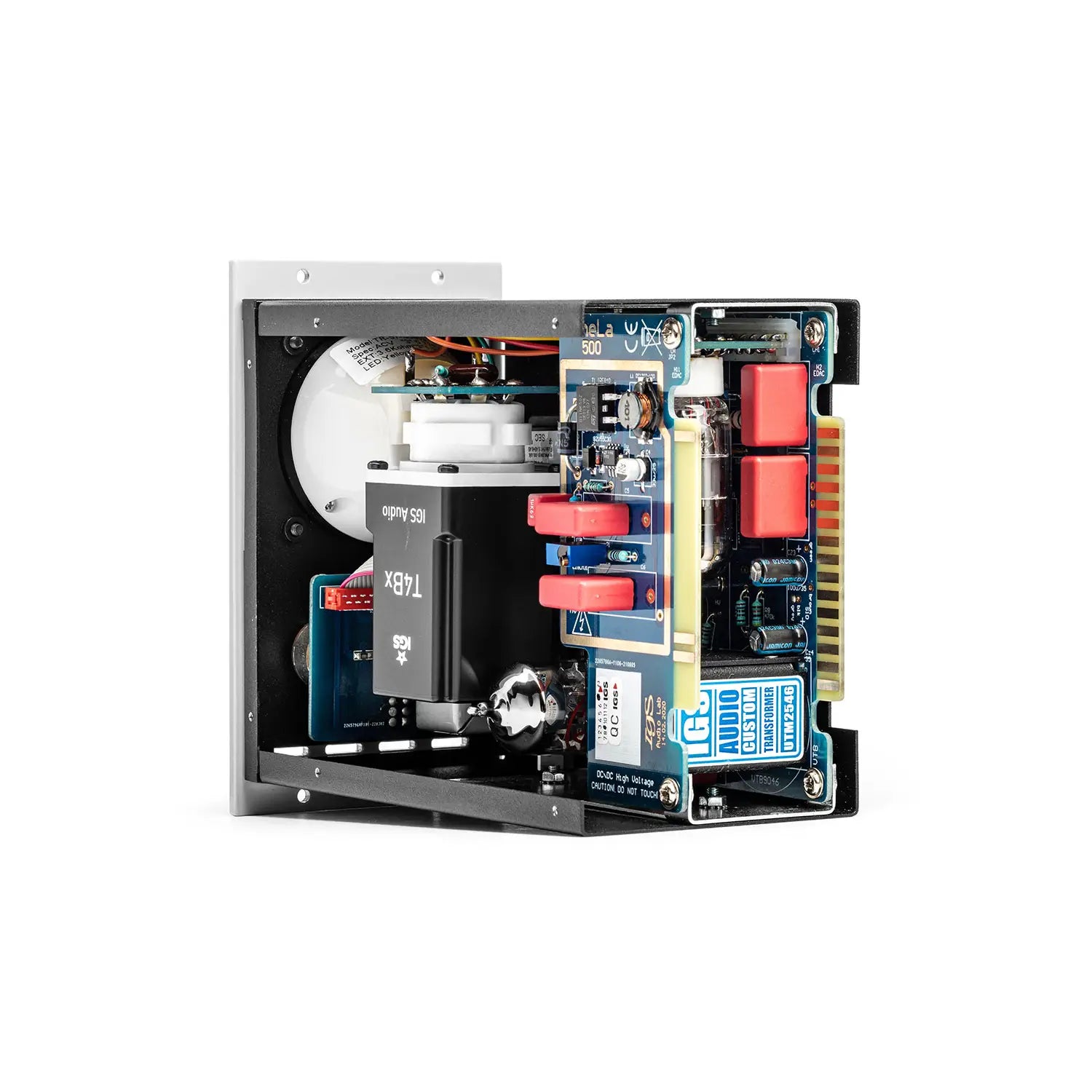

Three audio transformers (IGS Custom in an audio path and OEP in sidechain) have been used to provide excellent performance and with only two knobs and a single compressor/limiter switch, there is nothing that could go wrong.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Device type
Optical Compressor Yes
Basic features
Hard wire bypass Yes
Input & Output
Input Impedance (balanced) 600 ohm, IGS Custom transformer
Output Impedance (balanced) 600 ohm, IGS Custom transformer
Audio transformers Yes, IGS Custom
Levels
Operating Level +4 dBu
Max input level +20 dBu
Max output level +21 dBu
Dynamic Range 100 dB
Noise Level -99 dBA
Max. gain 32 dB
Max Gain Reduction 32dB
Time constants
Ratio 4:1 in COMP mode, 100:1 in LIM mode
Attack: 10ms
Release: 0.5 – 5s (50% @ 60ms)
Bandwidth
Frequency response 8 Hz – 20k Hz, +/- 1 dB
Distortion (@ 20 Hz – 20 kHz)
THD+N 0.002% @ 0dBu
Front Panel
VU Meters Yes, GR (backlit)
Power
Voltage API Standard, internal DC-DC conversion for powering tubes (250V DC)
Power consumption 8.16W. Slot #1: 190mA@+16V, 170mA@-16V. Slot #2: 150mA@+16V, 0mA@-16V
Others
Tube set ECC802, ECC803
