IGS Audio RB 500 ME

Stereo Pultec-style EQ (500 series format)
Close

Our price:$1,835.00 GST
Order Code: RB500-ME

Contact us for expected arrival, queue backorder

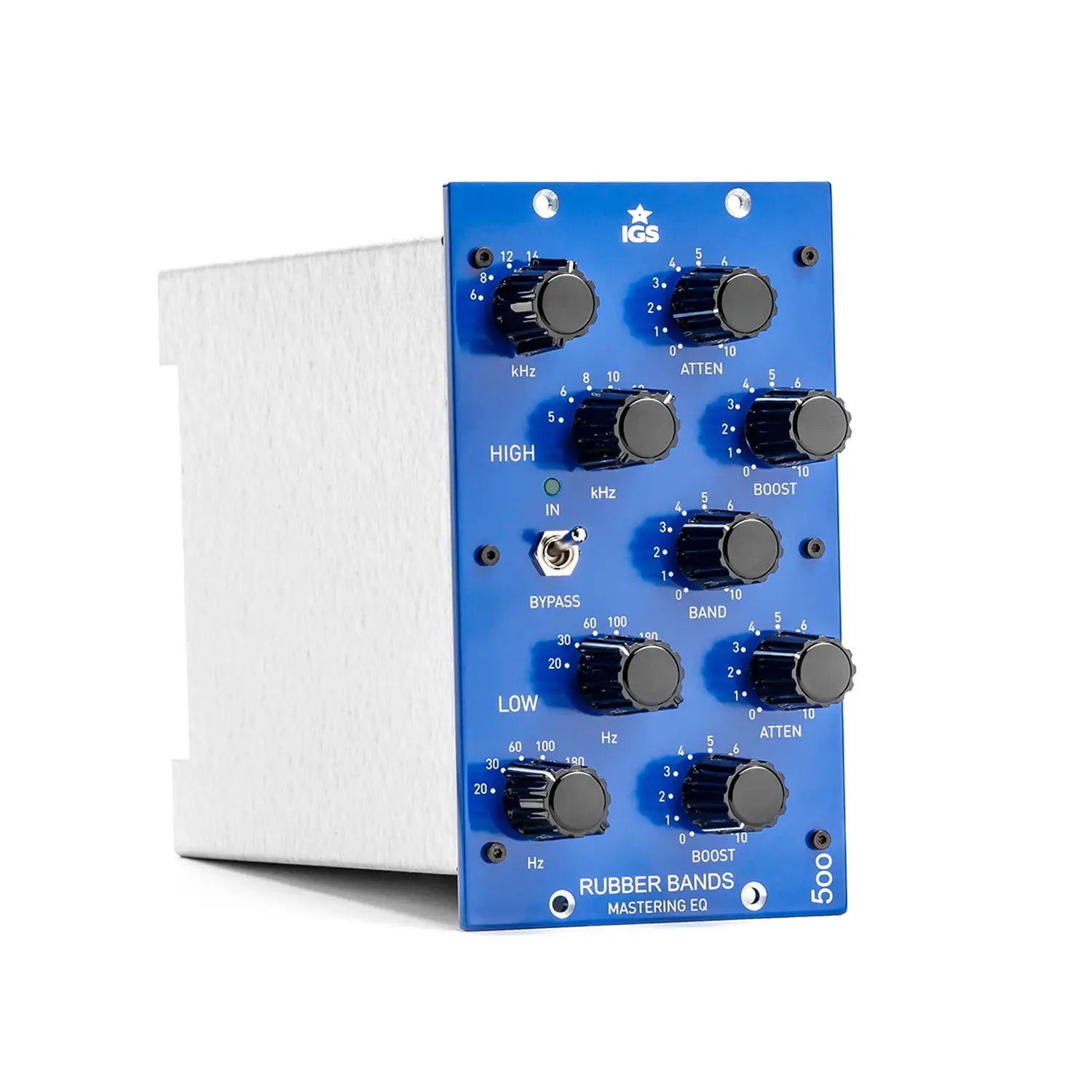

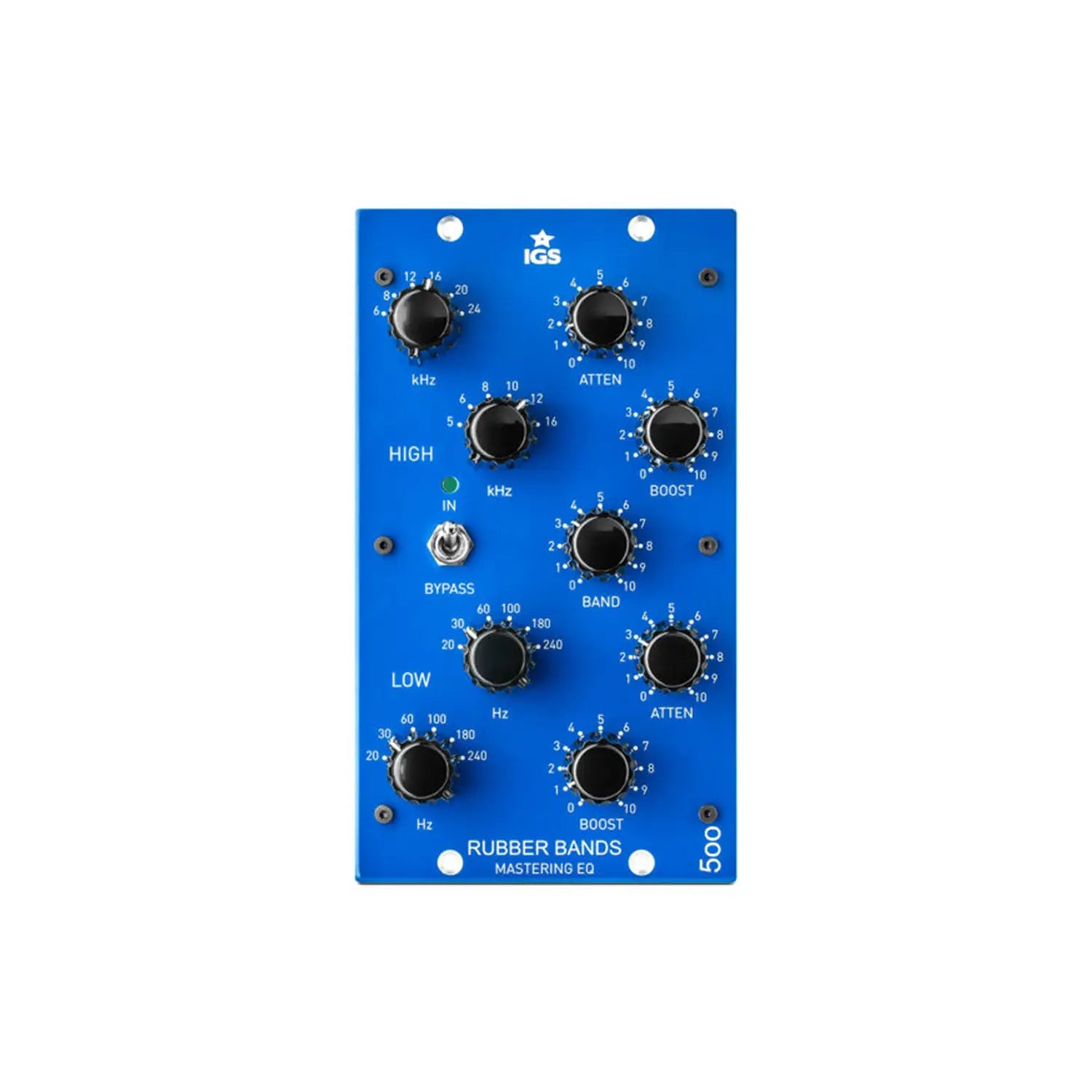

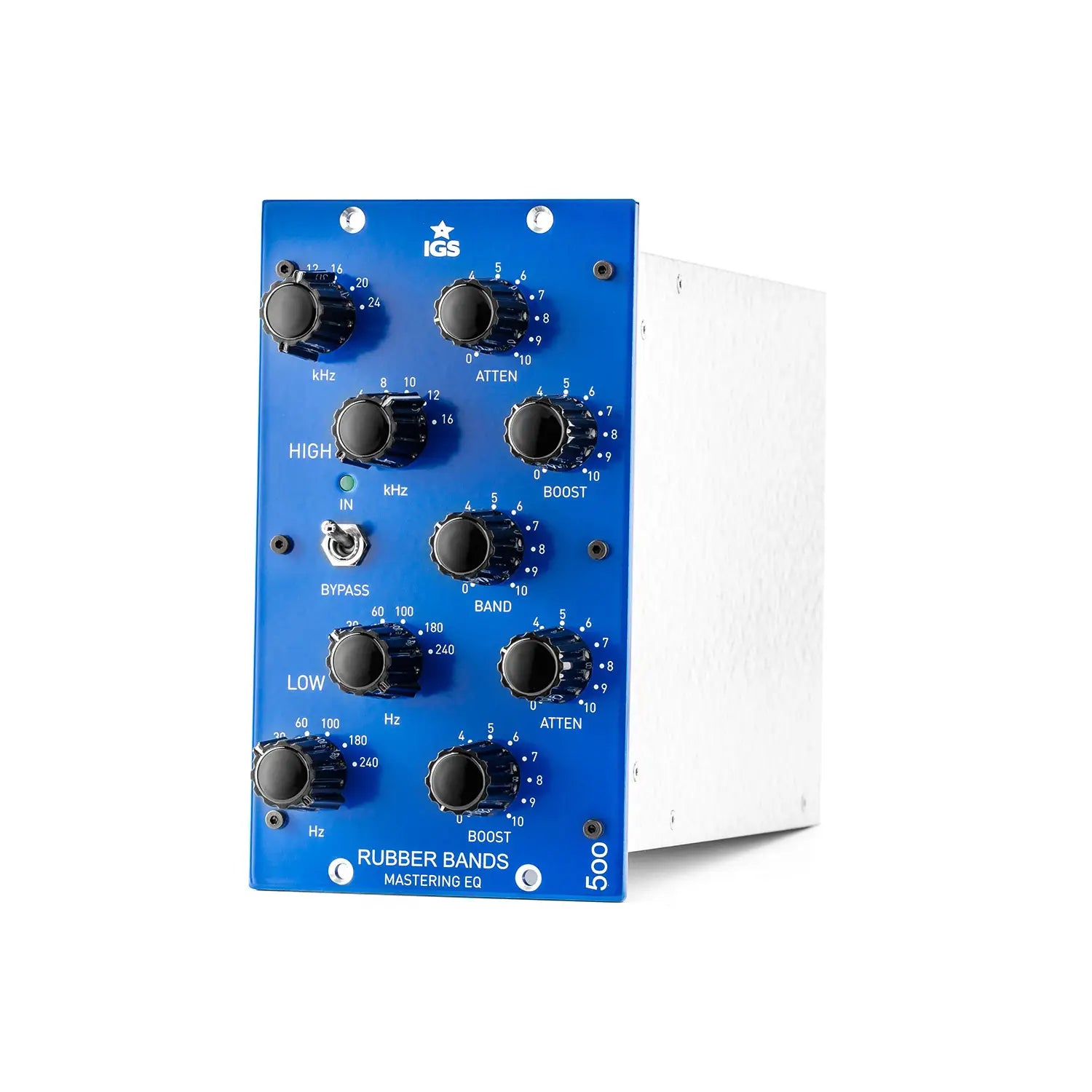

IGS Audio RB500 ME (mastering edition) is a stereo passive equalizer packed into a double 500-series module.

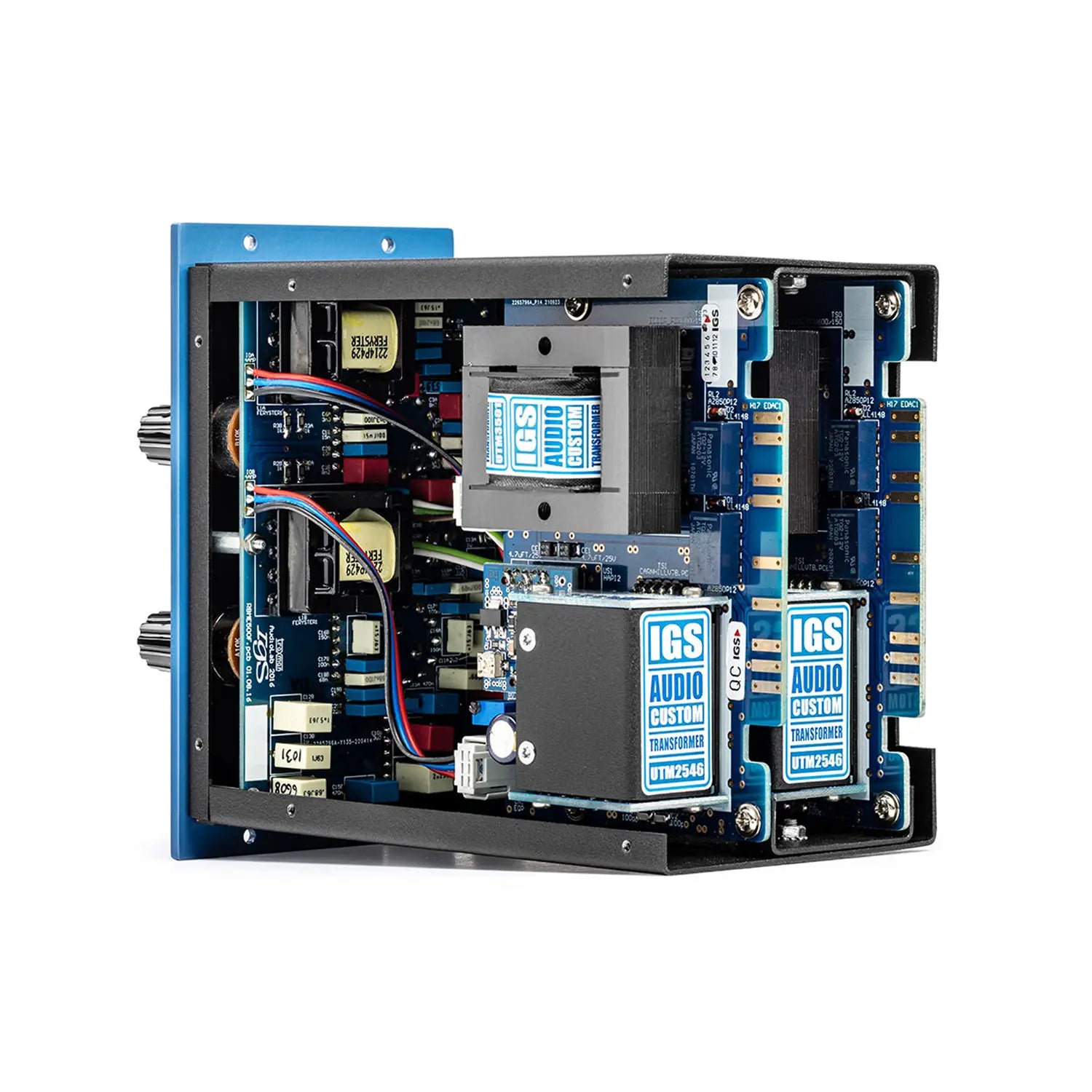

This beast is equipped with transformer balanced inputs and outputs (IGS Custom) as well as a class-A driver circuit. The entire filtering section is passive – and it mirrors analog equalizers from the 60s.

There is a separate frequency selector for low cut and boost sections. Top quality potentiometers and ELMA switches were used to achieve outstanding performance.

The first ever Stereo Pulteq-style EQ in 500 format.

Rubber Bands is a wonderful tool that can add multiple levels of color to any track or mix. The best thing about, it is that you can set it up in various ways, all sounding clearly distinctive and great at the same. This is the device that gives the studio engineer an opportunity to add their own personality to the music.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Basic features
Boost/Cut Range +/- 20 dB
Hard wire bypass Yes
All stepped manipulators Yes, Frequency selectors
Q factor 0.5 – 4
Input & Output
Input Impedance (balanced) 10k ohm
Output Impedance (balanced) 600 ohm
Audio transformers IGS Customon input and output
Levels
Operating Level +4 dBu
Max input level +20 dBu
Max output level +22 dBu
Headroom (@ +4dBu) 18 dB
Noise Level -99 dBA
Bandwidth
Frequency response 20 Hz to 20k Hz, +/- 0.1 dB
Distortion (@ 20 Hz – 20 kHz)
THD+N 0.01%
Crosstalk 75 dB
Power
Power consumption 7W
