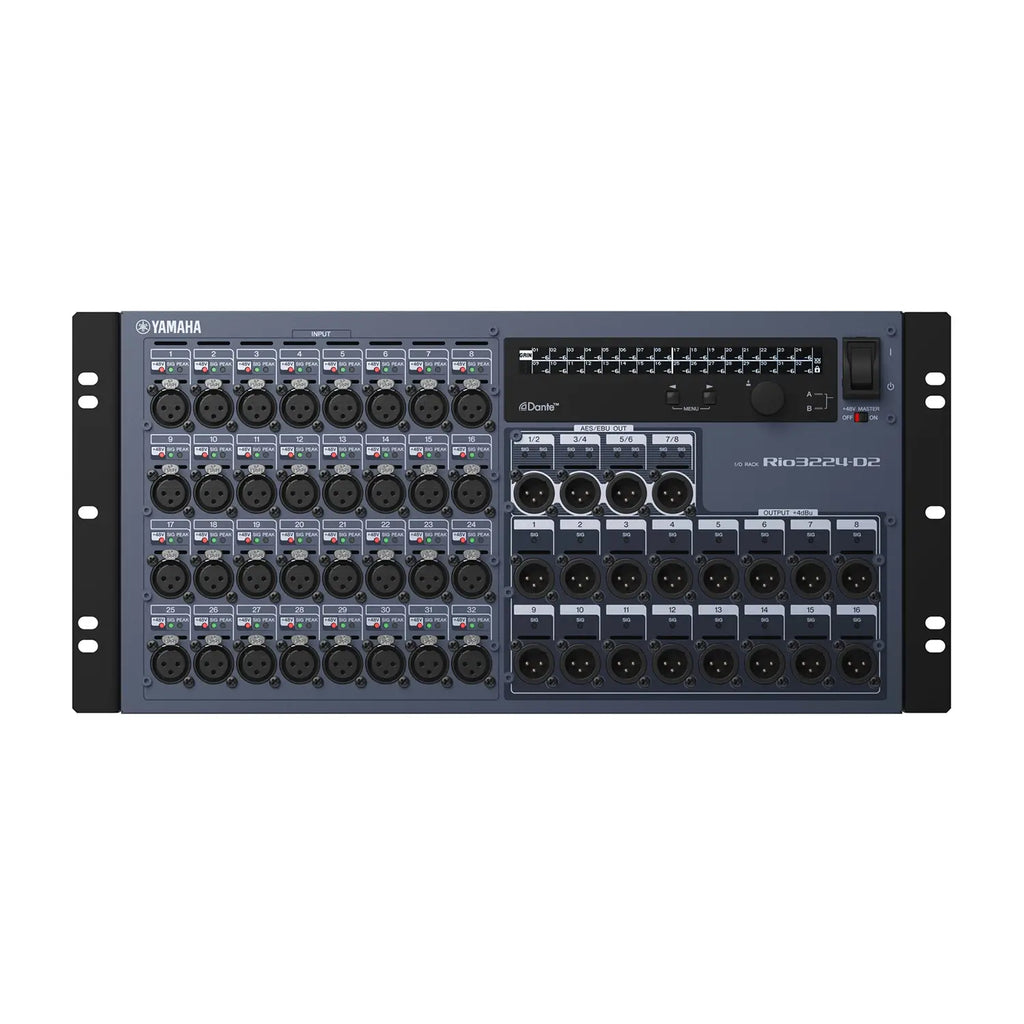

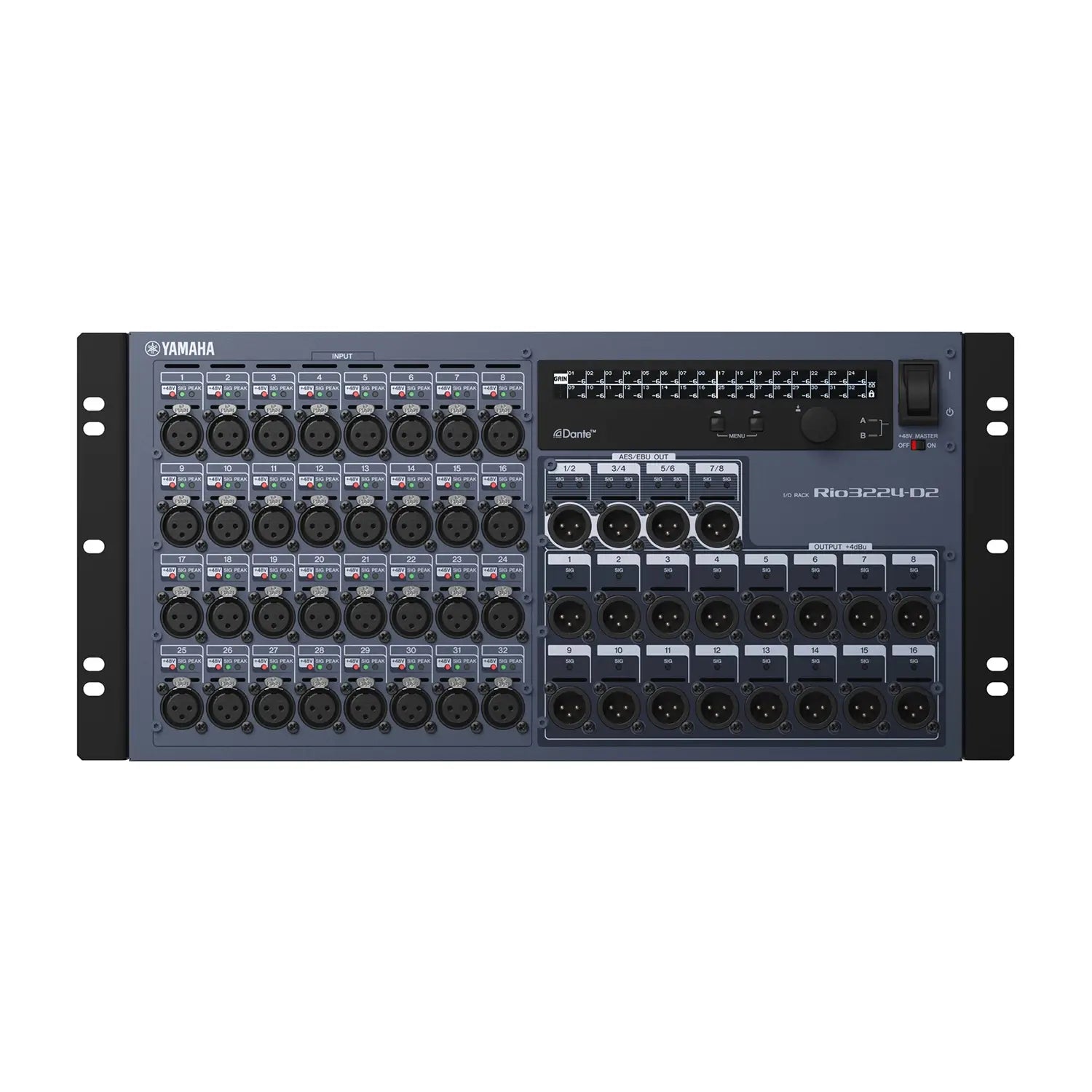

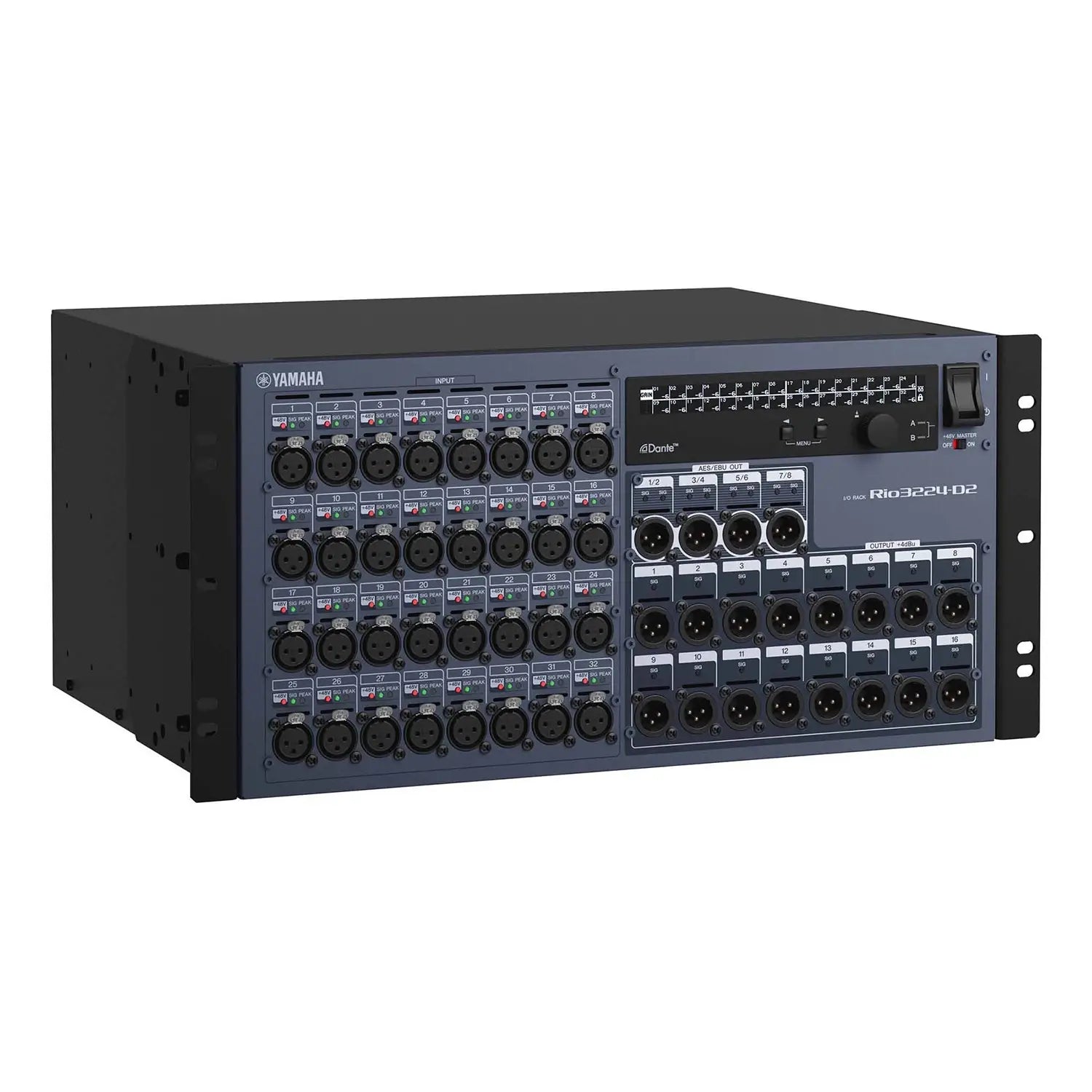

Yamaha RIO3224-D2

Close

    Contact us today

    Our price:$11,800.00 GST
    Order Code: RIO3224-D2

    Contact us for expected arrival, queue backorder

    32 analog inputs; 16 analog outputs; 8 AES/EBU outputs. Up to 96kHz operation. 5RU.

    • 32 analog inputs and 16 outputs, and 8 digital outputs.
    • Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
    • Comprehensive display and local control of gain and other parameters.
    • Dual power supply units are built in for high reliability.
    • Power consumption: 120W
    • Dimensions (WxHxD): 480 x 220 x 368mm (18.9″ x 8.7″ x 14.5″)
    • Net Weight: 13.5 kg (29.8 lbs)
    General specifications
    Sampling frequency rate External 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, –0.1%, –4.0% (±200 ppm)
    Signal delay Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
    Total harmonic distortion Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600Ω, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600Ω, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min.
    Frequency response +0.5, –1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, –1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
    Dynamic range 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
    Hum & noise level Equivalent input noise –128 dBu typ., Input Gain= Max.
    Residual output noise –88 dBu, ST master off
    Crosstalk -100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz
    Power requirements 100-240V, 50/60Hz
    Power consumption 120W
    Dimensions W 480 mm (18.9″)
    H 220 mm (8.7″)
    D 368 mm (14.5″)
    Net weight 13.5 kg (29.8 lbs)
    Accessories Owner’s Manual, AC power cord (250cm), Dante Virtual Soundcard Token leaflet
    Others NC Value: FAN MODE LOW: NC=20 / HIGH: NC=30 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 – 40°C, Storage temperature range: –20 – 60°C


    Total Harmonic Distortion is measured with 18 dB/octave filter @80 kHz
    Hum & Noise are measured with A-Weight filter.
    Crosstalk is measured with a 30 dB/octave filter @22 kHz
