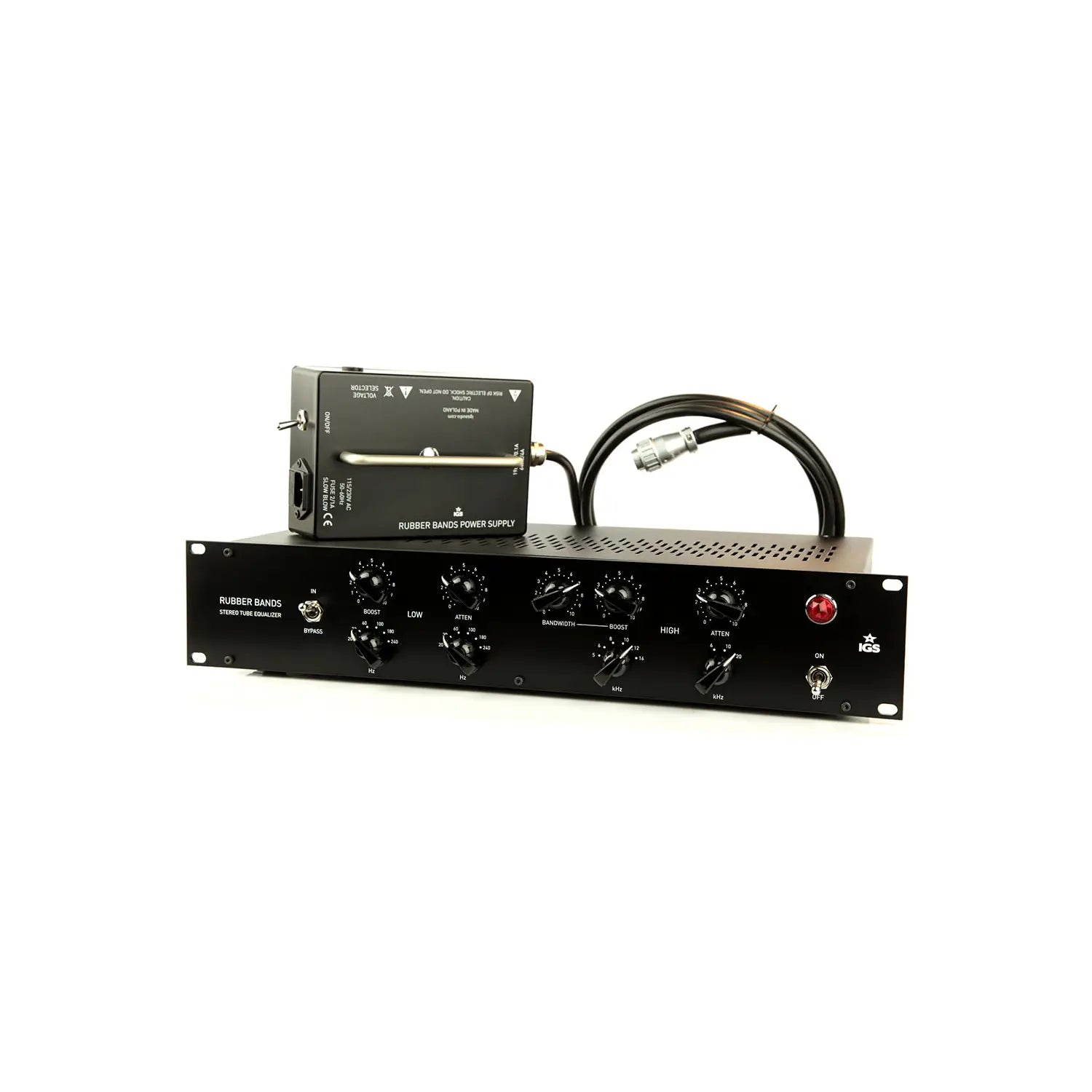

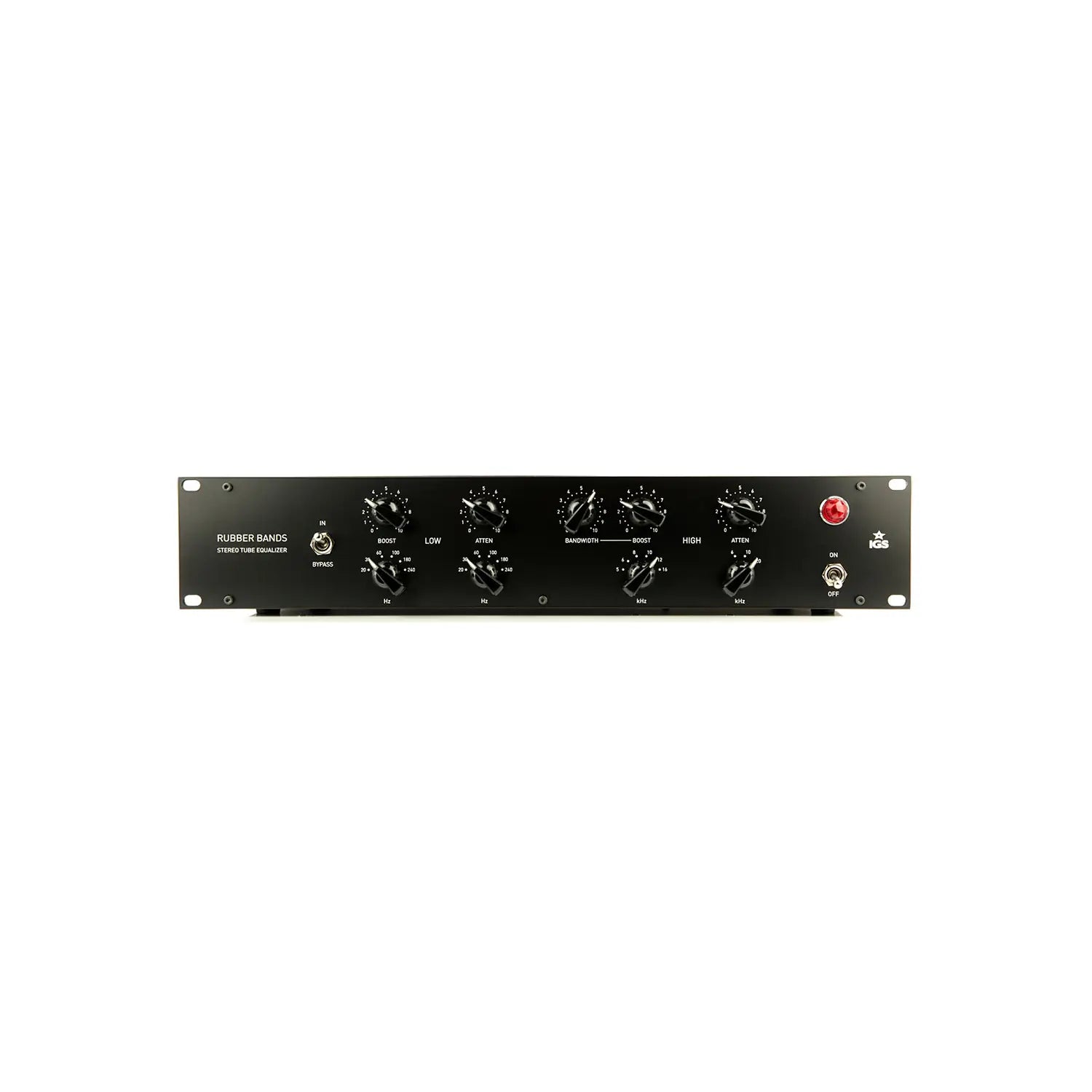

IGS Audio Rubber Bands

Stereo Valve Equaliser
Close

Our price:$3,670.00 GST
Order Code: RUBBERBANDS

Contact us for expected arrival, queue backorder

IGS Audio Rubber Bands is a stereo EQ, good on vocals, guitars and strings – adding fat low end and crispy high frequencies.

Rubber Bands EQ consists of two blocks: The first block is a classic passive filter well known from the EQP-1 Pultec equalizer. The second block is a specially designed two-stage tube amplifier called Organic Amp.

The new design includes a bypass relay, which allows you to instantly compare the results of your work.

Rubber Bands has been divided into 4 sections: 2 for bass and 2 for treble. Frequencies are being selected with stepped switches. Boosting and cutting are controlled continuously. Manipulators featured are Bass Boost, Bass Cut, High Boost (with the choice of Q) and High Cut. Interactions of filters that allow simultaneous boosting and cutting of certain frequencies can produce amazing sound effects.

A distinctive characteristic of the IGS Audio Rubber Bands Equalizer is its stereophonic structure, where the manual selecting of components with an accuracy of 1% allows for perfectly synchronous manipulation of both channels.

The inputs and outputs are transformer balanced.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Basic features
Q factor 0.5 to 4
Boost/Cut Range +/- 15 dB
All stepped manipulators For frequency selection
Hard wire bypass Yes
Input & Output
Input Impedance (balanced) 10k ohm, Carnhill transformer
Output Impedance (balanced) 600 ohm, Edcor transformer
Audio transformers Yes, Carnhill, Edcor
Levels
Operating Level +4 dBu
Max input level +18 dBu
Max output level +22 dBu
Dynamic Range 95 dBA @ 1kHz, +18dBu
Bandwidth
Frequency response 20Hz to 20kHz; +/- 0.3dB
Distortion (@ 20 Hz – 20 kHz)
Signal to Noise Ratio 81 dBA
THD 0.25% @ 20-20kHz
THD+N 0.33% @ 20-20kHz
IMD (SMPTE) 0.32% @ 20-20kHz
Crosstalk 80 dB @ 20-20kHz
Power
Voltage 115/230V AC, 50 – 60Hz
Power consumption 34W
Power supply Internal
Others
Tube set 4 x 6N1P (optional: 6BC8 or 6BC7)
