IGS Audio T4Bx

T4Bx photocell
Close

Our price:$235.00 GST
Order Code: T4Bx

Contact us for expected arrival, queue backorder

Tradition improved

It is widely known that the LA-2A unique character is a result of the applied T4B photocell.

In the original TELETRONIX design, an electroluminescent panel provided a light source for the photo resistors. This component was very variable in parameters, and this affected the result compression and stereo image of the audio.

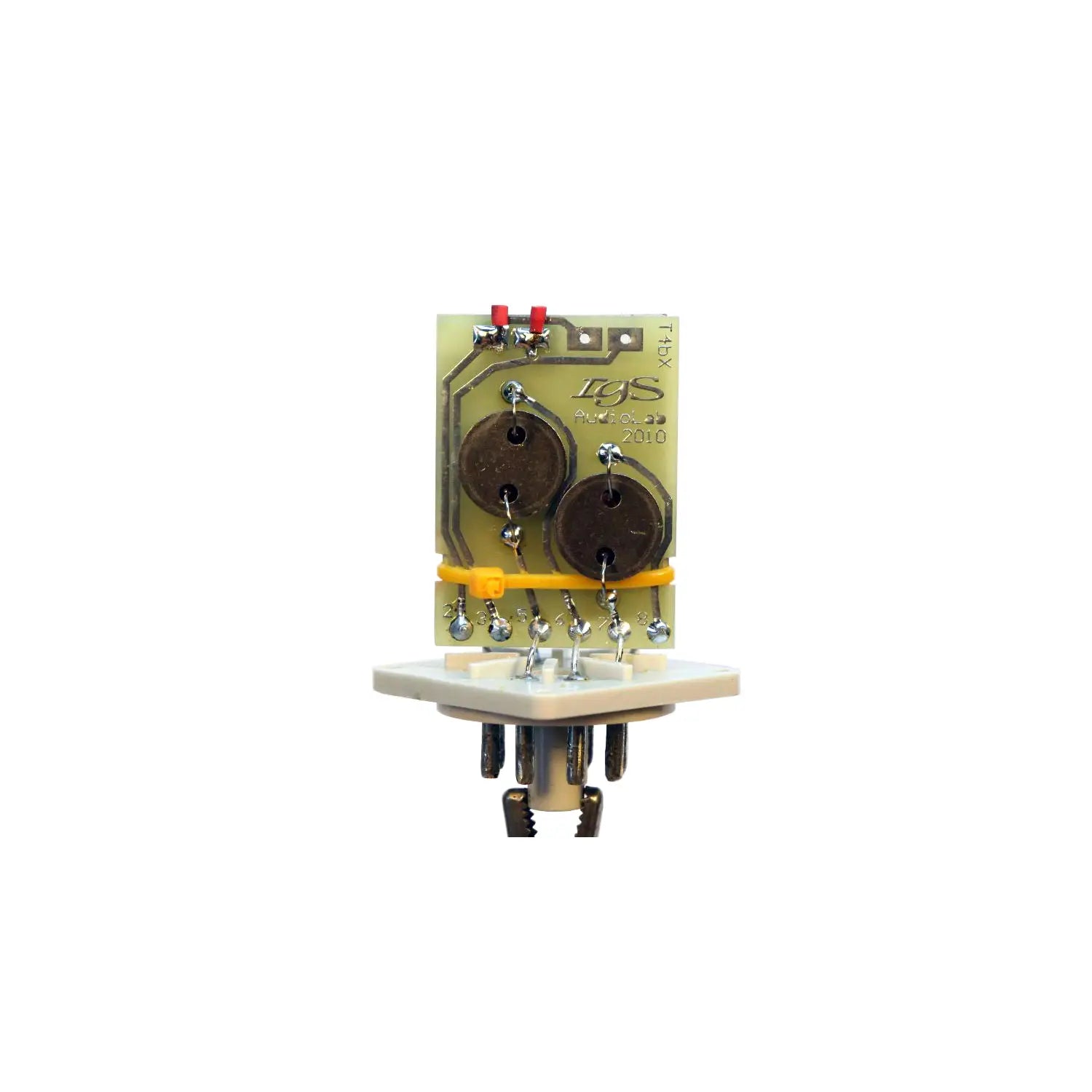

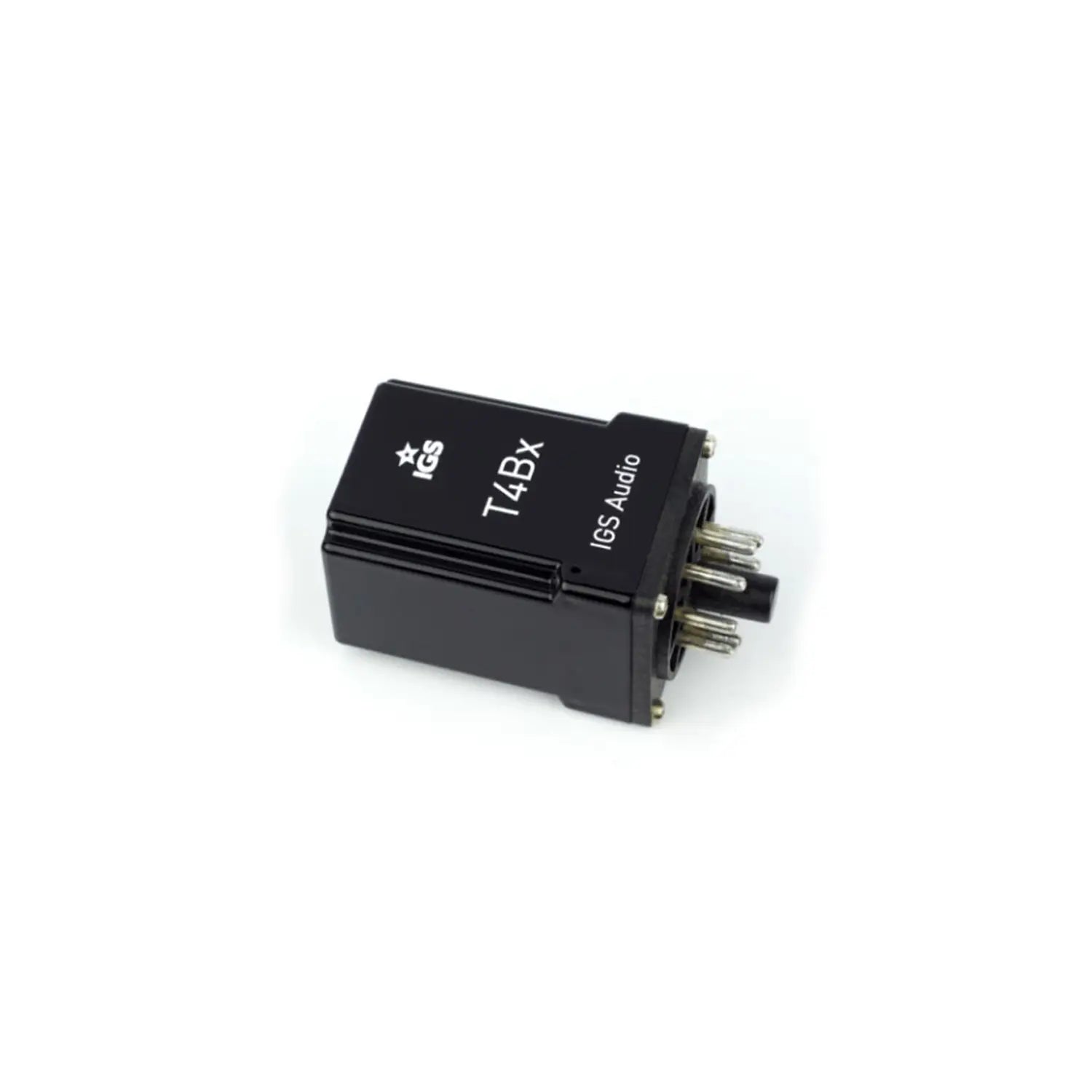

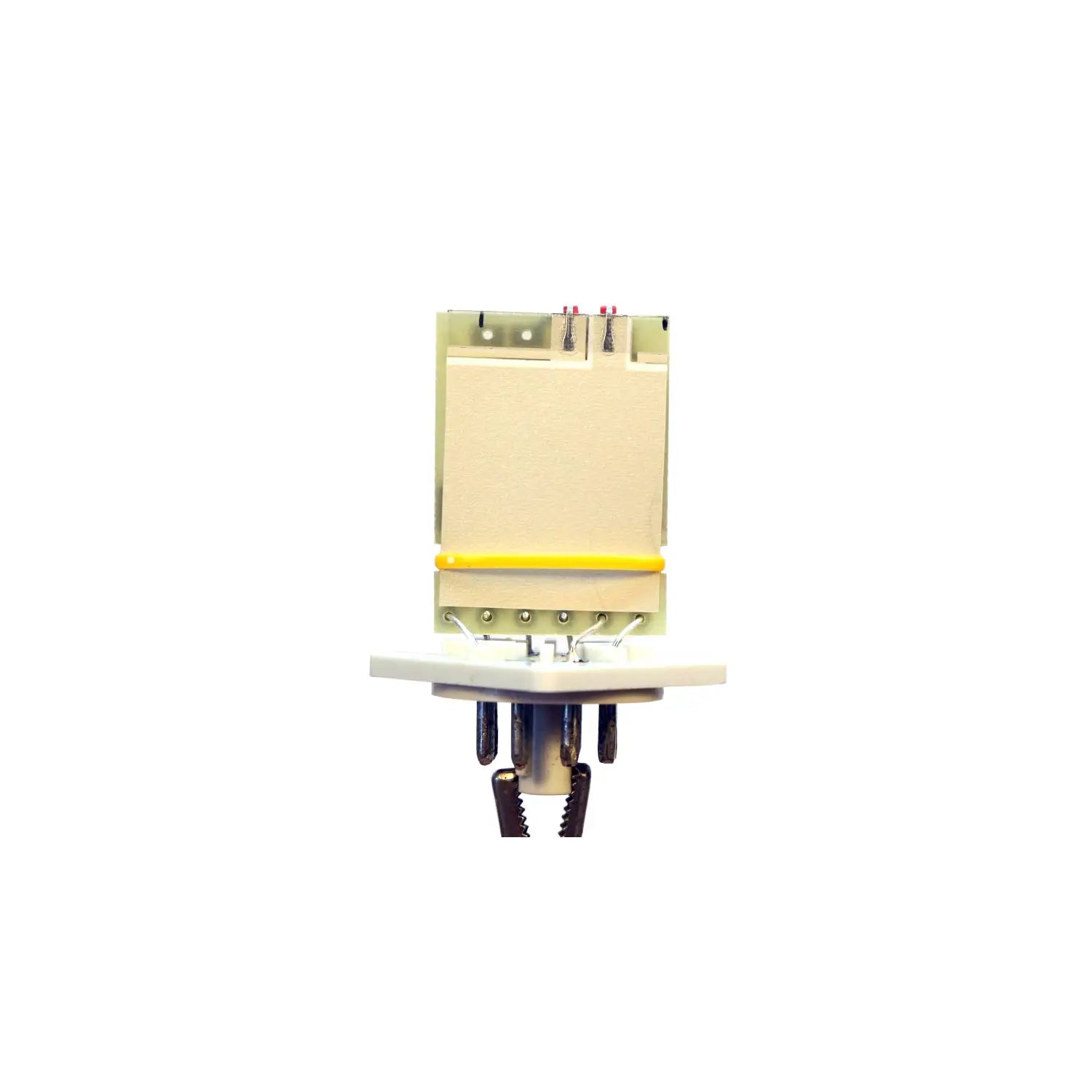

IGS Audio has developed a new photocell parallel to the T4BX. By precisely selecting, testing and matching subcomponents used in the assembly of this photocell they have created a product line consisting of nearly identical devices in parameters and sound.

All IGS Audio optocompressors (ONE LA500 and One Leveling Amplifier) are equipped with this T4Bx photocell. It is, of course, interchangeable with the original Teletronix T4B so you can experiment and perform your own test.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Time constants
Attack: 10 ms
Release: 60 ms for 50% release
Bandwidth
Frequency response 20Hz – 20kHz
Others
Used for IGS One Leveling Amplifier
IGS One LA500
Teletronix LA2A, LA3A
