ADAM T5V

Nearfield, powered studio monitor with 5″ woofer and Ribbon tweeter
Close

Our price:$299.00 GST
Order Code: T5V

Contact us for expected arrival, queue backorder

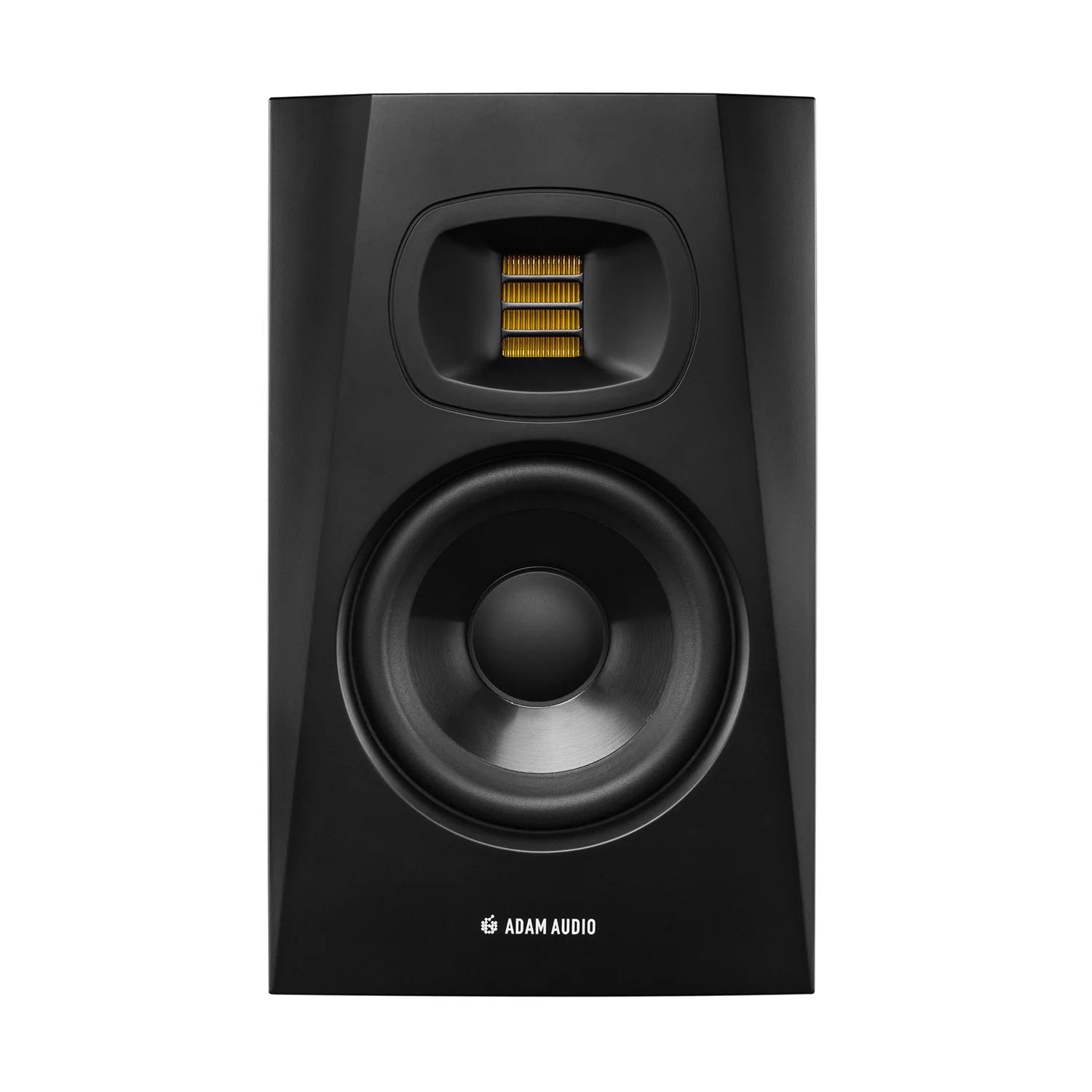

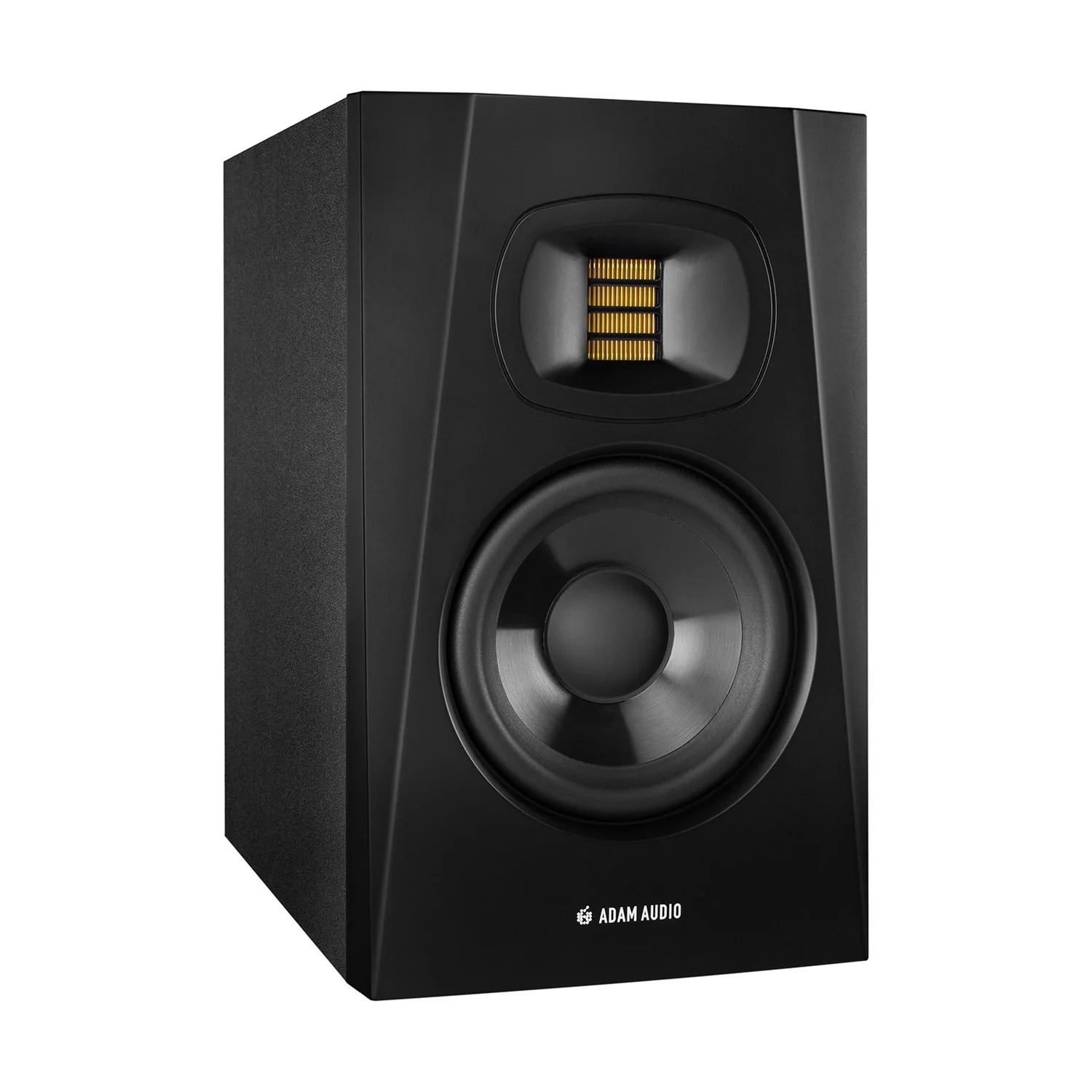

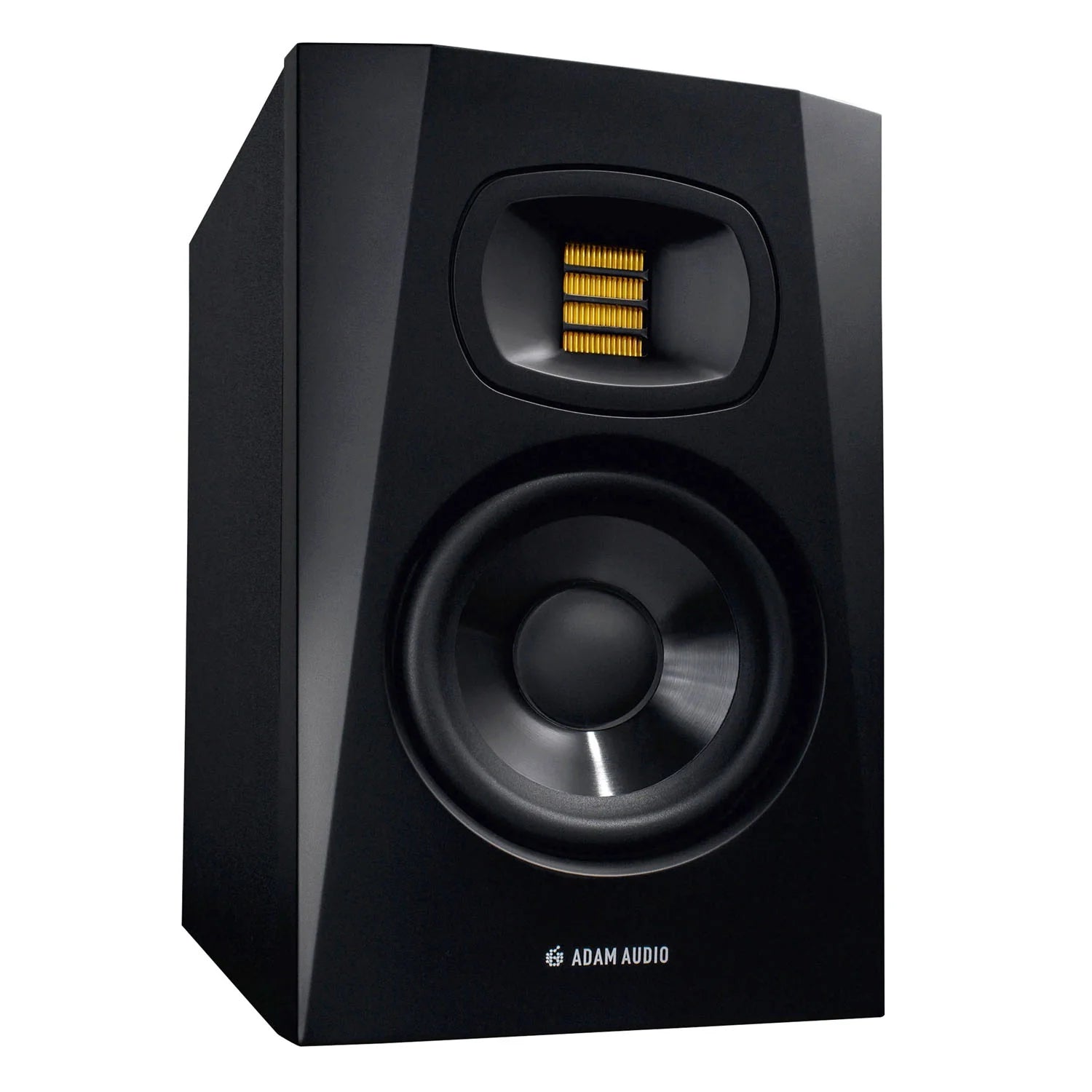

ADAM Audio T5V is a nearfield studio monitor (self-powered) with a 5″ woofer and ribbon tweeter, plus EQ controls on the back – priced EACH.

With its 5” woofer, the bass-frequency response of T5V extends to 45 Hz. The U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides a wide sweet spot that frees you from being glued to a rigid mix position while working.

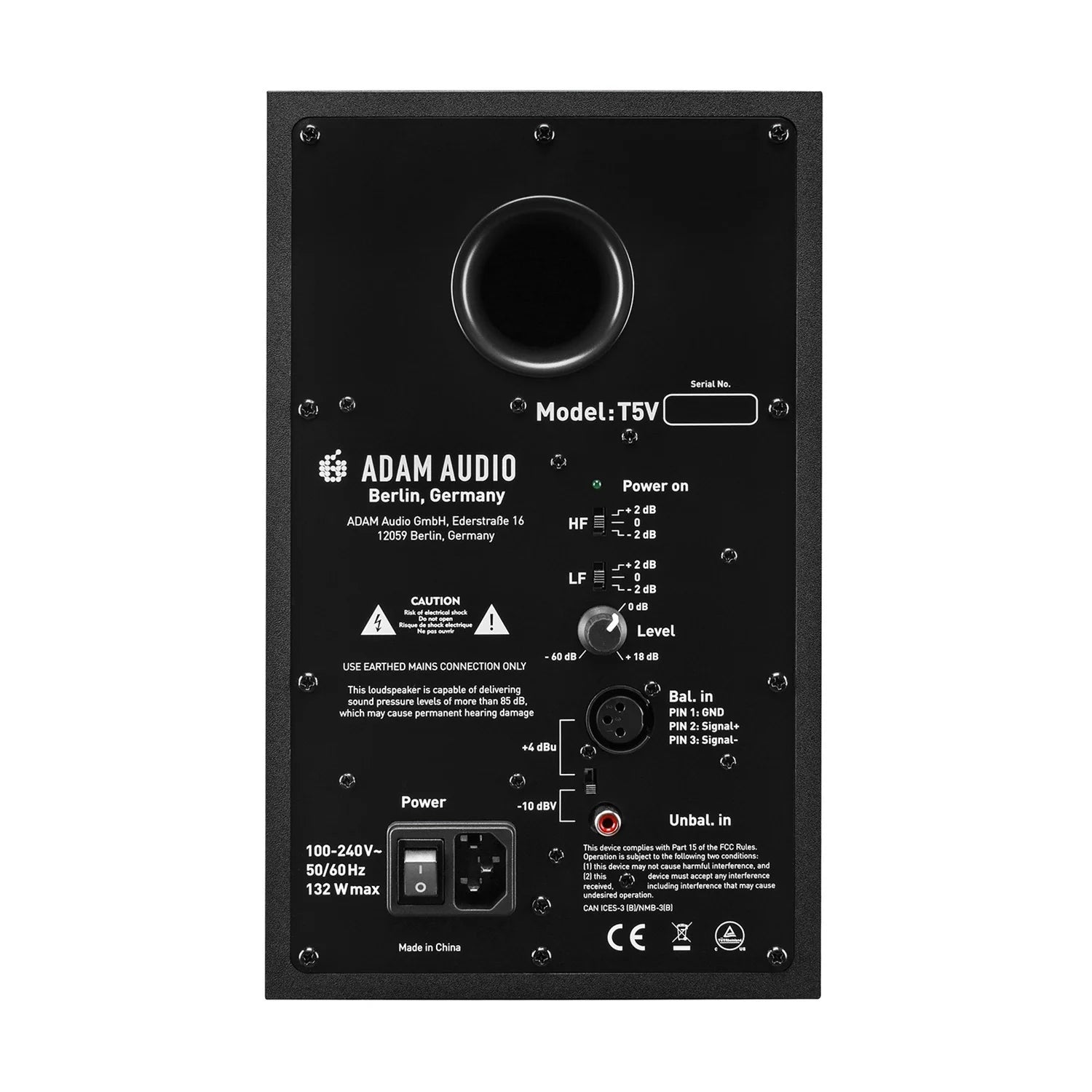

EQ controls on the back:

High Shelf EQ > 5 kHz – 2 dB, 0 dB, +2 dB
Low Shelf EQ < 300 Hz – 2 dB, 0 dB, +2 dB

Clarity. Precision. Honesty. Detail.

T Series is ADAM Audio’s range of affordable, professional 2-way powered studio monitors, offering three models: the T5V, the T7V and the T8V (using a 5″, 7″ and 8″ woofer respectively).

All models use the same U-ART high-frequency driver (Unique Accelerated Ribbon Tweeter); feature a bevelled cabinet design, rear-firing bass reflex port, built-in DSP-controlled driver crossovers and equalisation, and multi-way analogue connections (XLR and RCA).



T5V features:

  • U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
  • Polypropylene 5” woofer and rear-firing bass-reflex port
  • Cumulated Amp. Power RMS: 70 W
  • Frequency Response: 45 Hz – 25 kHz (-6 dB)
  • Max. SPL Per Pair at 1 m: ≥106 dB
Tweeter: U-ART
Velocity transfer ratio: 4:1
Equivalent diaphragm ø: 48 mm / 1.9“
Woofer: Polypropylene cone
Woofer diaphragm ø: 5″ (127 mm)
Built-in amplifiers: 2 [Class D]
Tweeter channel: 20 W
Woofer channel: 50 W
Input Sensitivity: Switchable +4 dBu / -10 dBV
Frequency range: 45 Hz – 25 kHz
Max. peak SPL at 1 m per pair: 106 dB SPL
Crossover frequency: 3 kHz
User controls: Gain, Room EQ
Inputs: XLR, RCA
Weight: 5.7 kg
Height x Width x Depth: 298 x 179 x 297 mm
AC Input Voltage: 100 – 240 VAC +/- 10 %.
50/60 Hz
132 W max
