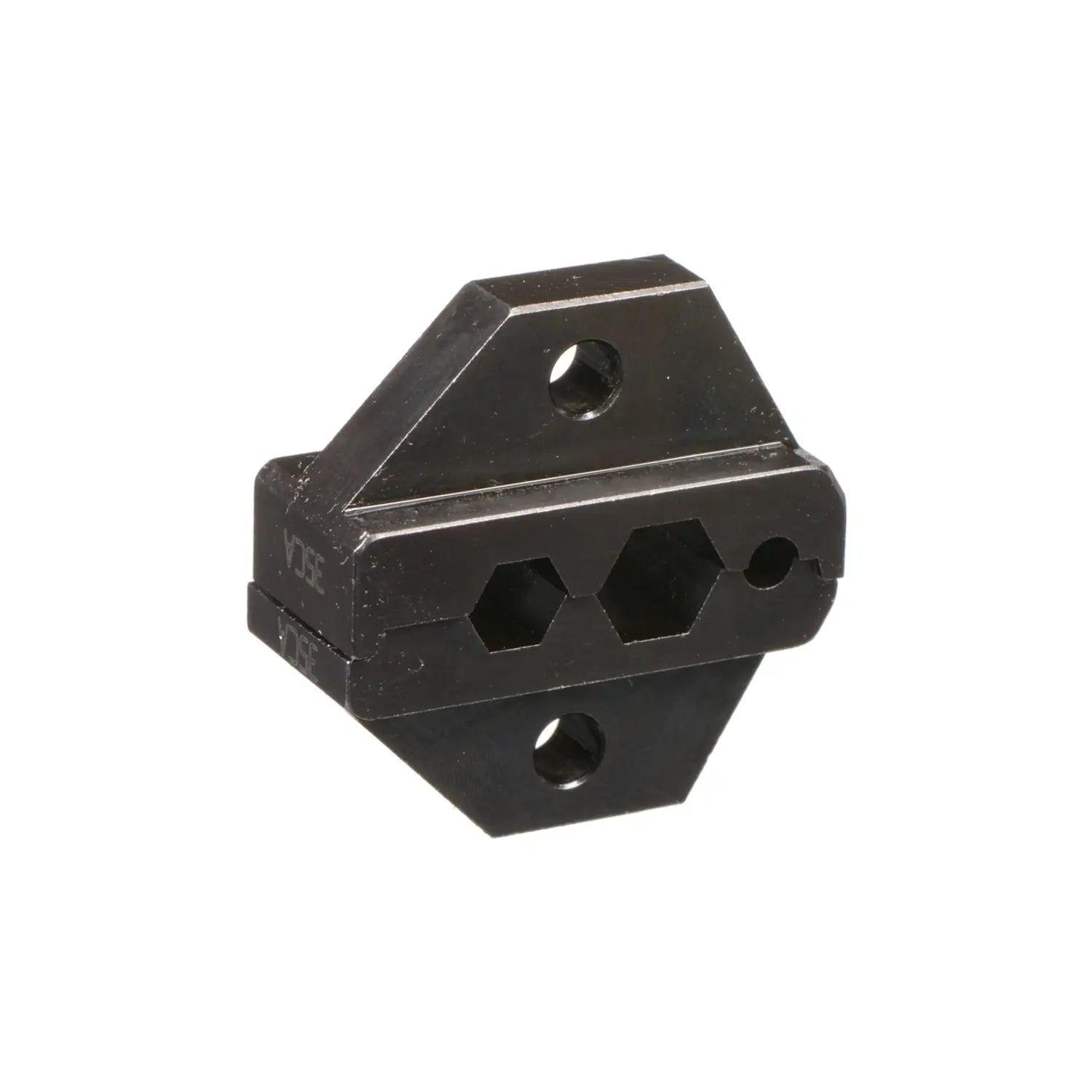

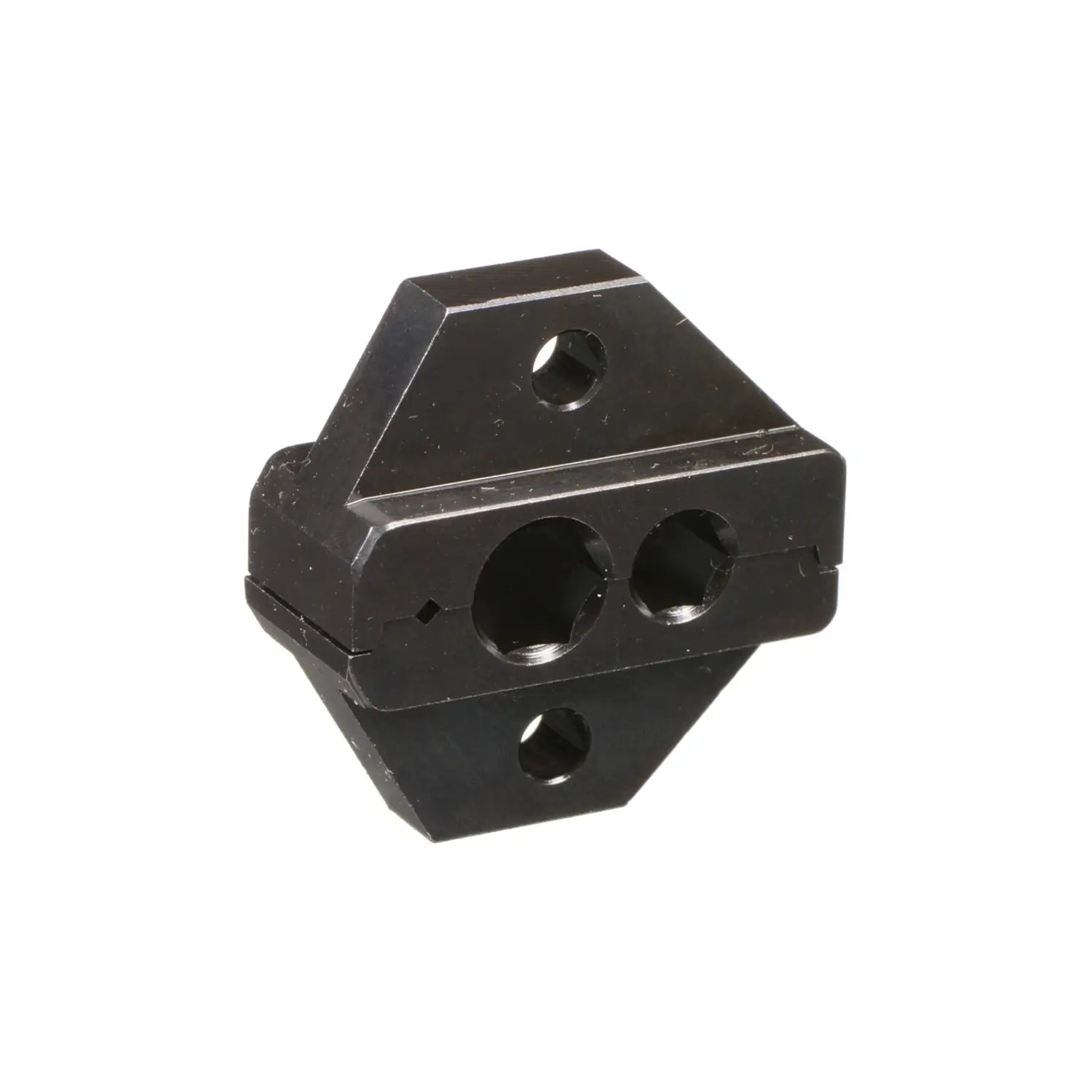

Canare TCD-35CA die set for TC-1 hand crimping tool suits a variety of BNC and RCA crimp connectors, including BCP-A3 and RCAP-C3A.
This genuine Canare die set should be used to ensure integrity of the crimp.
Pin 1 crimp = 1.35mm
Sleeve 1 crimp = 7.6mm
Sleeve 2 crimp = 5.85mm
For correct use with Canare TC-1 standard hand crimping tool, check the ‘Data‘ tab for reference pdf downloads.
TCD-35CA is suitable for use with:
BCP-A3 – BCP-B25HD – BCP-B25HW – BCP-B26 – BCP-B3F – BCP-B45HW – BCP-B53 – BCP-D33UHD – BCP-VA3 – BCP-VA5 – RCAP-C3A
plus others (see a comprehensive list via the ‘Description’ tab)
Not the die you’re looking for?
The range of die sets available by Canare we (usually) carry in stock includes:
| TCD-35CA |
BCP-D33UHD, BCP-B25HD, BCP-B25HW, BCP-B26, BCP-B3F, BCP-B45HW, BCP-B53, BCP-A25, BCP-A25F, BCP-A3, BCP-A3AHD, CP-A3F, BCP-A33, BCP-A5, BCP-A5F, BCP-VA3, BCP-VA5, BCP-LC3, BCP-LC3F, BCP-LC5, MBCP-C25F, MBCP-C3F, MCF-V5C3, MCM-V5C3, RCAP-C25HD, RCAP-C3A, RCAP-C3F, RCAP-C53, RCAP-C5A, FP-C25HD, FP-C3, FP-C3F, FP-C53A, FP-C5, SPP-C33-CL |
| TCD-35D |
BP-C3, BP-C4, BP-C5, TNP-C3, TNP-C4, TNP-C5, RCAP-C3GS |
| TCD-4CA |
BCP-B31F, BCP-B4F, BCP-A4, BCP-A4F, MBCP-C4, MBCP-C4F, BCJ-C4, RCAP-C4A, RCAP-C4F, FP-C4, FP-C4F, VP-C4A, VWP-C4A, MVP-C4 |
| TCD-5CF |
BCP-B5F, BCP-B51F, BCP-LC5F, MBCP-C5F, RCAP-C5F, FP-C5F |
| TCD-55FA |
BCP-B5F, BCP-B51F, BCP-LC5F, MBCP-C5F, RCAP-C5F, FP-C5F, BP-C5FA, BP-C51F, TNP-C5F, NP-C5F, NP-C51F, SP-C5F, SJ-C5F, SMAP-C5F, SMAJ-C5F |
| TCD-55UHD |
BCP-D55UHD |
| TCD-D253F |
DCP-C25HD, DCP-C25HW, DCP-C3F, MCM-V4C25HW, MDF-V4C25HW, VP-C25HW, MVP-C25HW, MCVP-C25HW, BCJ-D25HD, BCJ-D25HW, BCJ-D33UHD |
Diagram for crimp connector assembly instructions, plus FAQ from the Canare International Catalogue (editon 26C) – page 48 (pdf) below:
Crimp-Connector-assembly-page48
For correct die insertion and alignment, crimping procedure and maintenance advice, grab the TC-TCD-Series Assembly (pdf) below:
TC-TCD-series-assembly by Canare
