Yamaha TF-RACK

Close

Our price:$2,488.77 GST
Order Code: TF-RACK

Available on backorder

32 mono channels; 4 stereo channels. 16 local inputs plus 1 stereo line input. 16 local outputs. 3RU.

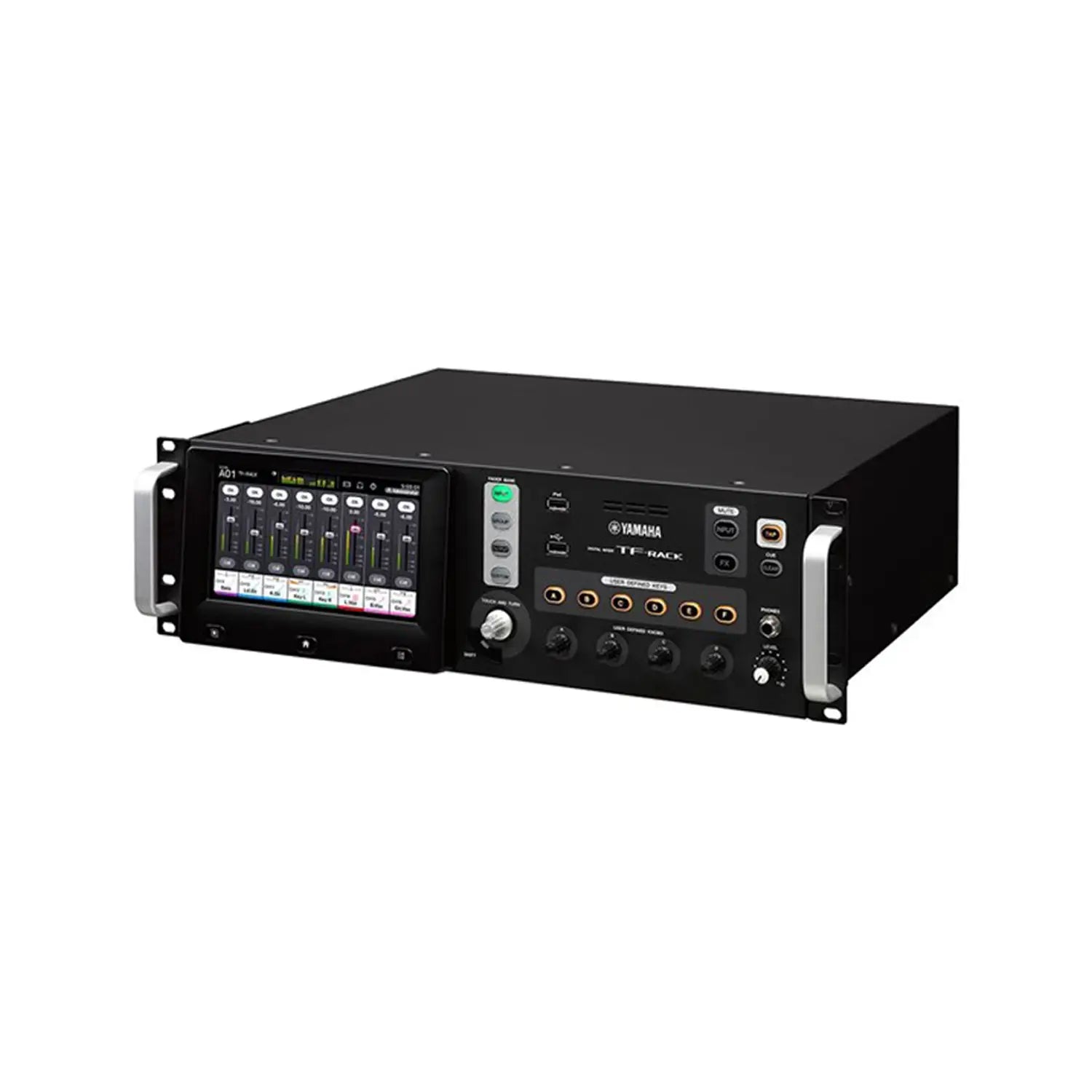

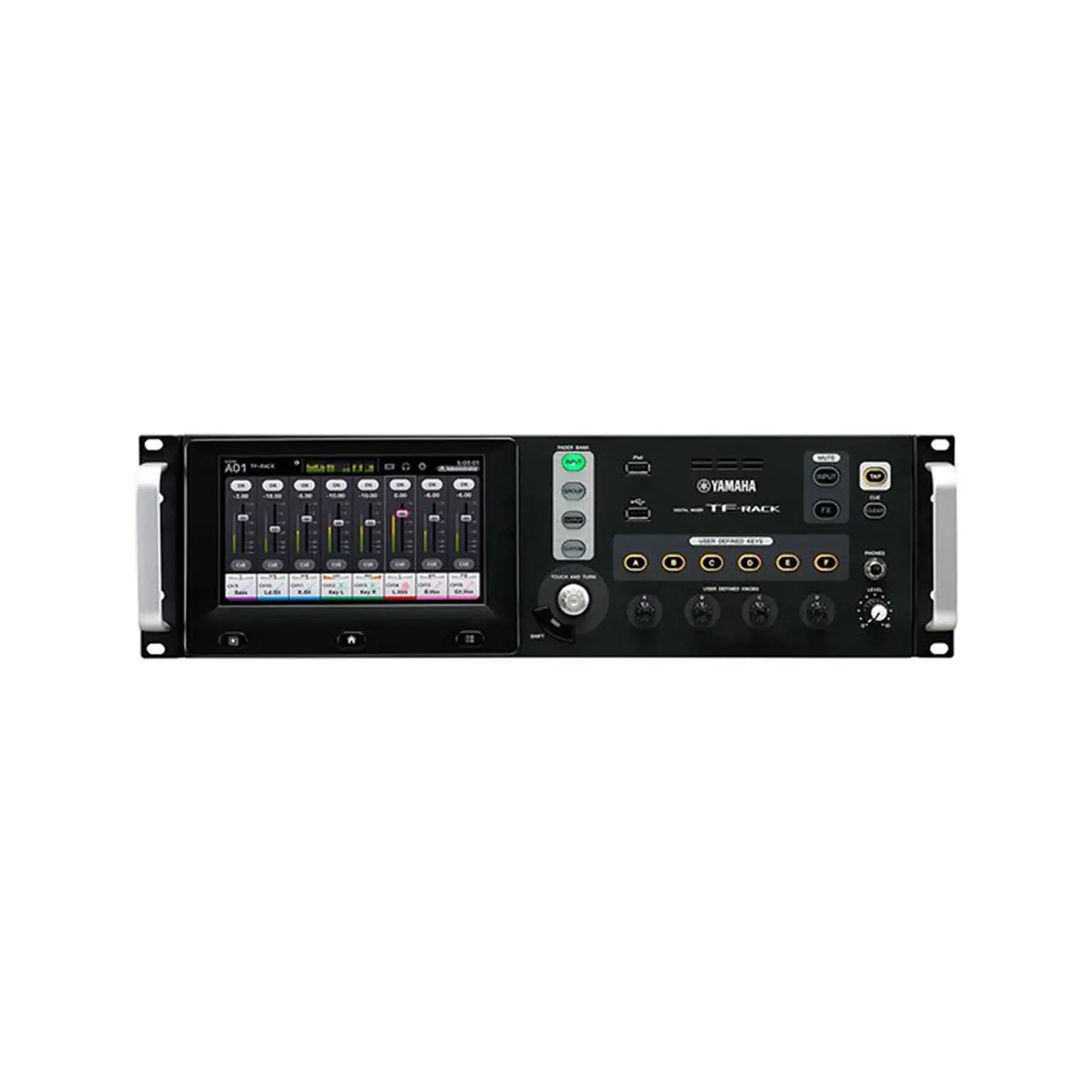

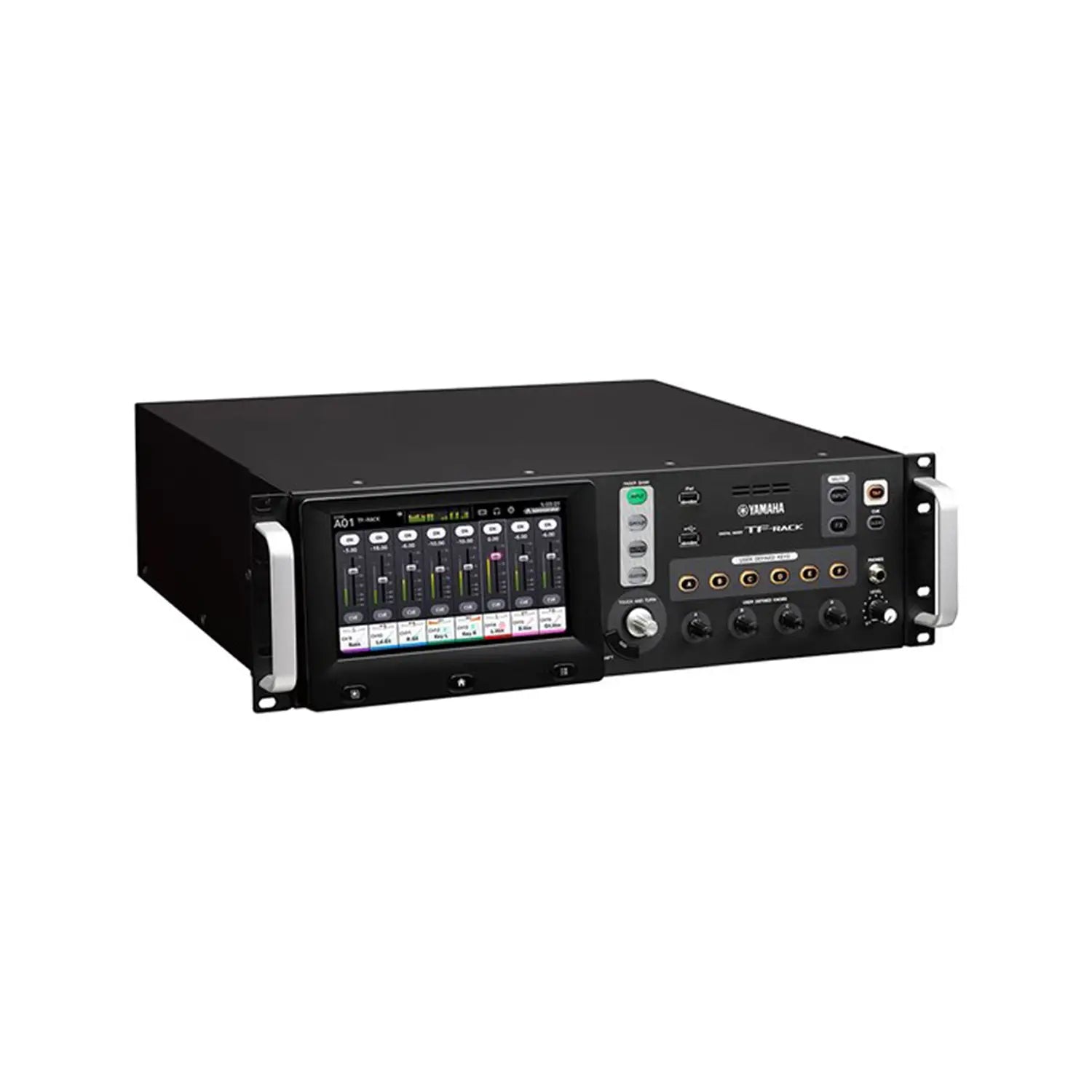

TF-RACK is a compact rack-mount version of the TF Series digital mixing consoles, offering the same levels of performance and groundbreaking operability.

  • All-in-One rack-style digital mixer
  • Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
  • Output: 16 (8 XLR + 8 TRS phone)
  • Channels: 40 (32 mono + 2 stereo + 2 return)
  • Aux Buses: 20 (8 mono + 6 stereo)
  • Stereo Buses: 1
  • Sub Buses: 1
  • Dimensions(WxHxD): 480 mm (18-7/8 in) x 132 mm (5-1/4 in) x 409 mm (16-1/8 in)
  • Net weight: 9.2 kg (20.3lb)
Mixing Capacity Input Channels 40 (32 mono + 2 stereo + 2 return)
Aux Buses 20 (8 mono + 6 stereo)
Stereo Buses 1
Sub Buses 1
Input channel functions 8 DCA Groups
I/O Inputs 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
Outputs 16 (8 XLR + 8 TRS phone)
Expansion slots 1 (for NY64-D)
On-board processors DSP 8 Effects + 10 GEQ
General specifications
Sampling frequency rate Internal 48 kHz
Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements 100–240 V 50/60 Hz
Power consumption 85 W
Dimensions W 480 mm (18-7/8 in)
H 132 mm (5-1/4 in)
D 409 mm (16-1/8 in)
Net weight 9.2 kg (20.3lb)
Accessories Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubber stoppers(4)
Options Audio Interface Card (NY-64D), Foot Switch (FC5)
Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
