Yamaha TF1-MIXER

40 input digital console (with 16 analogue XLR/TRS local input and 16x local output)
Close

    Contact us today

    Our price:$4,099.00 GST
    Order Code: TF1-MIXER

    Contact us for expected arrival, queue backorder

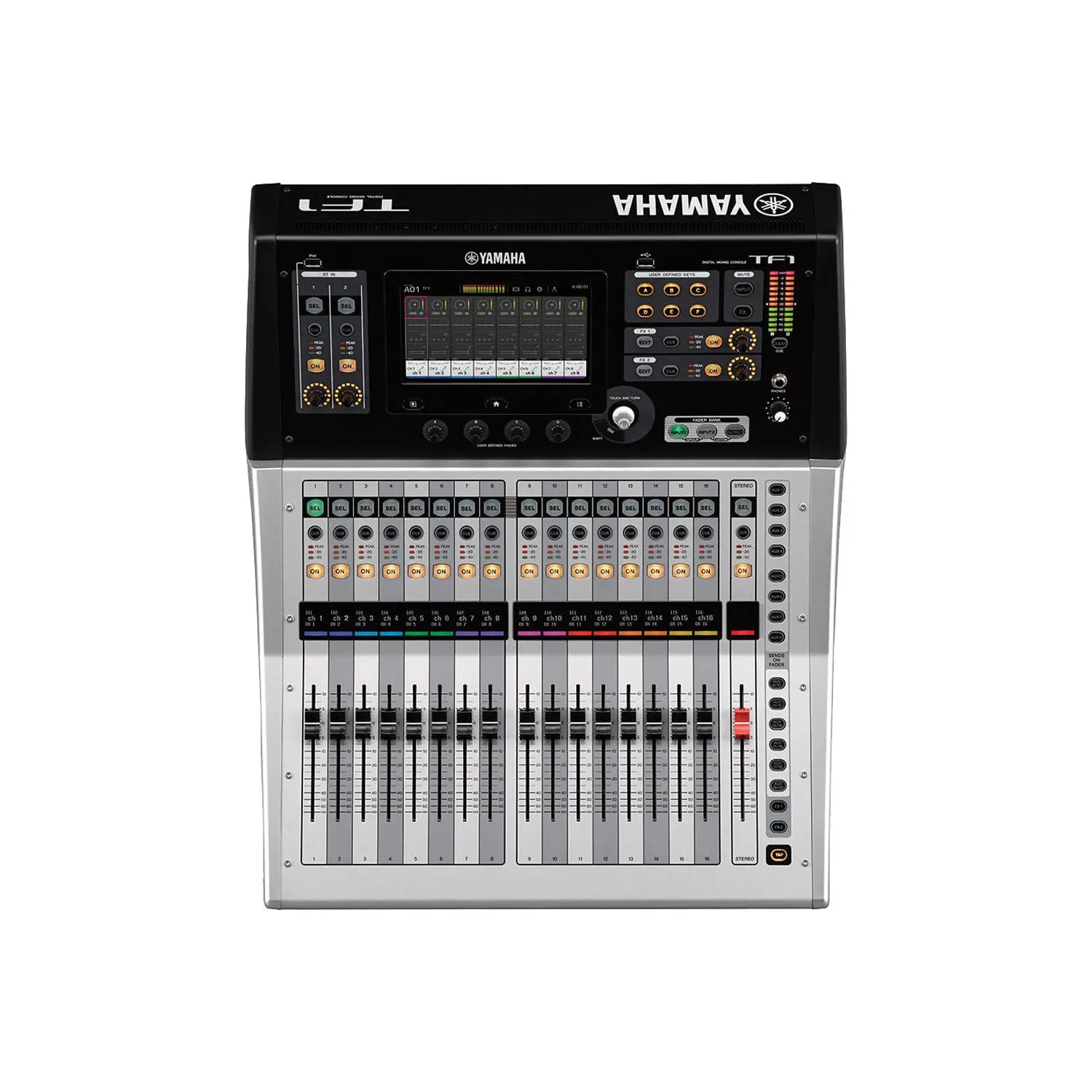

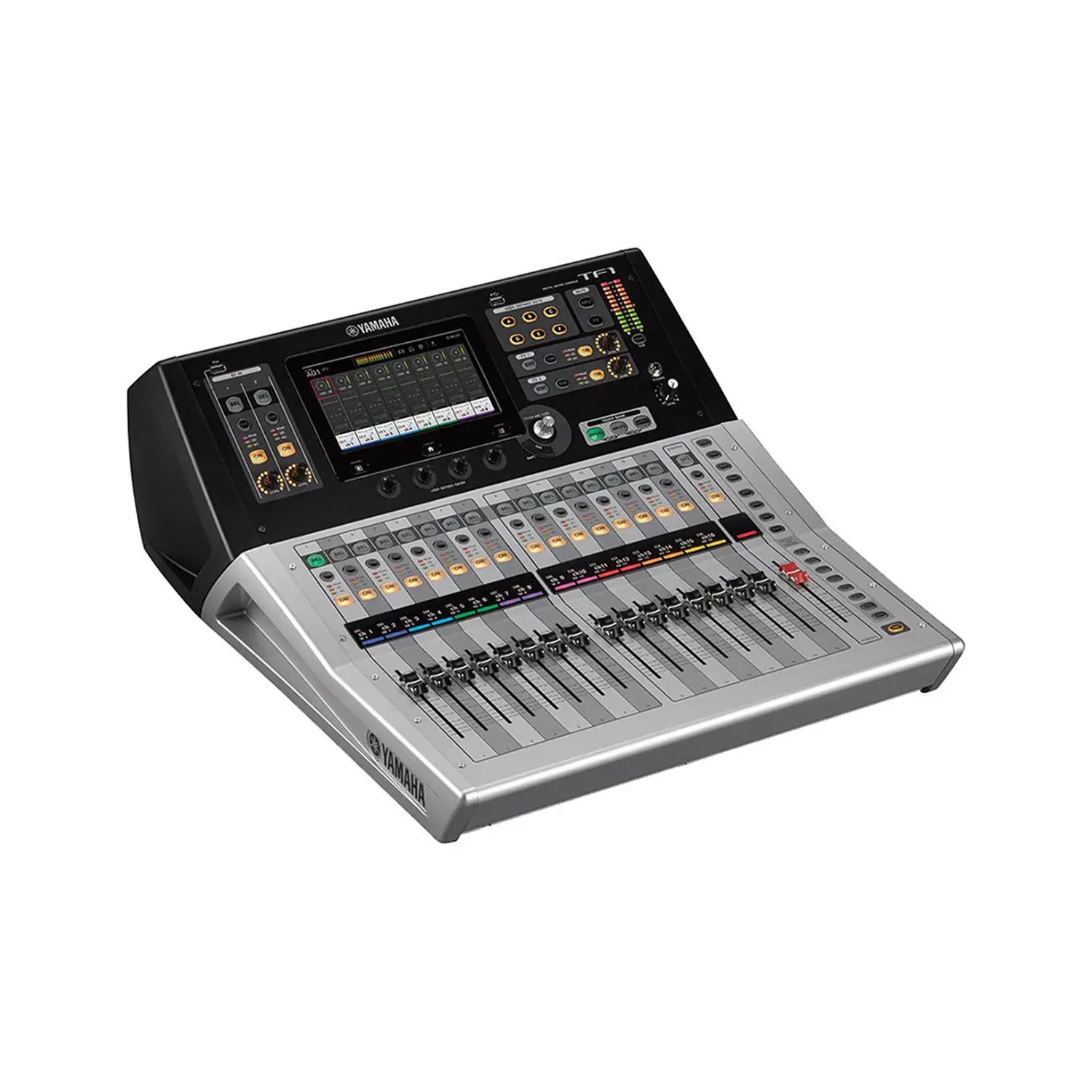

    Yamaha TF1 digital mixing console is a great size for small-medium gigs, corporate AV, portable and school use, with a compact layout.

    With up to 40 input mixing channels (32 mono, 2 stereo, 2 return) and 20 Aux buses (8 mono, 6 stereo), there is easily enough to handle a variety of uses. Add the optional RK5014 rackmount kit for your installation (or to secure in a mixer/rack case for transit), and TF1 can be a self-contained solution that is also expandable.

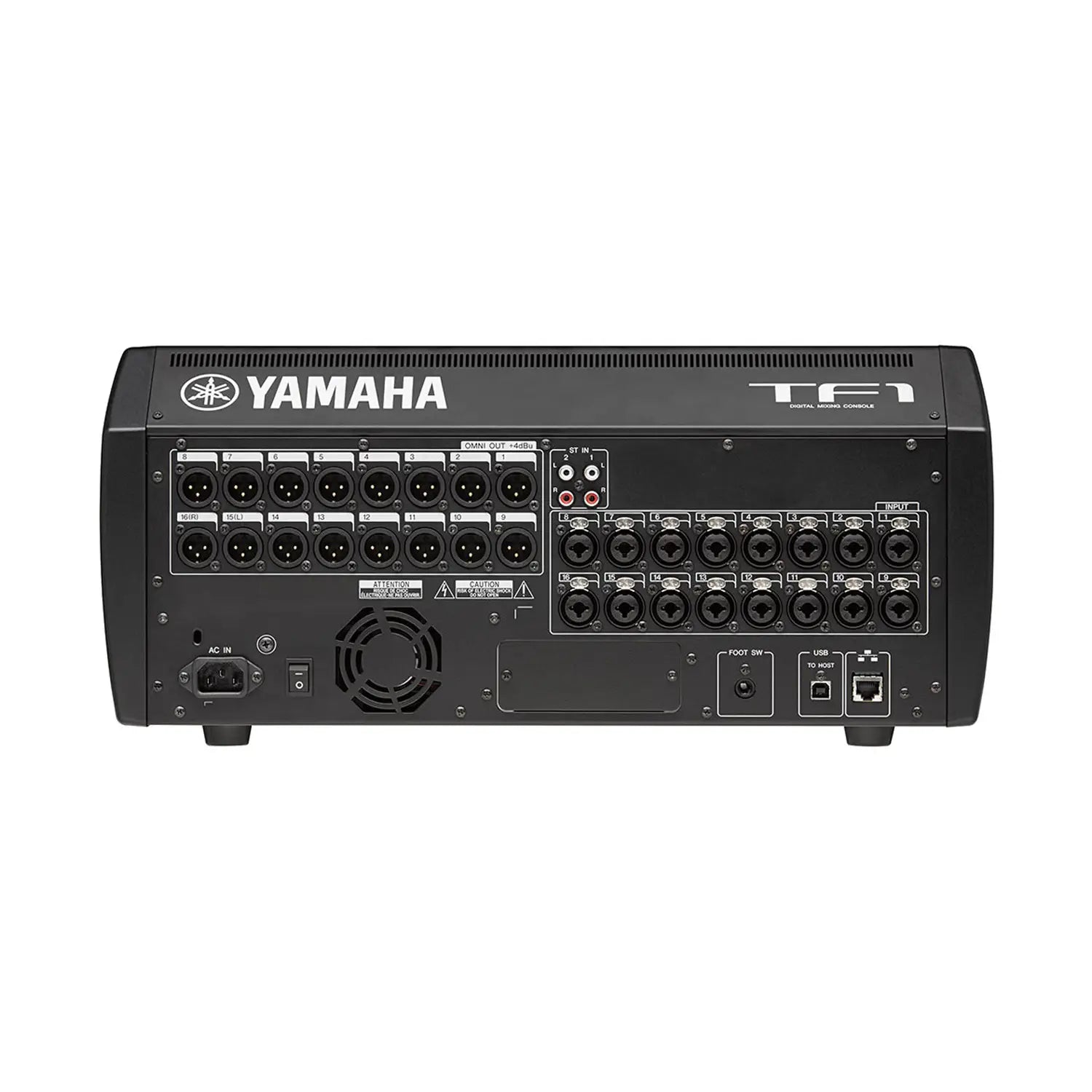

    Local input (on the back panel) includes 16x analogue XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs. Local output is 16x analog XLR…. but there is also space for the optional NY64-D (Dante) card in the back, or you can hook TF1 up to a TIO1608-D rack for remote deployment of 16 microphone/ line inputs and 8 line outputs,

    Like other Yamaha digital consoles (such as CL or QL series), TF1 allows the on-stage talent to curate a personal in-ear or wedge mix using Yamaha MonitorMix: Up to 10 iPhone, iPad or iPod touch devices simultaneously.

    TF1 features:

    • 17 motor faders (16 channels + 1 master)
    • 40 input mixing channels (32 mono + 2 stereo + 2 return)
    • 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
    • 8 DCA groups with Roll-out
    • 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
    • 16 analog XLR outputs
    • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
    • 8 Effects and 10 GEQ
    • 1 expansion slot for NY64-D audio interface card
    Fader Configuration 16 + 1 (Master)
    Mixing Capacity Input Channels 40 (32 mono + 2 stereo + 2 return)
    Aux Buses 20 (8 mono + 6 stereo)
    Stereo Buses 1
    Sub Buses 1
    Input channel functions 8 DCA Groups
    I/O Inputs 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
    Outputs 16 (XLR)
    Expansion slots 1
    On-board processors DSP 8 Effects + 10 GEQ
    General specifications
    Sampling frequency rate Internal 48 kHz
    Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
    Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
    Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
    Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
    Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
    Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
    Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
    Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
    Power requirements 100–240 V 50/60 Hz
    Power consumption 100 W
    Dimensions W 510 mm
    H 225 mm
    D 599 mm
    Net weight 13.5 kg
    Accessories Quick Guide, Power Cord, Nuendo Live
    Options Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
    Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
