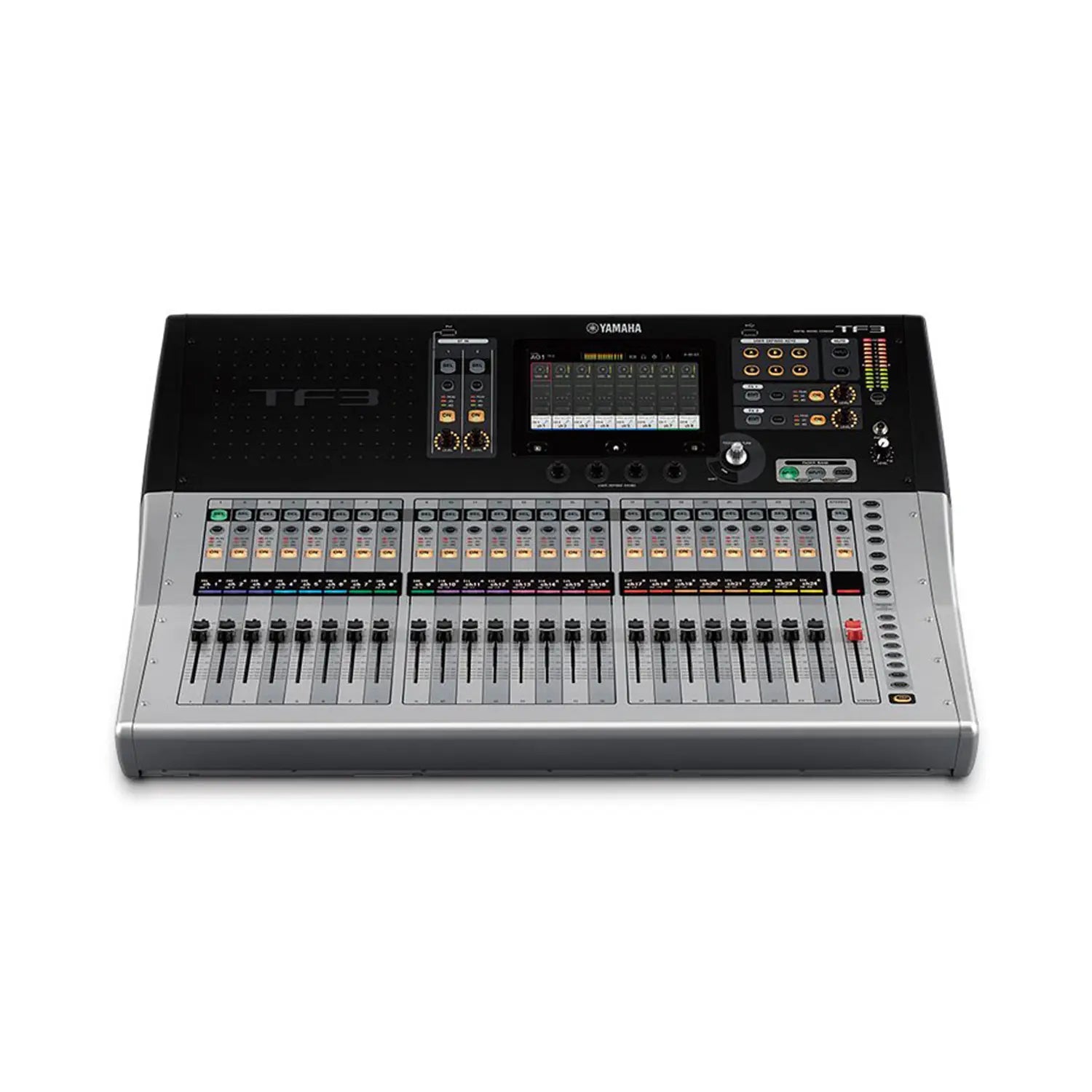

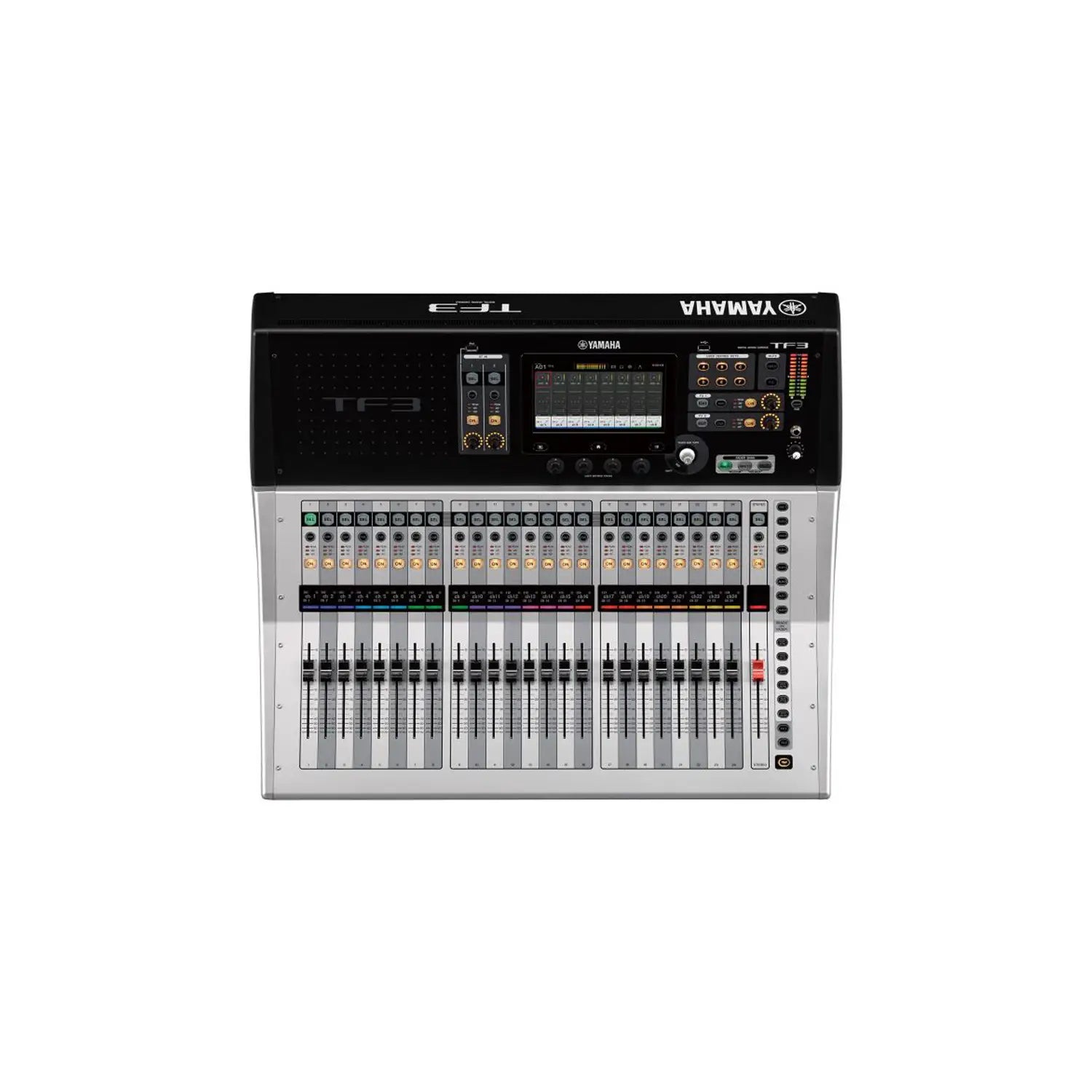

Yamaha TF3-MIXER

Close

    Contact us today

    Our price:$4,899.00 GST
    Order Code: TF3-MIXER

    Contact us for expected arrival, queue backorder

    40 mono channels; 4 stereo channels. 24 local inputs plus 2 stereo line inputs. 24 + 1 faders.

    Ample input capacity and hands-on control in a compact console that can handle a wide range of applications.

    • 25 motor faders (24 channels + 1 master)
    • 48 input mixing channels (40 mono + 2 stereo + 2 return)
    • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
    • 8 DCA groups with Roll-out
    • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
    • 16 analog XLR outputs
    • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
    • 8 Effects and 10 GEQ
    • 1 expansion slot for NY64-D audio interface card
    Fader Configuration 24 + 1 (Master)
    Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return)
    Aux Buses 20 (8 mono + 6 stereo)
    Stereo Buses 1
    Sub Buses 1
    Input channel functions 8 DCA Groups

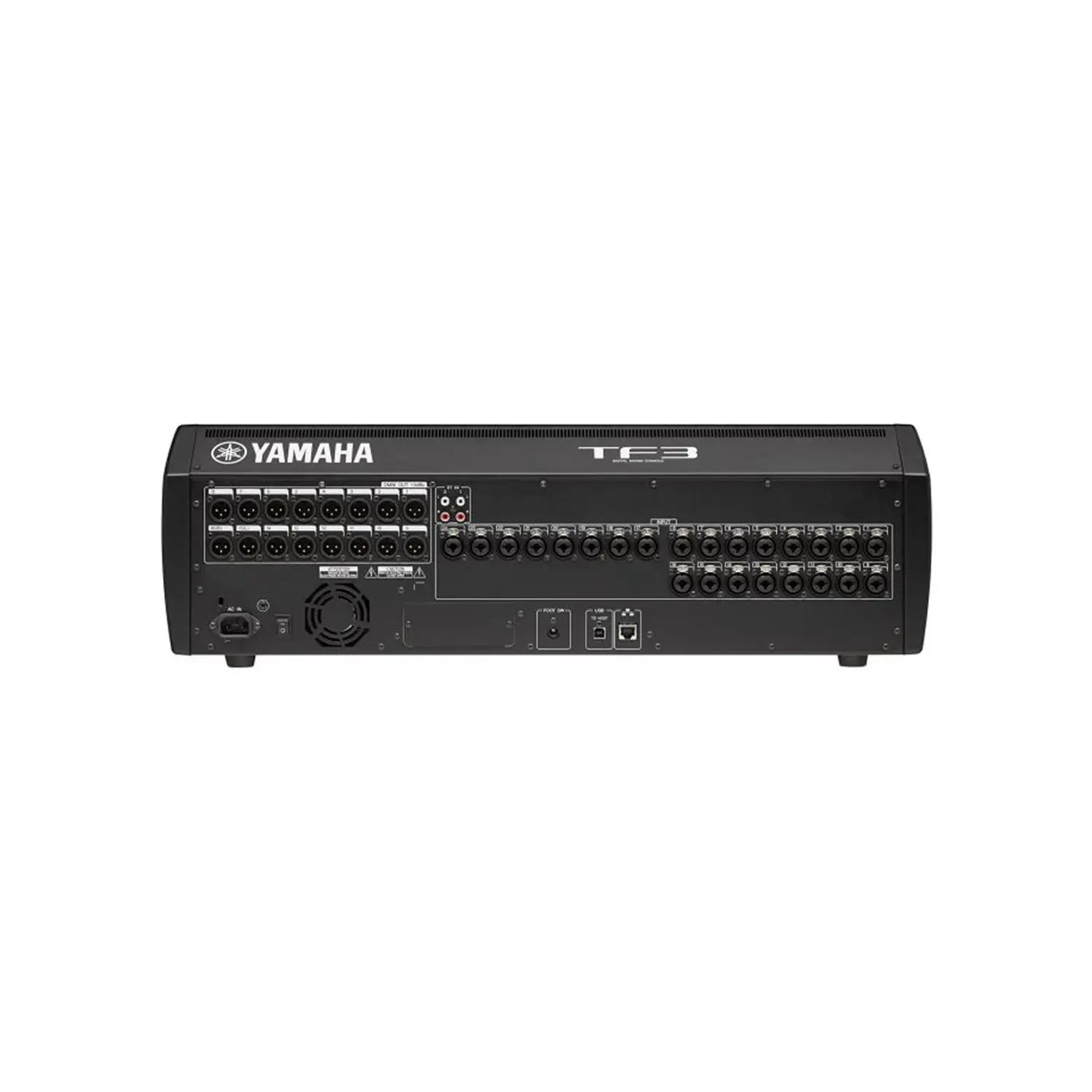

    I/O Inputs 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
    Outputs 16 (XLR)
    Expansion slots 1
    On-board processors DSP 8 Effects + 10 GEQ
    General specifications
    Sampling frequency rate Internal 48 kHz
    Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
    Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
    Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
    Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
    Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
    Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
    Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter)
    Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
    Power requirements 100–240 V 50/60 Hz
    Power consumption 110 W
    Dimensions W 716 mm (28.2in)
    H 225 mm (8.9in)
    D 599 mm (23.6in)
    Net weight 17.0 kg (37.5lb)
    Accessories Quick Guide, Power Cord, Nuendo Live
    Options Expansion Card, Foot Switch (FC5)
    Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
