IGS Audio Tilt n Bands

Stereo Vintage Equaliser
Close

Our price:$5,150.00 GST
Order Code: TILTNBANDS

Contact us for expected arrival, queue backorder

IGS Audio Tilt n Bands Vintage Stereo Equaliser includes custom IGS Audio input and output transformers, along with 6x 6N1P, 2x 6E2 tubesets.

The vintage design and circuit is super-useful in any mastering application.

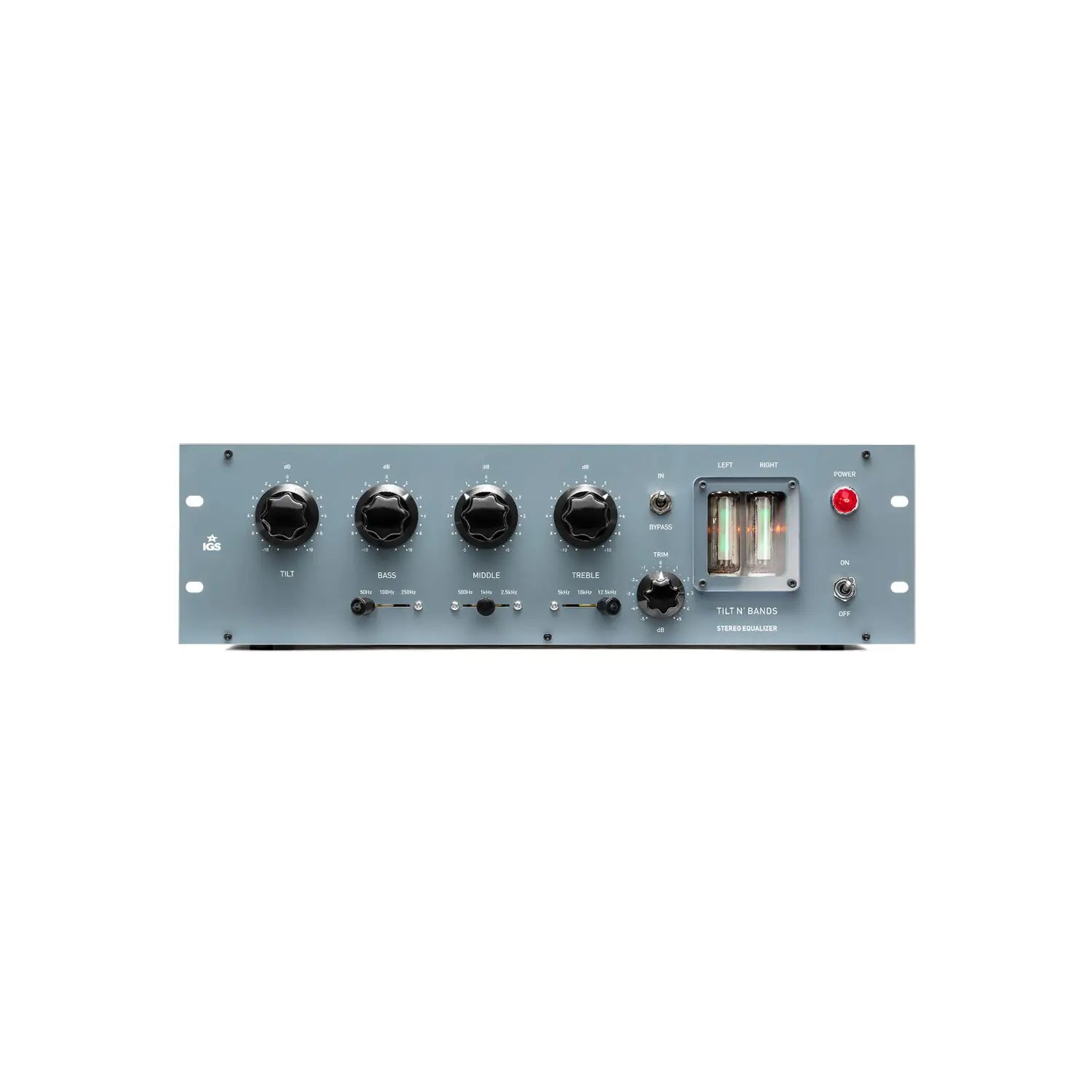

Aside from the TRIM knob and powerful TILT control, you also get big -10 to +10dB knobs to help control or bring out the bass, mid, and treble frequencies you can select via simple switches on the front panel.

Bass – 50Hz, 100Hz, 250Hz
Middle – 500Hz, 1kHaz, 2.5kHz
Treble – 5kHz, 10kHz, 12.5kHz

Use Tilt ‘n’ Bands on the way in while you’re tracking, get creative on a bus while you’re mixing, or help tweak your mastering process.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Basic features
Hard wire bypass yes
Q factor 0.5 to 5
Input & Output
Input Impedance (balanced) 10k Ohm
Output Impedance (balanced) 600 Ohm
Audio transformers IGS Custom on input and output
Levels
Operating Level +4 dBu nominal
Max output level +19 dBu
Noise Level -79 dB
Bandwidth
Frequency response 20 Hz to 40 kHz, +/-0.3dB
Distortion (@ 20 Hz – 20 kHz)
THD+N 0.2% (1kHz @ +19 dBu)
Crosstalk >70dB
Front Panel
VU Meters Magic eye
Power
Voltage 230/115
Power consumption 64W
Power supply Linear, internal
Others
Used for Mastering, tracking
Tube set 6x6N1P, 2x6E2
