IGS Audio Tubecore 500

Nothing sounds better than the vari-mu hit hard
Close

Our price:$1,575.00 GST
Order Code: TUBECORE500

Contact us for expected arrival, queue backorder

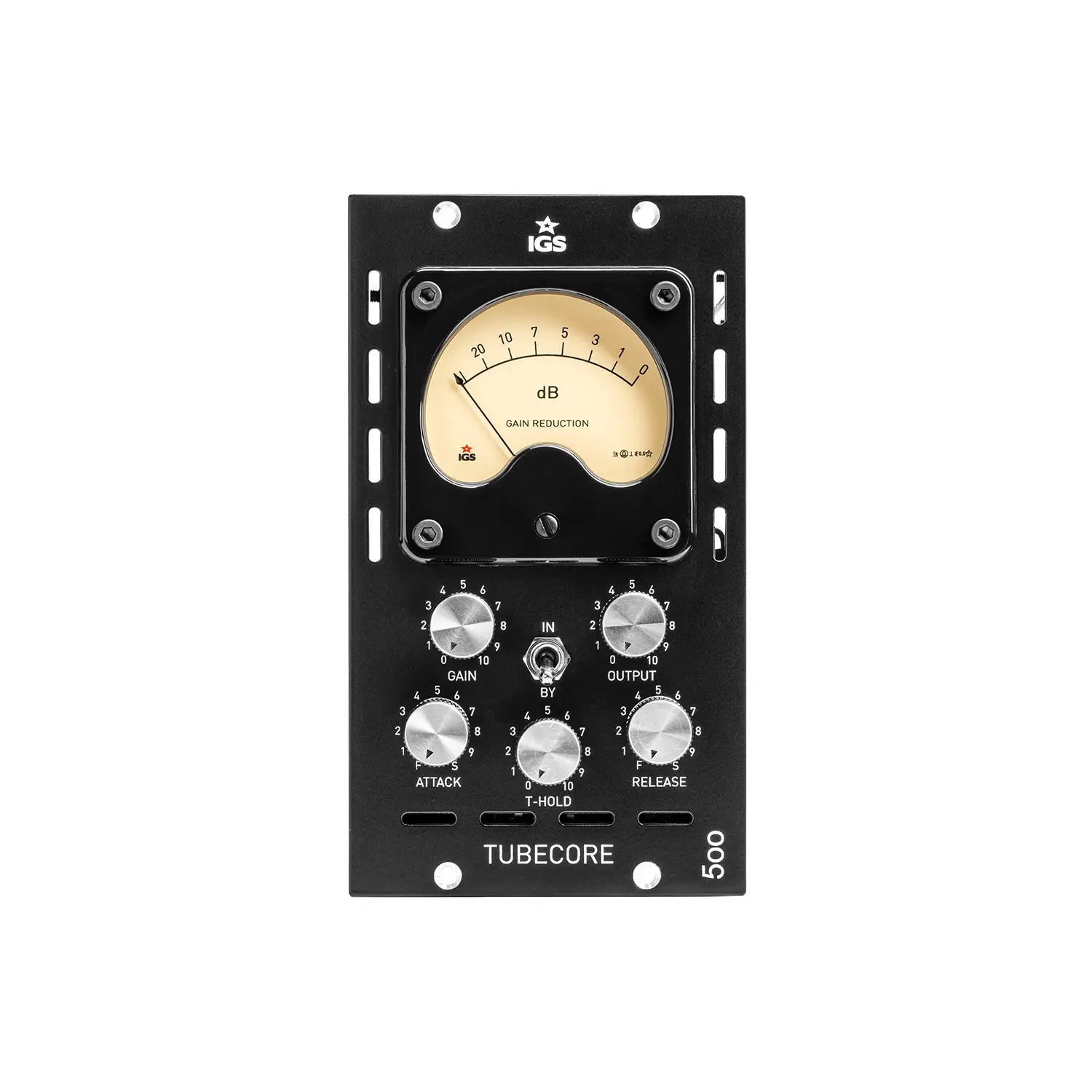

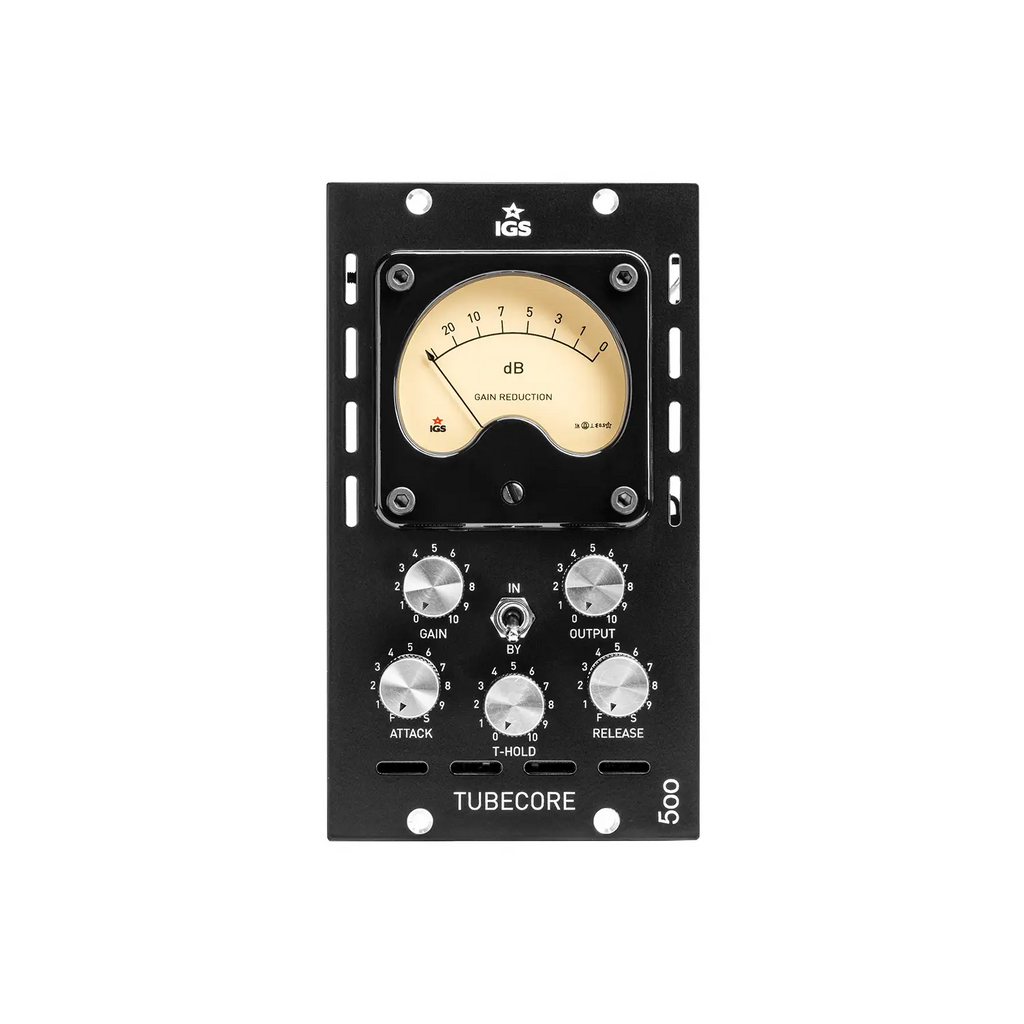

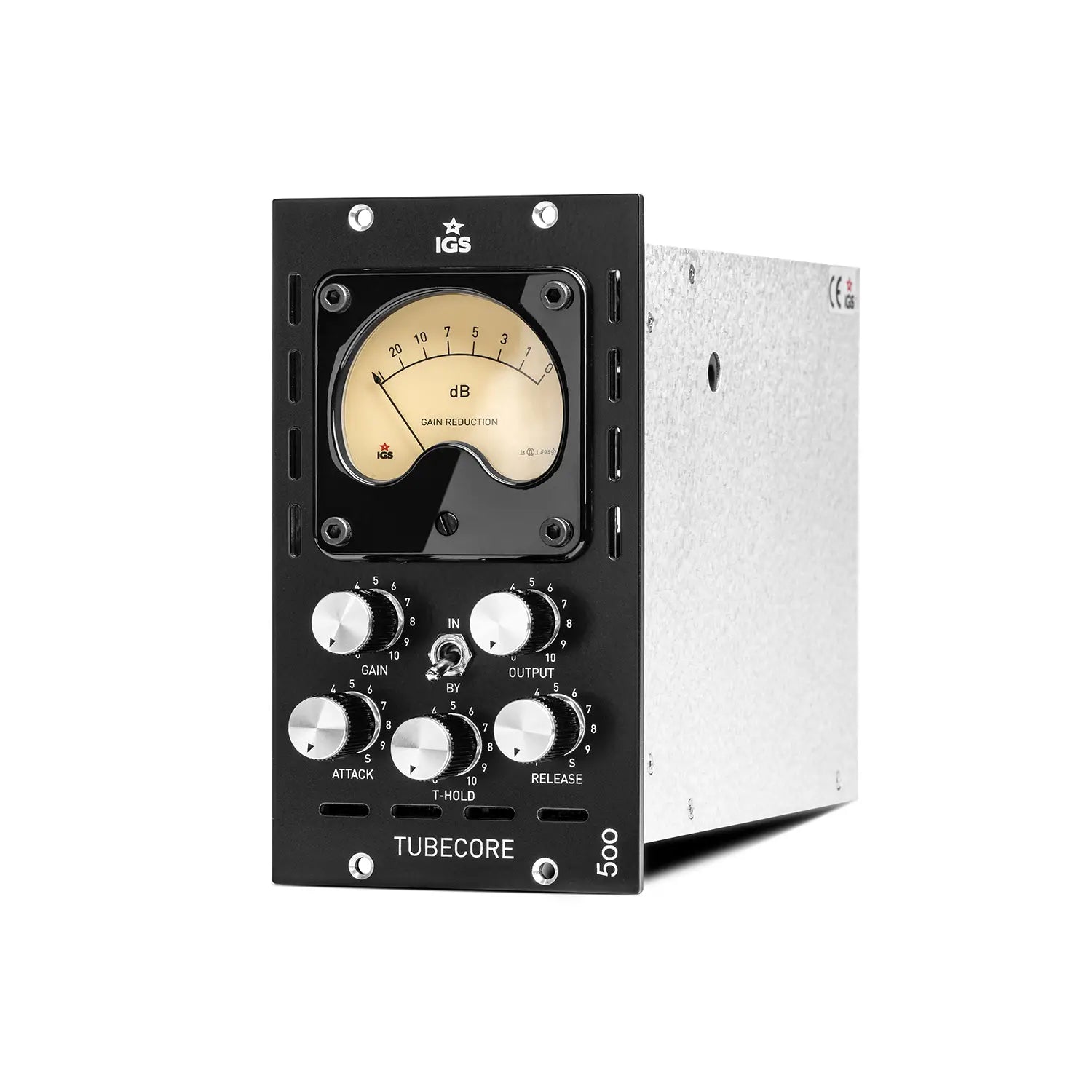

IGS Audio TUBECORE 500 is a full symmetric transformer balanced 500-series compressor, based on the typical vari-mu solution.

TUBECORE 500 is a true tube mono compressor, where compression is achieved using the remote cut-off of tube biasing. Could be used as a mono tracking compressor or (as a matched pair) as an advanced mastering tool.

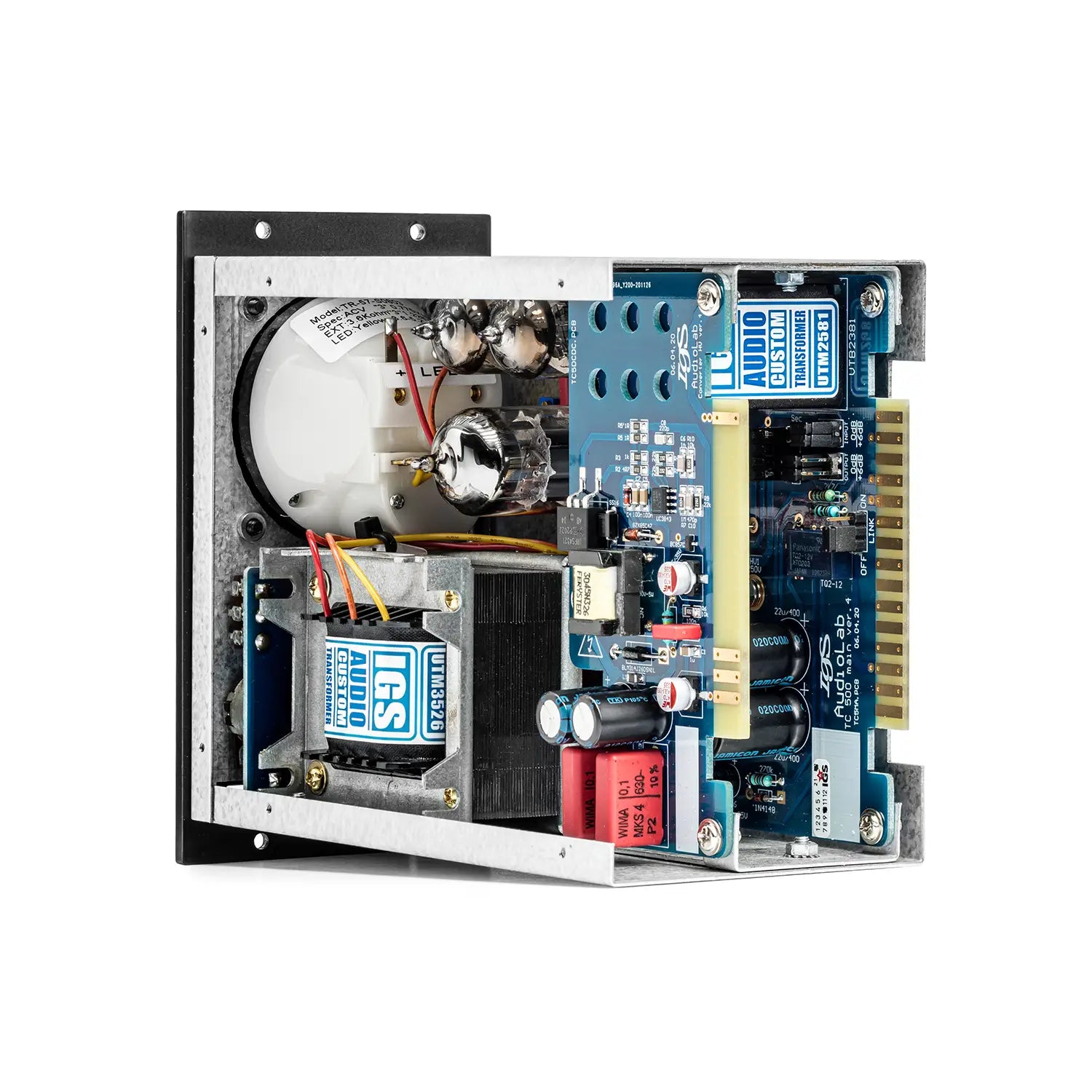

Every single TUBECORE 500 is hand made with high quality, matched components (1% metal film resistors, 2.5% Wima caps). It is equipped with JJ tubes and individually calibrated to give you the unique and unspoiled experience of one of the best Vari-mu compressors in history.

Hundreds of hours were spent designing TUBECORE, to make sure that it is as simple to use as it is versatile. Not only for harmonically rich drums and guitars, but also for huge vocals and bass instruments. Two audio transformers (IGS Custom) have been used to provide excellent performance.

TUBECORE 500 has an option of linking two mono modules into the stereo pair. The module with deeper compression set (or slower attack/release settings) will become the master module, that controls the other TC500 unit. You also have an option of choosing input and output levels of your Tubecore 500 unit with extra jumpers on the back of the PCB. Adjusting these levels might be handy if you would like to use extra deep compression.

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Device type
Vari Mu Compressor Yes
Basic features
Stereo Link Yes
Hard wire bypass Yes
Input & Output
Input Impedance (balanced) 600 ohm
Output Impedance (balanced) 600 ohm
Audio transformers Yes, IGS Custom
Levels
Operating Level +4 dBu
Max input level +22 dBu
Max output level +22 dBu
Noise Level -99 dBA
Max. gain 40 dB
Max Gain Reduction 30 dB
Time constants
Attack: 0.1 – 30 ms
Release: 0.1 – 4s
Bandwidth
Frequency response 8 Hz – 20k Hz, +/- 1 dB
Distortion (@ 20 Hz – 20 kHz)
THD+N 0.002% @ 0dBu
Front Panel
VU Meters Yes, GR (backlit)
Power
Voltage API Standard, internal DC-DC conversion for powering tubes (250V DC)
Power consumption 12W
Others
Tube set ECC82, 6AK5 x2
