Laptop DI: USB to 2 x XLR outputs

Our price:$299.00 GST
Order Code: USBDI

Contact us for expected arrival, queue backorder

USBDI is designed with simplicity in mind, helping drive your laptop/AV sound to the PA as cleanly as possible. All the interesting bits are safely tucked away under the hood, so this one is perfect for true ‘plug and play’ operation.

USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX, Win XP, Windows 7 and 8

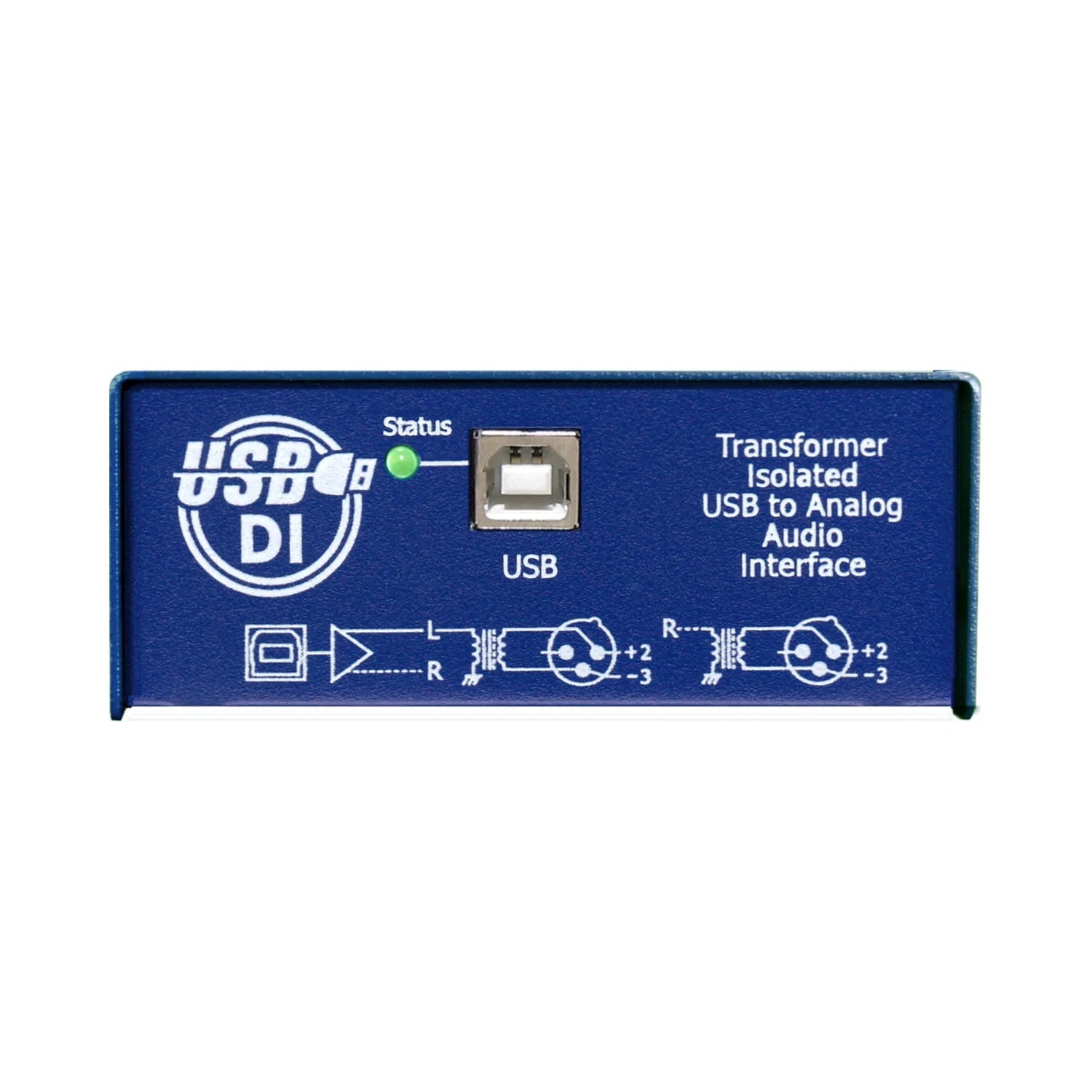

The front panel has a Type B USB input connector for input, and a switch for ground lift. Flip around to the output side you’ve got two transformer balanced analog audio XLR line out connectors for connecting to any standard balanced analog input.

A status LED on the front panel indicates that the USB DI is connected and operating.

Do you need volume control with that?
Check out USB DI VC

Input Connector: USB type B port
Codec: 24 bit High Resolution
Output Impedance: 300 Ohms Transformer Balanced
Output Level: Maximum nominal output level 0dB
Output Noise: USB – System dependent
ISO transformer – Enviroment sensitive
Frequency Response: 20 – 20 KHz ± 0.5 dB
Power: Operating current via USB Port 80mA
Output Connectors: 2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 Floating / not connected
Construction: All-steel powdercoated chassis, fibreglass PCB, epoxy printing,
slip-resistant rubber feet
System Requirements:

Windows PC running Windows XP, Windows 7 or 8, Mac running OS X or later;
USB Port
