IGS Audio Vanad 500

500 Series Preamplifier with character

Our price:$1,290.00 GST
Order Code: VANAD500

Contact us for expected arrival, queue backorder

IGS Audio VANAD 500 is a mic/instrument preamp designed in the API 500 standard.

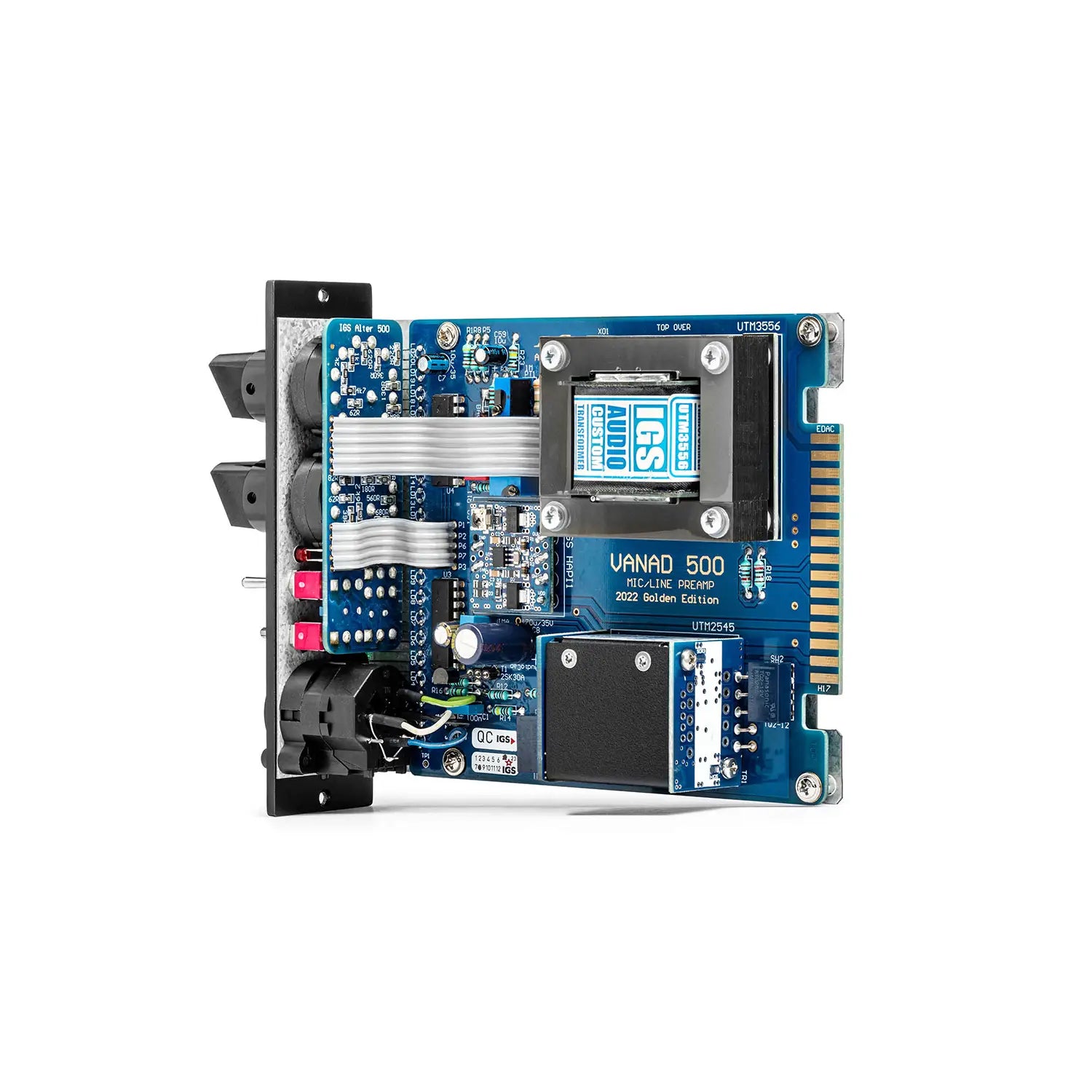

The module is a transformer balanced on inputs and outputs using IGS Custom made transformers. All regulators on the front panel are stepped switches.

This is excellent for recording any sources, including line signals from instruments like guitars or keyboards (Hi-Z input at the front of the unit).

VANAD 500 preamplifier can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. With the separate gain and output controls (switches) you can push it nicely, but still make sure that you don’t overload the next stage of your signal chain.

The microphone input is accessible from the back and at the front of the unit. Handy!

Not the piece of gear you’re looking for?

For more hand-made IGS Audio recording channels and signal processing, check our IGS Audio brand page here

Basic features
All stepped manipulators Yes
HPF OFF, 30 Hz, 100 Hz (6dB/oct)
Input & Output
Phantom Power Yes
Input Impedance (balanced) 1.2 kohm, IGS Custom transformer
Input Pad -30 dB to 0, step 3 dB
Output Impedance (balanced) 600 ohm, IGS Custom transformer
Max input level +20 dBu (line)
Max output level +22 dBu
Noise Level -99 dBA
Max. gain 60 dB
Distortion (@ 20 Hz – 20 kHz)
THD+N up to 0.2%
Power consumption 3W
